Профессиональная грануляторная мельница из
- Категории: Agricultural Machinery & Equipment >>>
- Поставщик: Liyang,Hongyang,Feed,Machinery,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
Products Description

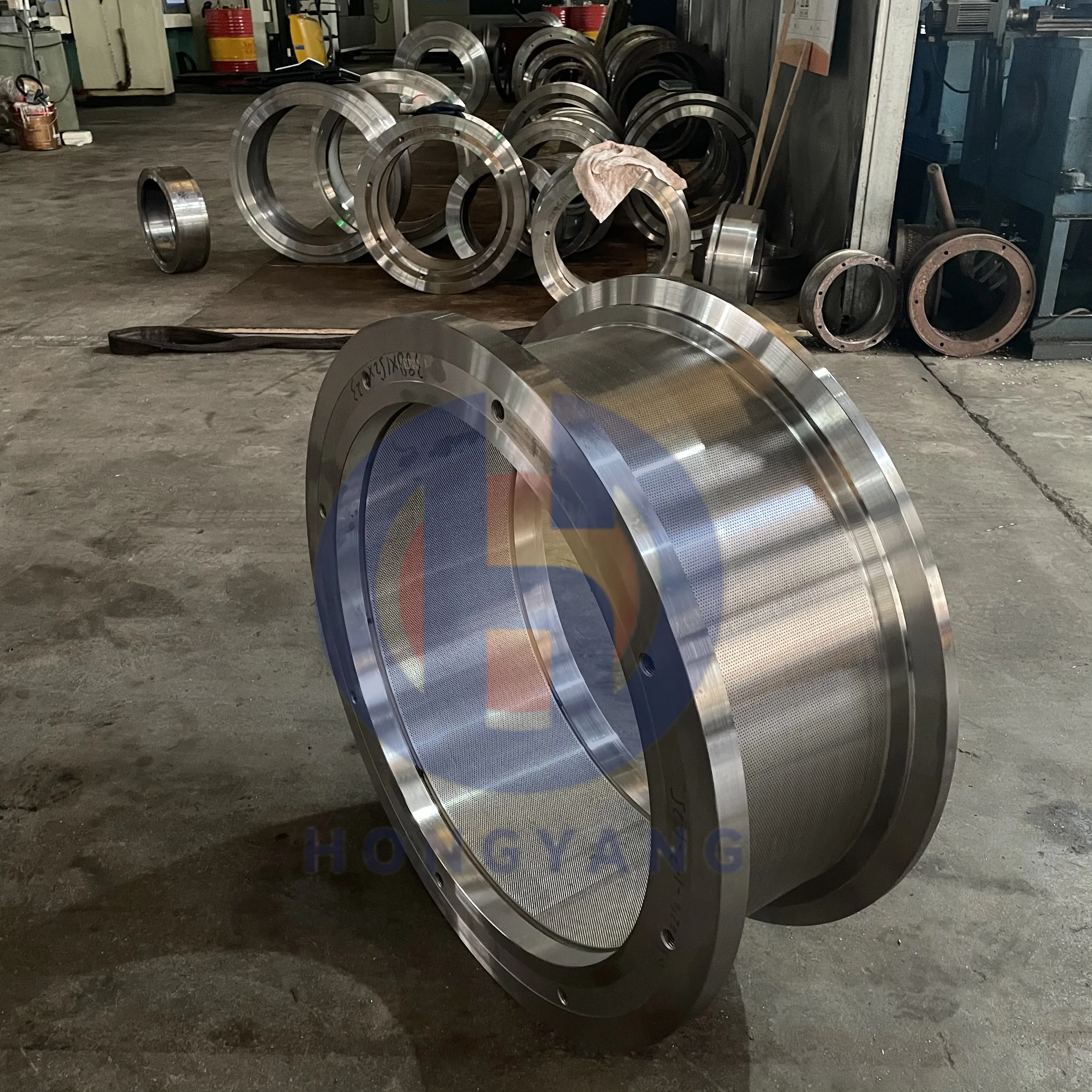

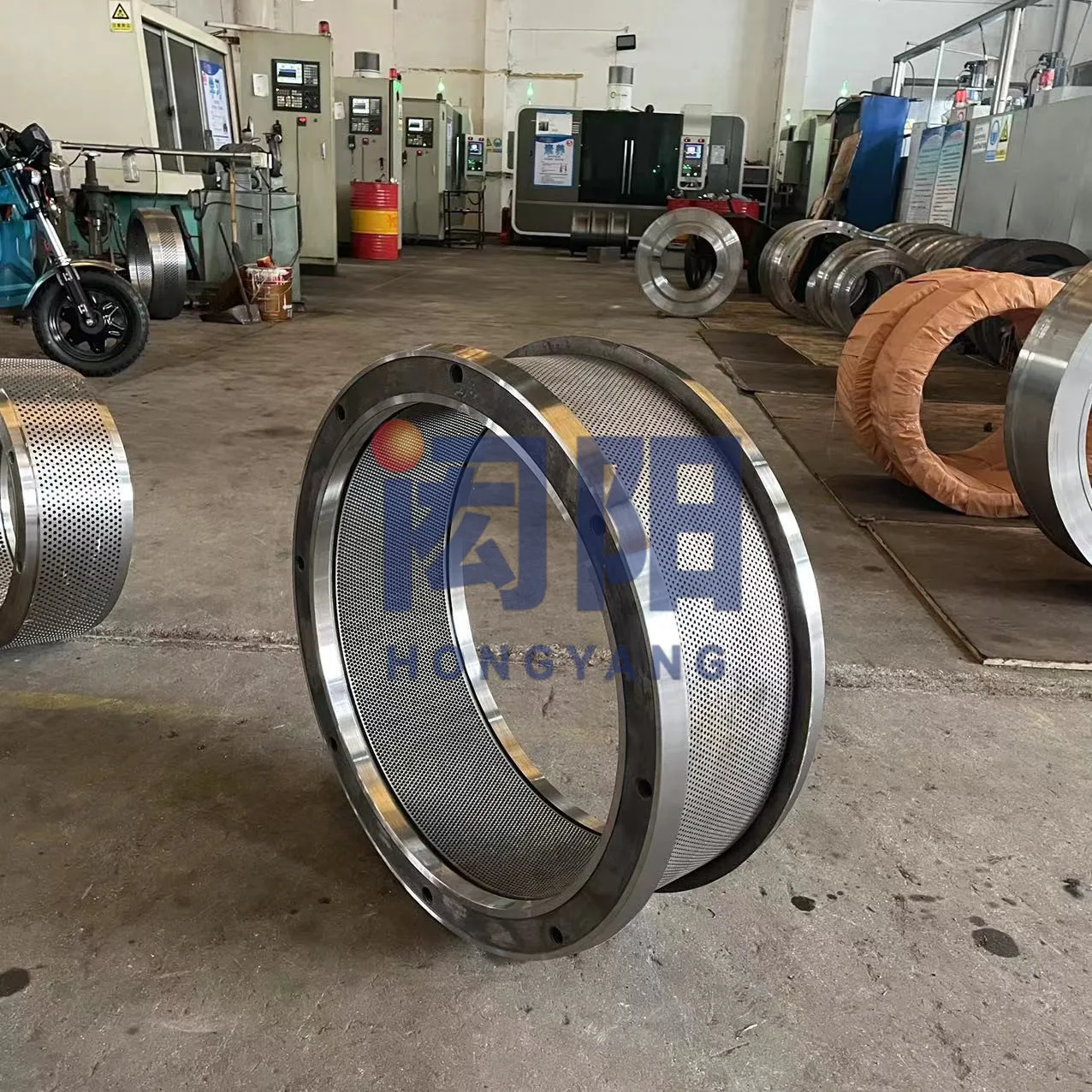

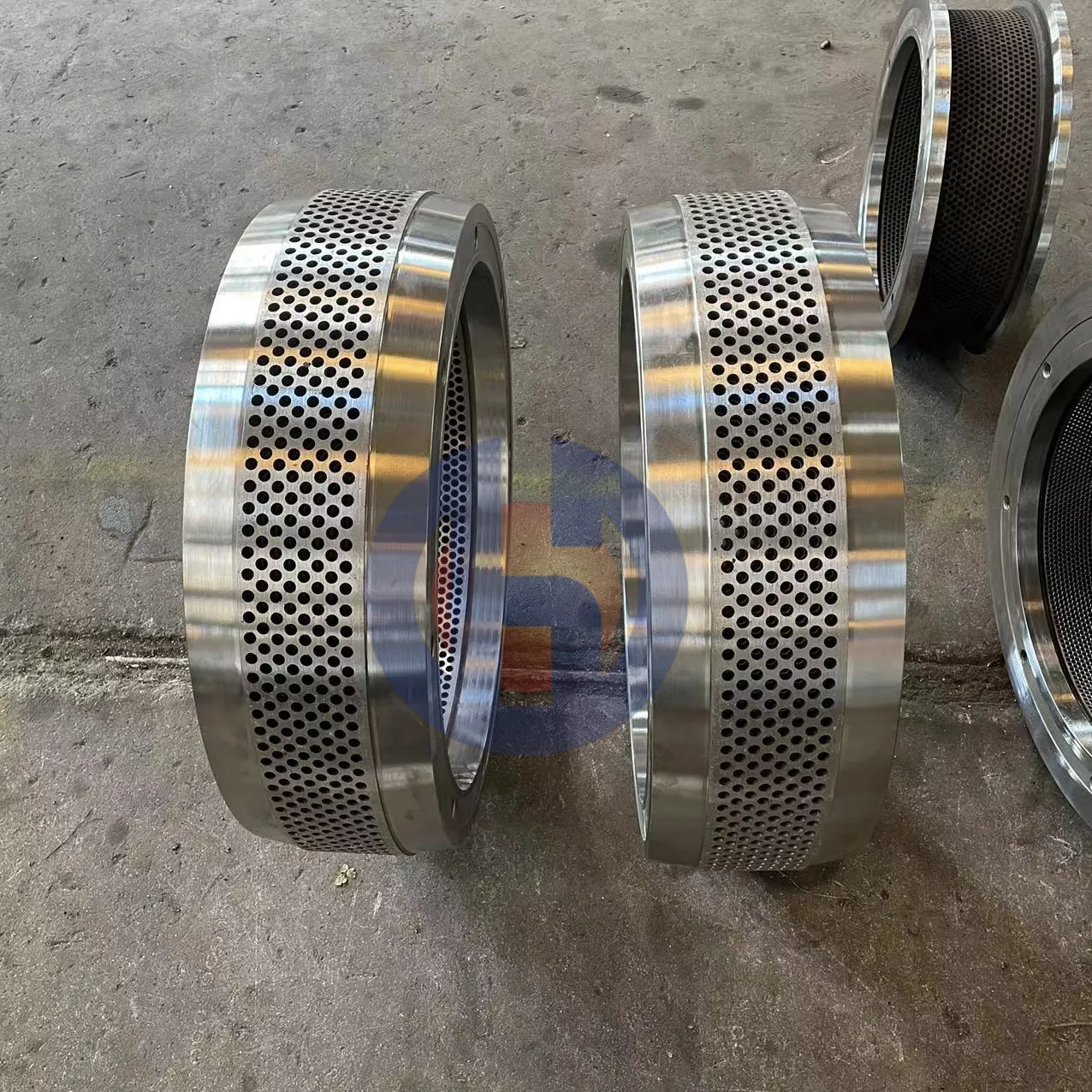

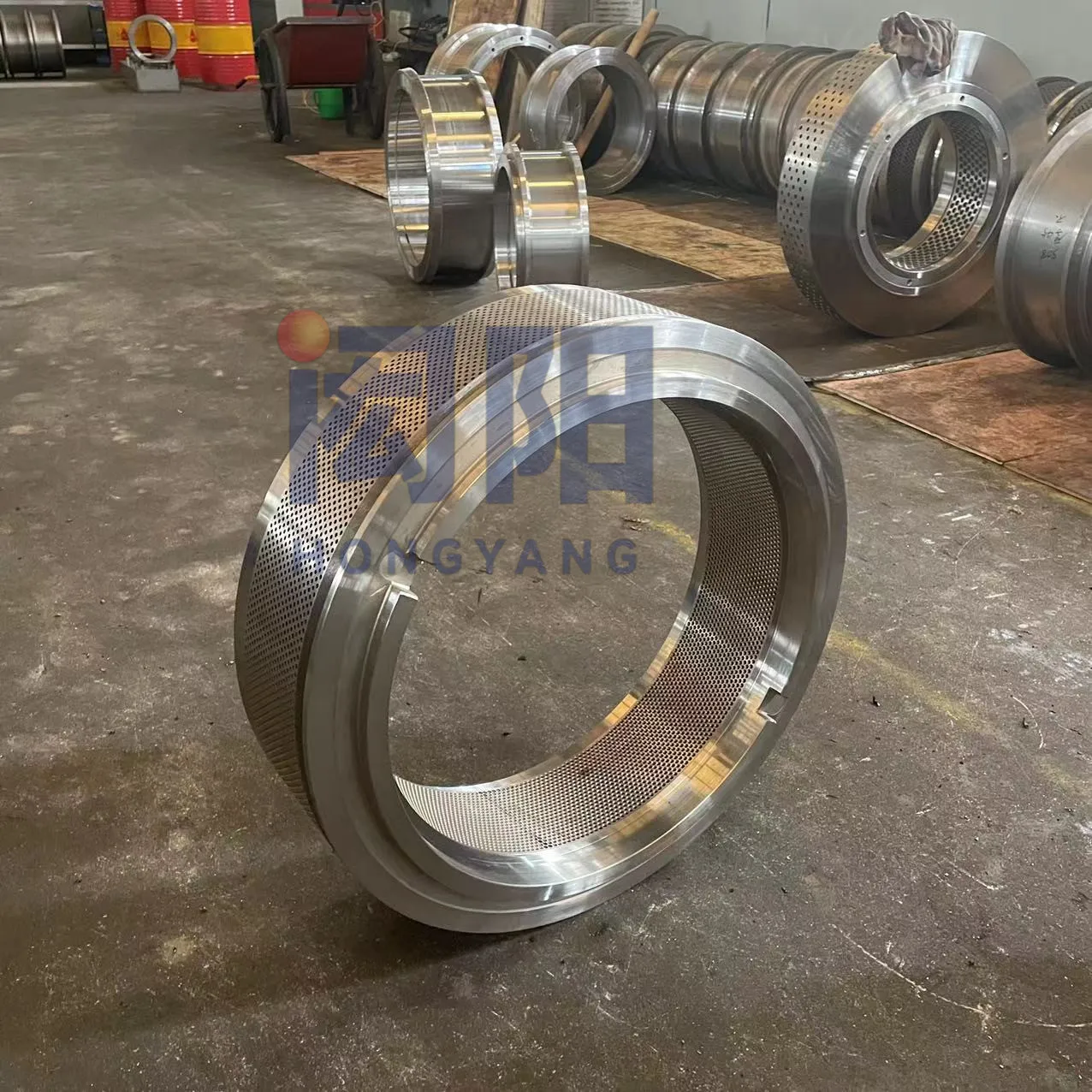

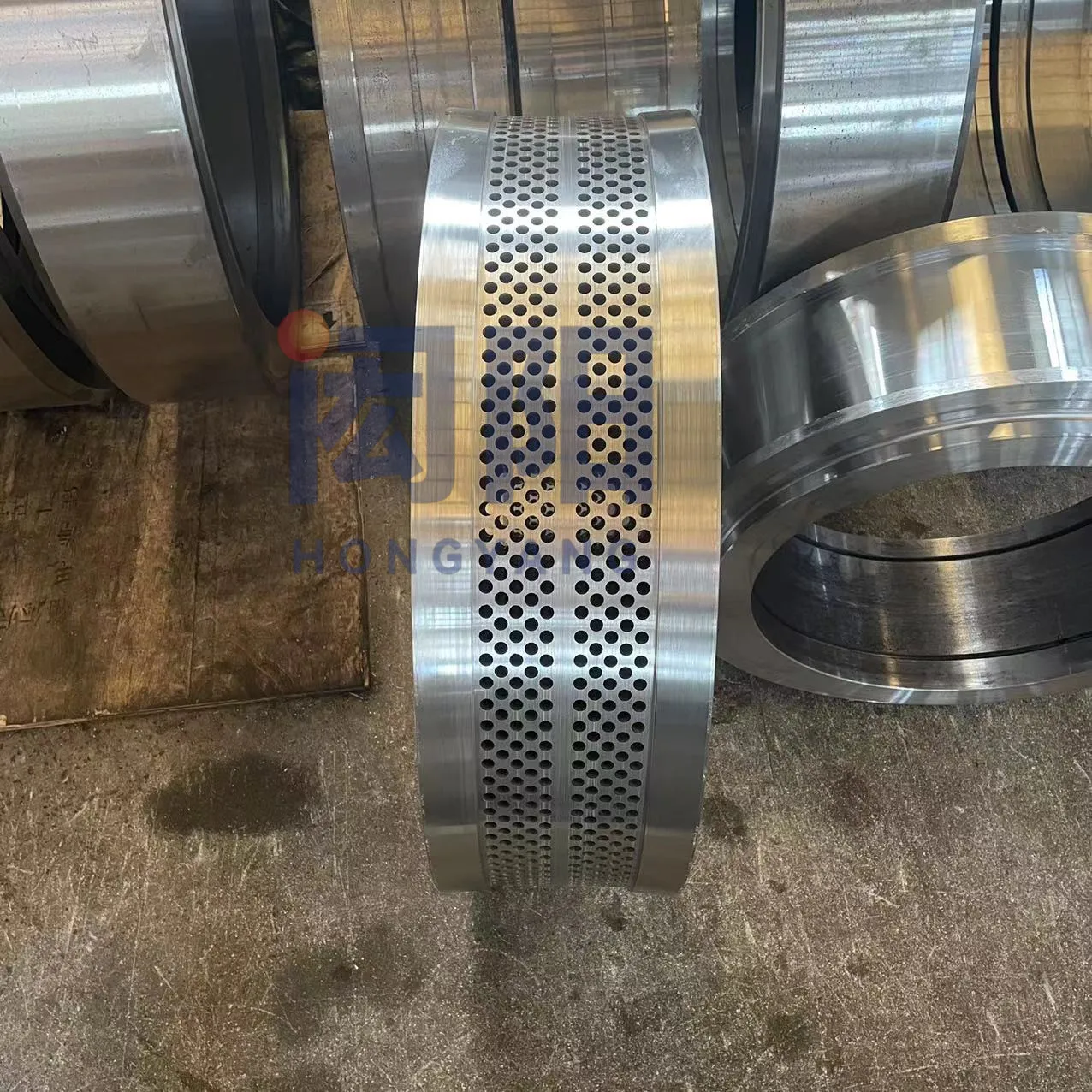

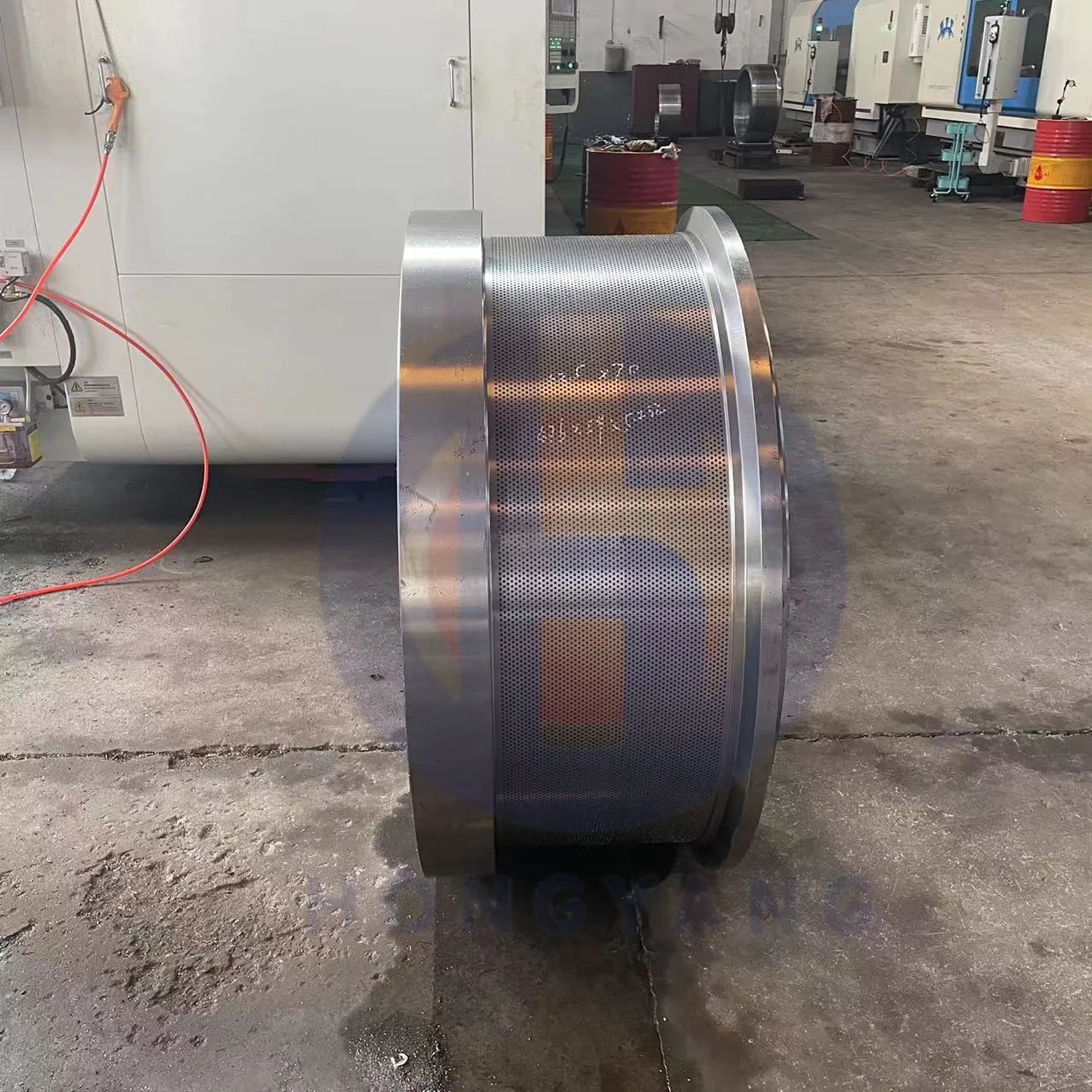

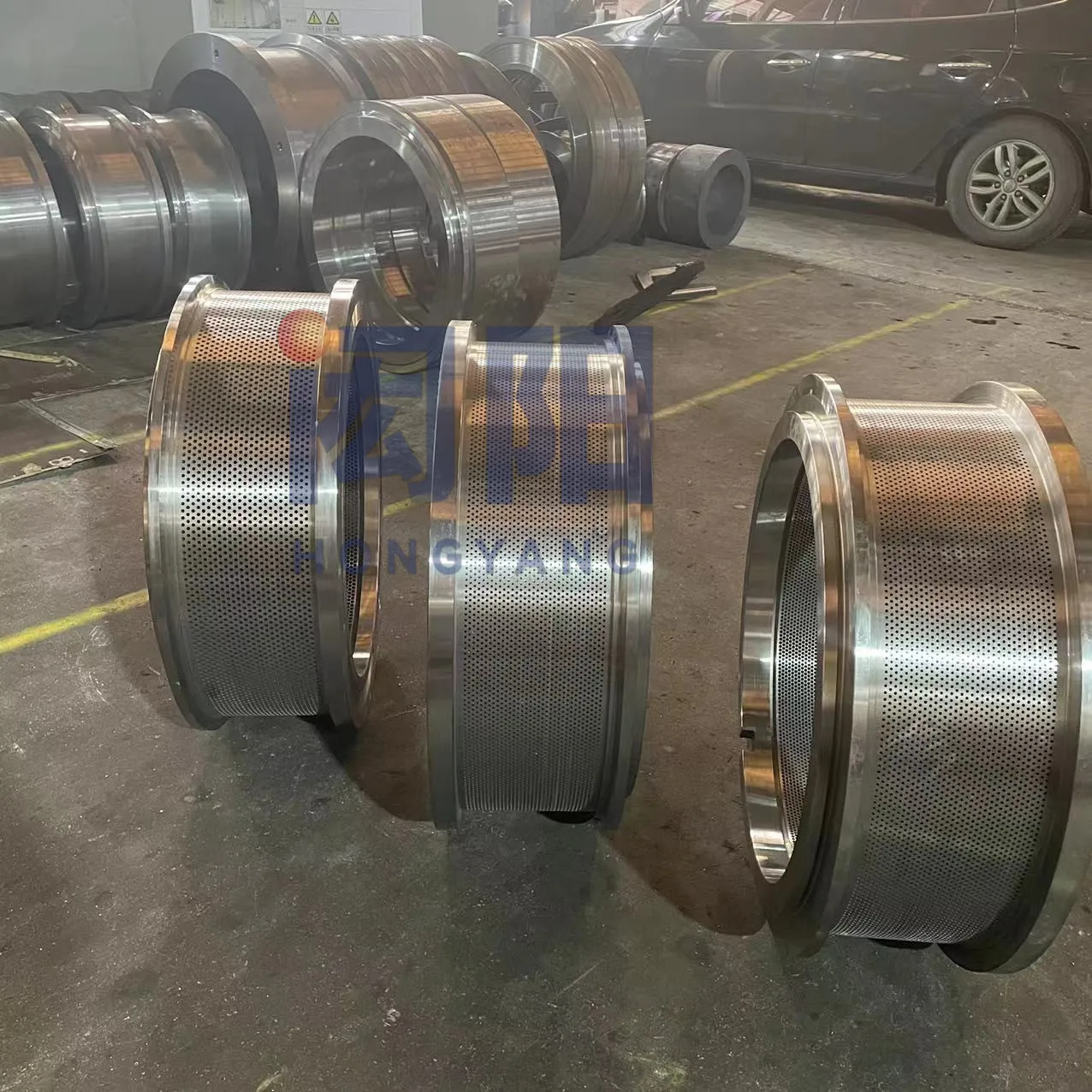

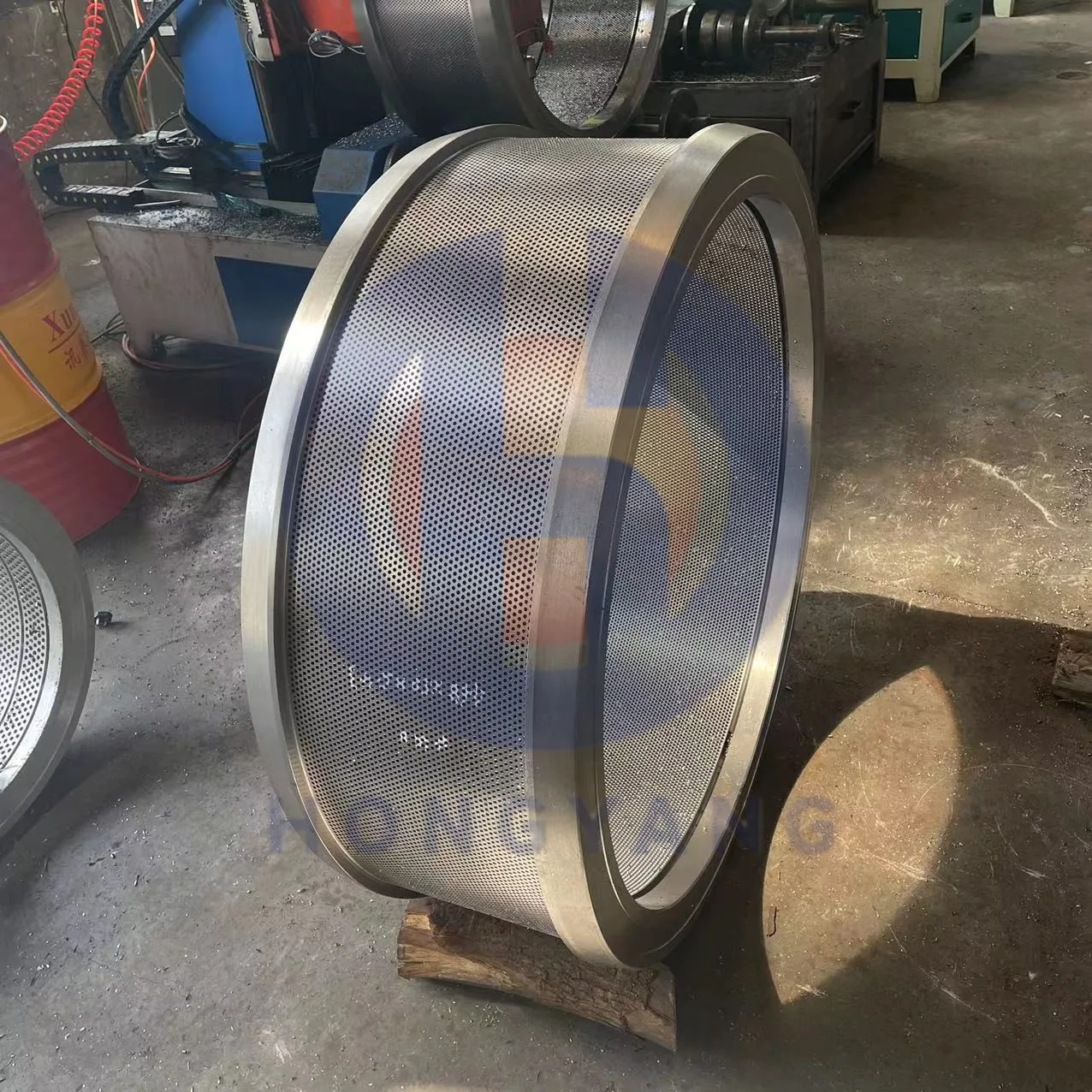

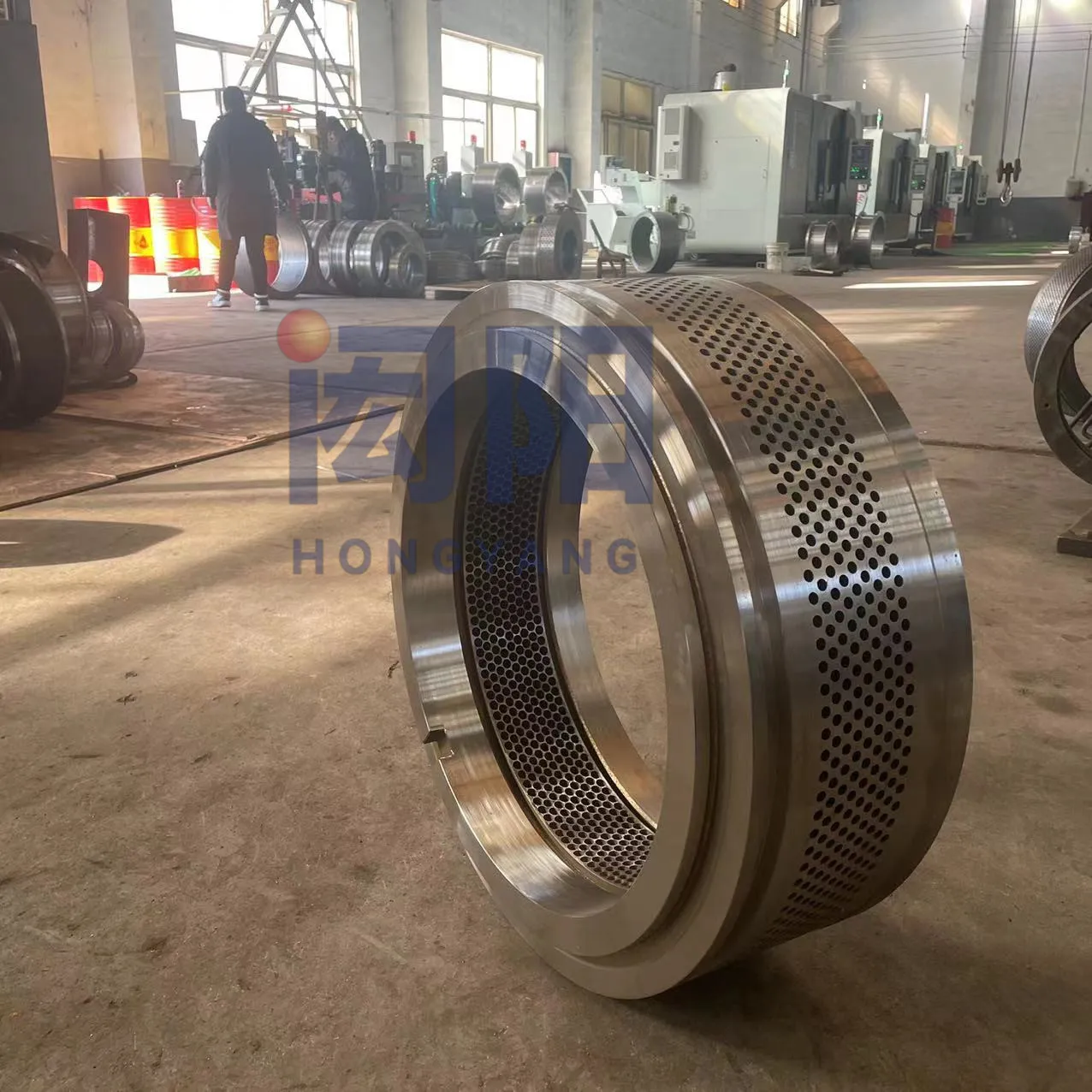

Our ring dies are suitable for:
1. Biomass pellet machine: wood pellet machine, sawdust pellet machine, grass pellet machine, straw pellet machine, crop straw
pellet machine, alfalfa pellet machine, etc.
2. Livestock and poultry/aquaculture feed pellet machine: pig/cattle/sheep/chicken/duck/fish/shrimp
3. Cat litter granulator
4. Compound fertilizer
Features:
1. Select high-quality refining and degassing blank outside the furnace

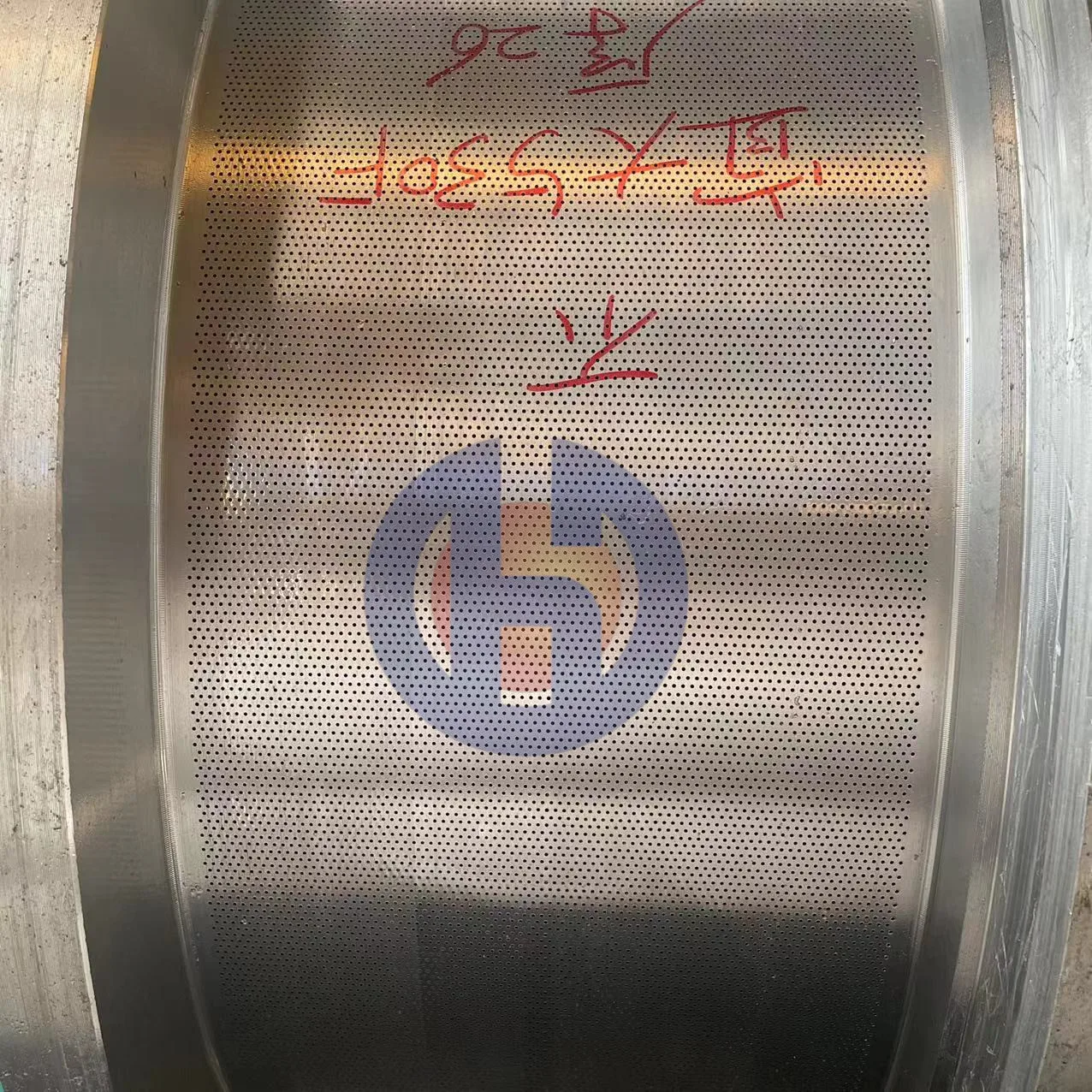

2. The mold adopts imported gun drilling and multi-station group drilling, the mold hole is formed at one time, the finish is
high, the production feed appearance is beautiful, the output is high, the discharge is smooth, and the granules are well formed
3. The mold adopts the combined treatment process of the American vacuum furnace and the continuous quenching furnace, which is
quenched uniformly, the surface finish is good, the hardness is high, and the service life is doubled.
1. Biomass pellet machine: wood pellet machine, sawdust pellet machine, grass pellet machine, straw pellet machine, crop straw
pellet machine, alfalfa pellet machine, etc.
2. Livestock and poultry/aquaculture feed pellet machine: pig/cattle/sheep/chicken/duck/fish/shrimp
3. Cat litter granulator
4. Compound fertilizer
Features:
1. Select high-quality refining and degassing blank outside the furnace
2. The mold adopts imported gun drilling and multi-station group drilling, the mold hole is formed at one time, the finish is
high, the production feed appearance is beautiful, the output is high, the discharge is smooth, and the granules are well formed
3. The mold adopts the combined treatment process of the American vacuum furnace and the continuous quenching furnace, which is
quenched uniformly, the surface finish is good, the hardness is high, and the service life is doubled.
Material | Hardness | Diameter | Outer diameter | Level | Certification |
X46Cr13/4Cr13(stainless steel);20MnCr5/20CrMnTi(Alloy Steel) | HRC54-60 | 1.0mm-28mm | <1800mm | 1 | CE/IOS |
S/N MODELSize OD*ID*overall width*pad width -mm
1 MUNCH304 381*304*58
2 MUNCH420.138 489*420*152*108
3 MUNCH420.138 489*420*182*138
4 MUNCH520.138 610*520*182*138
5 MUNCH520.178 617*520*212*178
6 MUNCH660.138 790*660*196*138
7 MUNCH660.178 790*660*236*178
8 MUNCH660.228 790*660*286*228
9 MUNCH660.265 790*660*323*265
1 MUNCH304 381*304*58
2 MUNCH420.138 489*420*152*108
3 MUNCH420.138 489*420*182*138
4 MUNCH520.138 610*520*182*138
5 MUNCH520.178 617*520*212*178
6 MUNCH660.138 790*660*196*138
7 MUNCH660.178 790*660*236*178
8 MUNCH660.228 790*660*286*228
9 MUNCH660.265 790*660*323*265

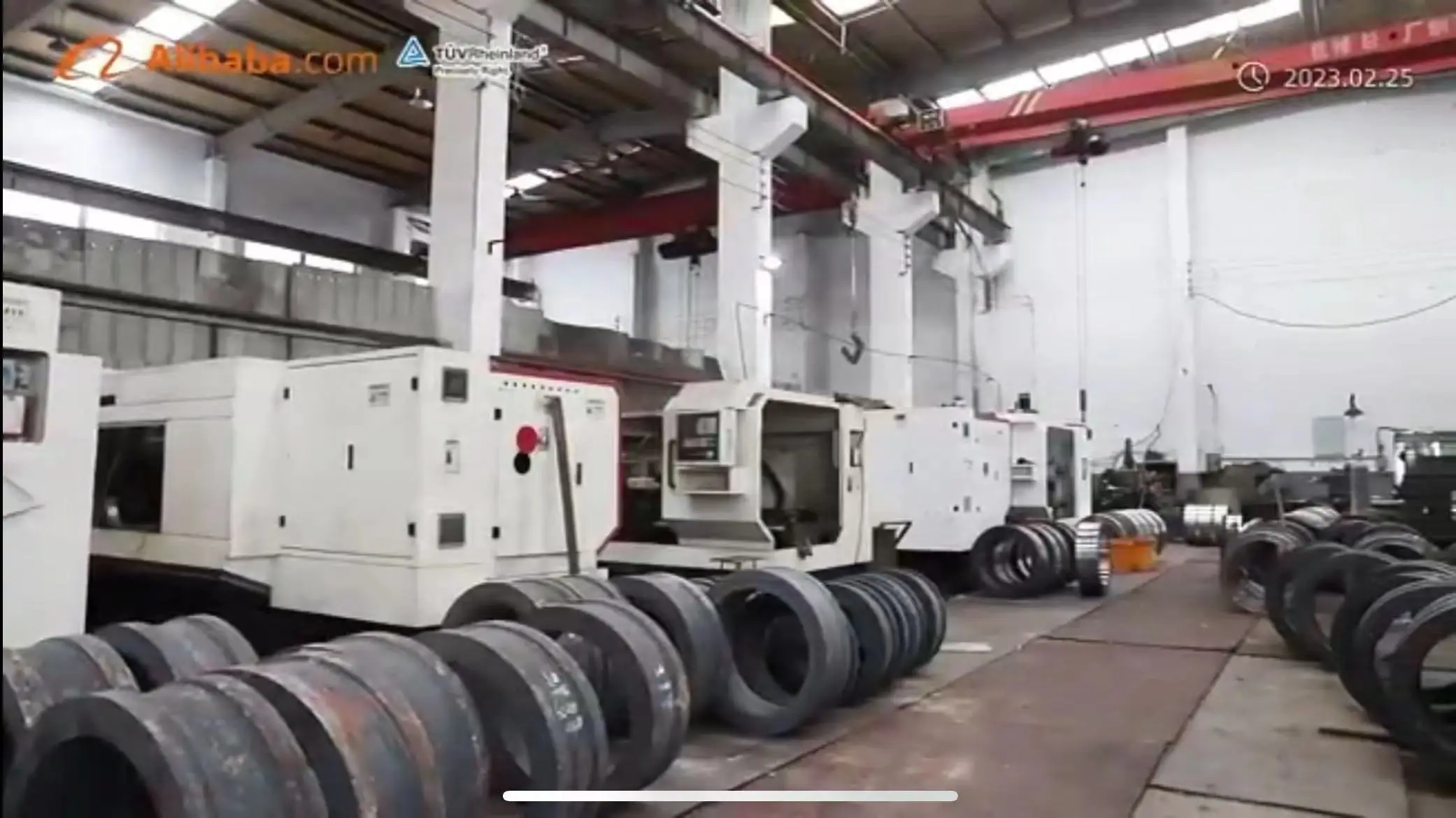

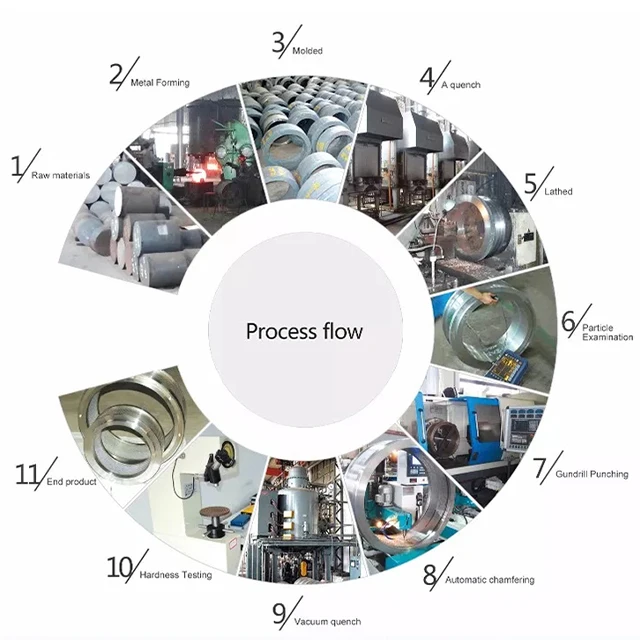

Manufacturing Technique
