Description:
1.Low start up wind speed, 3 blades ,high wind energy utilization

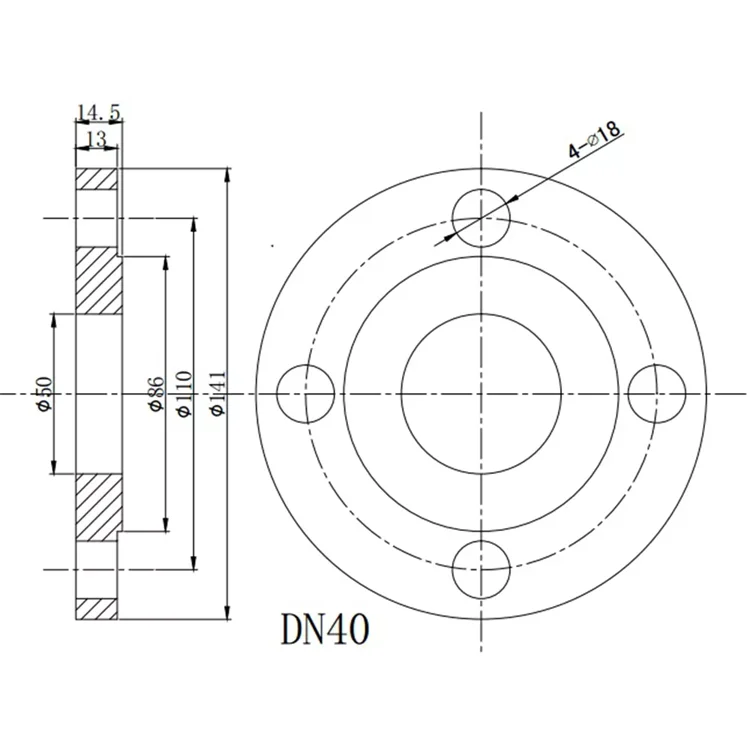

2.Easy installation, tube or flange connection optional
3.Blades using new art of precision injection molding,matched with optimized aerodynamic shape and structure,which enhance the wind energy utilization and annual output.
4.Body of casting aluminum alloy, with 2 bearings swivel , making it survive stronger wind and run more safely
5.Patented permanent magnet ac generator with special stator,effectively reduce torque,well match the wind wheel and generator, and ensure the performance of whole system.
6.Controller,inverter can be matched accroding to customers’ specific needs
2.Easy installation, tube or flange connection optional
3.Blades using new art of precision injection molding,matched with optimized aerodynamic shape and structure,which enhance the wind energy utilization and annual output.
4.Body of casting aluminum alloy, with 2 bearings swivel , making it survive stronger wind and run more safely
5.Patented permanent magnet ac generator with special stator,effectively reduce torque,well match the wind wheel and generator, and ensure the performance of whole system.
6.Controller,inverter can be matched accroding to customers’ specific needs
Rated power | 1000w | 2000w | 2500w | 3000w | 4000w | 5000w | 6000w | ||||||
Maximum power | 1500w | 2500w | 3000w | 3500w | 4500w | 5500w | 6500w | ||||||
Rated voltage | 48V/96V/120V/220V/240V | ||||||||||||
Start the wind speed | 2m/s | ||||||||||||
Operating wind speed | 3.5m/s-13m/s | ||||||||||||
Safe wind speed | 55m/s | ||||||||||||
Number of blades | 3 | ||||||||||||
Blade material | Reinforced nylon fiber | ||||||||||||
Fuselage material | Reinforced die-cast aluminum | ||||||||||||
Magnetic steel material | NdFeB | ||||||||||||
Generator type | Three-phase AC permanent magnet synchronous generator | ||||||||||||
Control mode | Electromagnetic brakes/The wind wheel is on the side | ||||||||||||
Wind direction adjustment | Automatically adjusts the windward angle | ||||||||||||
Q1：Can I have a sample order?
A: Yes, we accept sample order to test and check the quality. Mixed samples are acceptable.
Q2. Is it OK to print my logo on the product?
A: Yes. MOQ is 50 pcs for printing your own logo. Please send us your design file and we will make it for you.
Q3 :How long is the lead time of orders?
A: Lead Time: Around 25 Days after receive the deposit.
Q4 :Can we get support if we have our own market position?
A: Please inform us your details market demand we will discuss and propose helpful suggestion for you to find the best solution for you.
Q5 :What is your trade Assurance?
A: 100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
100% product on time shipment protection.
100% payment protection for your covered amount.
