Product Description

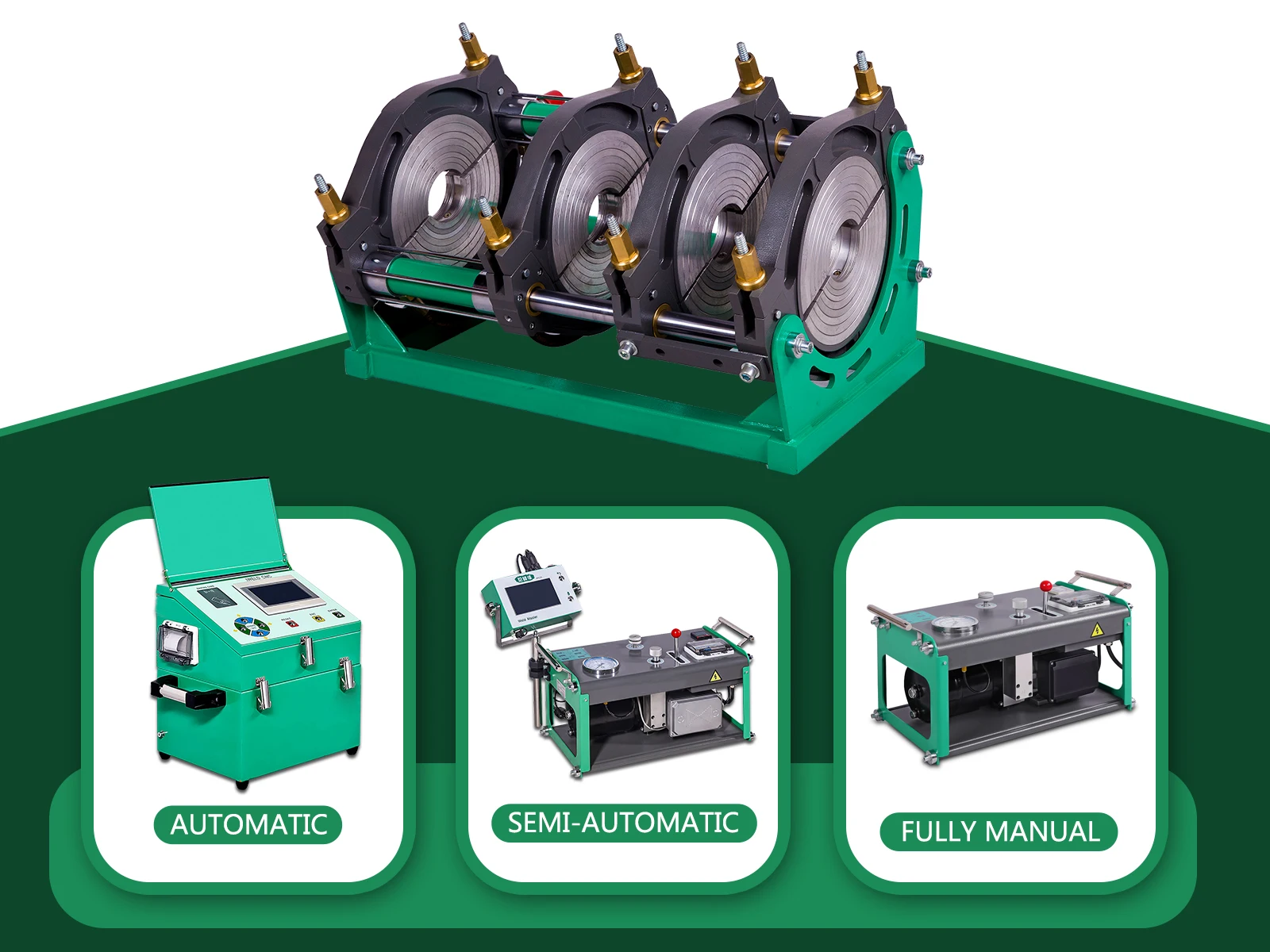

butt fusion welder for the installation and welding of thermoplastic piping systems made of HDPE (PE 100-RC), PP, PVDF SWT-V250/90H
SWT-V250/90H is hydraulic butt fusion welder. It is used to butt weld pipe and fittings such as elbow, tees, wye and flange necks without any additional equipment by simply adjusting the clamps` drag bar.
It is suitable for welding plastic pipe and fittings made of HDPE, PP, PVDF.
Removable PTFE coated heating plate with separate temperature control system.
Electrical planning tool;
Be made of lightweight and high strength material; simple structure, small and delicate user friendly;
Low starting pressure ensures reliable welding quality of small pipes;
Separate two-channel timer shows time in soaking and cooling phases;
High-accurate and shockproof pressure meter in indicates clear readings.
It is suitable for welding plastic pipe and fittings made of HDPE, PP, PVDF.
Removable PTFE coated heating plate with separate temperature control system.
Electrical planning tool;
Be made of lightweight and high strength material; simple structure, small and delicate user friendly;
Low starting pressure ensures reliable welding quality of small pipes;
Separate two-channel timer shows time in soaking and cooling phases;
High-accurate and shockproof pressure meter in indicates clear readings.

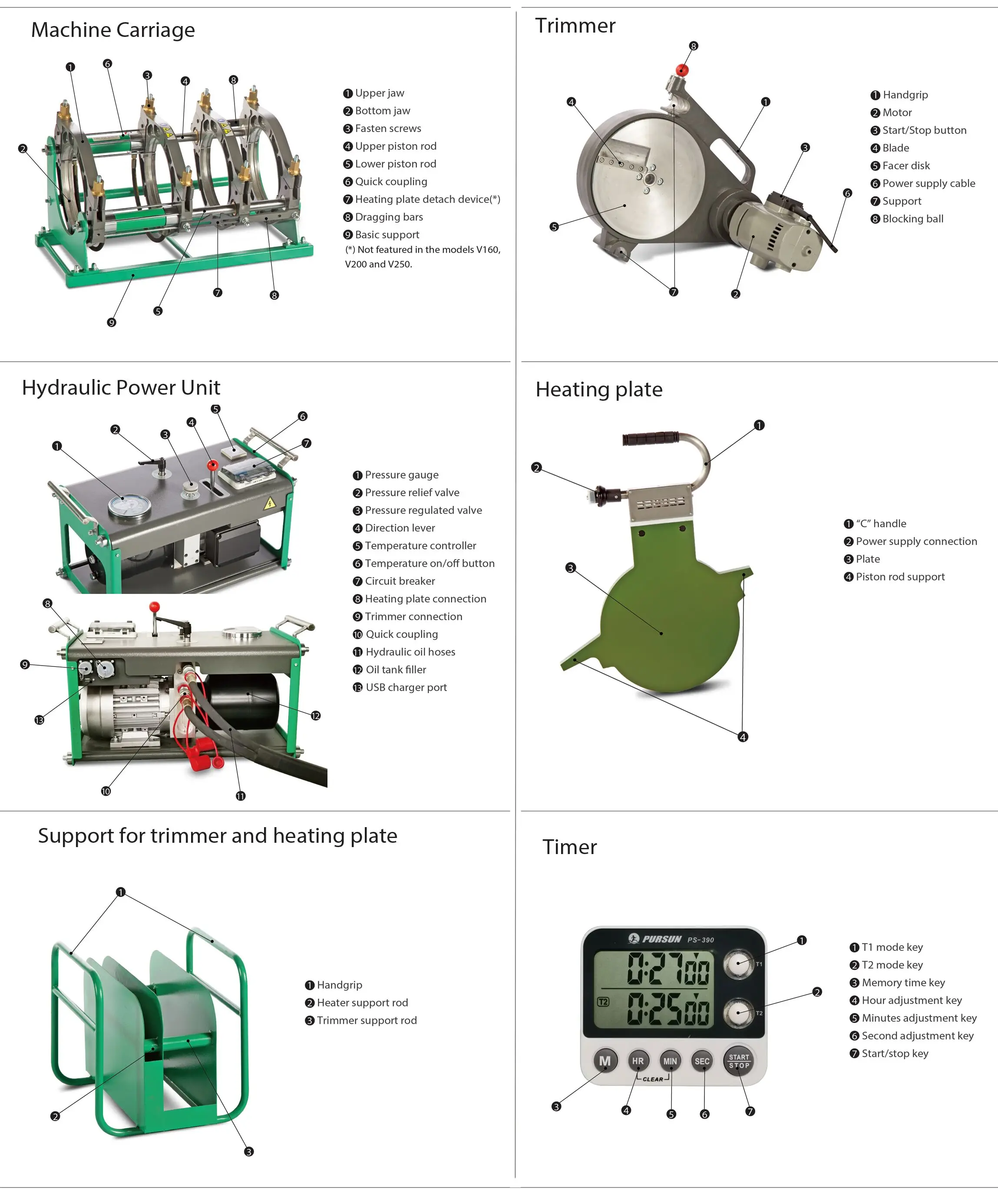

SWT-V250H includes:
*A machine body with 4clamps and 2hydraulic cylinders with fast couplings;
*A Teflon coated heating plate with separate temperature control system;
*A electrical milling cutter;
*Hydraulic hoses with quick couplings;
*Support for milling cutter and heating plate.
*A Teflon coated heating plate with separate temperature control system;
*A electrical milling cutter;
*Hydraulic hoses with quick couplings;
*Support for milling cutter and heating plate.
Available options:
Data logger;
Support roller;
Stub end holder;
Different inserts (single insert, ISO inserts).
Support roller;
Stub end holder;
Different inserts (single insert, ISO inserts).
Pipes Butt Fusion Machine Welding Type
Parameters of SWT-V250/90H
Welding Range | 90mm~250mm |
Reducing Inserts | 90mm-110mm-125mm- 140mm-160mm-180mm-200mm-225mm-250mm |
Ranges of application | PE,PP and PVDF |
Working voltage | ~220V±10%,50/60Hz |
Total power | 3.85 kW |
planning tool | 1.1 kW |
heating plate | 2kW |
hydraulic unit motor | 0.75 KW |
Environment temperature | -10° ~ 45° |
Why choose us
Product quality is guaranteed
Professional team with good service
Complete after-sales service to solve your worries
Aplication
Application of welding of polyethylene piping by thermofusion :
Hydraulic butt fusion welding machine Suitable for welding of plastic pipes and fittings made of PE,PP, and PVDF.
Automatic butt welding machine can be operated in any complex work condition.
Thermofusion welding machine welds HDPE, PP pipes and fittings for the transportation of gas, water and other fluids.
Automatic butt welding machine can be operated in any complex work condition.
Thermofusion welding machine welds HDPE, PP pipes and fittings for the transportation of gas, water and other fluids.
Same Series Products

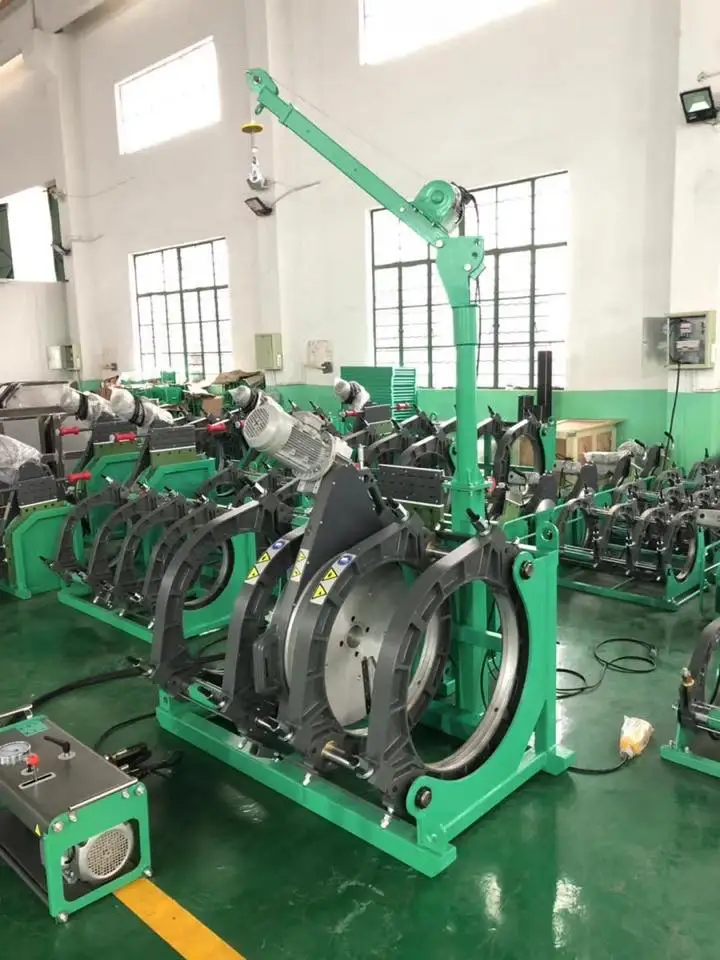

Factory workshop
Certificate
Exhibition
We always provide high quality products and workable price for every clients and have won the trust, enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating, we provide them for free:
--
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating, we provide them for free:
--
FAQ
Q&A:
1. PAYMENT TERMS
We accept 30% TT deposit and 70% balance payment against photo before delivery or 100% TT in advance.
2. LEAD TIME
Usually, we have plenty of stock for V355 and below, and keep max. 3units for V450 and V630. As to V800 and above, we'll arrange production according to the actual orders.
3. WARRANTY
2 YEARS. During the warranty period, MM-Tech authorized dealer and MM-Tech will totally cover the responsibility to fix the machine; Claim parts usually could be couriered to clients within 3days since receiveing the claim. Express fee will be borned by MM-Tech.
4. CAN YOU DO CUSTOMIZED DESIGN
YES. MM-Tech has its own design and technical team that can undertake OEM and ODM, but there are quantity requirements, please contact our sales consultant for more information, thank you.
5. CAN YOU PROVIDE TRAINING CLASS ?
1. Customers are welcome to come to our factory for 1-2 weeks of training, in addition to air tickets and hotels, MM-Tech can afford meals and local transportation costs.
2. We can also arrange for technical personnel to fly to the customer's local to do on-site training, for a period of 1-2 weeks, customers bear air tickets, hotels, catering, as well as technical training fees, please contact our sales consultant for details.
3.MM-Tech offers online training in English and Spanish, which requires an appointment in advance.
6. HOW COULD BE YOUR DISTRIBUTOR AT LOCAL?
MM-Tech welcomes customers from all over the world to negotiate agency business, but for agents, we have specific requirements, details please contact our sales consultant, thank you!
1. PAYMENT TERMS
We accept 30% TT deposit and 70% balance payment against photo before delivery or 100% TT in advance.
2. LEAD TIME
Usually, we have plenty of stock for V355 and below, and keep max. 3units for V450 and V630. As to V800 and above, we'll arrange production according to the actual orders.
3. WARRANTY
2 YEARS. During the warranty period, MM-Tech authorized dealer and MM-Tech will totally cover the responsibility to fix the machine; Claim parts usually could be couriered to clients within 3days since receiveing the claim. Express fee will be borned by MM-Tech.
4. CAN YOU DO CUSTOMIZED DESIGN
YES. MM-Tech has its own design and technical team that can undertake OEM and ODM, but there are quantity requirements, please contact our sales consultant for more information, thank you.
5. CAN YOU PROVIDE TRAINING CLASS ?
1. Customers are welcome to come to our factory for 1-2 weeks of training, in addition to air tickets and hotels, MM-Tech can afford meals and local transportation costs.
2. We can also arrange for technical personnel to fly to the customer's local to do on-site training, for a period of 1-2 weeks, customers bear air tickets, hotels, catering, as well as technical training fees, please contact our sales consultant for details.
3.MM-Tech offers online training in English and Spanish, which requires an appointment in advance.
6. HOW COULD BE YOUR DISTRIBUTOR AT LOCAL?
MM-Tech welcomes customers from all over the world to negotiate agency business, but for agents, we have specific requirements, details please contact our sales consultant, thank you!
