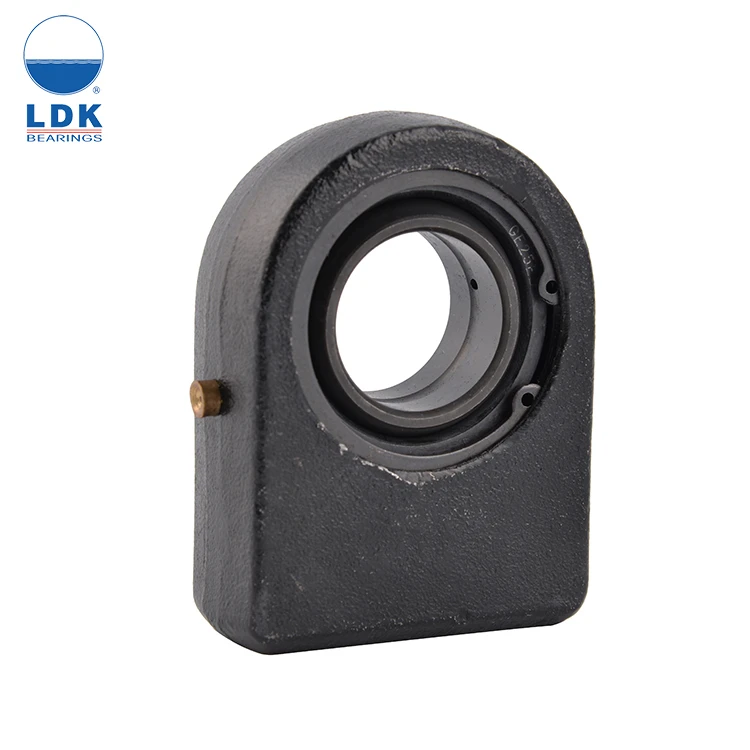

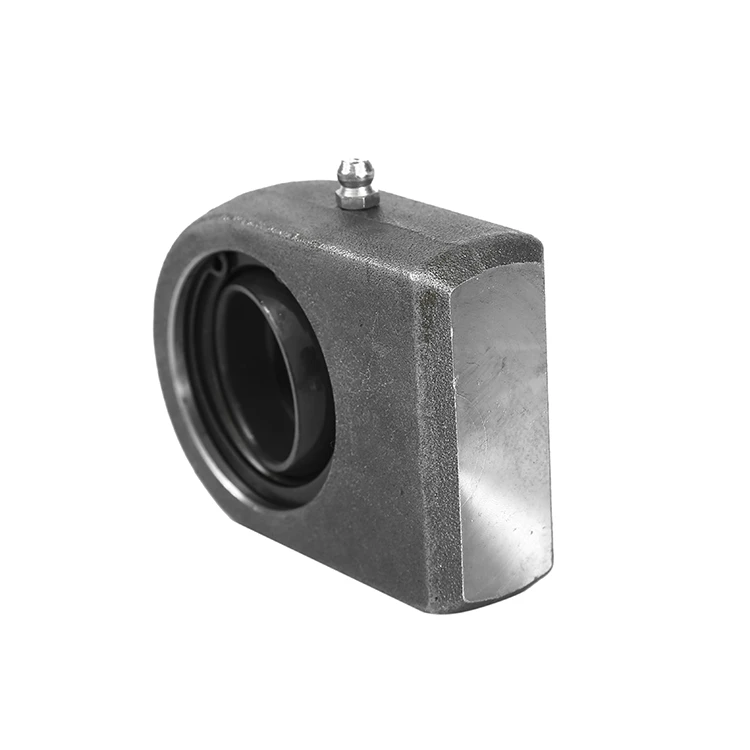

LDK SF70ES SF80ES SF90ES SF100ES SF110ES SF120ES weldable steel hydraulic cylinder rod end bearing

Bearing No.	Dimensions(mm)							a° mis. angle	Load ratings  (KN)		Weight ≈ kg
	d	B	dk	C1	d2	h1	(l2)		Dynamic	Static
SF20ES	20	16	29	19	50	38	63	9	30	67	0.36
SF25ES	25	20	35.5	23	55	45	72.5	7	48	69	0.53
SF30ES	30	22	40.7	28	65	51	83.5	6	62	118	0.85
SF35ES	35	25	47	30	83	61	102.5	6	79	196	1.5
SF40ES	40	28	53	35	100	69	119	7	99	305	2.42
SF45ES	45	32	60	40	110	77	132	7	127	386	3.39
SF50ES	50	35	66	40	123	88	149.5	6	156	441	4.24
SF60ES	60	44	80	50	140	100	170	6	245	570	7.10







Body: Weldable steel, with dowel pin on shanks.
SF..ES: Mounted with GE..ES type of radial spherical plain bearings.
Sliding contact surfaces: Steel/Steel



Can not be relubricated.

Can only be relubricated through the rod end housing.
