Product Overview

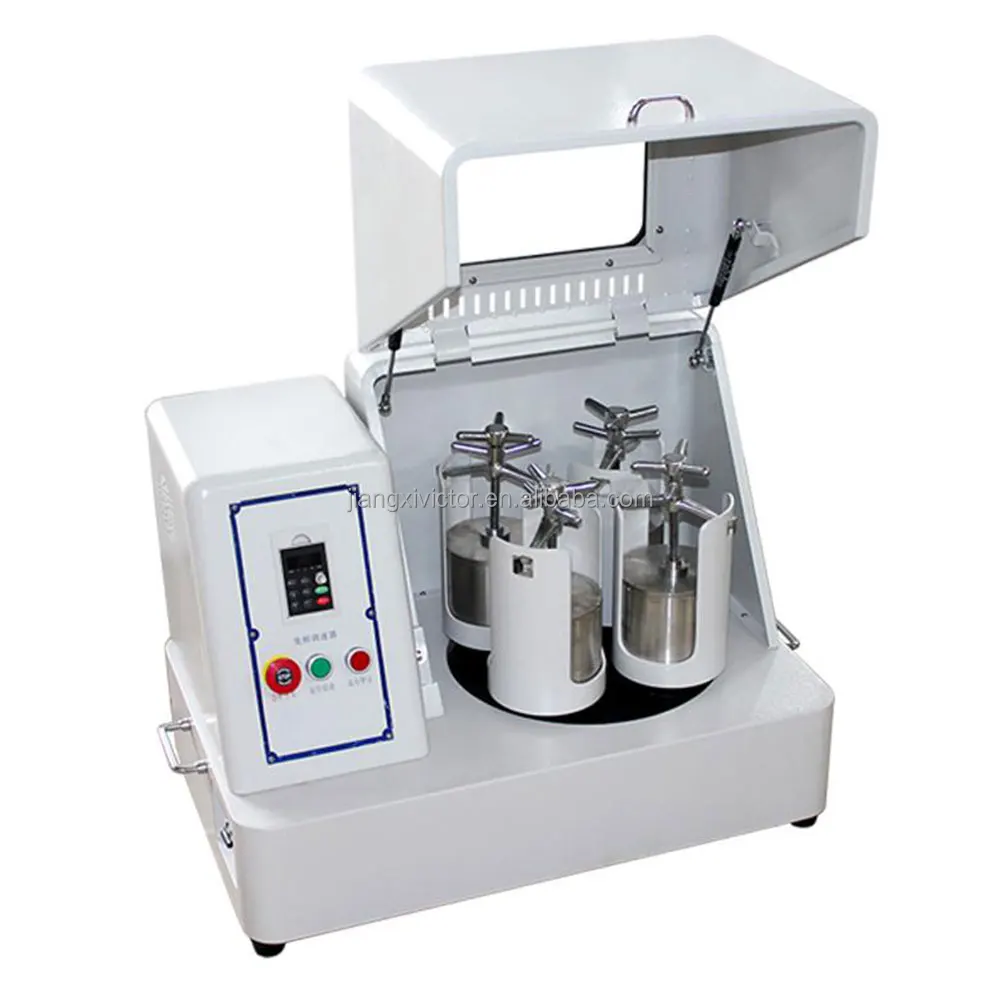

Vertical Planetary Ball Mill (Square Type)
Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. Planetary ball mill owns small volume, high efficiency, low noise and functional features which is a ideal equipment for R&D institution, university, enterprises laboratory to get samples (each experiment can get four samples at the same time). It gets powder samples under the vacuum state when equipped with vacuum ball mill tank.
Application
Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. Planetary ball mill owns small volume, high efficiency, low noise and functional features which is a ideal equipment for R&D institution, university, enterprises laboratory to get samples (each experiment can get four samples at the same time). It gets powder samples under the vacuum state when equipped with vacuum ball mill tank.

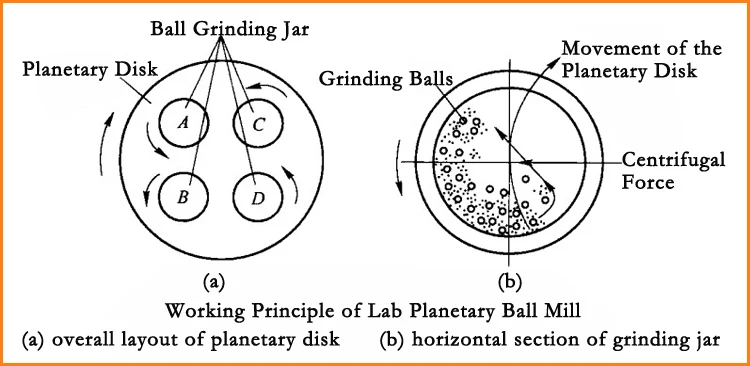

Work Operational Principle
Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.
Features/Advantages
Vertical planetary ball mill shell is welded with thick steel plate, which has high strength, impact resistance, deformation resistance, fine workmanship, strong and beautiful appearance. The material of mechanic parts is strictly processed by heat treatment process and numerical control processing technology. The gear box is adopted with quasi-sealed groove embedded structure, and the drive gear is made of wear-resistant precision gear. The machine frame and structure are fully considered in design to ensure the stable, safe and reliable operation of the ball mill under long-term and high load conditions, and to effectively achieve the effect of noise reduction in the operation of the machine. The liquid oil self-lubricating device is designed with low noise and high intensity, and it is equipped with a liquid oil level meter for easy replacement. The supporting lifting and feeding devices are adopted with integrated design. The feeding device incorporates the technology of vibrating screening and discharging for simple and convenient operation. It realizes easy and fast picking up, discharging and loading of mill jars, reduces labor intensity and improves production efficiency. With the touch screen of micro-computer, machine operation is becoming convenient, the interface is more simple and intuitive,forward and reversal alternating control can be achieved easily. It owns functions of timing and power-off memory.
1.Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.

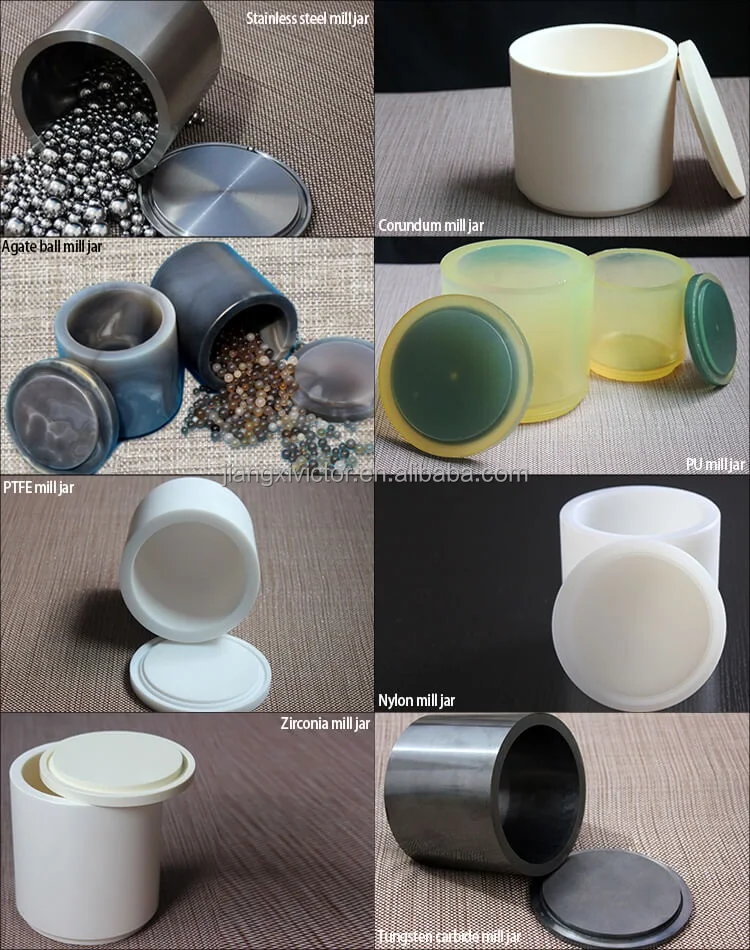

References for Matched Mill Jars and Balls
As a professional manufacturer and supplier of planetary ball mills, we provide all kinds of mill jars in full sizes covering 304 or 316 stainless steel mill jars, tungsten carbide mill jars, agate mill jars, corundum mill jars, zirconia mill jars, nylon mill jars, PU mill jars, PTFE mill jars and etc.
PRODUCT SPECIFICATIONS
Model | Specification | Ball Milling Tank | Remarks | ||
Spec (ml, l) | Quantity (Items/Set) (Mated with a number of milling balls) | ||||
XQM-0.4L | 0.4L | 50~100ml | 4 mill tanks | Can be equipped with 50ml vacuum ball milling tanks | |
XQM-1L | 1L | 50~250ml | 4 mill tanks | Can be equipped with 50~100ml vacuum ball milling tanks | |
XQM-2L | 2L | 50~500ml | 4 mill tanks | Can be equipped with 50~250ml vacuum ball milling tanks | |
XQM-4L | 4L | 50~1000ml | 4 mill tanks | Can be equipped with 100~500ml vacuum ball milling tanks | |
XQM-8L | 8L | 0.5-2L | 4 mill tanks | Can be equipped with250~1000ml vacuum ball milling tanks | |
XQM-12L | 12L | 1-3L | 4 mill tanks | Can be equipped with 500~2000ml vacuum ball milling tanks | |
XQM-16L | 16L | 1-4L | 4 mill tanks | Can be equipped with 500~3000ml vacuum ball milling tanks | |
XQM-20L | 20L | 1-5L | 4 mill tanks | Can be equipped with 1000~4000ml vacuum ball milling tanks | |
XQM-40L | 40L | 4-10L | 4 mill tanks | Can be equipped with 3000~9000ml vacuum ball milling tanks | |
XQM-60L | 60L | 6-15L | 4 mill tanks | Can be equipped with 5000~13000ml vacuum ball milling tanks | |
XQM-100 | 100L | 1~25L | 4 mill tanks | Can be equipped with 9000~20000ml vacuum ball milling tanks | |

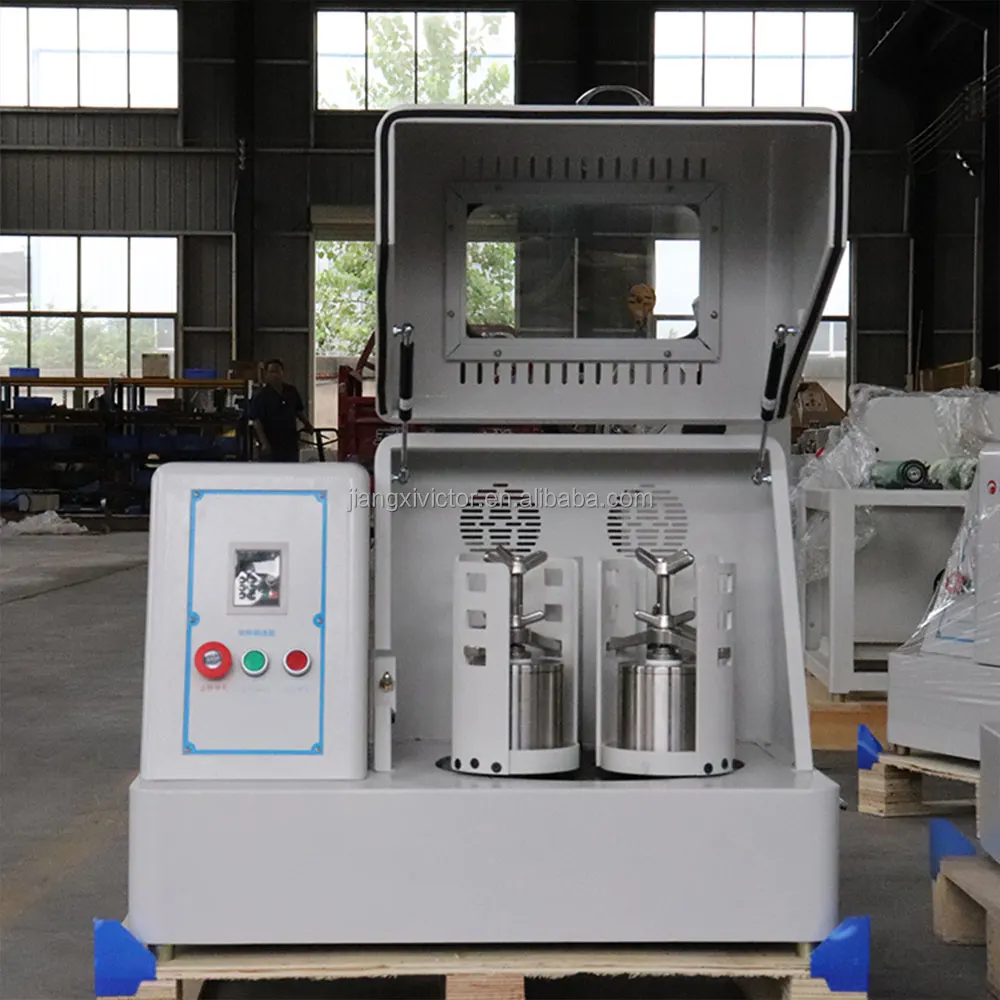

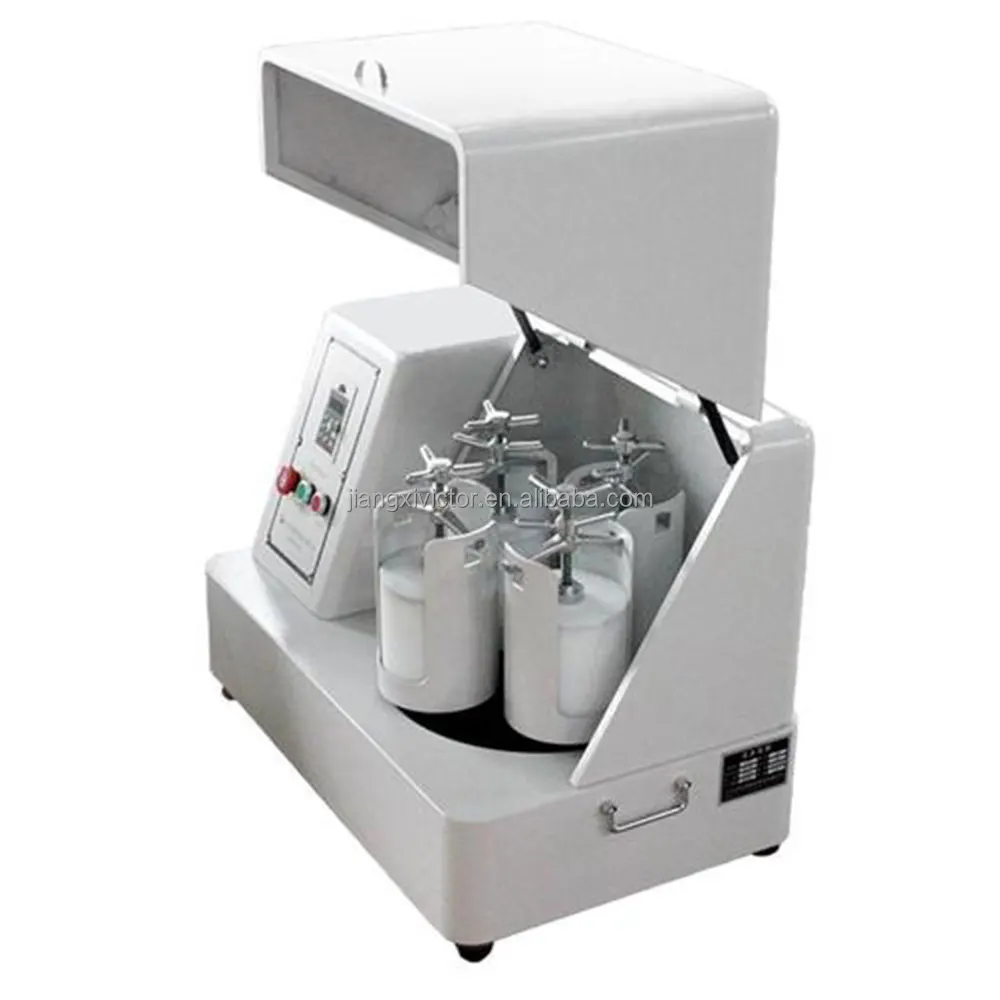

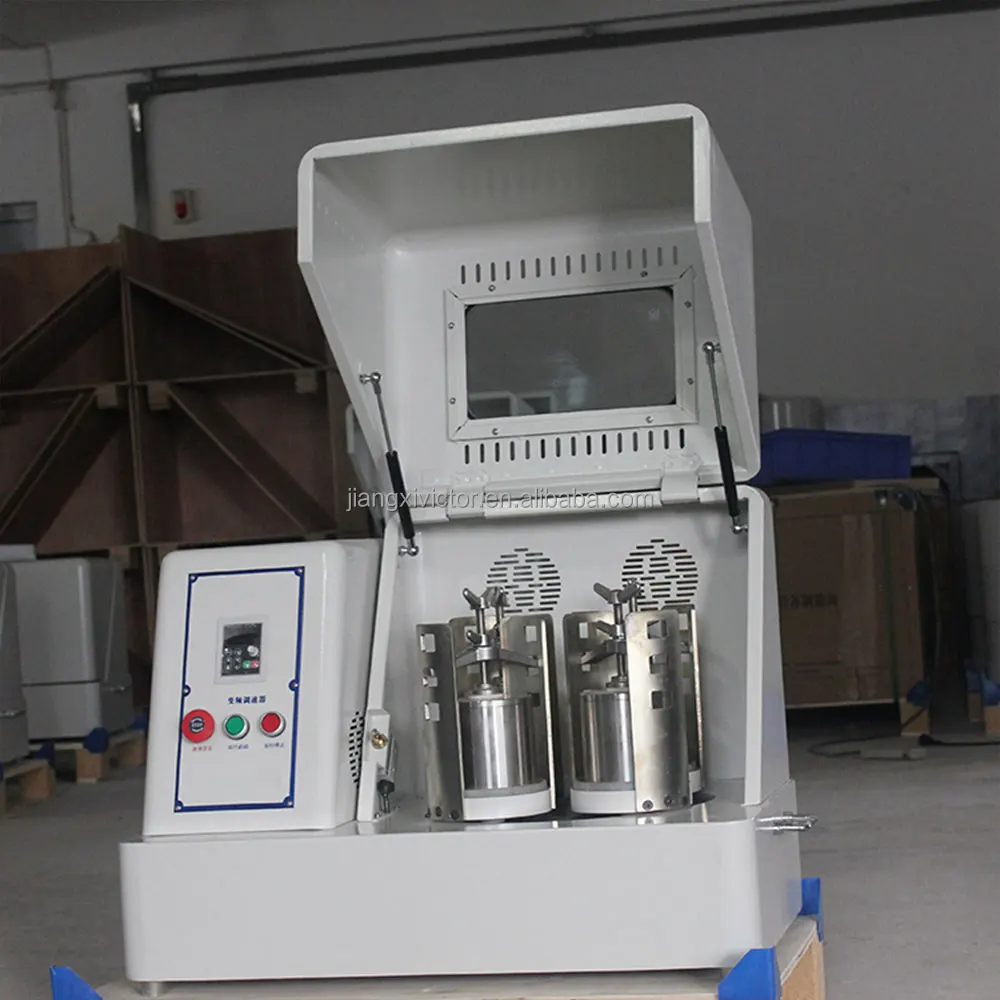

Details Images
SIMILAR PRODUCTS
Company Information

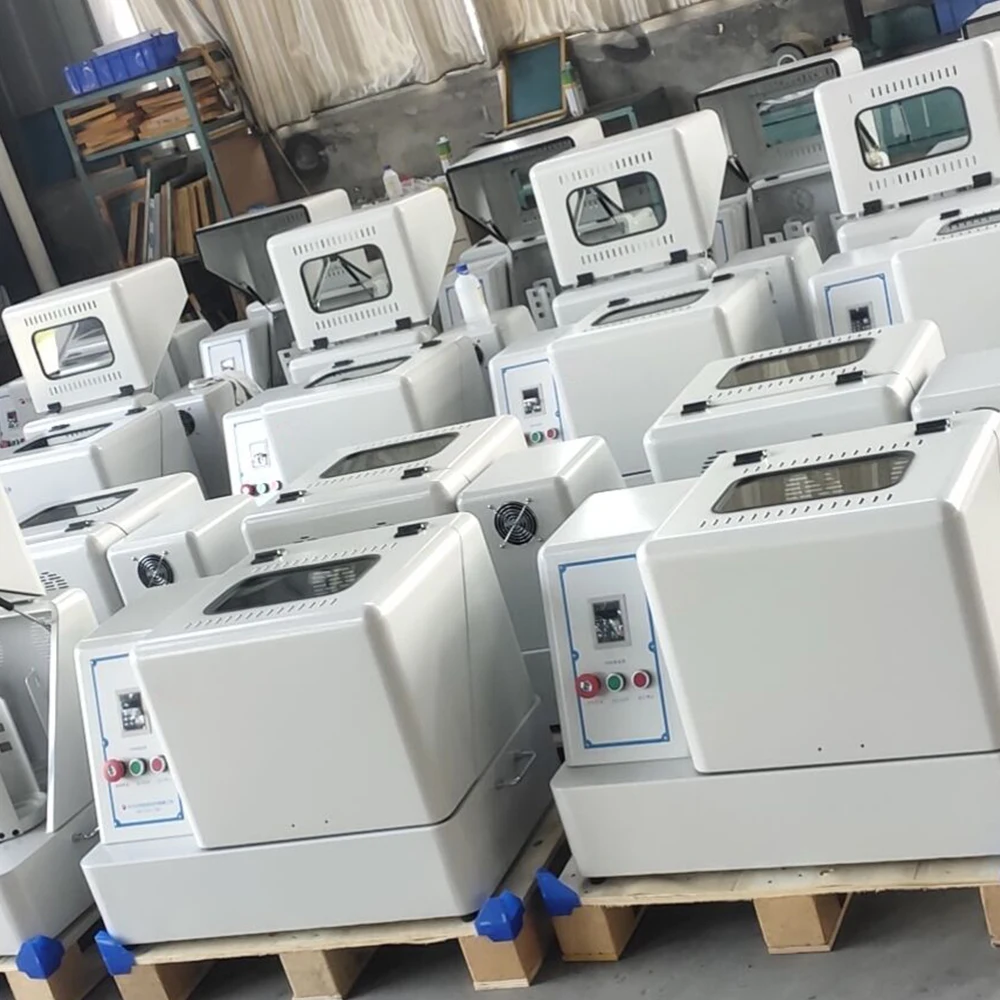

WELCOME TO VISIT OUR FACTORY
-- Our customers from over 50 countries and regions.
-- We have 20+ manufacturing experience and can provide custom design.
-- We provide engineer to help you with installation, training, our engineers are also available to install overseas if you need.
FAQ
1.How is the quality of your products? (mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice;Finished product pictures will provide to customers before delivery.
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice;Finished product pictures will provide to customers before delivery.
Our Service:
1) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment, draft the construction scheme and detailed process, and complete process of export
3) After-sales service: Offer considerate technical guidance in installation, debugging and operators training. We are available at any time if you need.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment, draft the construction scheme and detailed process, and complete process of export
3) After-sales service: Offer considerate technical guidance in installation, debugging and operators training. We are available at any time if you need.
