Поделиться:

Цена:10 525,00 $ - 11 525,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики







EV Charger Manufacturers Home EV Charger& Commercial DC EV Fast Charger Station










Model
EVM-60-22-CMS
EVM-90-22-CMS
EVM-120-22-CMS
EVM-160-22-CMS
EVM-200-22-CMS
EVM-240-22-CMS
Input characteristic
Input characteristic
Input voltage
260-480V AC
260-480V AC
260-480V AC
260-480V AC
260-480V AC
260-480V AC
Input frequency
50/60Hz
50/60Hz
50/60Hz
50/60Hz
50/60Hz
50/60Hz
Input Amps/per phase
88A
130A
175A
230A
288A
346A
Stand-by consumption
<30W
<30W
<30W
<30W
<30W
<30W
DC Output characteristic
DC Output characteristic
Number of charging points:
CCS×2 or CCS×1 &CHAdeMO×1
CCS×2 or CCS×1 &CHAdeMO×1
CCS×2 or CCS×1 &CHAdeMO×1
CCS×2 or CCS×1 &CHAdeMO×1
CCS×2 or CCS×1 &CHAdeMO×1
CCS×2 or CCS×1 &CHAdeMO×1
Charging mode
Mode 4
Mode 4
Mode 4
Mode 4
Mode 4
Mode 4
Output voltage
150-1000V DC
150-1000V DC
150-1000V DC
150-1000V DC
150-1000V DC
150-1000V DC
Max. output power
60kw
90kw
120kw
160kw
200kw
240kw
Max output current
0~150A DC
0~180A DC
0~220A DC
0~220A DC
0~250A DC
0~250A DC
Voltage accuracy
<±0.5%
<±0.5%
<±0.5%
<±0.5%
<±0.5%
<±0.5%
Current accuracy
<±1%
<±1%
<±1%
<±1%
<±1%
<±1%
Ripple coefficient
RMS: ±0.5%;Peak: ±1%
RMS: ±0.5%;Peak: ±1%
RMS: ±0.5%;Peak: ±1%
RMS: ±0.5%;Peak: ±1%
RMS: ±0.5%;Peak: ±1%
RMS: ±0.5%;Peak: ±1%
THD
≤5%@50％～100％full load
≤5%@50％～100％full load
≤5%@50％～100％full load
≤5%@50％～100％full load
≤5%@50％～100％full load
≤5%@50％～100％full load
Meeting accuracy
0.5
0.5
0.5
0.5
0.5
0.5
Efficiency
≥ 95.2% (Full load)
≥ 95.2% (Full load)
≥ 95.2% (Full load)
≥ 95.2% (Full load)
≥ 95.2% (Full load)
≥ 95.2% (Full load)
Cable Length
5m (Customized acceptable)
5m (Customized acceptable)
5m (Customized acceptable)
5m (Customized acceptable)
5m (Customized acceptable)
5m (Customized acceptable)
TypeA RCBO
√
√
√
√
√
√
TypeB RCBO
Optional
Optional
Optional
Optional
Optional
Optional






Qingdao Xingbang Group is located in the beautiful Qingdao, China. It is a group enterprise integrating design, research and developing, manufacturing and sales of kitchen appliances&new energy product. Since its establishment in 1995, it has continued to grow and develop. Qingdao XingBang Group who have three manufacturing factories which cover area about 250,000 square meters and employ 2,000 staff and professional R&D team and high-tech technical team and strict production & inspection team and excellent sales and service team. Around the world, the products are sold to more than 100 countries and regions around the world. This year we are also planning to build the fourth manufacturing factory and continue to expand our strength and a higher reputation in the same industry.

In 2019, the group established a new energy project team, began to conduct market research, and at the same time carried out technical research and development reserves, developed European and American standard electric vehicle charger, and sold them to the European and American markets.
Customer and market best comments feedback also is we contiue to developing power. We’re expanding DC charger which satified to requires of the European& North America market.
We can do OEM&ODM and our team rich experiences also provide the best solution to your project.

The company has ISO9001 quality system certification, ISO14001 environmental system certification, CE,CB, UKCA and other certificates.
Advanced technology ,best quality and professional service is Qingdao XingBang Group provide best assurance for every client.

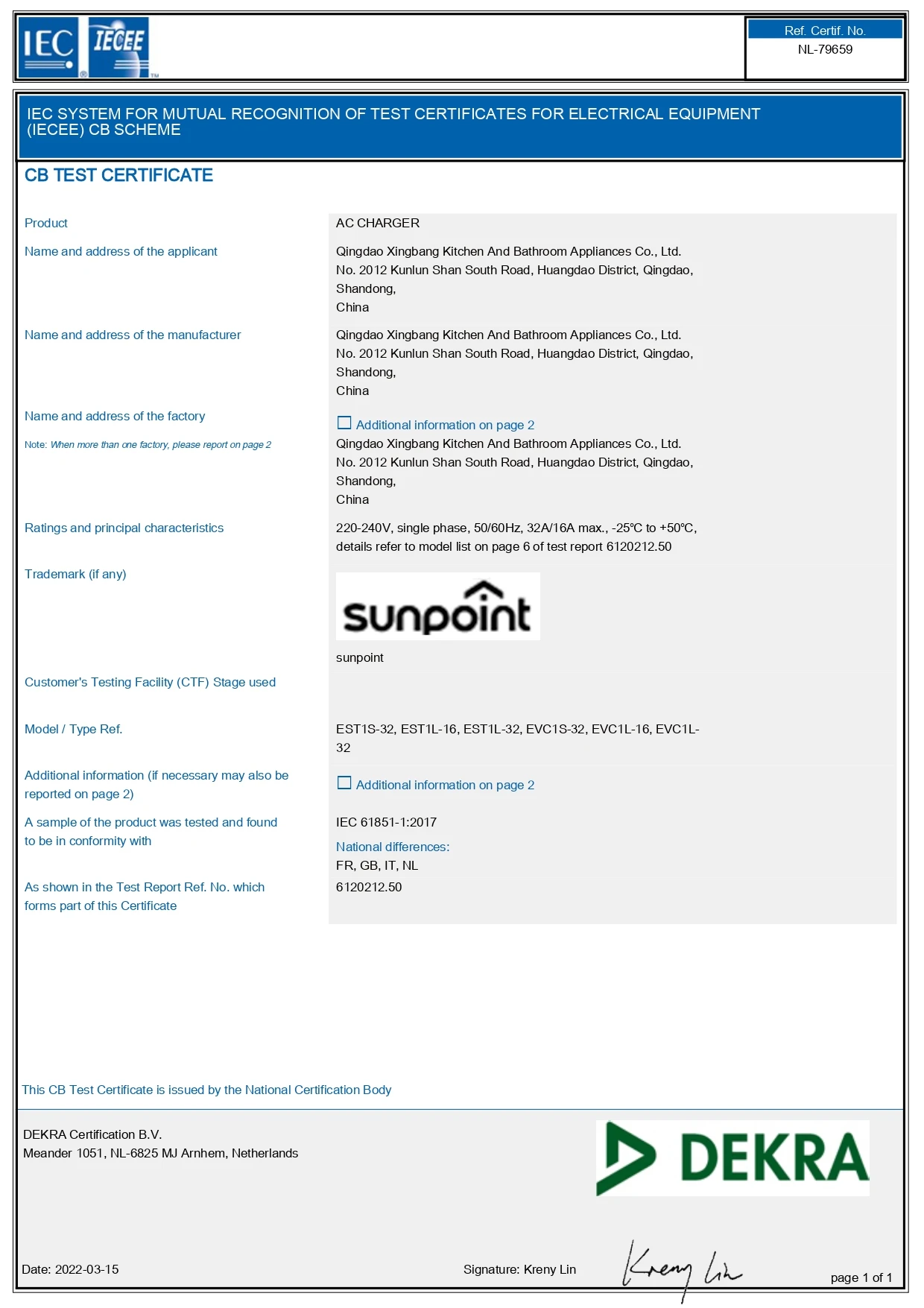

CE/CB/UKCA(DEKRA)
Standard: EN IEC 61851,EN 62196
