Welcome visit 1kVA-1000kVA UPS manufacturer -iTeaQ Power
Product Description
iTeaQ power 3 phases 277V/480VAC 1kva-800kva pure sine wave online backup power supply modular UPS

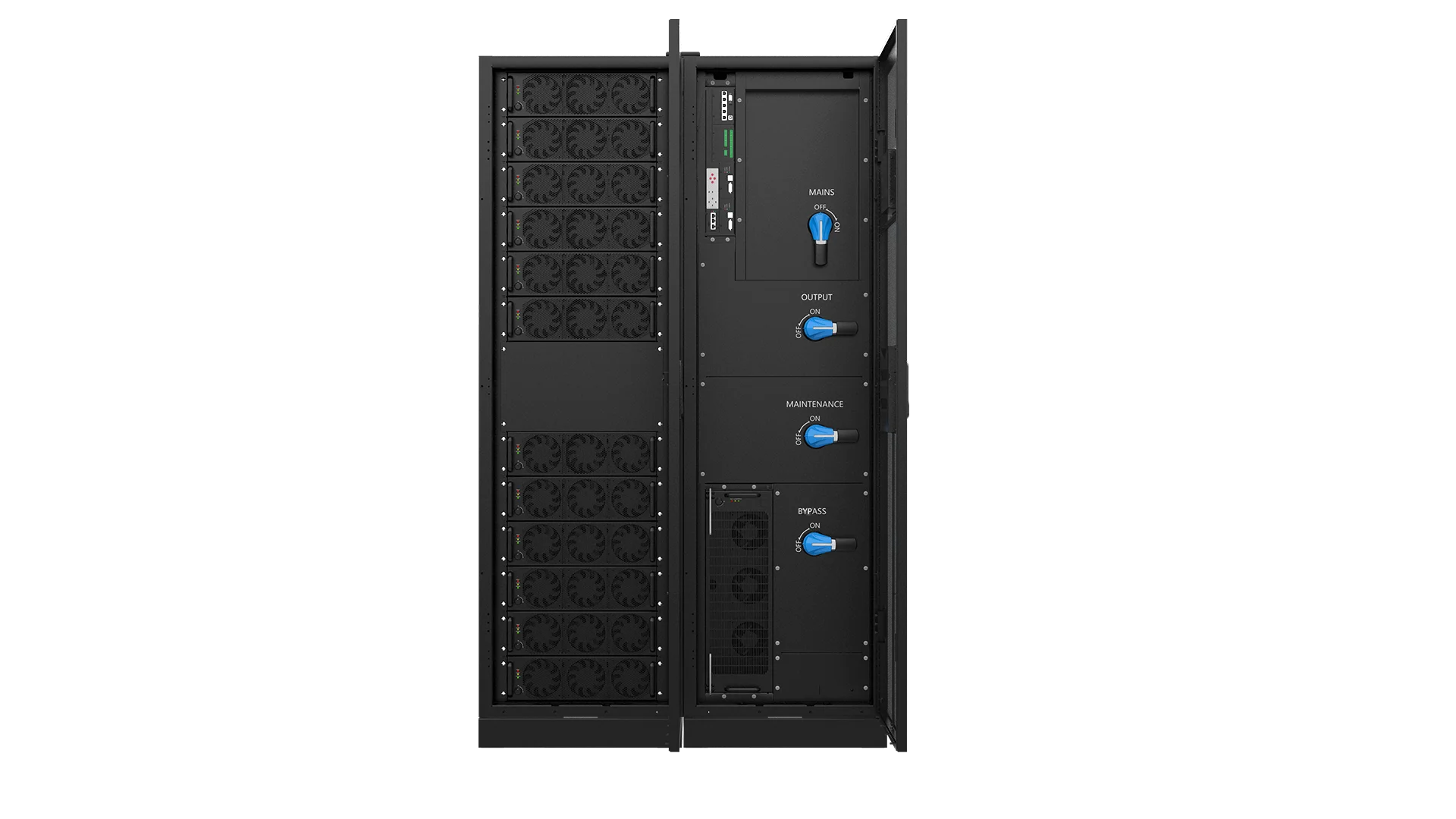

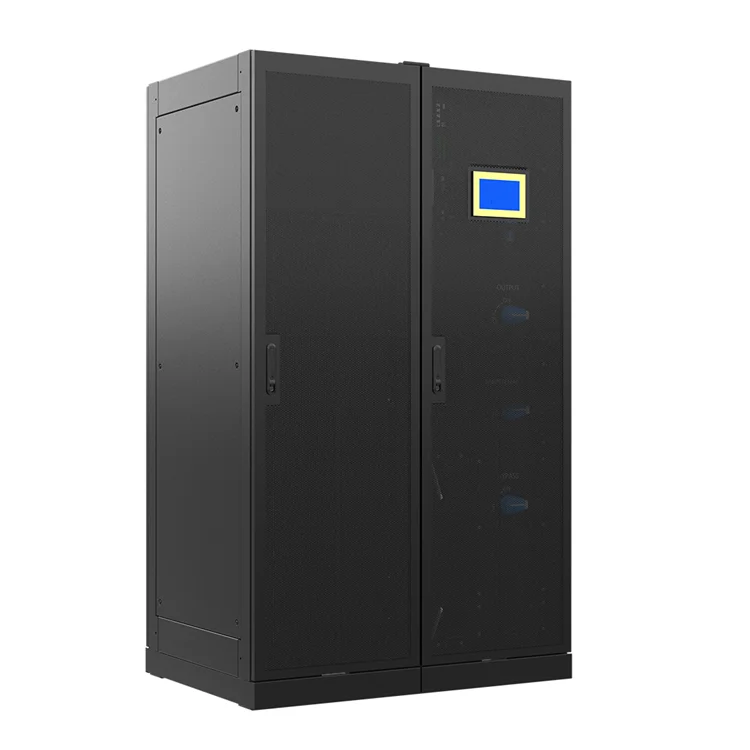

600kVA Modular UPS -Front
Size: 850*1200*2000mm, take just 1.02m2 Save space for customers

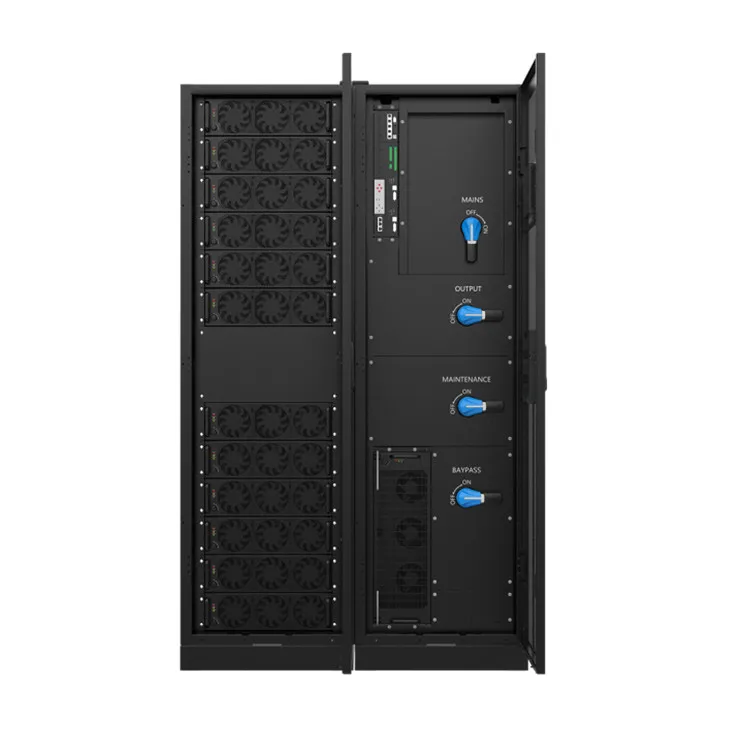

600kVA Modular UPS -open door
With 12pcs 50kva Modulars
-Mains(Input)
-Output
-Maintenance
- Bypass

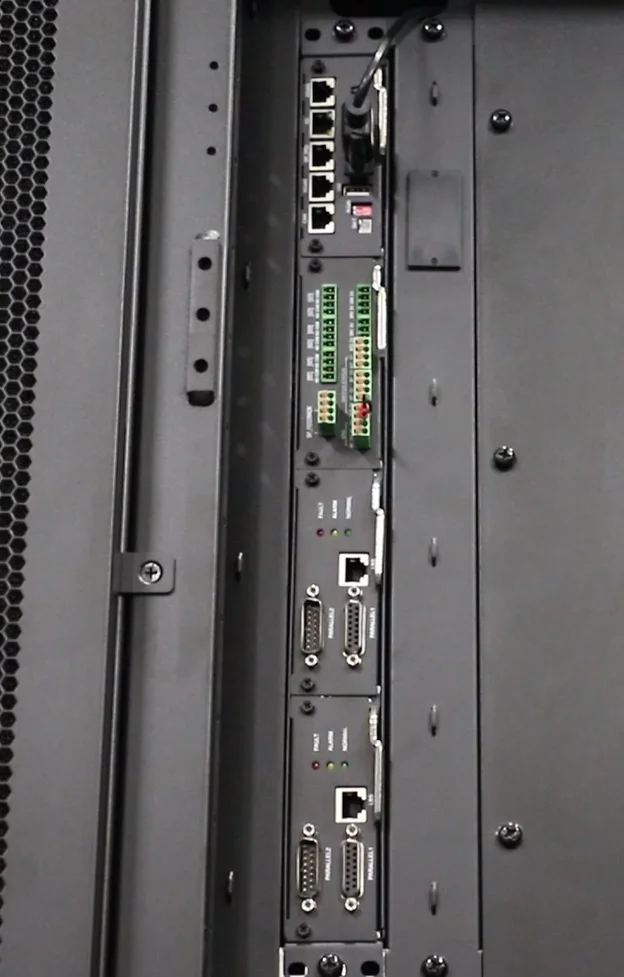

Communication
CAN, RS485, FE, LBS,
Parallel card,
Relay card,
SNMP card(optional)

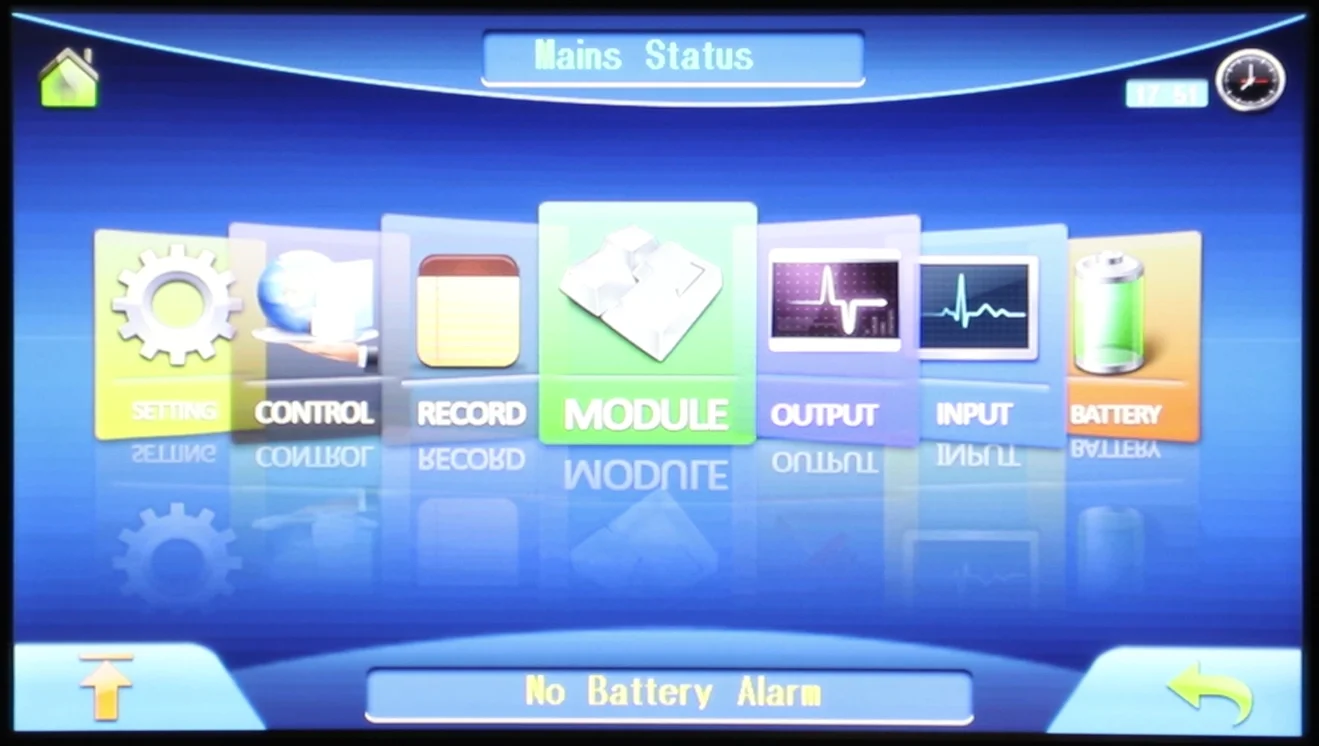

LCD Touch Screen-7 inch
7 inch large color touch screen
show clear data about input, output, battery, load and modular working situation
Introduction:
ECOplus 50-600kVA is a new generation three-in-three-out modular UPS launched by our company. The products adopt digital control,modular design and N+X parallel redundancy technology, which integrates the most advanced technical achievements in the field of power electronics and automatic control. It is benchmarking product in the modular UPS field. The capacity covers all power sections between 50kVA and 600kVA, which is convenient for users to configure flexibly and gradually invest. It can be 4 parallel to 2400kVA.
Scenarios:
Large and medium data centers, server rooms.
Financial centers, government, enterprise IT rooms, medical
education and other mission-critical applications.
Features:
1.Centralized bypass, centralized control, modular design
2.Online double conversion and three level technology
3.DSP digital control technology
4.Wide input voltage range
5.Output power factor 1
6.High power density with size 440mm*620mm*3U
7.Cold start (battery start up)
8.ECO mode operation
9.Intelligent battery management
10.N+X redundancy
11.Communications: RS485/Relay card/USB/SNMP option
12.Optional emergency power off (EPO) function
13.Compatible with lithium battery applications
Benefits:
1.Modular design, improves maintainability and reliability
2.ECO mode operation for energy saving
3.Cold start for easy operation
4.Communications for network management and remote monitoring
5.N+X redundancy, expanding as required, saves initial investment
ECOplus 50-600kVA is a new generation three-in-three-out modular UPS launched by our company. The products adopt digital control,modular design and N+X parallel redundancy technology, which integrates the most advanced technical achievements in the field of power electronics and automatic control. It is benchmarking product in the modular UPS field. The capacity covers all power sections between 50kVA and 600kVA, which is convenient for users to configure flexibly and gradually invest. It can be 4 parallel to 2400kVA.
Scenarios:
Large and medium data centers, server rooms.
Financial centers, government, enterprise IT rooms, medical
education and other mission-critical applications.
Features:
1.Centralized bypass, centralized control, modular design
2.Online double conversion and three level technology
3.DSP digital control technology
4.Wide input voltage range
5.Output power factor 1
6.High power density with size 440mm*620mm*3U
7.Cold start (battery start up)
8.ECO mode operation
9.Intelligent battery management
10.N+X redundancy
11.Communications: RS485/Relay card/USB/SNMP option
12.Optional emergency power off (EPO) function
13.Compatible with lithium battery applications
Benefits:
1.Modular design, improves maintainability and reliability
2.ECO mode operation for energy saving
3.Cold start for easy operation
4.Communications for network management and remote monitoring
5.N+X redundancy, expanding as required, saves initial investment
Specification
Input | Modular UPS 600KVA with 12pcs 50KW modules | ||
Model | ECOplus600-50 | ||
Phase | 3 Phase 4 Wires and Ground | ||
Rated Voltage | 380/400/415Vac | ||
Voltage Range | 138～485Vac | ||
Frequency Range | 40Hz-70Hz | ||
Power Factor | ≥0.99 | ||
Current THDi | ≤3%(100% linear load) | ||
Bypass Voltage Range | Max.voltage: 220V:+25 %( optional +10%, +15%, +20%); 230V:+20 %( optional +10%, +15%); 240V:+15 %( optional +10%) Min. voltage:-45 %( optional -10%, -20%,-30%) Frequency protection range: ±10% | ||
Power Walking In | Yes | ||
Bypass back irrigation | Bypass back irrigation | ||
Generator access | Yes | ||
Phase | 3 Phase 4 Wires and Ground | ||
Rated Voltage | 380/400/415Vac | ||
Power Factor | 1 | ||
Voltage Regulation | ±1% | ||
Frequency-Utility Mode | ±1%/±2%/±4%/±5%/±10% of the rated frequency(optional) | ||
Frequency-Battery Mode | (50/60±0.1%)Hz | ||
Crest Factor | 3:1 | ||
THD | ≤2% with linear load, ≤4% with non linear load | ||
Effieiency | 96% | ||
Overload | ≤ 110%, to bypass after 60 min; ≤ 125%, to bypass after 10 min; ≤ 150%, to bypass after 1 min | ||
Battery | ±180V/192V/±204V/±216V/±228V/±240/±252/±264/±276/±288/±300Vdc (30/32/34/36/38/40/42/44/46/48/50pcs optional) | ||
Module charge current | Max 20A | ||
Transfer Time | Transfer Time | Utility to Battery : 0ms; Utility to bypass: 0ms | |
Protection | Alarm | overload, utility abnormal, UPS fault, battery low, etc | |
Protection | short circuit, overload, over temperature, battery low, fan fault alarm | ||
Communication Interface | CAN, RS485, FE, LBS, Parallel card, Relay card, SNMP card(optional) | ||
Operating Temperature | 0℃～40℃ | ||
Storage Temperature | -25℃～55℃ | ||
Altitude | < 1500m | ||
Noise level | <65dB | ||
Phisicals | Cabinet Dimensions (W*D*H)mm | ||
Module Dimensions (W*D*H)mm | 440*620*131 | ||
Cabinet Weight (Kg) | 567 | ||
Module Weight (Kg) | 36 | ||
Standards | EN62040-1, EN62040-2 | ||
Company Profile
Company
Shenzhen iTeaQ Power Co., Ltd. is the leading manufacturer of modular UPS and network power, located at Guangming High-tech Zone, Shenzhen, China. With 20 years’ experience in power electronics field, we are constantly cooperating with global partners, enabling customers to protect their critical applications and ensuring business continuity. iTeaQ Power is a most growing UPS and network power provider.
R&D
The company dedicates 10% of turnover to R&D, such as cooperation with China top-ranking universities and institutes, advanced research, patent development, etc. It can achieve status of always technology ahead. Benefited from the electronic industry base of Shenzhen, China, all our design engineers have master or above degree in power electronic, and at least 10 years UPS and power practice.
Quality
The company implements total quality management, ranging from selecting right person for appropriate post, components selecting, incoming inspection, producing, testing, and packing to delivery. At present, it has passed ISO9001, ISO14001, OHSAS18001, and has obtained a number of certifications, such as CE (LVD/EMC), TLC certification, energy saving certification, etc.
Shenzhen iTeaQ Power Co., Ltd. is the leading manufacturer of modular UPS and network power, located at Guangming High-tech Zone, Shenzhen, China. With 20 years’ experience in power electronics field, we are constantly cooperating with global partners, enabling customers to protect their critical applications and ensuring business continuity. iTeaQ Power is a most growing UPS and network power provider.
R&D
The company dedicates 10% of turnover to R&D, such as cooperation with China top-ranking universities and institutes, advanced research, patent development, etc. It can achieve status of always technology ahead. Benefited from the electronic industry base of Shenzhen, China, all our design engineers have master or above degree in power electronic, and at least 10 years UPS and power practice.
Quality
The company implements total quality management, ranging from selecting right person for appropriate post, components selecting, incoming inspection, producing, testing, and packing to delivery. At present, it has passed ISO9001, ISO14001, OHSAS18001, and has obtained a number of certifications, such as CE (LVD/EMC), TLC certification, energy saving certification, etc.
Receiption
Office

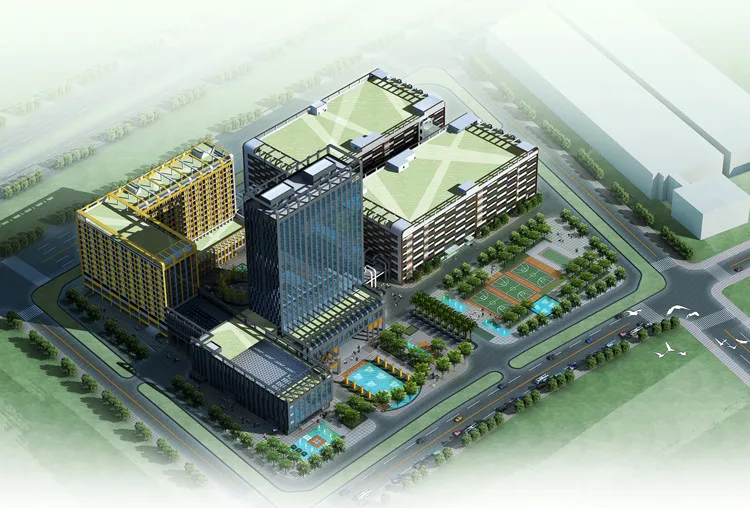

Industry park

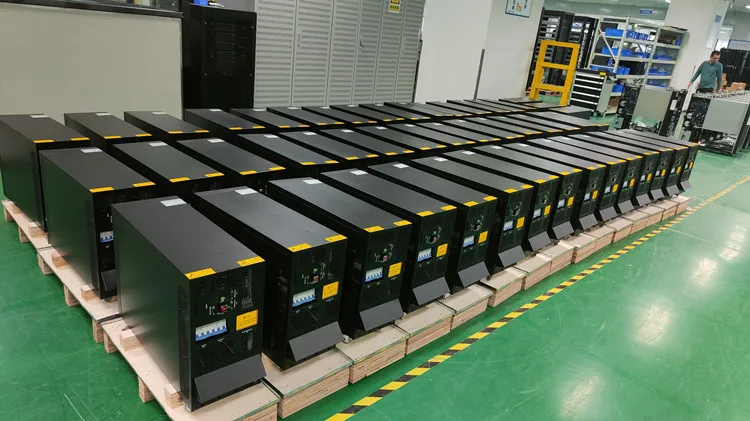

HF 3 phases production line
Modular UPS production line
PCBA soldering
Advanced Material management

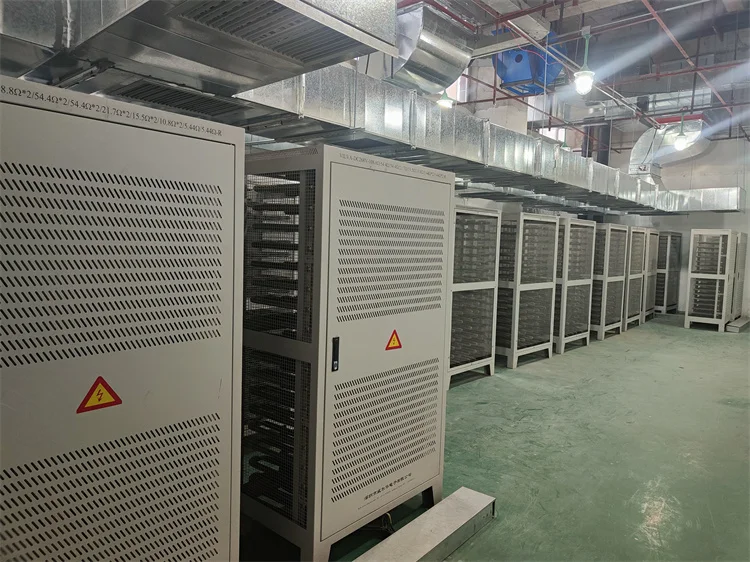

2000KW Load Test room,
Can do real 100% load test for the UPS even at 2000kVA large UPS,
make sure all the products most reliable before deliver out for customer
100KW Test station 1
100KW Test Station 2
800KVA Test station 1
800KW Test Station 2
2000KW Load Test room
PCBA soldering
PCBA soldering machine
PCBA production line
Advanced Material management
Certifications
Exhibition
2OCT 2019 SINGAPORE DATA CENTER WORLD
2020 DATA CENTER SOLUTION EXHIBITION
2021 IT SOLUTION NATIONAL TOUR EXHIBITION
2021 IT SOLUTION NATIONAL TOUR EXHIBITION
2023 partner meeting
iTeaQ Partner Conference was held in Binhai Aerospace City sucessfully .
iTeaQ will stand firmly with these partners to create a bright future together !

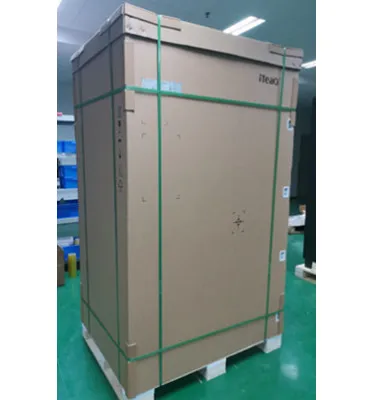

Packing & Delivery
1pcs into master carton on pallet
Recommend Products
FAQ
Q1: Are you a factory or trading company?
A1: Yes, We are leading modular UPS products factory with 20 years experiences
Q2: How about the Shipping Method?
A2:Mainly deliver by sea as the products’ weight and size , if customer require, also can deliver by air.
Q2: How about the delivery date?
A2: In General, the delivery date will be 15-30 working days for normal buy quantity. But if bigger order, please check us
further.
Q3: How about the label and the logo?
A3: Customize label and logo is workable.
Q4: How about the MOQ ?
A4: Neatral products Moq 1pcs , OEM products Moq:10pcs
A1: Yes, We are leading modular UPS products factory with 20 years experiences
Q2: How about the Shipping Method?
A2:Mainly deliver by sea as the products’ weight and size , if customer require, also can deliver by air.
Q2: How about the delivery date?
A2: In General, the delivery date will be 15-30 working days for normal buy quantity. But if bigger order, please check us
further.
Q3: How about the label and the logo?
A3: Customize label and logo is workable.
Q4: How about the MOQ ?
A4: Neatral products Moq 1pcs , OEM products Moq:10pcs
Any other questions , welcome click here to contact the factory customer service by click view more in folowing
