Мини-охладитель USB
US $0.12-$0.15
Мини-ПК для
- Категории: Industrial Computer & Accessories >>>
- Поставщик: Dongguan,Riotouch,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Video Description
Product Description
Riotouch i3 i5 i7 10th/11st generation CPU OPS Mini PC for Interactive Whiteboards
* Intel® OPS-C Module
* Intel® Core I3/I5/I7 10th/11st Gen CPU
* SO-DIMM DDR4 2666/3200MHz RAM Max support 32GB,dual channel
* SSD M.2 NVMe/SATA
* 1*80PIN Standard OPS socket
* 1*RTL8111F Gigabit Ethernet ports
* Support hardware one-key restore
* Support power-on boot, scheduled boot,
* network wake-up, PXE
* Intel® Core I3/I5/I7 10th/11st Gen CPU
* SO-DIMM DDR4 2666/3200MHz RAM Max support 32GB,dual channel
* SSD M.2 NVMe/SATA
* 1*80PIN Standard OPS socket
* 1*RTL8111F Gigabit Ethernet ports
* Support hardware one-key restore
* Support power-on boot, scheduled boot,
* network wake-up, PXE
Product Advantages
Products Specifications
CPU Model | Intel® 10th Gen | Intel® 11th Gen | |
Chipset | Intel®SOC | Intel®SOC | |
Memory | dual channel DDR4 | dual channel DDR4 memory | |
Storage | 1 x M.2 SATA/NVME | 1 x M.2 NVMe/SATA | |
Graphics | Intel® UHD Graphics | Intel® Iris® Xe Graphics | |
WiFi | 1 x M.2 2230 PCIe/USB | 1 x M.2 2230 PCIe/USB | |
LAN | Gigabit Ethernet | Intel® i219V Gigabit Ethernet | |
Audio | Realtek ALC269 | Realtek ALC269 | |
I/O Interface | 1 x USB3.1 Type-C 1 x Power LED+HDD LED 4x USB3.1 Type-A 2x USB2.0 1 x Gigabit RJ45 1 x 3.5mm sound output 1 x 3.5mm MIC 1 x HDMI2.0 1 x System recovery button 1 x DP1.2 1 x Reset/clear CMOS button 1 x Shutdown/Start up button 2 x antenna | 1 x 2.0 Type-C 1 x Power LED+HDD LED 2 x USB3.0 Type-A 1 x RJ45 2 x USB2.0 Type-A 1 x 3.5mm sound output 1 x 3.5mm sound 1 x HDMI2.0 1 x System recovery button 1 x DP1.4 1 x Reset/clear CMOS button 1 x Shutdown/Start up button 2 x antenna | |
OPS 80-pin Interface | HDMI2.0，2 x USB2.0， 1 x USB3.0，UART，Audio，Recovery，etc | HDMI2.0，DP1.4 2 x USB2.0，1 x USB3.0，UART，Audio，Recovery，etc | |
Power Input | 12~19V DC Input，MAX 90W | 12~19V 4.74A DC Input，MAX 90W | |
Size | 195 x 180 x 42mm or 195 x 180 x 30mm | ||
OS | Support Windows 10/11 | ||
Environment | Operating Temp：-10℃~60℃ Operating Humidity ：10%~90%，non-condensing Storage Temp. ：-20℃~70℃ | ||
Product Application

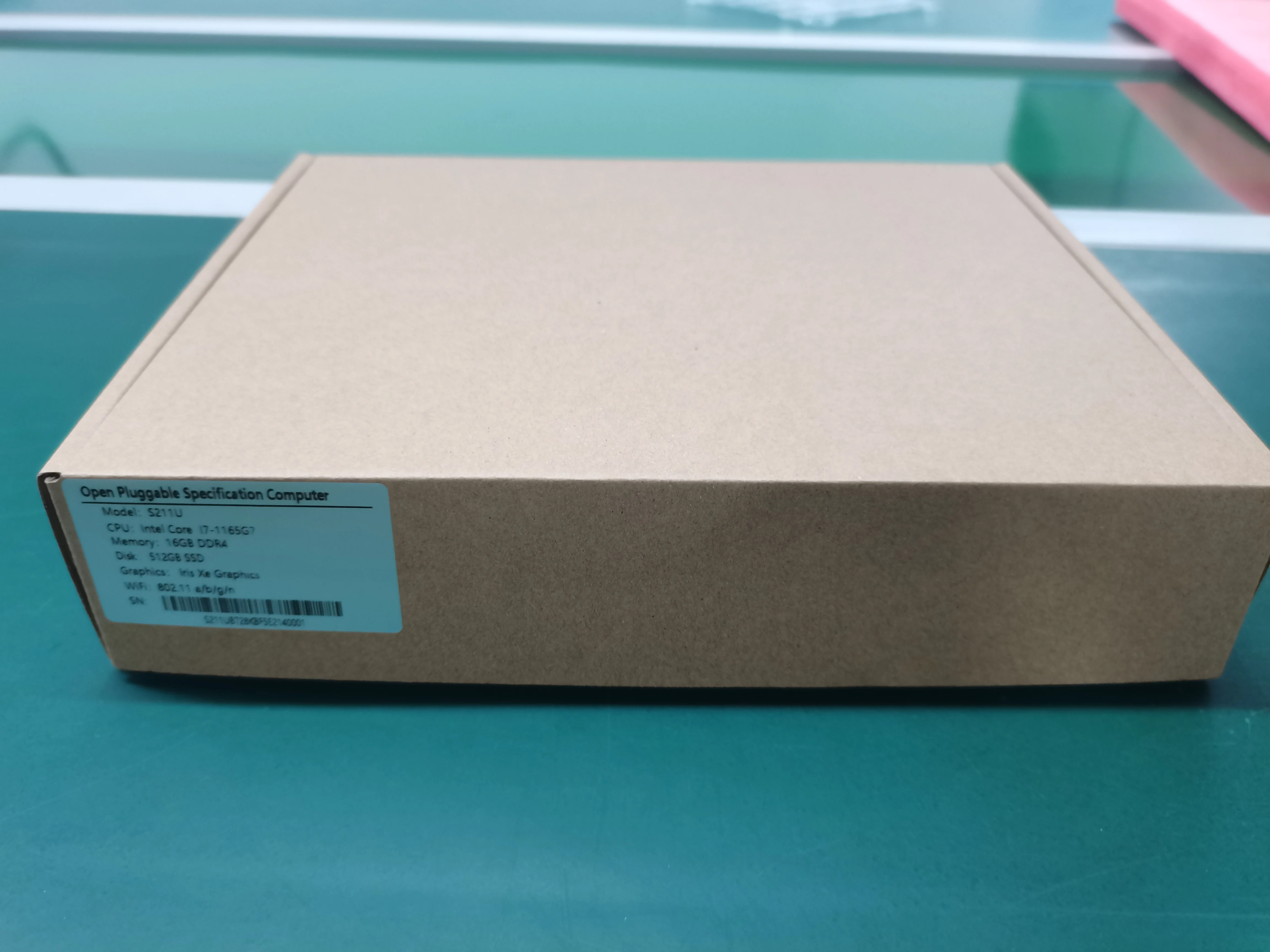

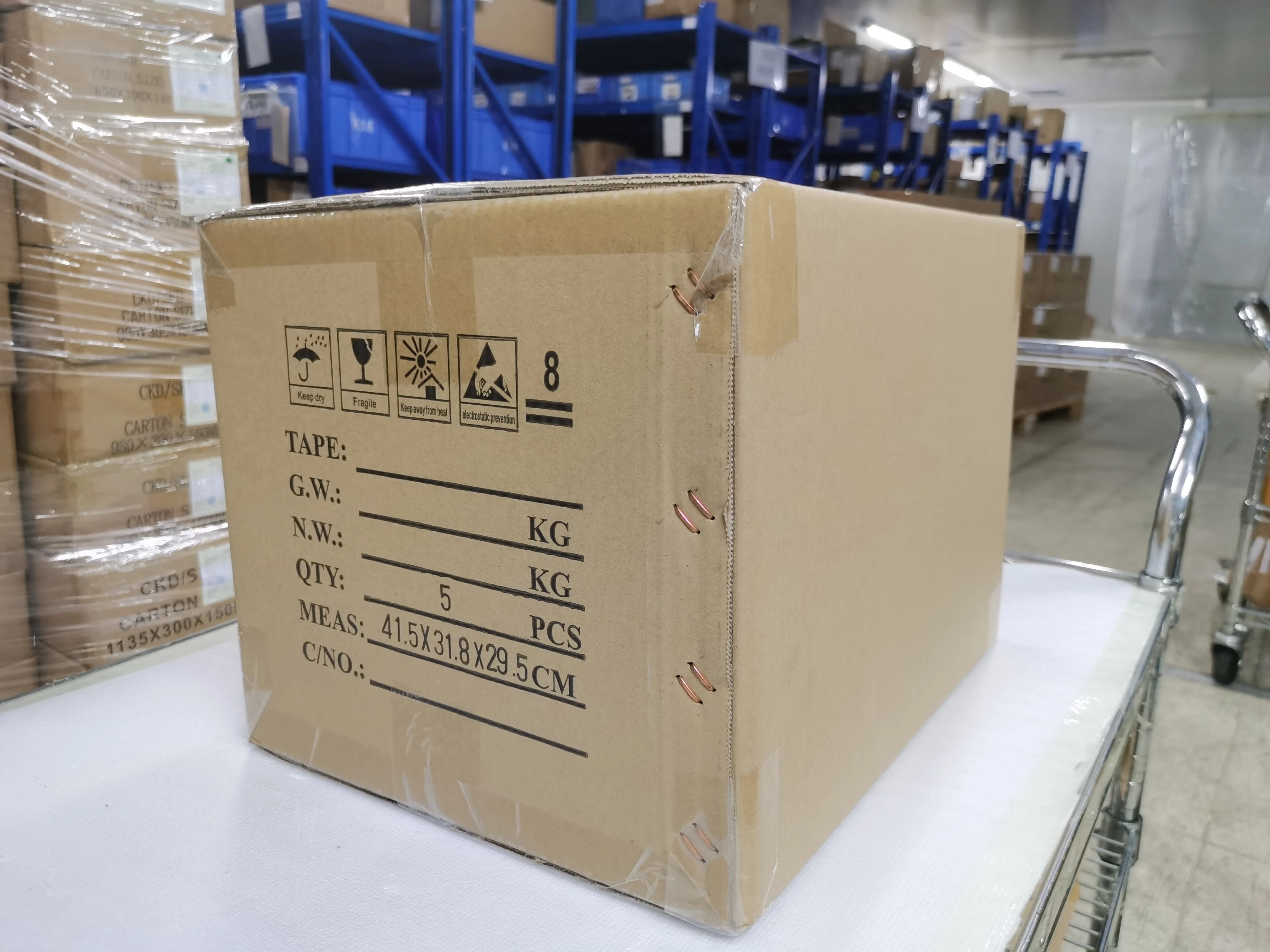

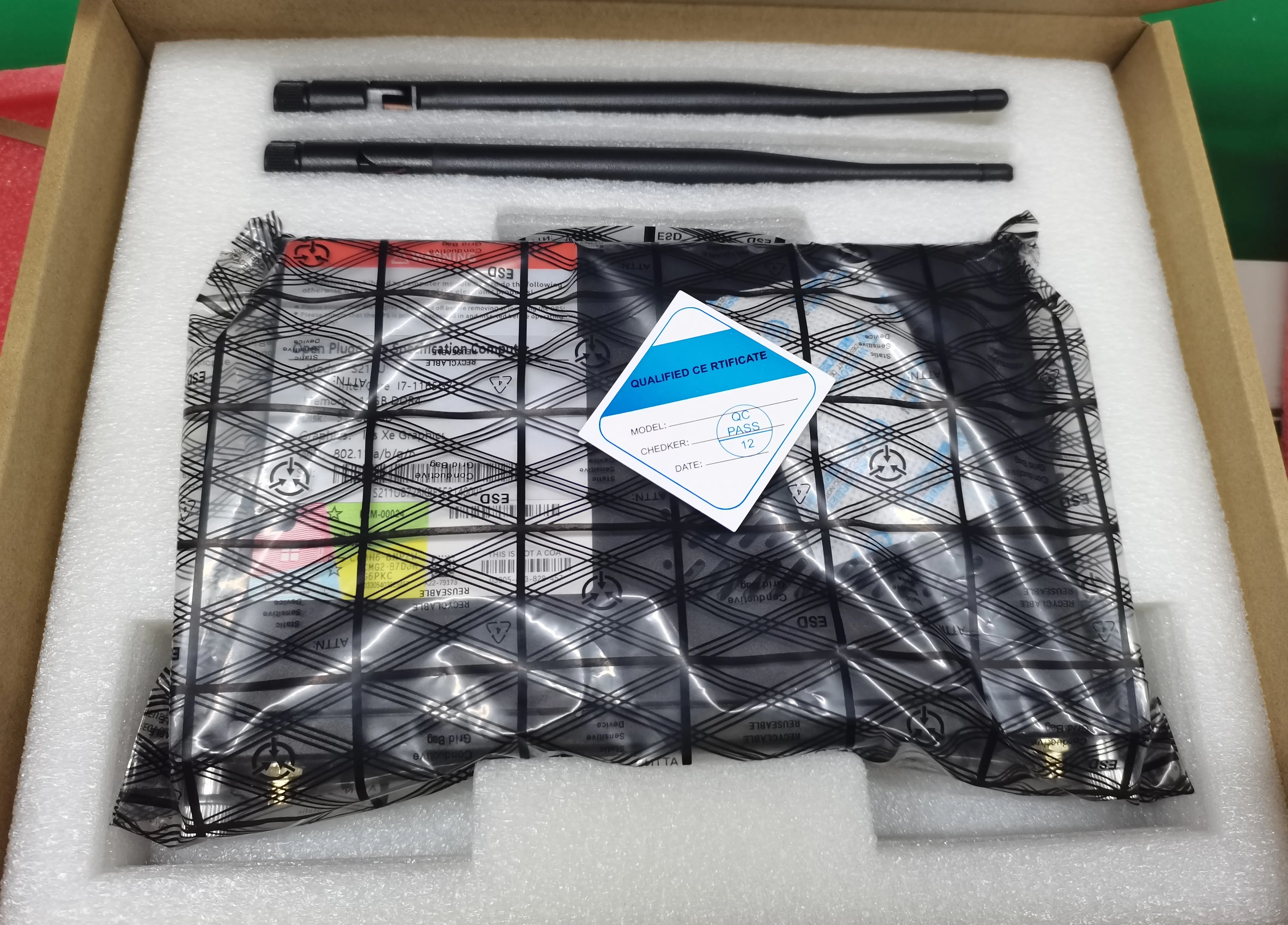

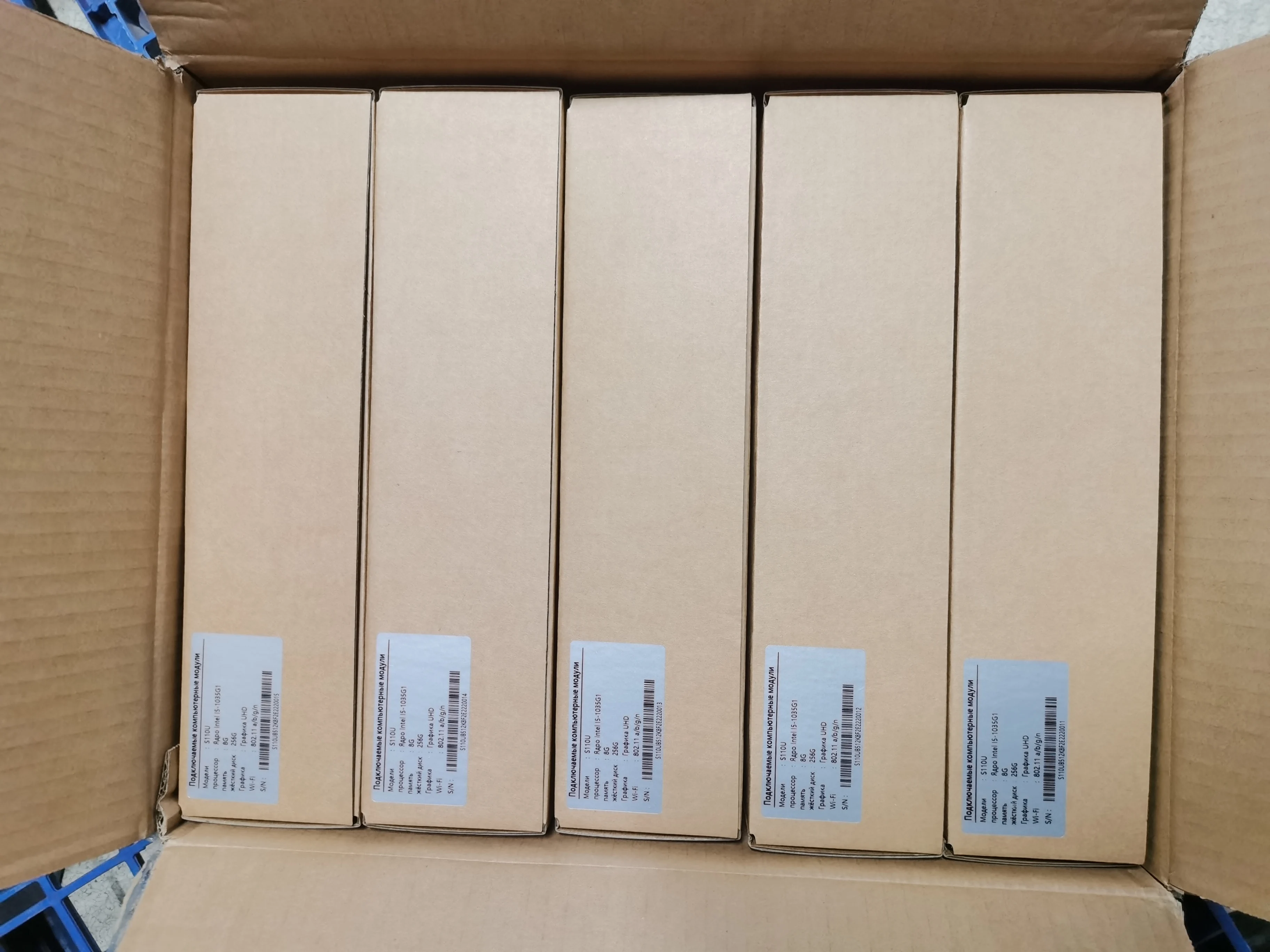

Product packaging
Certification
FAQ
Q1. Are you a Manufacturer?
Q4: How about the delivery time?
Answer: The delivery time would be with in 2-15 days according to the order quantity and size of the items.
Q5: What are your advantages?
Answer: 1.We are a direct factory, so customization is available according to your requirements.
2. We have our strong and professional RD and sales team to serve customer well.
3. RioTouch provides both IR touch and P-CAP touch Interactive display, all our display come from standard back cover tooling molds that supports more professional ODM. Our R&D team focus on software and firmware developing, helping them get more tenders.
Answer: Yes, We are a professional manufacturer of interactive display panels, interactive whiteboard and the accessories OPS Mini PC in Dong Guan City from 2009. Welcome to visit us.
Q2: What is the MOQ of OPS mini PC?
Answer: 1PCS.
Q3: What's your product quality control?
Answer: We have strict QC team, we are certified by ISO9001 production system. Our products passed CE, RoHS, FCC certification. All the products are 100% aging 72 hours before shipment.
Answer: We have strict QC team, we are certified by ISO9001 production system. Our products passed CE, RoHS, FCC certification. All the products are 100% aging 72 hours before shipment.
Q4: How about the delivery time?
Answer: The delivery time would be with in 2-15 days according to the order quantity and size of the items.
Q5: What are your advantages?
Answer: 1.We are a direct factory, so customization is available according to your requirements.
2. We have our strong and professional RD and sales team to serve customer well.
3. RioTouch provides both IR touch and P-CAP touch Interactive display, all our display come from standard back cover tooling molds that supports more professional ODM. Our R&D team focus on software and firmware developing, helping them get more tenders.
Q6.What can you buy from us?
Answer: Interactive Display, Interactive Whiteboard, Smart Blackboard, Interactive Display Accessories OPS mini PC, Mobile stands.
Q7. What services can we provide?
Answer: Accepted Delivery Terms: FOB, CFR, CIF, EXW；
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T, L/C, MoneyGram, PayPal, Western Union, Cash, Escrow;
Answer: Interactive Display, Interactive Whiteboard, Smart Blackboard, Interactive Display Accessories OPS mini PC, Mobile stands.
Q7. What services can we provide?
Answer: Accepted Delivery Terms: FOB, CFR, CIF, EXW；
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T, L/C, MoneyGram, PayPal, Western Union, Cash, Escrow;
