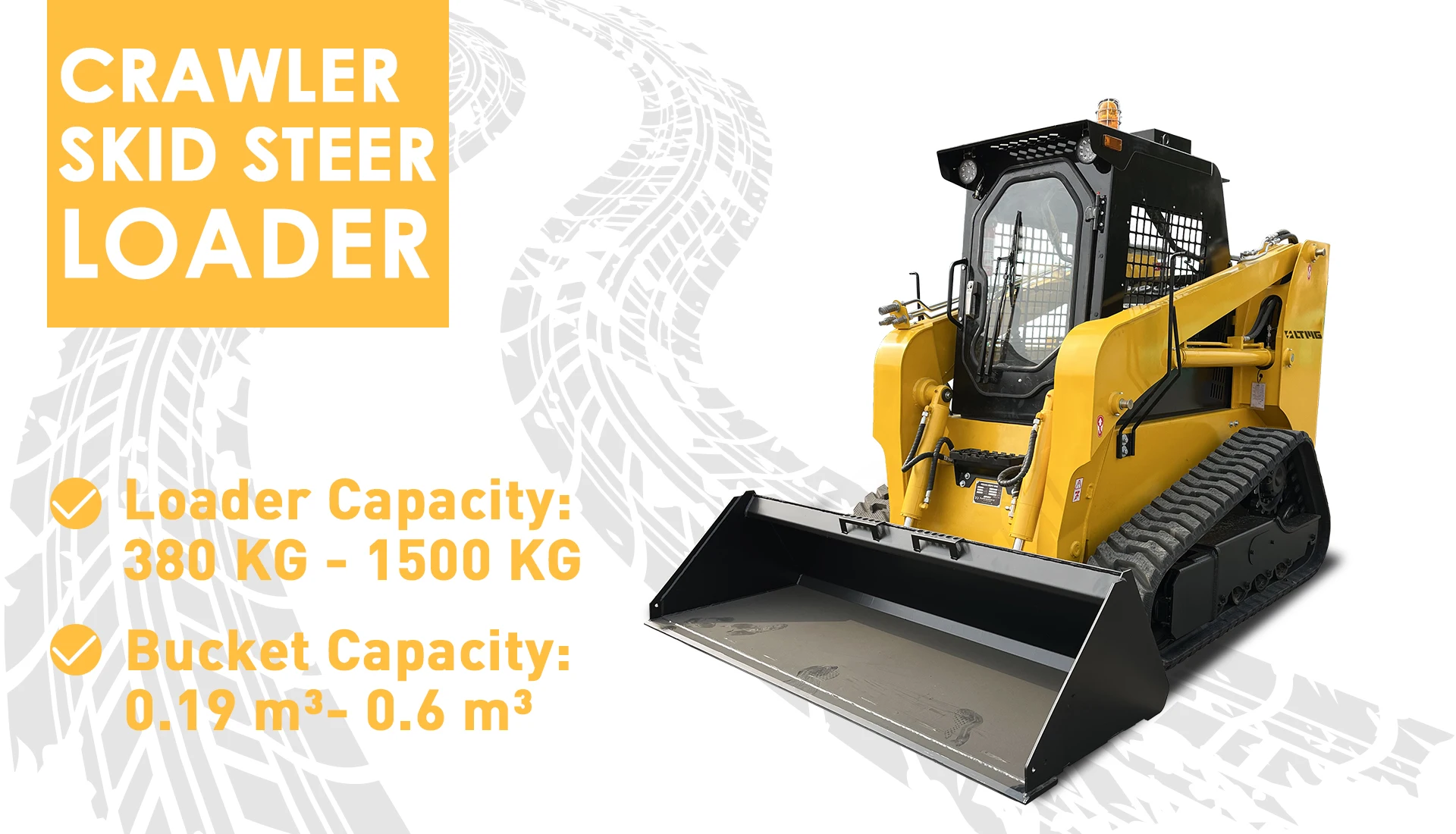

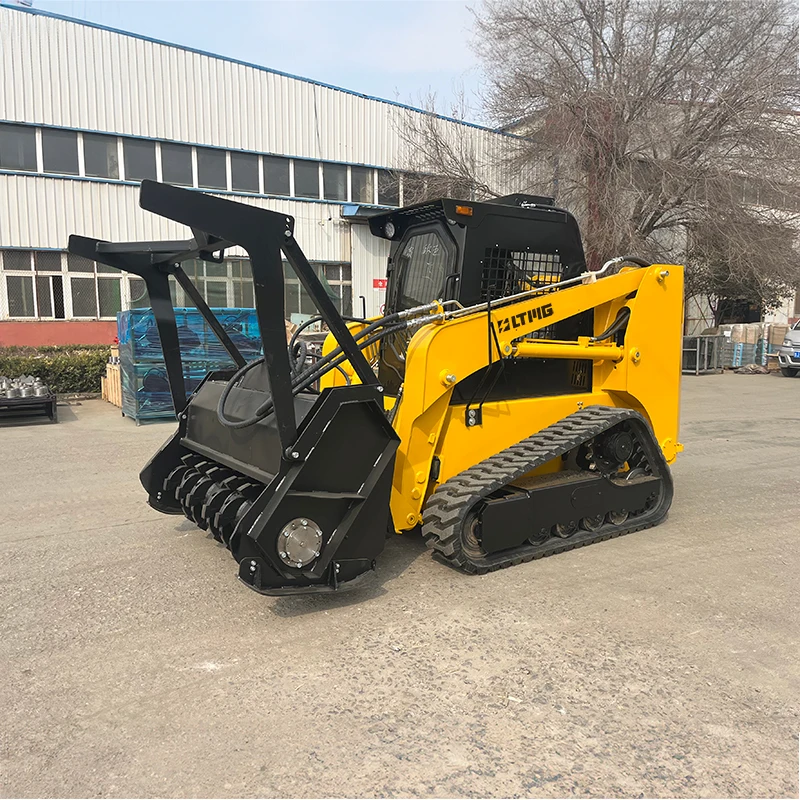

Заводская погрузочная техника 700 кг 1050 гидравлический скруббер гусеничный погрузчик с лесным
- Категории: >>>
- Поставщик: Shandong,Ltmg,Heavy,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

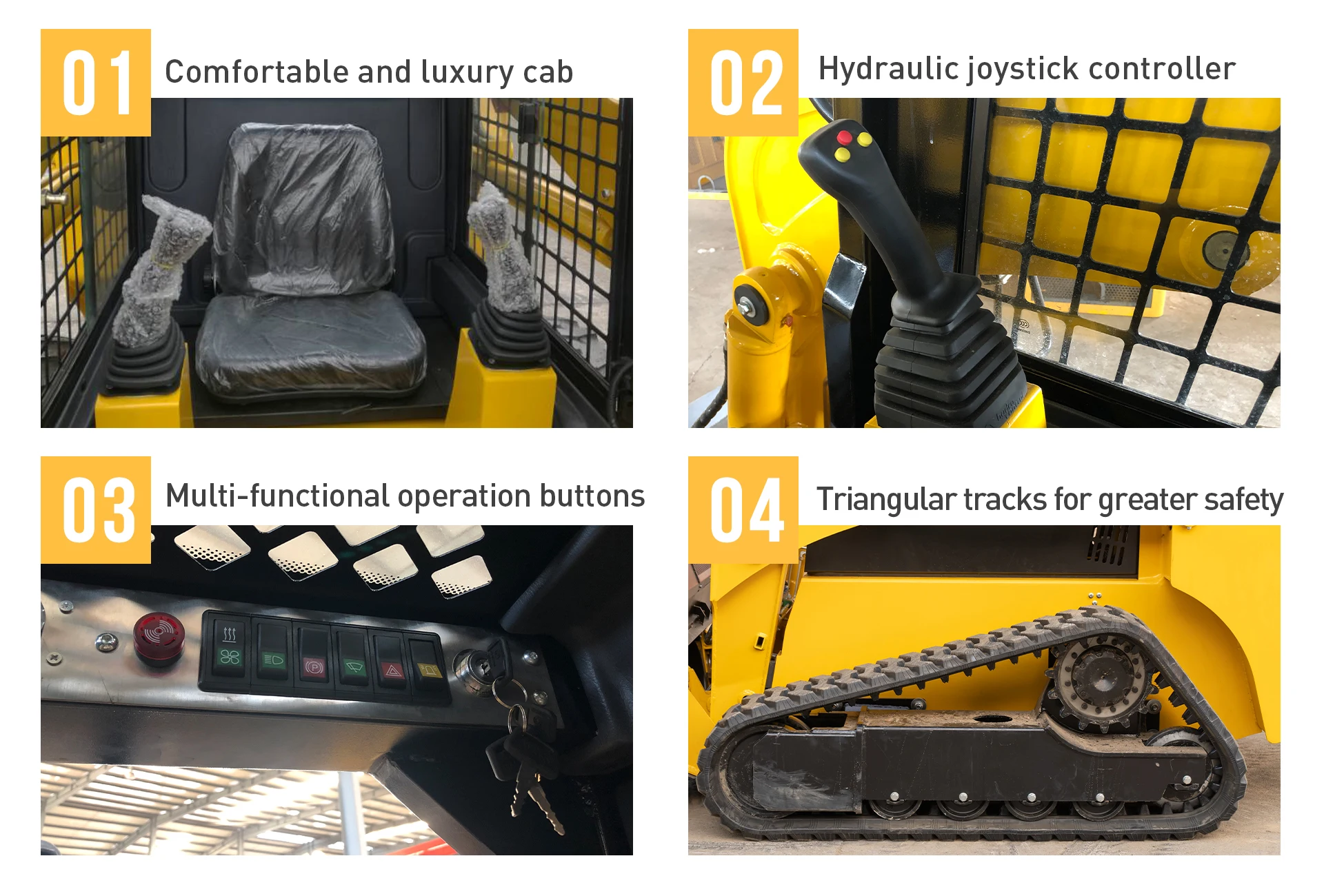

Advantages

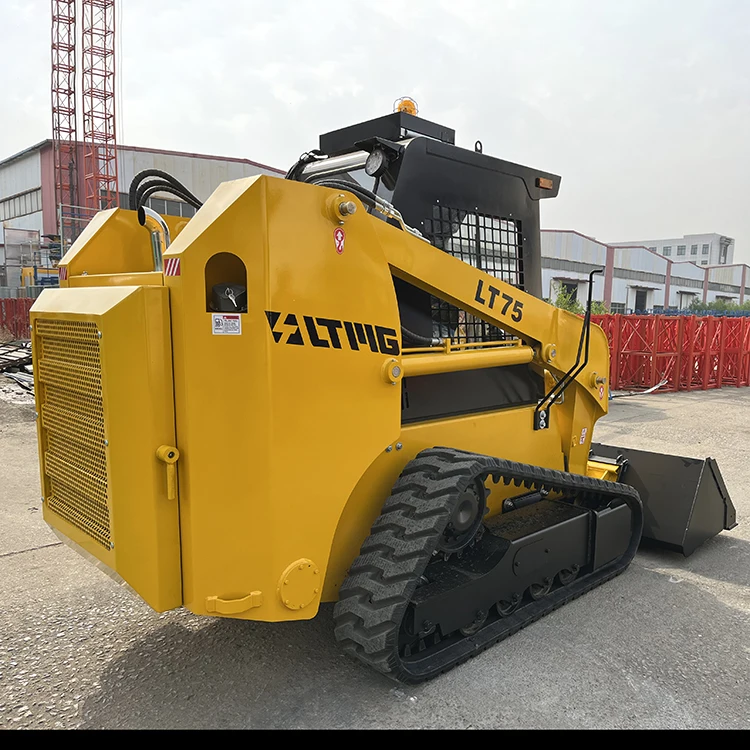

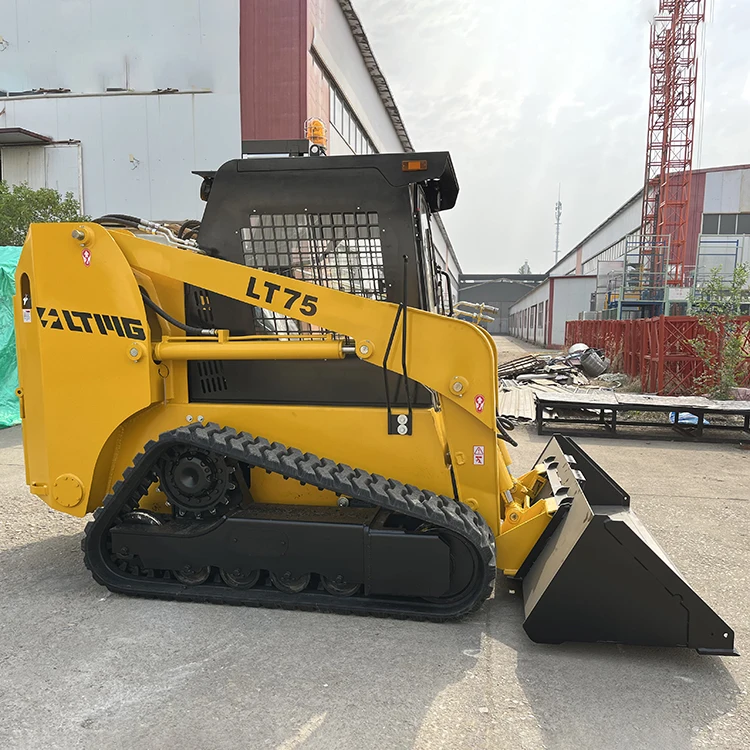

型号Model | LTS50 | LTS75 | |
额定载重Operating Load | Kg | 700 | 1050 |
最大行驶速度Max Speed | Km/H | 10 | 12\\18 |
液压流量Rated Flux | L/Min | 60 | 80 |
加大流量系统流量High Flow Flux | L/Min | / | / |
轮胎型号Tire Model | 300X52.5 | 320X84 | |
操作重量Self Weight Bucket | Kg | 3000 | 4200 |
铲斗容积Bucket Capacity | M³ | 0.3 | 0.5 |
最大操作高度Overall Operating Height | mm | 3350 | 3480 |
驾驶室顶高度Hheight To Top Of Cab | mm | 2050 | 2150 |
不带铲斗总长Without Bucket Length | mm | 2300 | 2750 |
带铲斗总长Overall Length With Bucket | mm | 2950 | 3500 |
卸料高度Dumping Height | mm | 2100 | 2230 |
车宽（标准轮胎）Width | mm | 1402 | 1782 |
带标准铲斗宽度Bucket Width | mm | 1500 | 1830 |
铲斗至底部的高度Height To Bottom Of Level Bucket | mm | 2603 | 2730 |
最大高度卸载角度Dumping Angle At Maximum Height | ° | 40 | 40 |
铲斗销高度Height To Bucket Hinge Pin | mm | 2770 | 2900 |
卸载距离Dumping Reach | mm | 790 | 715 |
铲斗在地面的反转角度Rollback Of Bucket On Ground | ° | 30 | 30 |
铲斗在最高时翻转角度Rollback Of Bucket At Full Height | ° | 104 | 104 |
轴距Wheelbase | mm | 1240 | 1500 |
离地间隙Ground Clearance | mm | 140 | 200 |
离去角Angle Of Departure | ° | 20 | 20 |
不带铲斗时转弯半径Front Turning Radius Without Bucket | mm | 1064 | 1298 |
前转弯半径Front Tuning Radius | mm | 1825 | 2010 |
后转弯半径Rear Tuning Radius | mm | 1264 | 1714 |
尾部长度Rear Axle To Bumper | mm | 594 | 890 |
轮距（标准轮胎）Tread Width | mm | 1102 | 1462 |
发动机Engine | Xinchai | Xinchai | |
额定功率Rated Power | Kw | 37 | 55 |
燃油箱容量Fuel Tank Capacity | L | 50 | 90 |
1. Since its minimum turning radius is less than half of the same level of articulated loaders, it is especially suitable for operations in narrow sites such as urban infrastructure, roads or construction sites, workshops, warehouses, docks, ship decks and even cabins.
2. Adopting all-wheel drive and no inter-wheel differential is conducive to work on undulating ground.
3. Different working devices can be replaced or hooked up at the job site in an instant, generally only a few minutes
4. Used for logistics support, site cleaning and project finishing operations of large construction machinery.
5. It can be used as a mobile pump station to provide a power source for hydraulic tools such as hand-held hydraulic picks.
6. In road protection, it can be directly used for snow removal and cleaning operations. With snow removal and deicing
OEM/ODM

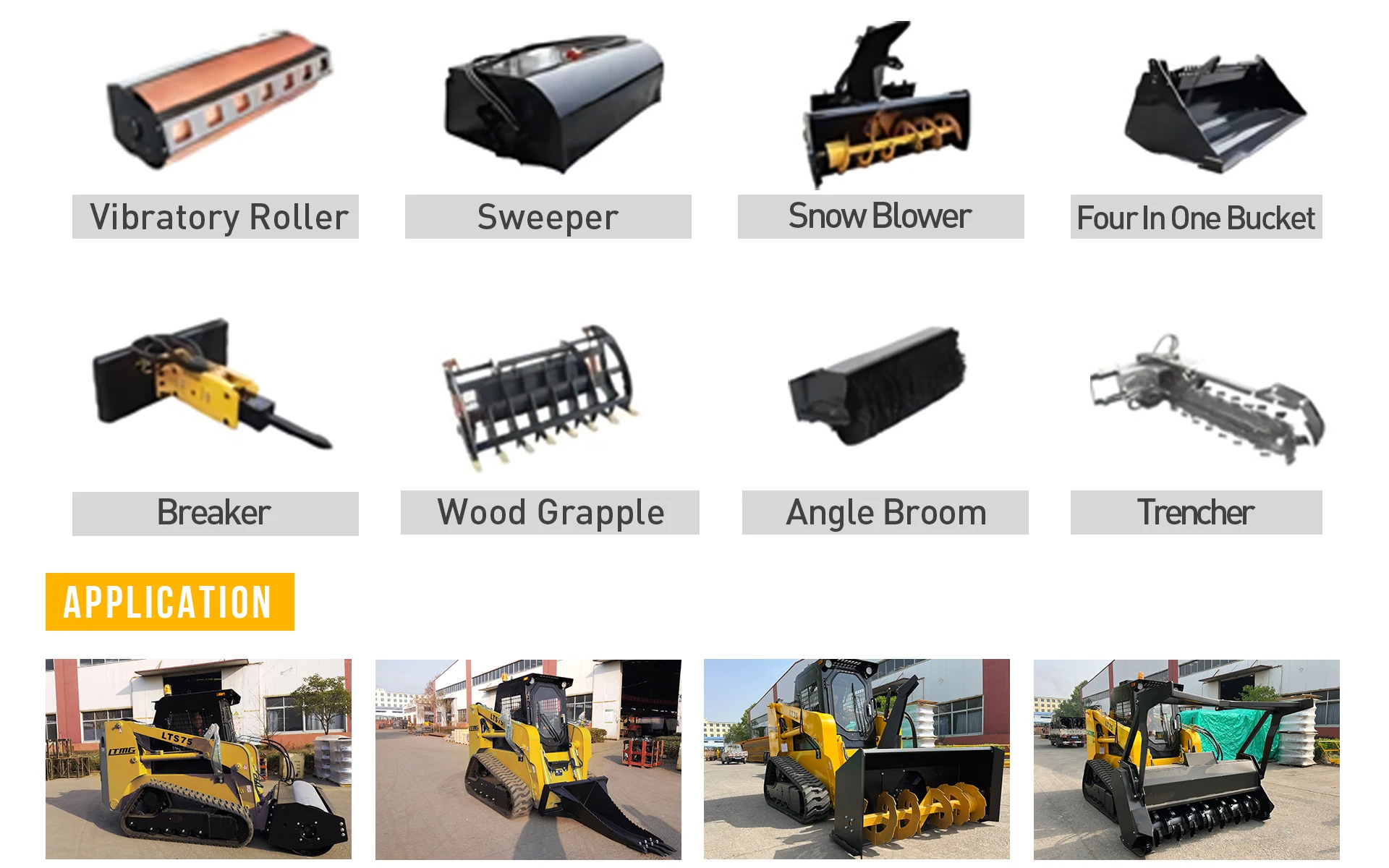

Optional Attachment

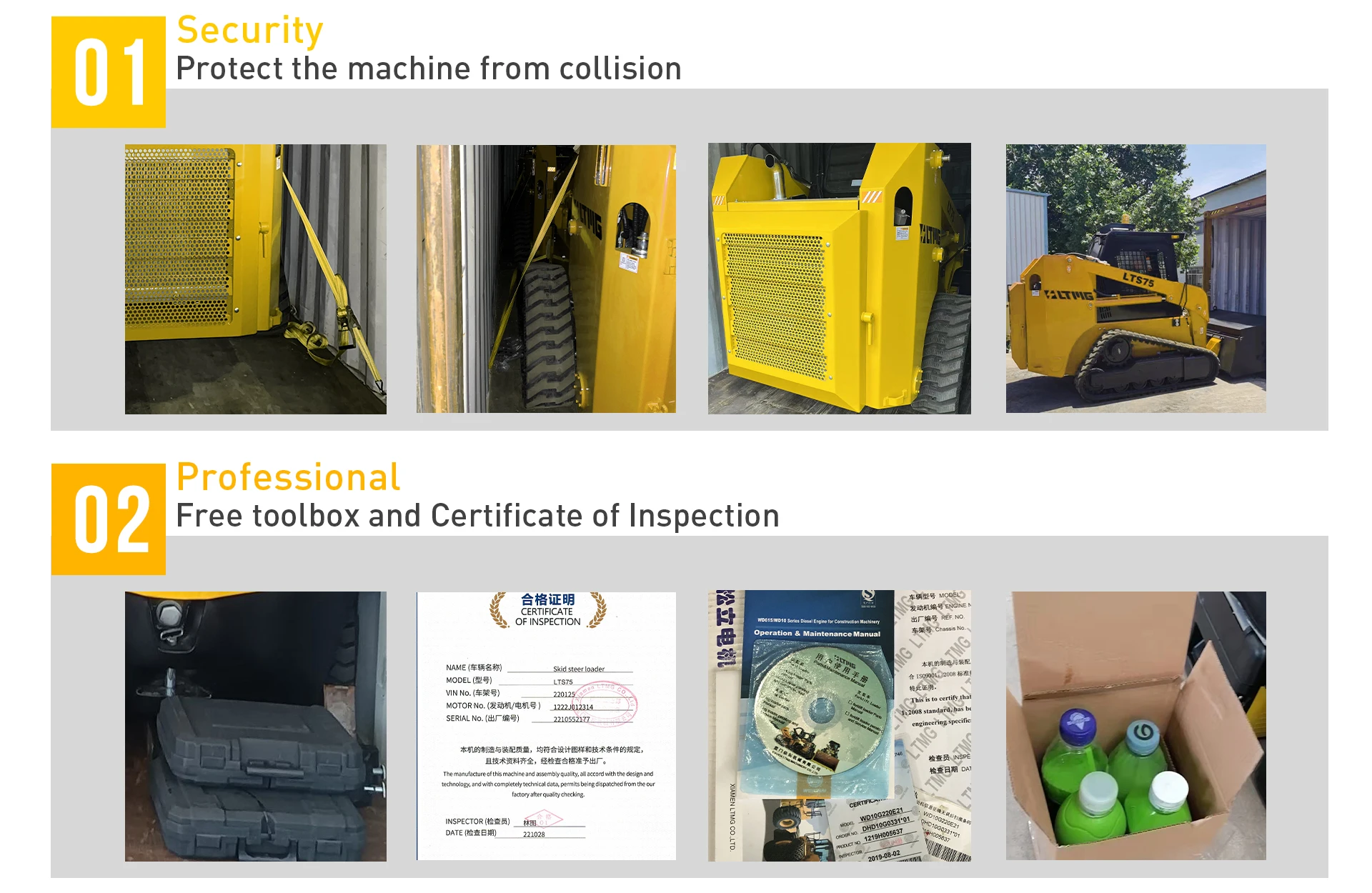

Shipping Plan
Factory Introduction
Certificate

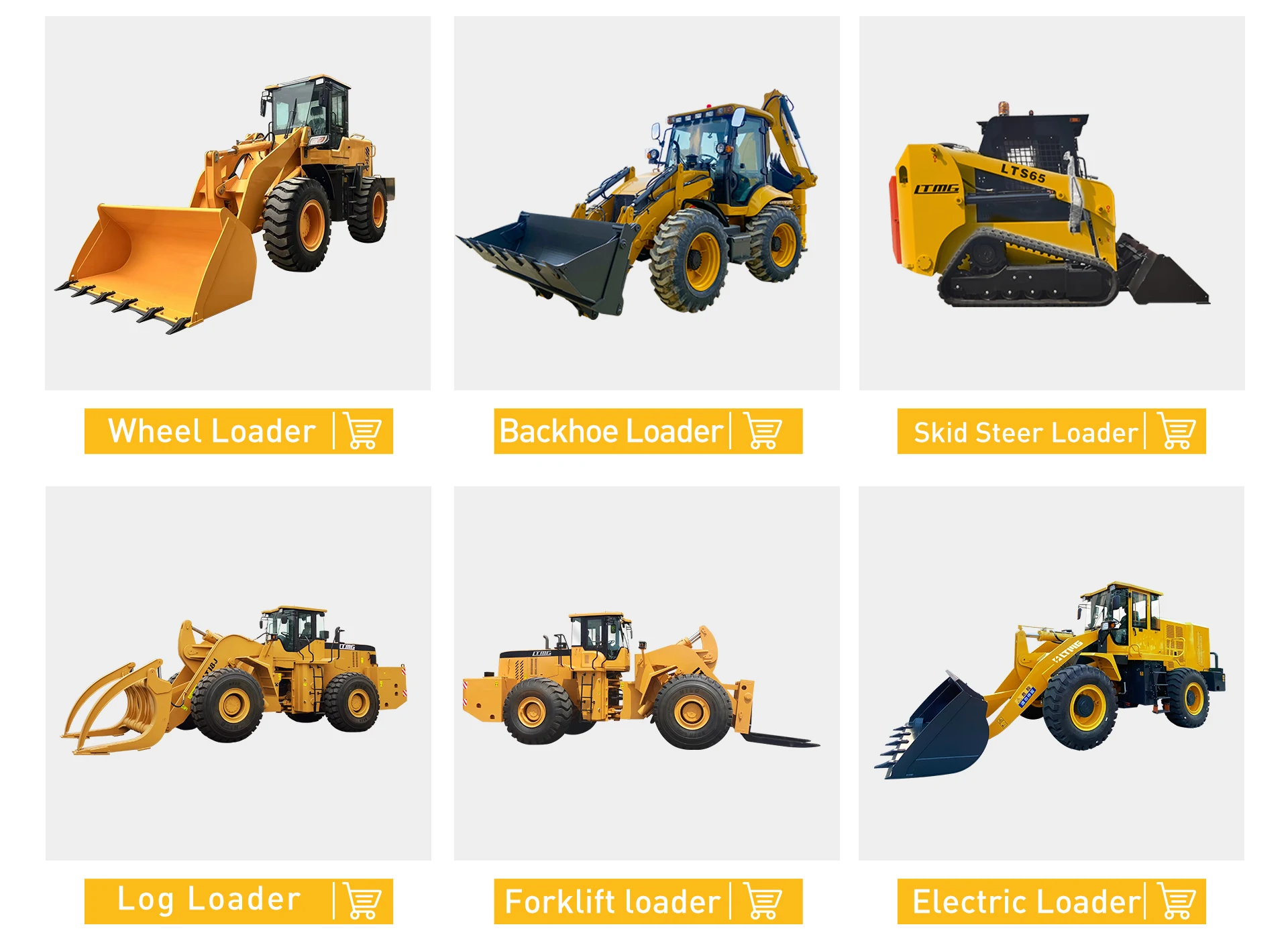

Hot Products
Customer Feedback
Customer Reviews
FAQ
1. Why choose us?
As a manufacturer, LTMG industrial is committed to offer not only high quality product and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory?
LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying loaders, forklift trucks, excavator, articulating boom lift and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
LTMG industrial can provide customized products according to customers'
requirements,both OEM and ODM are acceptable.
As a manufacturer, LTMG industrial is committed to offer not only high quality product and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory?
LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying loaders, forklift trucks, excavator, articulating boom lift and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
LTMG industrial can provide customized products according to customers'
requirements,both OEM and ODM are acceptable.
