Машинка для производства шлака
3 500-3 980 $
Промывка и разделение угля система разделения тяжелых плотных сред циклон применяется на заводах по
- Категории: >>>
- Поставщик: Weihai,Haiwang,Hydrocyclone,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

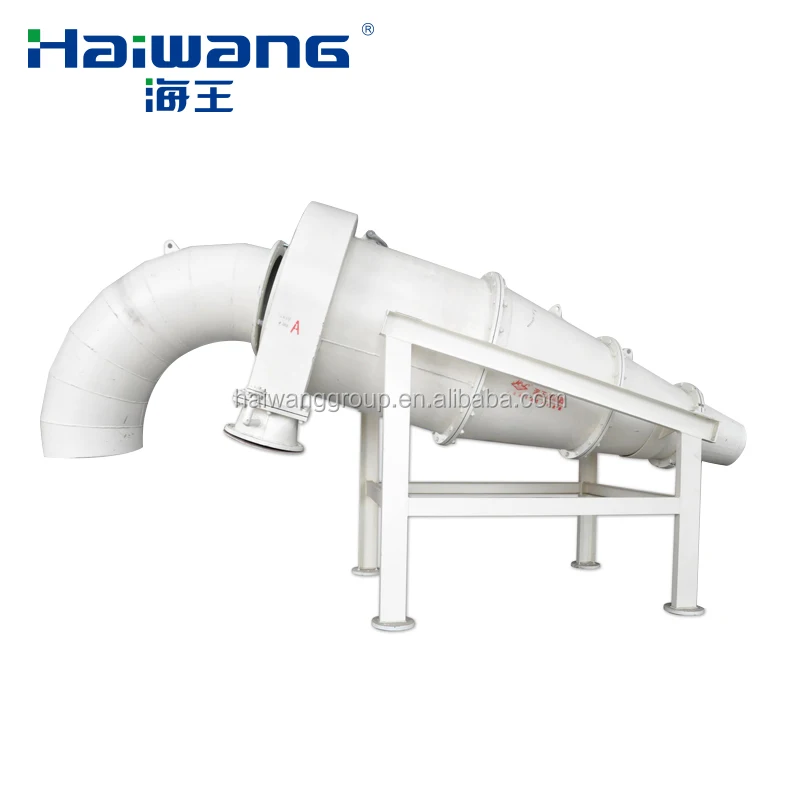

coal washing and separation heavy dense media separation system cyclone applied in coal beneficiation factories
Two products HM cyclone with pressured feeding
Maximum size of 1600 with capacity of 750-850t/h
Maximum feeding size 120mm
Ep≤0.05
Separation efficiency ≥95%
High-alumina ceramic lining
Specification | Diameter (mm) | Feeding size (mm) | Pressure (MPa) | Capacity (t/h) | Medium Circulation (m3/h) |
FZJ600 | 600 | ≤30 | 0.06-0.12 | 40-80 | 250-350 |
FZJ660 | 660 | ≤30 | 0.06-0.14 | 60-100 | 300-400 |
FZJ710 | 710 | ≤40 | 0.08-0.14 | 80-140 | 400-600 |
FZJ800 | 800 | ≤40 | 0.08-0.14 | 120-180 | 600-800 |
FZJ850 | 850 | ≤50 | 0.08-0.14 | 160-240 | 700-900 |
FZJ900 | 900 | ≤50 | 0.10-0.16 | 200-320 | 800-1100 |
FZJ1000 | 1000 | ≤60 | 0.10-0.16 | 260-360 | 1000-1200 |
FZJ1100 | 1100 | ≤60 | 0.10-0.16 | 320-420 | 1100-1300 |
FZJ1150 | 1150 | ≤60 | 0.10-0.16 | 360-460 | 1200-1400 |
FZJ1200 | 1200 | ≤80 | 0.12-0.18 | 400-500 | 1300-1600 |
FZJ1300 | 1300 | ≤80 | 0.12-0.18 | 450-550 | 1500-1800 |
FZJ1400 | 1400 | ≤90 | 0.12-0.18 | 500-600 | 1600-2000 |
FZJ1450 | 1450 | ≤90 | 0.12-0.18 | 550-650 | 1900-2200 |
FZJ1500 | 1500 | ≤100 | 0.14-0.20 | 650-750 | 2000-2400 |
FZJ1600 | 1600 | ≤120 | 0.14-0.20 | 750-850 | 2200-2600 |
Why we choose Haiwang Hydrocyclone?
1. We own multifarious patent structure and advanced technology at abroad and domestic:
①According to the feeding method, feed structure could be divided into the involute feeding, the volute pre-classifying feeding,
spiral feeding etc.
②According to cone structure, it could be divided into flat bottom structure, multi-cone structure, the cone angle gradient
structure, etc.
③According to the overflow way, it could be divided into the air conditioning and energy saving overflow cap, thick wall overflow
pipe and other design.
①According to the feeding method, feed structure could be divided into the involute feeding, the volute pre-classifying feeding,
spiral feeding etc.
②According to cone structure, it could be divided into flat bottom structure, multi-cone structure, the cone angle gradient
structure, etc.
③According to the overflow way, it could be divided into the air conditioning and energy saving overflow cap, thick wall overflow
pipe and other design.
2. Personalized structure design is available. We can produce suitable hydrocyclone according to client’s demand or working
condition. Various wear-resisting material: High alumina ceramic, rubber, polyurethane, ceramic composite materials.
condition. Various wear-resisting material: High alumina ceramic, rubber, polyurethane, ceramic composite materials.
Company Introduction
The largest and leading supplier of cyclone separation equipment and technical service in the Asia-Pacific region
- Established in 1989
- Manufacturing bases more than 150,000 square meters
- The product meets the European, the American and the other international fabrication standards.
- Haiwang has passed the EU CE certification, ISO9001, ISO14001, OHSAS18001
- The annual capacity is over 20,000 sets of different sizes of cyclones, more than 5,000 sets of vibrating screens and separators etc.
- Haiwang products take the leading market share in the field of separation industry, and exported to more than 50 countries & regions.
- Established in 1989
- Manufacturing bases more than 150,000 square meters
- The product meets the European, the American and the other international fabrication standards.
- Haiwang has passed the EU CE certification, ISO9001, ISO14001, OHSAS18001
- The annual capacity is over 20,000 sets of different sizes of cyclones, more than 5,000 sets of vibrating screens and separators etc.
- Haiwang products take the leading market share in the field of separation industry, and exported to more than 50 countries & regions.
Certifications
After Sales Service
Localized Service
Worldwide offices and agents provide localized sales and technical service.
Professional Technical Service
Professional technical team provide optimum solutions and early stage laboratory tests.
Prefect After Sales Service
Assembly, commissioning, training services by professional engineer.
Prompt Delivery
Good production capacity and spare parts stock realize fast delivery.
Packing&Shipping
Packing: Non-fumigation plywood case or as required by customer.
Shipping: Sea Freight/Air Freight/Land Transportation.
