Product Description
RO MEMBRANE WORKING CONDITION
1. Maximum Operating Pressure:
41 bar(600 psi);
2. Maximum Operating Temperature:
45℃ (113℉);
3. Maximum Pressure Drop per Element:
3. Maximum Pressure Drop per Element:
1.0 bar (15 psi);
4. pH Range of Continuous Operation: 2-11;
5. pH Range of Chemical Cleaning: 1-13;
6. Maximum Feed Silt Density Index:
4. pH Range of Continuous Operation: 2-11;
5. pH Range of Chemical Cleaning: 1-13;
6. Maximum Feed Silt Density Index:
(SDI15) 5.0;
7. Free Chlorine Tolerance: < 0.1 ppm.
7. Free Chlorine Tolerance: < 0.1 ppm.
These points are normal as below:
1. Membrane active areas may vary ±4%;2. Permeate flow rates for individual elements may vary ±15%;
3. Stabilized salt rejection is generally achieved after continuous using for 24-48 hours,
3. Stabilized salt rejection is generally achieved after continuous using for 24-48 hours,
which depending on water qualities and operating conditions.

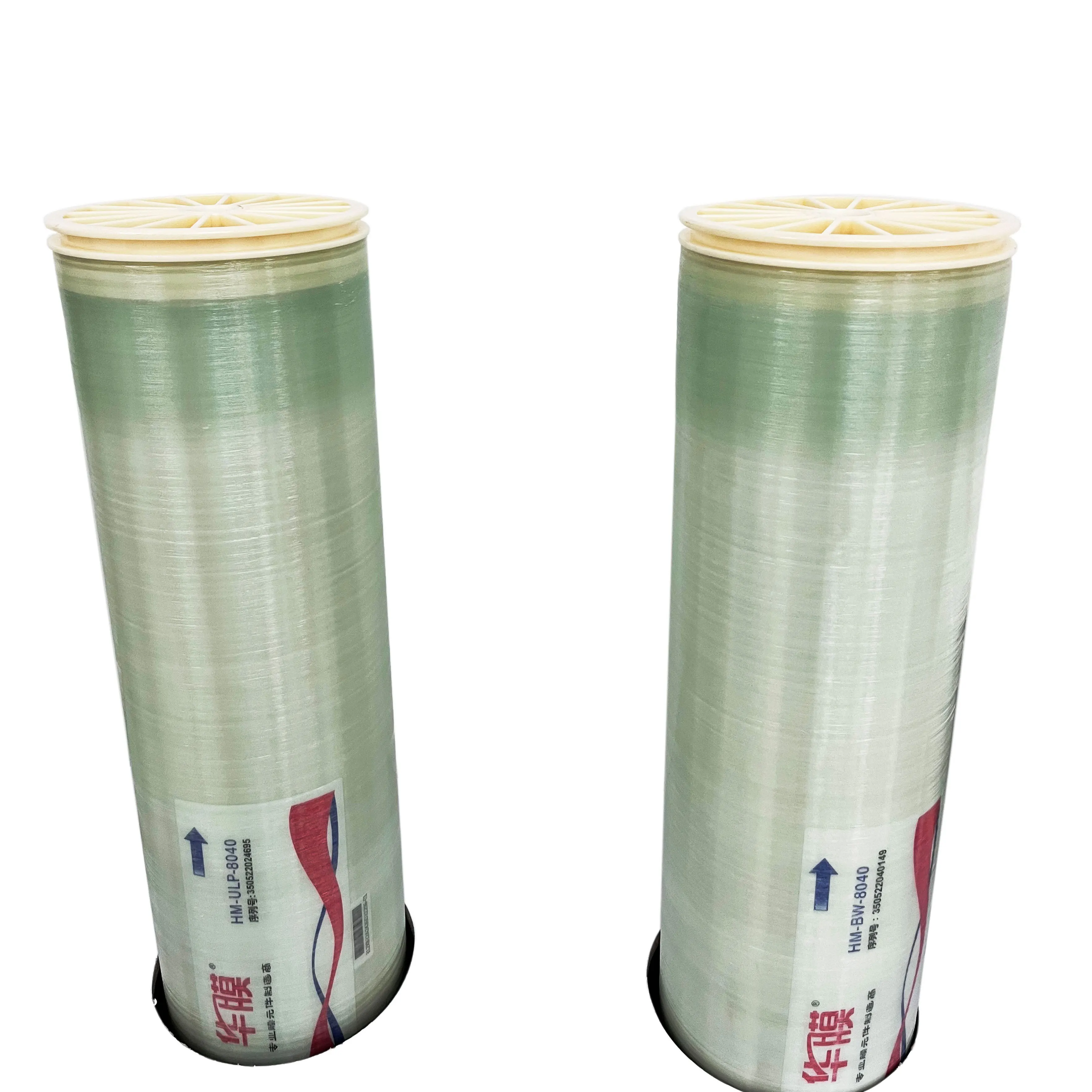

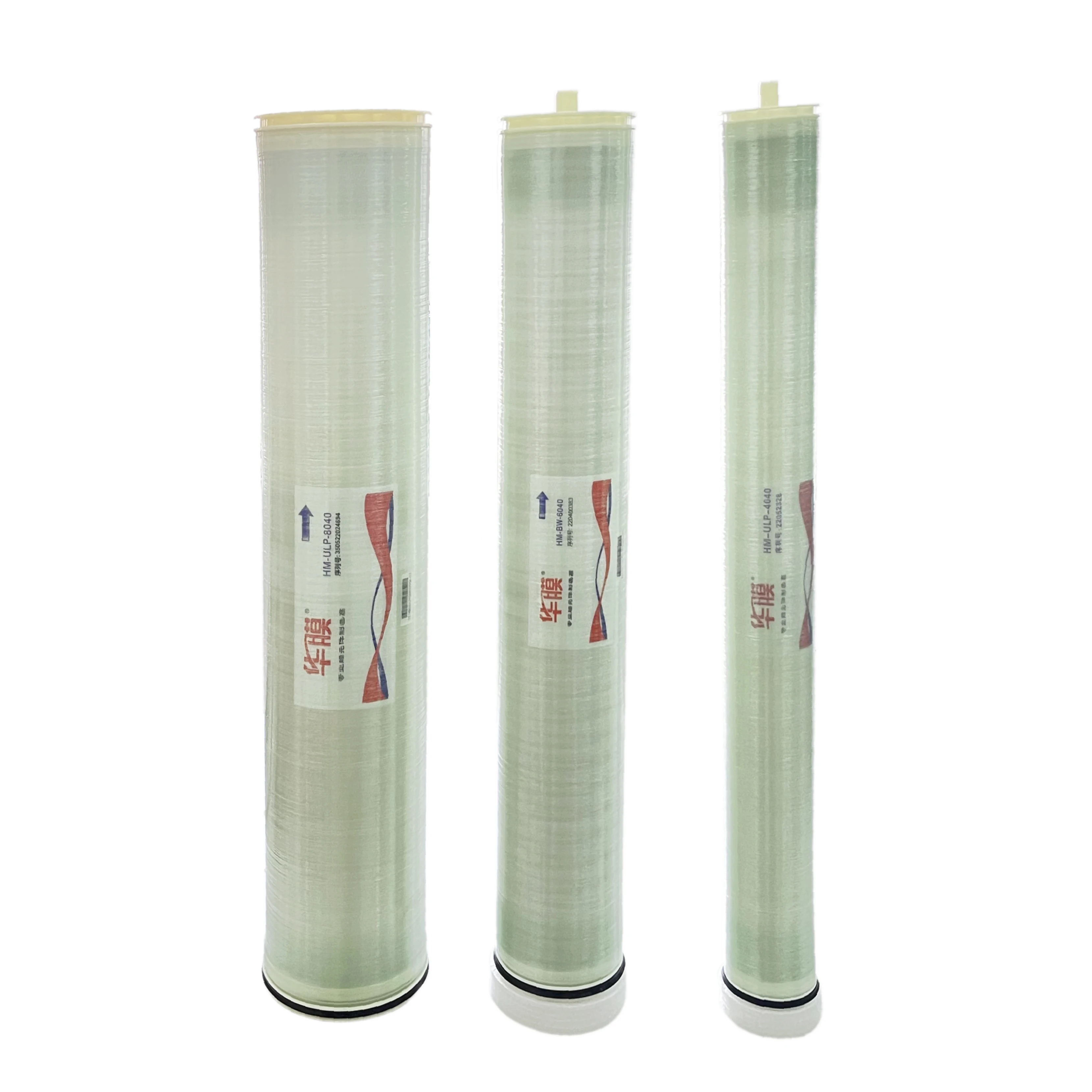

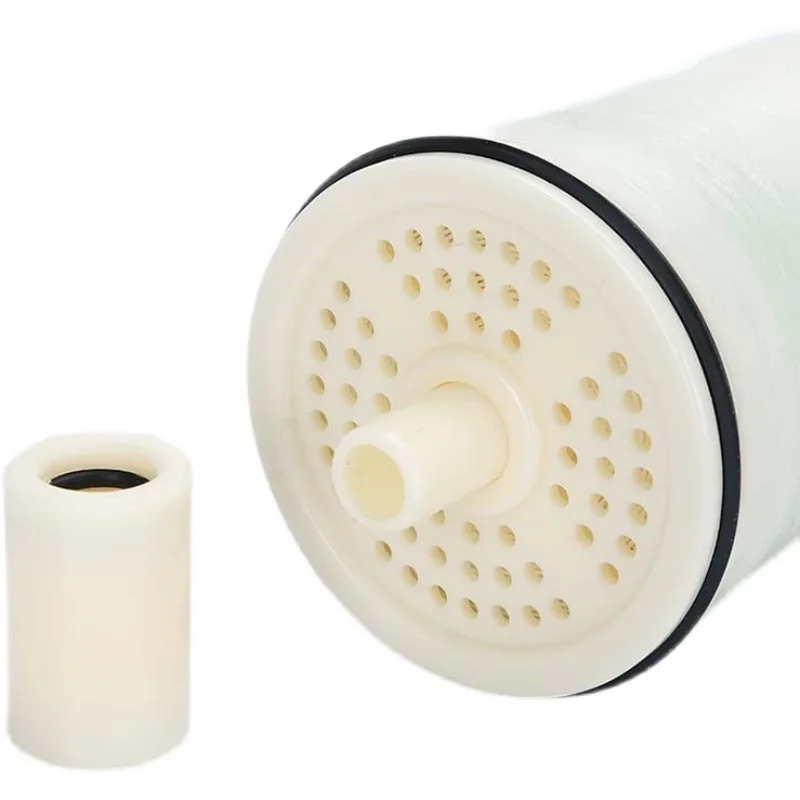

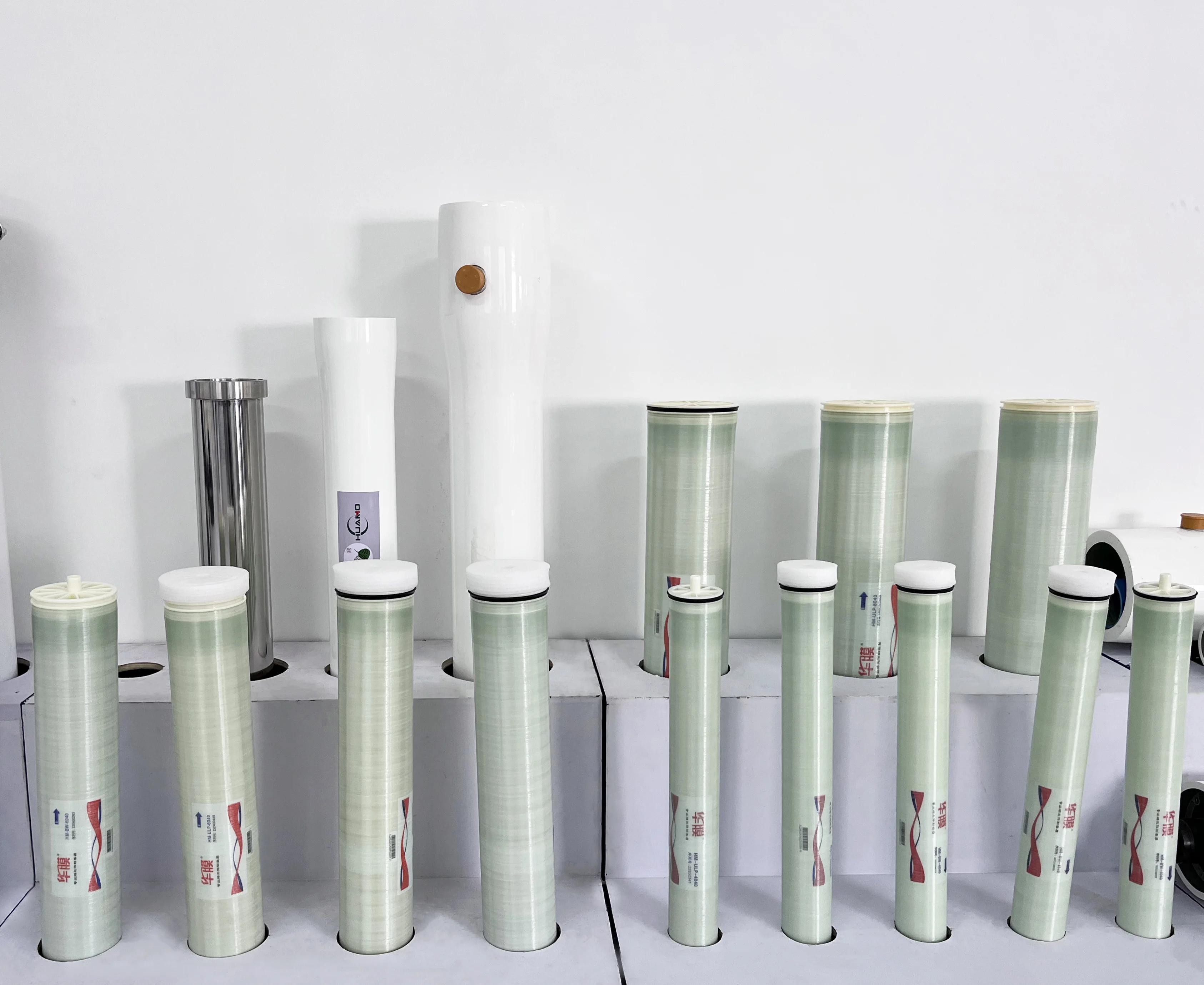

HUAMO ULP SERIES RO MEMBRANE
ULP series is a low-pressure aromatic polyamide composite membrane element. It has the characteristics of large flux and high desalination rate. The operating pressure is about 2/3 of normal membranes.It is suitable for desalination of RO water,
groundwater, municipal water and other water sources. It is mainly used in pure water, boiler feed water, food and pharmaceutical manufacturing industries and other fields.
groundwater, municipal water and other water sources. It is mainly used in pure water, boiler feed water, food and pharmaceutical manufacturing industries and other fields.
Model | Active Membrane Area ft2(m2) | Stabilized Salt Rejection (%) | Minimum Salt Rejection(%) | Permeate Flow Rate gpd(m3/d) |
ULPHM-4040 | 78(7.2) | 99.3 | 99 | 2250(8.7) |
ULPHM-6040 | 185(172) | 99.2 | 99 | 4120(15.6) |
ULPHM-8040 | 400(37) | 99.3 | 99 | 11500(44) |
NOTES OF HUAMO ULP SERIES RO MEMBRANE:
1. Test Condition: Feed Water Pressure 1.03 MPa (150 psi);
2. Feed Water Temperature: 25 °C (77 °F);
3. Feed Water Concentration :1,500 ppm NaCl;
4. Feed Water pH: 8; Permeate Recovery 15%.
Model | A inch(mm) | B inch(mm) | C inch(mm) | D inch(mm) |
ULP-4040 | 40(1016) | 1.05(26.7) | 0.75(19) | 3.9(99) |
ULP-6040 | 40(1016) | 1.05(26.7) | 0.98(25) | 5.75(146) |
ULP-8040 | 40(1016) | 0 | 1.125(29) | 7.95(201.9) |
HUAMO LP SERIES RO MEMBRANE
BW series is an aromatic polyamide composite membrane element.
It has the characteristics of low operating pressure, high water production and
high desalination rate. It has a high removal rate for dissolved salts, TOC, SI02
and other substances, and is especially suitable for the preparation of high-purity water in the electronics and power industries.
It is suitable for desalination treatment of surface water, municipal water and other water sources, mainly used in industrial pure water, boiler feed water or brackish water applications such as high-concentration brine.
It has the characteristics of low operating pressure, high water production and
high desalination rate. It has a high removal rate for dissolved salts, TOC, SI02
and other substances, and is especially suitable for the preparation of high-purity water in the electronics and power industries.
It is suitable for desalination treatment of surface water, municipal water and other water sources, mainly used in industrial pure water, boiler feed water or brackish water applications such as high-concentration brine.
Model | Active Membrane Area ft2(m2) | Stabilized Salt Rejection (%) | Minimum Salt Rejection(%) | Permeate Flow Rate gpd(m3/d) |
BW-4040 | 78(7.2) | 99.4% | 98.8% | 2050(7.8) |
BW-6040 | 185(17.2) | 99.3% | 99% | 4120(15.6) |
BW-8040 | 400(37) | 99.4% | 98.8% | 10500(40) |
NOTES OF HUAMO BW SERIES RO MEMBRANE:
1.Test Condition: Feed Water Pressure: 1.55MPa (225 psi);
2. Feed Water Temperature: 25 °C (77 °F);
3. Feed Water Concentration: 2,000 ppm NaCl;
4. Feed Water PH: 8.
Model | A inch(mm) | B inch(mm) | C inch(mm) | D inch(mm) |
BW-4040 | 40(1016) | 1.05(26.7) | 0.75(19) | 3.9(99) |
BW-6040 | 40(1016) | 1.05(26.7) | 0.98(25) | 5.75(146) |
BW-8040 | 40(1016) | 0 | 1.125(29) | 7.95(201) |
HUAMO FR SERIES RO MEMBRANE
FRHM4040/FRHM8040 anti-fouling brackish water desalination reverse osmosis membrane element, with the characteristics
of high water production and high desalination rate. Suitable for large-scale industrial and municipal water treatment systems or systems with poor influent water quality.
Model | Active Membrane Area ft2(m2) | Stabilized Salt Rejection (%) | Minimum Salt Rejection(%) | Permeate Flow Rate gpd(m3/d) |
FRHM4040 | 78(7.2) | 99.5 | 99% | 2050(7.8) |
FRHM8040 | 400(37) | 99.5 | 99% | 10,500(40) |
NOTES OF HUAMO FR SERIES RO MEMBRANE:
1.Test Condition: Feed Water Pressure: 1.55MPa (225 psi);
2. Feed Water Temperature: 25 °C (77 °F);
3. Feed Water Concentration: 2,000 ppm NaCl;
4. Feed Water PH: 8.
3. Feed Water Concentration: 2,000 ppm NaCl;
4. Feed Water PH: 8.
Model | A inch (mm) | B inch (mm) | C inch (mm) | D inch (mm) |
FRHM4040 | 40(1016) | 1.05(26.7) | 0.75(19) | 3.9(99) |
FRHM8040 | 40(1016) | 0 | 1.125(29) | 7.95(201) |
HUAMO FR-HT series RO membrane
TF22-8040FR-HT/TF22-4040FR-HT anti-fouling high temperature reverse osmosis membrane elements, which have the characteristics of high water production, high salt rejection and certain high temperature
resistance. Suitable for large-scale industrial and municipal water treatment systems or systems with poor influent water quality.
resistance. Suitable for large-scale industrial and municipal water treatment systems or systems with poor influent water quality.
Model | Active Membrane Area ft2(m2) | Stabilized Salt Rejection (%) | Minimum Salt Rejection(%) | Permeate Flow Rate gpd(m3/d) |
TF22-4040FR-HT | 78(7.2) | 99.5 | 99 | 2050(7.8) |
TF22-8040FR-HT | 400(37) | 99.5 | 99 | 10500(7.8) |
Model | A inch(mm) | B inch(mm) | C inch(mm) | D inch(mm) |
TF22-4040FR-HT | 40(1016) | 1.05(26.7) | 0.75(19) | 3.9(99) |
TF22-8040FR-HT | 40(1016) | 0 | 1.125(29) | 7.95(201) |

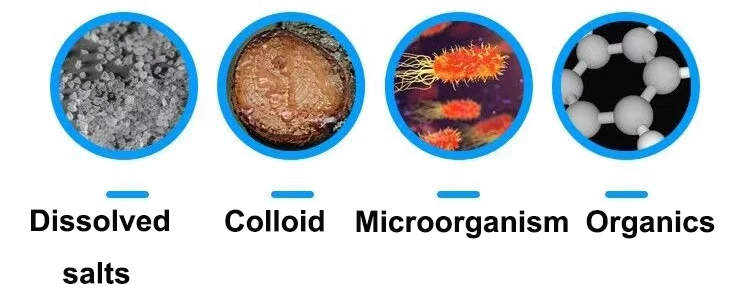

High filter precision of ro membrane
Reverse osmosis membrane can intercept material greater than 0.0001 micron, is one of the finest membrane separation products, can effectively intercept all dissolved salts and molecular weight greater than 100 organic matter, while allowing water molecules through.
Company Profile
HUAMO MembranceTeam started in Silicon Valley by a group of scientists, engineers and market specialists
who are highly motivated, innovative, experienced and knowledgeable in water treatment, filtration and separation technologies. HUAMO Membrane specializes in the development of Reverse Osmosis, Nano filtration membranes and
who are highly motivated, innovative, experienced and knowledgeable in water treatment, filtration and separation technologies. HUAMO Membrane specializes in the development of Reverse Osmosis, Nano filtration membranes and
Sea Water membranes for a wide range of industrial applications. HUAMO products are used in chemical&petrochemical, power generation, municipal, food and beverage, oil &gas, dyeing& printing, pulp &paper industries as well as specialty& custom needs.
Headquarter in Quanzhou, China
Started by a group of former Koch&Dow experts,set membrane branch in 2013.Huamo markets are developing:USA,Italy,Mexico, Netherlands, China, Middle
East,India,Vietnam.......
East,India,Vietnam.......
Asia branch office in Shanghai
By 2020,Huamo had more than 1,000 big plants all over the
world,including US, China, Italy, Netherlands, Uzbekistan,
world,including US, China, Italy, Netherlands, Uzbekistan,
Korea,etc.
Why Choose Us
Packing & Delivery
FOR WELL PROTECTION, WE UTILIZE BETTER QUALITY CARTON PACKAGING.
Related products
FAQ
Q:1. Do you provide OEM service?
A: Yes. Any required logo is available.
Q2. Are you trading company or manufacturer?
A: We are truely manufacturer. Huamo Group is super-big group company in China, and we have thousands of waste and pure watertreatment products who supports one-stop purchasing. All price are reasonable, and quality is in premier level.
Q3. How could we trust your company by the first time transaction?
A:Trade assurance is supported, you could get a sample first to test and check the quality if need. We are a company which has more than 20 years history, and the products are popular in domestic and overseas.
Q4. Can you support to send me sample to have a check first?
A:Yes, absolutely support.
Q5. What can we buy from you except for water analysis instruments?

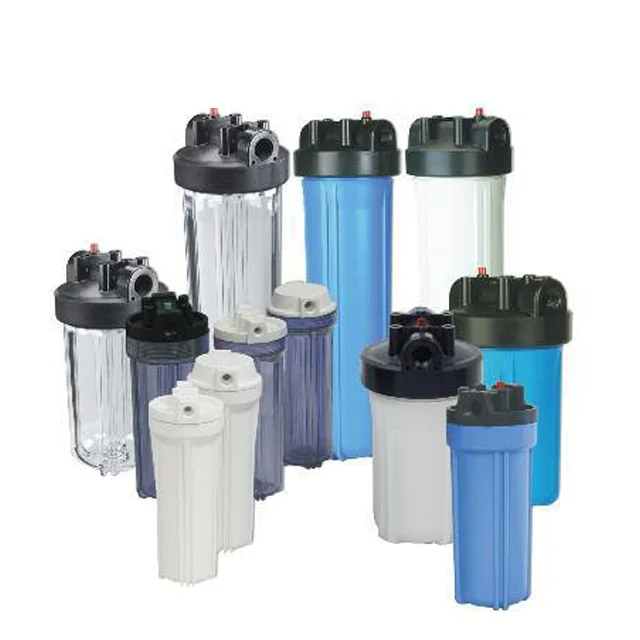

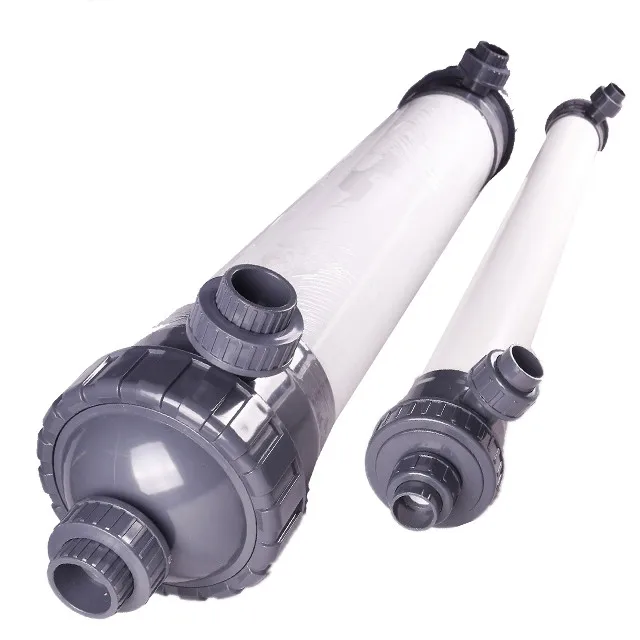

A: UF membrane and UF equipments, RO membrane and RO equiments, MBR membrane, Membrane housing，SS tank and FRP tank, EDI and EDI equipment, ultraviolet sterilizer, kind of water treatment resin, dosing tank and dosing pump
