Дисковая коническая
- Категории: >>>
- Поставщик: JIANGSU,HAOKE,MATERIAL,TECH,CO.,LTDJIANGSU,LTD
Поделиться:
Описание и отзывы
Характеристики

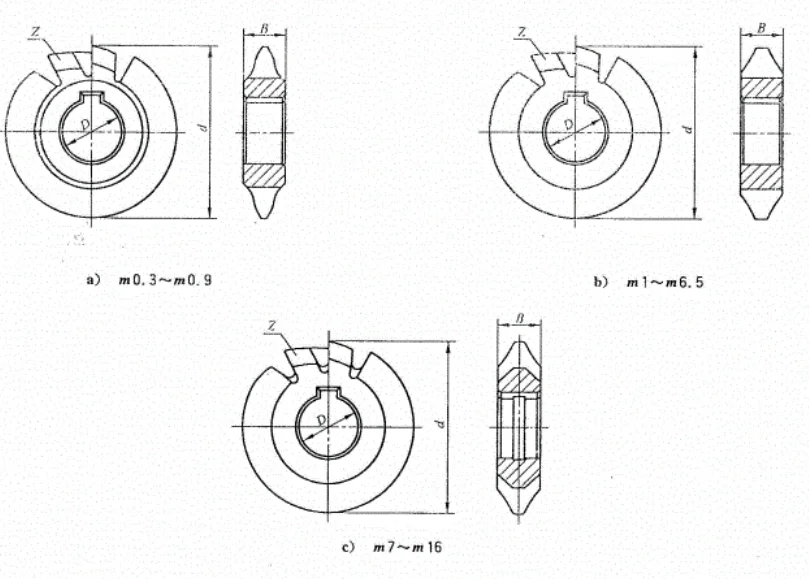

Module: M0.3-M4.5
Pressure Angle: 20 degree
Bore: 22mm
Material: HSS ,High hardness Good abrasion resistance

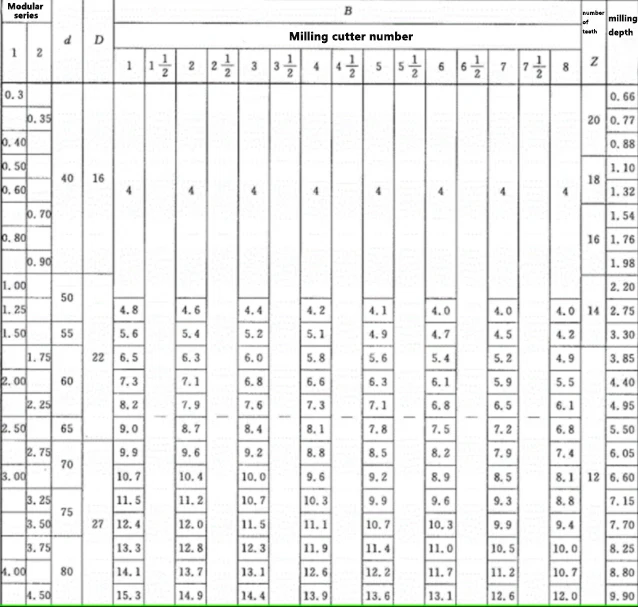

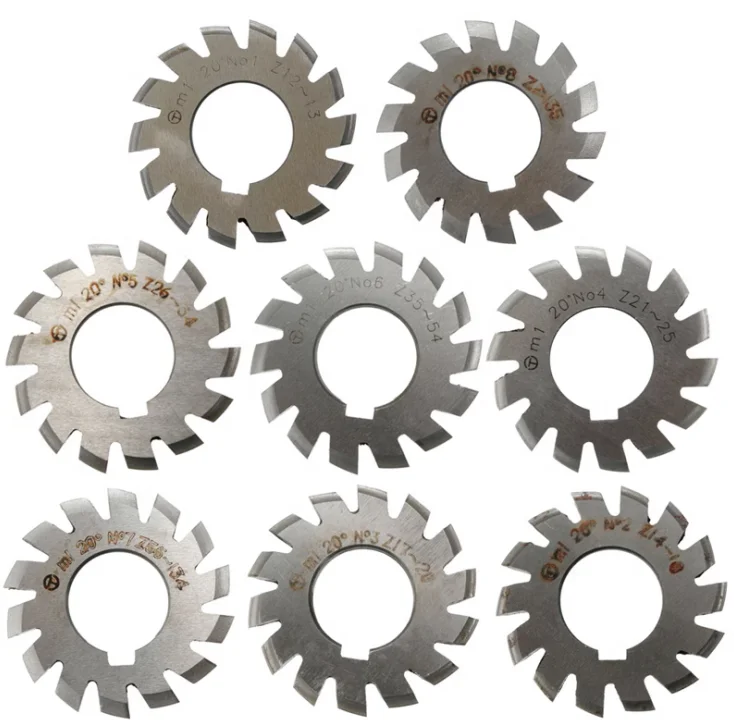

Each of Gear is different:
1#:12-13 Gear
2#:14-16 Gear
3#:17-20 Gear
4#:21-25 Gear
5#:26-34 Gear
6#:34-54 Gear
7#:55-134 Gear
8#:≥135 Gear
Pressure Angle: 20 degree
Bore: 22mm
Material: HSS ,High hardness Good abrasion resistance
Each of Gear is different:
1#:12-13 Gear
2#:14-16 Gear
3#:17-20 Gear
4#:21-25 Gear
5#:26-34 Gear
6#:34-54 Gear
7#:55-134 Gear
8#:≥135 Gear
Special front and rear angles increase cutting force by 50%
After tempering, the hardness can reach 64-66 degrees, bending strength/GPA: 3.5-4.0 impact toughness/(MJM2）
Material | HSS(Cobalt M35 is Available) |
Flute Type | Straight Flute / Spiral Flute |
Flute Number | four Flutes |
Shank | Tri Flat Shank 、Quick Change Hex Shank, Round Shank, Double R Shank are Available |
Surface Finish | Titanium 、Bright, Black & Amber, Co-coated, Black Oxide, Black & Bright, TiAIN are Available |
Color | Amber Color 、Bright, Black Oxide, Titanium, Black & Gold, are Available |
Package | pvc/carton/custom |
Features | 1. Step drill bits are perfect for drilling and enlarging multiple-holes in thin sections of sheet metals, pipes, plexiglass, plastics, wood up to a thickness of 5mm. 2. 135° Split Point Tip and Center Punch: increases cutting speed with self-centering and the drills do not run off center. 3. A variety of hole diameters can be drilled using only one tool. 4. The dimension of drilled hole is exact. 5. Two Flute Design: provides longer life and better chip removal. 6. Titanium coating provides up to 2 times the life over high speed steel. 7. Only for rotary use. |
