1.Titan mini excavator owns beautiful appearance, high configuration, superior performance, low fuel consumption, wide operating range.
2.It is suitable for loosing soil of vegetable green house, campus greening of municipal departments, digging the hole for tree planting of Fruit-land Nurseries, concrete pavement crushing, sand-gravel material mixing, construction work on the narrow place and so on.

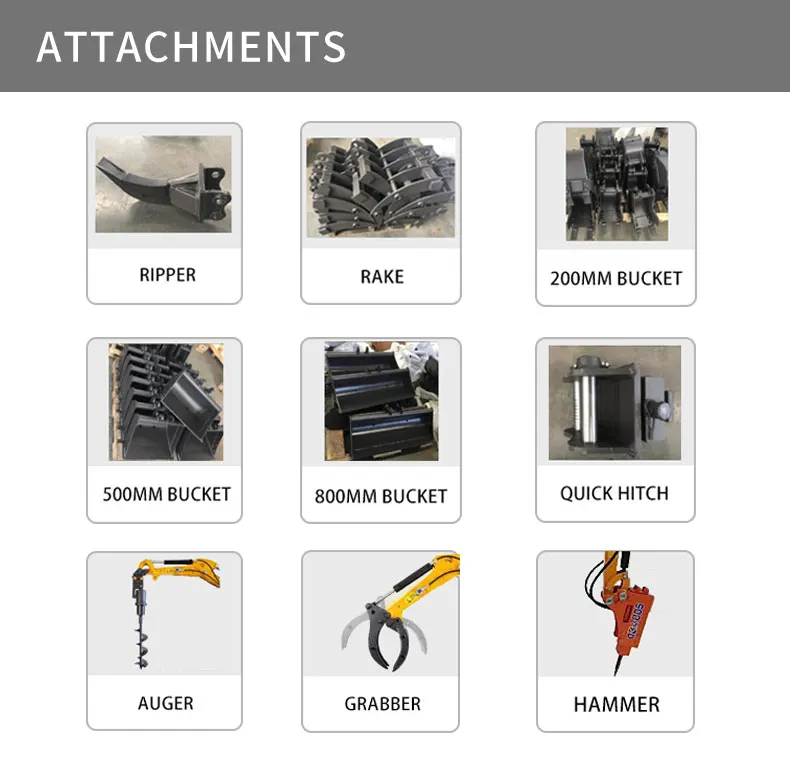

3.Use the quick hitch can add the attachment tools like auger, hydraulic hammer, loading bucket, gripper and so on.
4.It can reduce maintenance and operating costs. Liberate the workforce, improve the mechanization, low investment, high return.

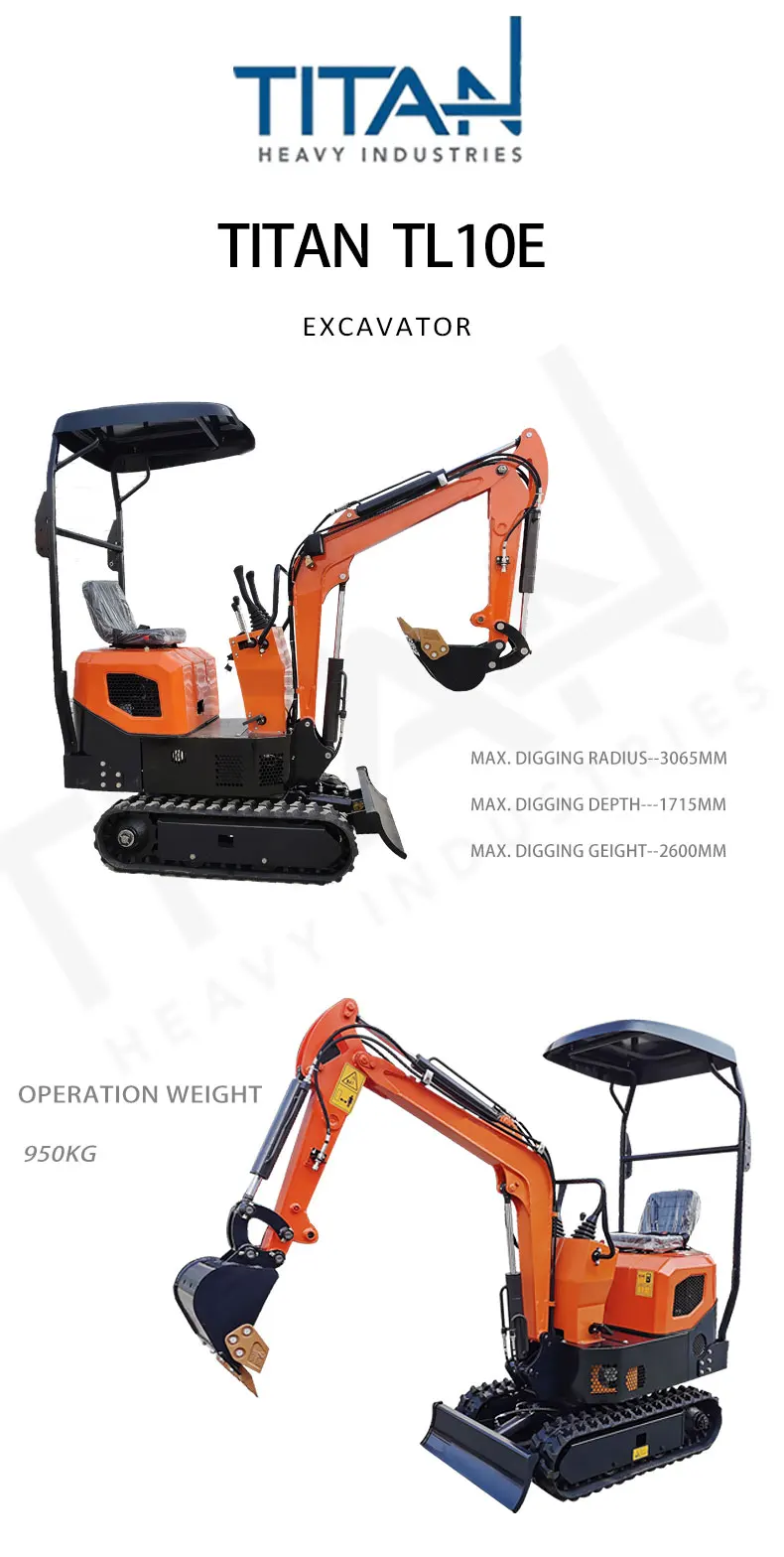

TL10E Mini Excavator Technical Specification | ||||
Swing Speed | r/min | 0-13 | ||
Traveling Speed | km/h | 2 | ||
Grade ability | % | 30° | ||
Traveling Tracking Force | KN | 8.3 | ||
Bucket Digging Force | KN | 7.2 | ||
Arm Digging Force | KN | 4.6 | ||
Hydraulic Pump | Gear Pump | |||
Hydraulic pump flow | L/min | 18 | ||
Fuel Tank Capacity | L | 26 | ||
Hydraulic Tank Capacity | L | 14.5 in Hydraulic tank 21.5 in Hydraulic system | ||
Overall Length | mm | 2840 | ||
Overall Width | mm | 880 | ||
Overall Height | mm | 2200 | ||
Counterweight Ground clearance | mm | 385 | ||
Axle Base | mm | 900 | ||
Track width | mm | 180 | ||
Operation Weight | kg | 950 | ||
Bucket Capacity | m³ | 0.023 | ||
Max. Digging Radius | mm | 3065 | ||
Max. Digging Depth | mm | 1715 | ||
Max. Digging Height | mm | 2600 | ||
Max. Dumping Height | mm | 1830 | ||
Tail Swing Radius | mm | 800 |
