Product Description

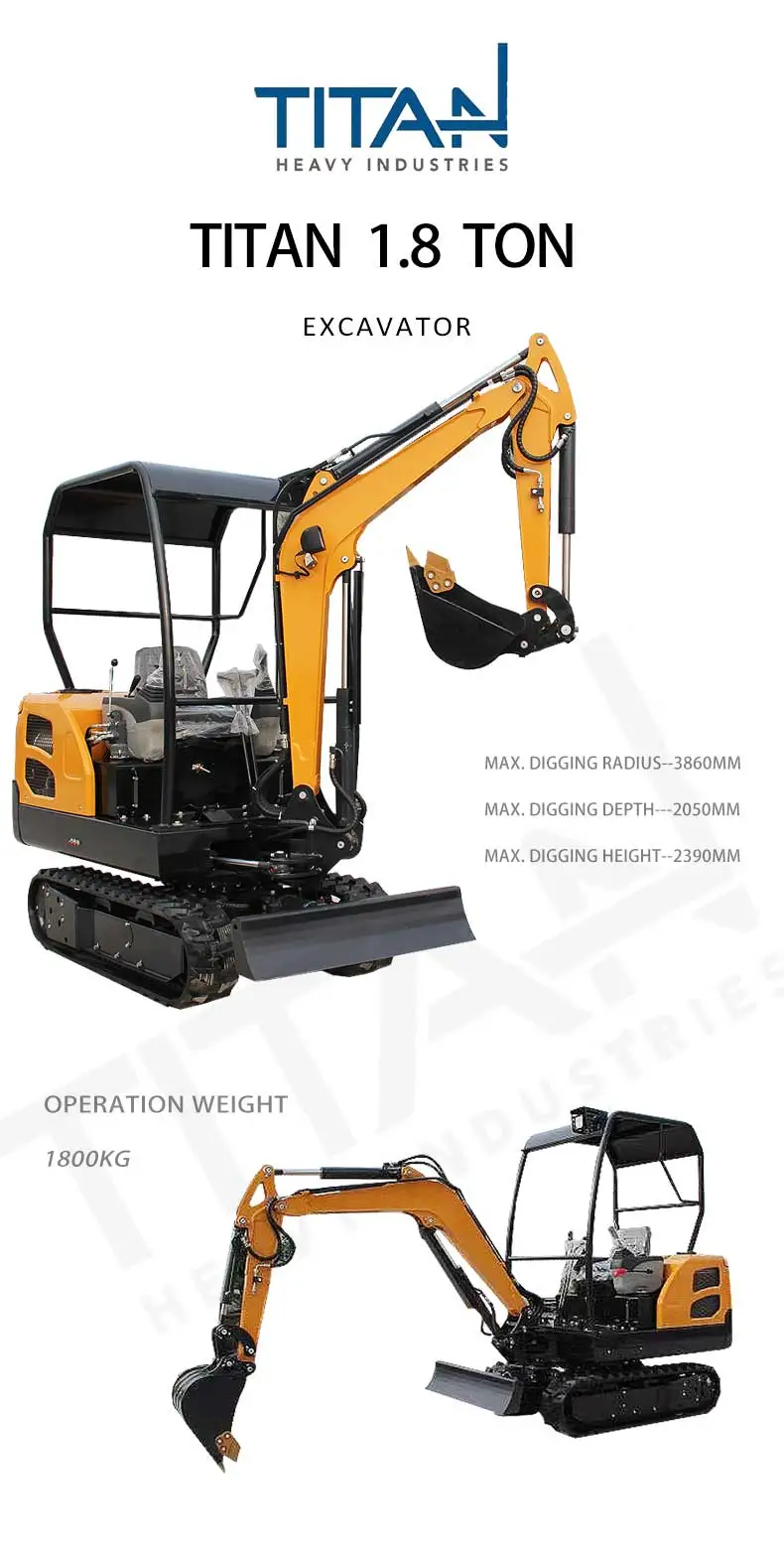

Mini Diesel Excavator 1.8 Ton Small Digger Private Garden Farm Agriculture Fit for Many Terrain Areas

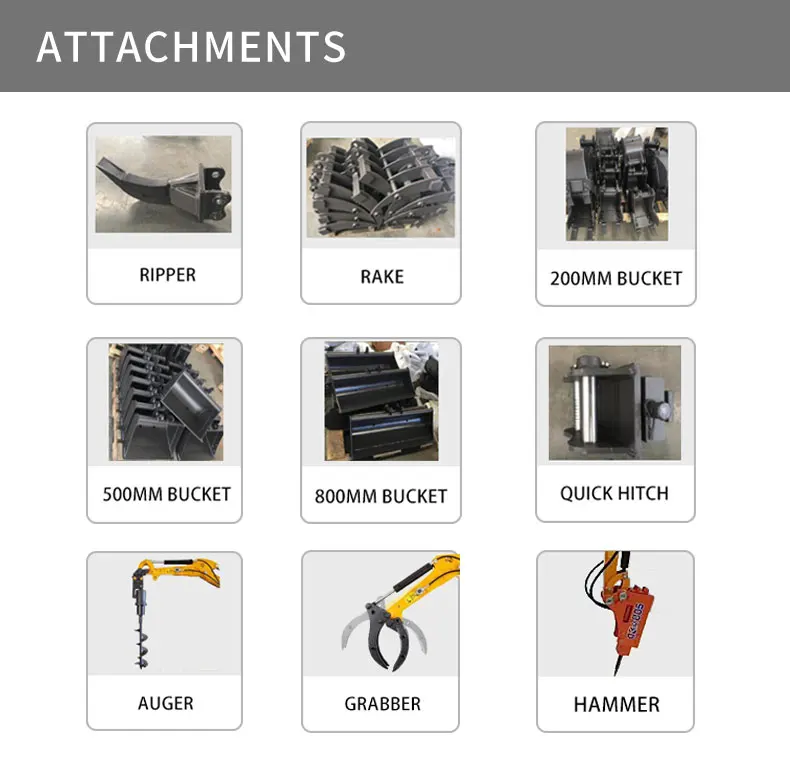

Titan 1.8ton excavator owns beautiful appearance, high configuration, superior performance, low fuel consumption, wide operating range. It is suitable for loosing soil of vegetable green house, campus greening of municipal departments, digging the hole for tree planting of Fruit-land Nurseries, concrete pavement crushing, sand-gravel material mixing, construction work on the narrow place and so on. Use the quick hitch can add the attachment tools like auger, hydraulic hammer, loading bucket, gripper and so on. It can reduce maintenance and operating costs. Liberate the workforce, improve the mechanization, low investment, high return.
1. Small size and easy to transport,could be loaded onto light truck or small trailer,four sets could be loaded into one 20GP container to save freight cost.
2. Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency.
3. Famous brand hydraulic system parts ensure the stable quality.
4. Equipped with double fuel filter to guarantee fuel purity to protect engine.
5. Boom deflection design meed narrow work condition, reinforced rubber track to protect road.
6. Extend hydraulic line for various attachments.
7. Comfort seat make operator easy to work.
8. Cabin with heater is optional.
9. Could be widely used in gardening , orchard, farming, basement reconstrucktino, waste residue carrying in coal washing factory, papermaking factory etc. and could replace 4~5 manpower.
Specification
Engine | ||||
Model | Laidong 3TE25 18.1KW/2000rpm | |||
Type | Electric injection,water cooled,natural intake | |||
No. of cylinder | 3 | |||
Main Performance | ||||
Swing Speed | r/min | 10-12 | ||
Traveling Speed | km/H | 2.8 | ||
Grade Ability | % | 70(35°) | ||
Traveling Tracking Force | KN | 15 | ||
Bucket Digging Force | KN | 11.5 | ||
Arm Digging Force | KN | 9.3 | ||
Overall Dimensions | ||||
Overall Length | mm | 3800 | ||
Overall Width | mm | 1050 | ||
Overall Height | mm | 2280 | ||
Ground Clearance | mm | 485 | ||
Track Length | mm | 1630 | ||
Track Width | mm | 230 | ||
Undercarriage Width | mm | 1050 | ||
Undercarriage ground clearance | mm | 235 | ||
Dozer Blade | mm | 1050*240 | ||
Operation parameters | ||||
Operating Weight | KG | 1800 | ||
Bucket Capacity | m³ | 0.06 | ||
Max. Digging Radius | mm | 3860 | ||
Max. Digging Depth | mm | 2050 | ||
Max. Digging Height | mm | 3370 | ||
Max. Dumping Height | mm | 2390 | ||
Max. Dozer Cutting | mm | 270 | ||
Max. Dozer Lifting | mm | 235 | ||
Boom Deflection (Left/Right) | ° | 75/45 | ||
Tail Swing Radius | mm | 1125 | ||
Front Min. Swing Radius | mm | 1720 | ||

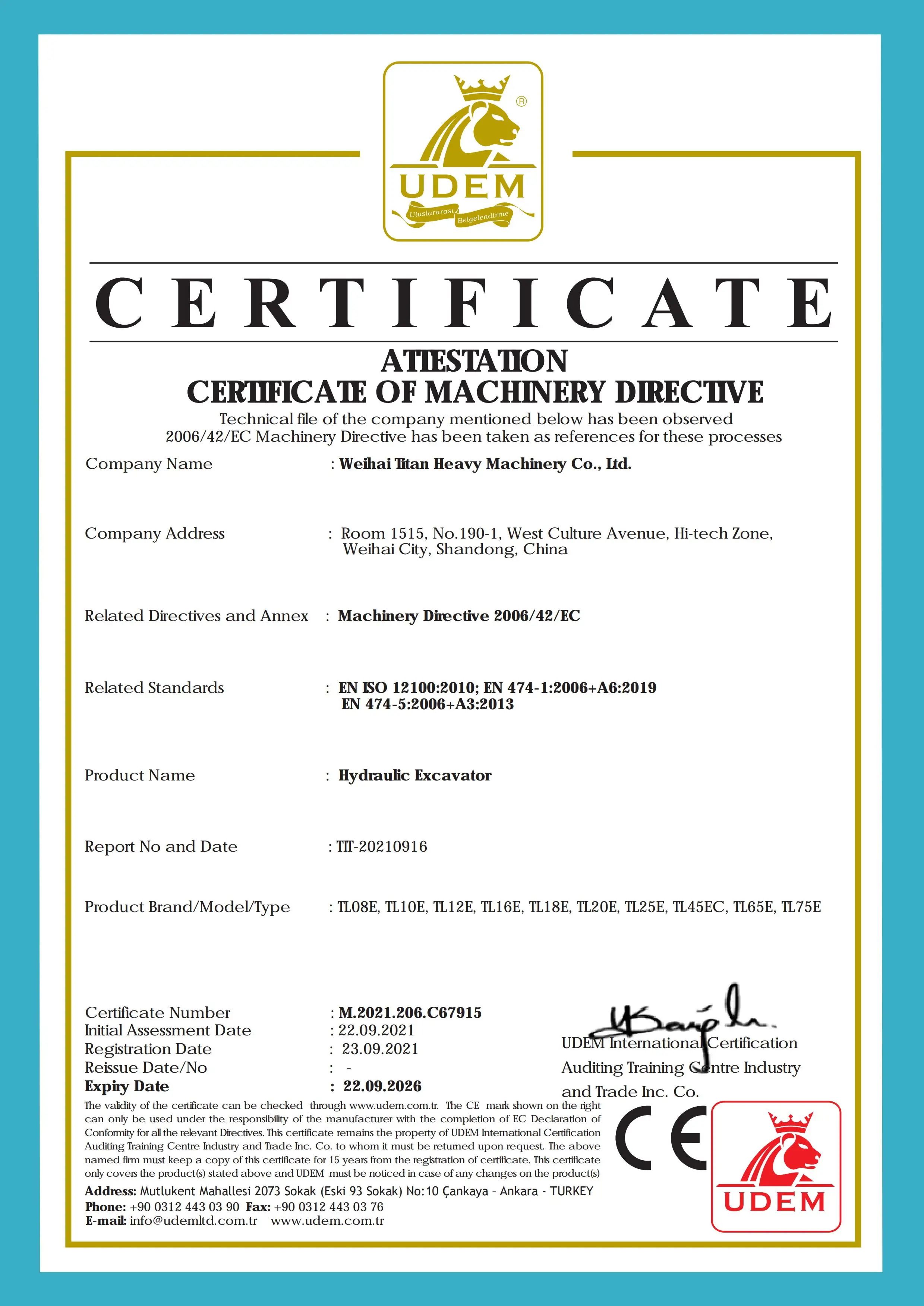

Certifications
Recommend Products
Our team won the strength business award for its excellent performance in the compettion.Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Australia, European East and South Asia, North and South America, etc. We also welcome OEM and ODM orders.

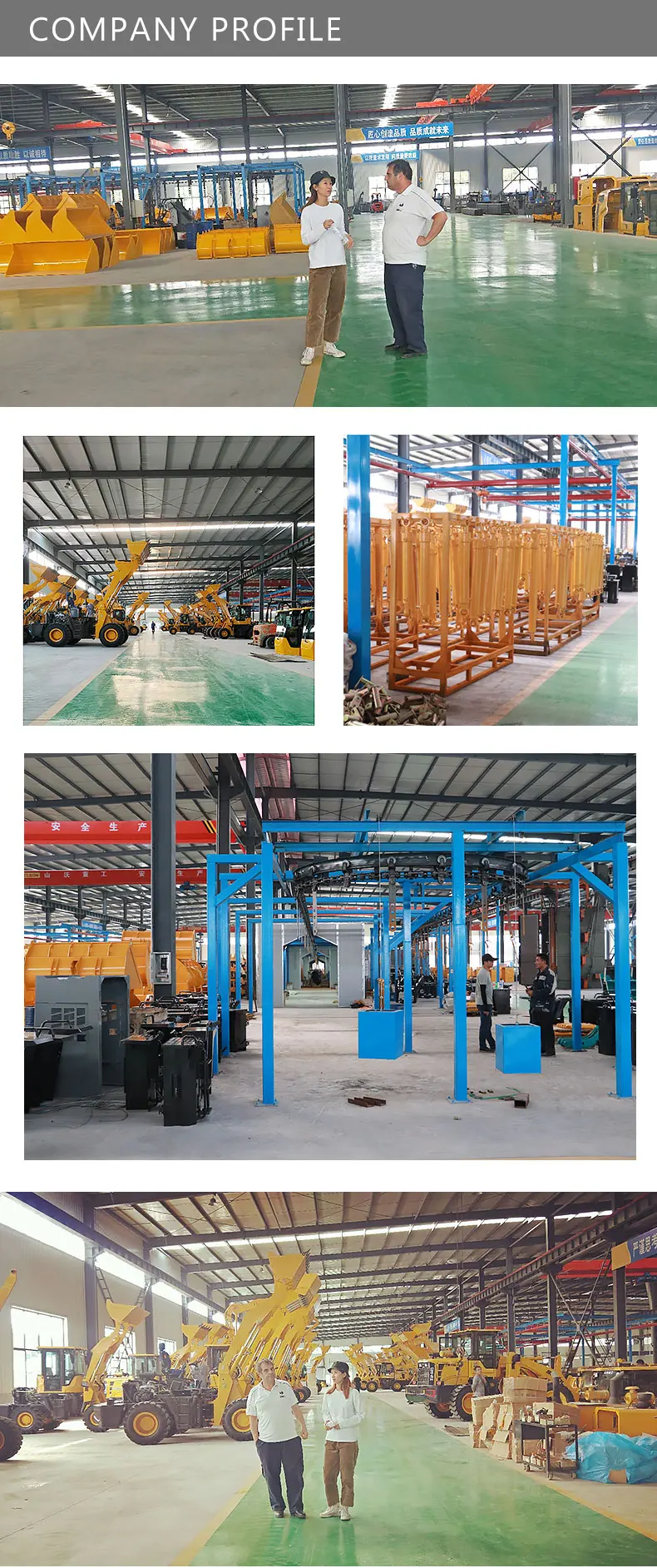

Weihai Titan Heavy Machinery Co. Ltd
Weihai Titan Heavy Machinery Co. Ltd is a professional manufacturer engaged in the research, development, production, sale and service of wheel loader, excavator and forklift.
In addition, we have obtained many kinds of certificates SGS, ISO CE etc. Whether selecting a current product from our catalog orseeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
We sincerely thank all the friend’s support at home andabroad, look forward to establish development business cooperation with you, hand in hand advances boldly, create prosperity.
Our agent is interviewed by local TV station,give you a reason why choose titan.we provide our agents with technical support,service suport,exhibition support,price support,quality support and help them to open the local market and establish long-term cooperation.
FAQ
Q: Why choose Titan?
We sell every machine at a fair price.As our production increases,we are getting much support from the purchase source of rawmeterial.
We leave the maximum profit to customer.
1) Titan: an experienced loader manufacturer with over 11 years.
2) Titan team: customers-focused,you'll get reply within 5 minutes.
3)Titan: premium quality with reasonable price.
4) Titan: CE,BV,SGS,ROPS and FOPS,ISO9001:2008 varified.
The quality control is not an empty word in TITAN.Our products are tested and granted CE cetificate.
Q: What is Titan warranty?
TITAN has a professional sales and after-service team.We are trying our best to make a good service for every customer.
1) Titan after-sales: life-long, meantime offer one year and one month warranty.
2) Titan proposal: order some wearing parts with loader for easy maintenance.

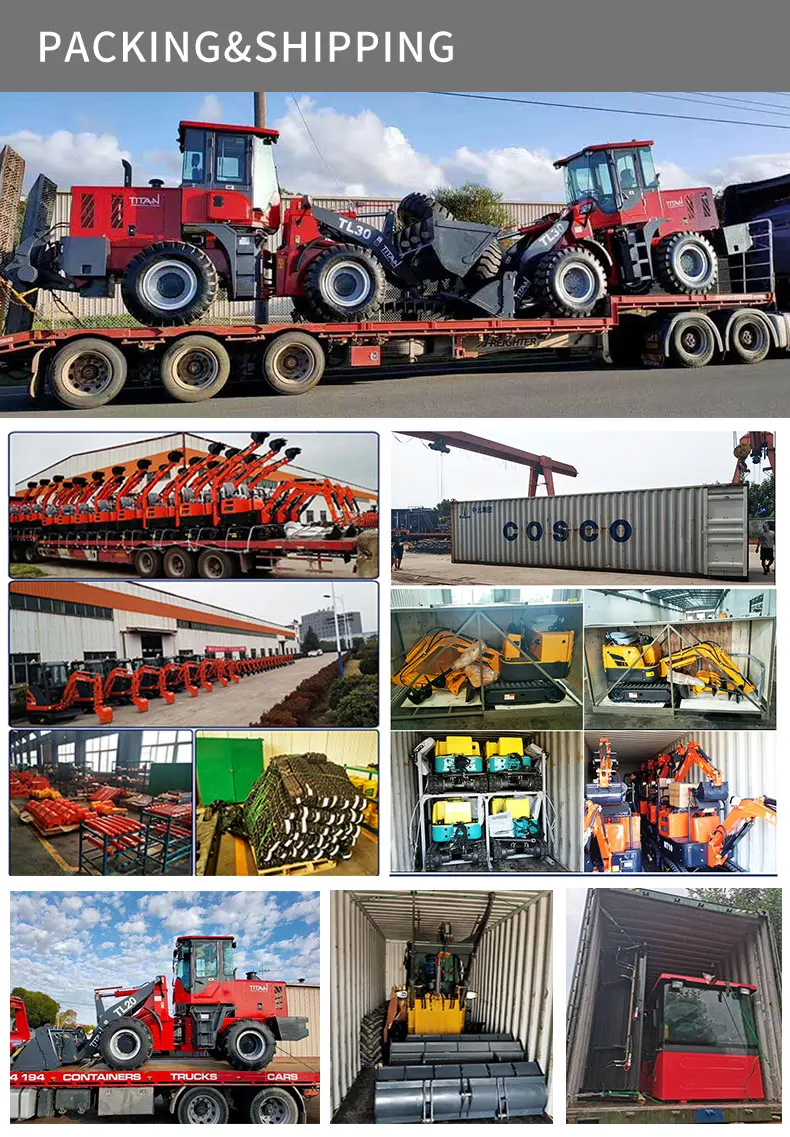

Q:What about Titan delivery term?
TITAN Transport packsging team helps our customer to transport their machine in safe and secure way without any damage.
10-20 days after down payment received.
Q:What about the payment term?
30% advance payment,70% balance T/T
