Product Overview

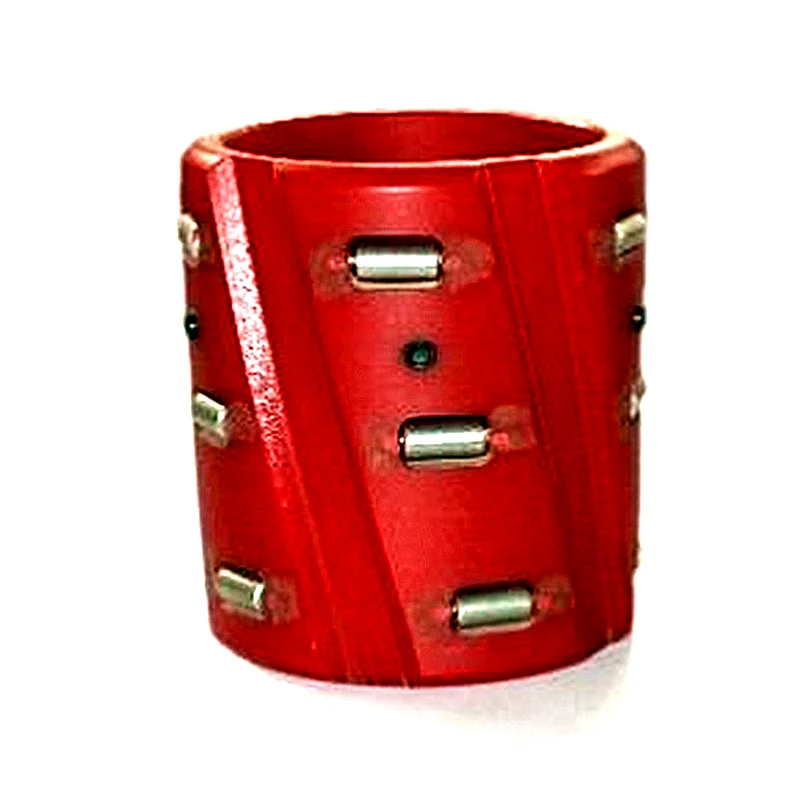

Roller Centralizer

Roller centralizers are mainly used for big high Roller, high deviated wells and horizontal wells, to centre casings. Roller Centralizers car also remove wellbore cake and improve mud replacement efficiency etc.

FEATURES AT A GLANCE

Roller Centralizer

The roller reduces the inlet resistance of casing, tailpipe or screen tube, improves the success rate of lowering the pipe column, and reduces the working time and cost.

The roller centralizer reduces the contact area between the centralizer and the open-hole well wall, and reduces the risk of the pipe string pressure difference being stuck.

The roller centralizer can provide better support and improve the cementing effect.

PRODUCT SPECIFICATIONS

Specification	Casing size(mm)	Borehole size(mm)	Inner Diameter (mm±2)	Outer Diameter (mm±2)
4-1/2″×6″	114	152	118	146
5-1/2″×8-1/2″	140	216	142	210
7″×8-1/2″	178	216	182	210
9-5/8″×12-1/4″	244	311	249	305
13-3/8″×17-1/2″	340	445	344	438
