Wood chips linear screener sifting wood chips vibration siever swinging sifter machine
Specification
Technical data/Model | BF14100 | BF14120 | BF14150 |
Number of sieve plate（deck） | 3 | 3 | 3 |
Size of upper screening hole（mm） | 65×65 | 65×65 | 65×65 |
Size of medium screening hole（mm） | Φ4 | Φ4 | Φ4 |
Screening area（m2） | 10 | 12 | 15 |
Productivity（m3/h） | 150-200 | 200～250 | 300-350 |
Motor power（kW） | 11 | 11 | 15 |
Overall Dimension（mm） | 5650× 3210× 2250 | 6710× 3120× 2250 | 6500× 3950× 2600 |
Weight（kg） | 3750 | 6250 | 7000 |

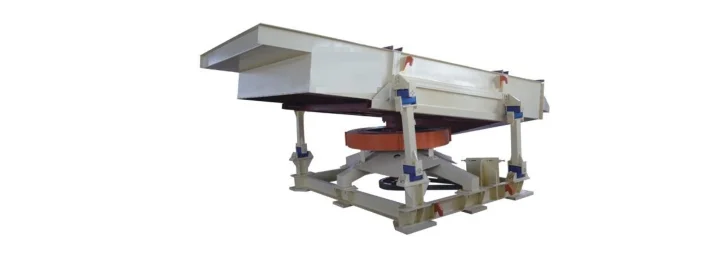

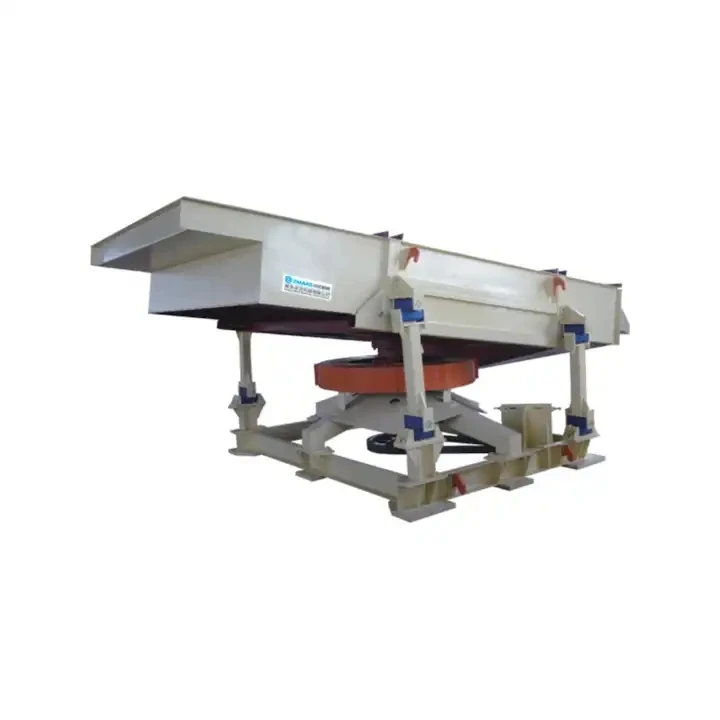

Wood Shake Machine
The machine is a special chip screening equipment , it used in the plant for the production of wood chips for the paper industry , particle-board and fibreboard to serve for sorting of specified chips from chipper . The chips size can be controlled via replacement of different size of the screening holes , it is suitable for medium-scale or samll-scale board production line.
related products
Roller de-barker

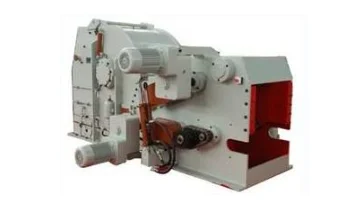

The chipper use
drum chipper is special equipment for producing wood chips.Widely used for medium density fiberboard, particleboard andPapermaking industry, as one of the main chip preparation, also can be used as a single chip production equipment.In this series, drum chipper cutting raw materials can log, small-diameter wood, timber
harvesting residues (branches, branchesetc.),Wood processing residues (slab, slab, wood core, waste veneer),bamboo, cotton stalk, reed, straw, wheat straw and other non-wood Sheet fibre stem cutting into a certain size, as manufacturingparticleboard, fiberboard, high density fiberboard, non wood The basic raw material of artificial board and pulp and paper.
The chipper structure
chipping machine frame is welded by steel plate is high, the bearing base of the whole machine.The knife roller is arranged on the two or three, fourKnife, knife bolt with specially made, through the pressure block, the knife is fixed on the knife roller. According to the thickness of the raw materials, the upper feeding roller assembly can use hydraulicsystem floating within a certain range. Cutting down the qualifiedsheet through the screen hole, exhausted from the bottom, sheetof will in the machine and cutting.
Hydraulic system: from the pump, supplied to the cylinder, can automatically launch the cover, it is easy to replace the blade; therepair can be raised.Feed roller assembly, convenient adjustment, the bottom knife knifegap and comb plate disassembly.

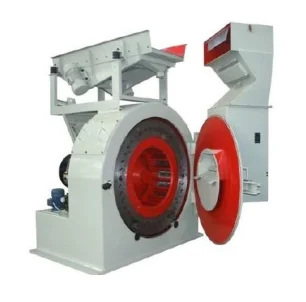

Kinfe-ring flaker Series
The knife-ring flaker is one of the main machines for particleboard flakes preparation section.
Equipment Usage:After the chipper makes desired-size chip material from wood chips , bamboo chips and crushed veneer , the flaking machine are used to produce required flakes with certain thickness as the raw material for particleboard . For series with the kinfe-ring
diameter of Φ 800 to 1400 are provided , can be equipped with the particle board line with an annual capacity of 30 - 200 thousand m3.
Equipment Usage:After the chipper makes desired-size chip material from wood chips , bamboo chips and crushed veneer , the flaking machine are used to produce required flakes with certain thickness as the raw material for particleboard . For series with the kinfe-ring
diameter of Φ 800 to 1400 are provided , can be equipped with the particle board line with an annual capacity of 30 - 200 thousand m3.

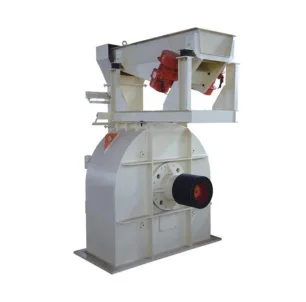

Screen ring grinding machine
The screening-ring mill is used for milling flakes into fine flakes , which are used as suiface material of the particleboard . The mill consists of base frame , screen ring , impeller , vibrating feeder , magnetic separator , heavy material separator and etc.
Equipment Usage:Mill large flakes to the repuired fine flakes.
Enterprise Introduction
Nanjing Yi Xuan Machinery Co.,Ltd and Nanjing Yun Qing Electrical Equipment
Co.,Ltd is the equipment factory and accessories factory of domestic production of medium and high density fiberboard, particleboard, pulping process of spare parts.
The company specializing in the production of Drum Chipper, Disc Chippers, Kinfe-ring flaker Series,Screening-ring Mill,Wood Shake Machine slicing machine, spare parts and various non-ferrous metalcasting iron and ductile, heat-resistant alloy castings. Our company produce all kinds of machinery and equipment, tools, mold and other kinds of metal casting is widely used in metallurgy,papermaking, forestry, plastic, hardware, cutting board, pressing,etc..
Over the years, our company always adhere to the quality of products in order to survive, to technological progress and development, competitive advantage in product variety, quality service to the credibility of the enterprise policy, with strong technical force, sophisticated processing equipment, advanced processing technology, complete testing means and perfect qualityassurance system, thoughtful pre-sale after sale service, users all over the country in the acclaimed. The company always adhere to the "quality of refinement, prestige supreme, customer satisfaction"business philosophy, and strive to provide better products andservices for users. Warmly welcome new and old customers, friends from all walks of life to visit us, we are willing to cooperate with you,common development.
The company specializing in the production of Drum Chipper, Disc Chippers, Kinfe-ring flaker Series,Screening-ring Mill,Wood Shake Machine slicing machine, spare parts and various non-ferrous metalcasting iron and ductile, heat-resistant alloy castings. Our company produce all kinds of machinery and equipment, tools, mold and other kinds of metal casting is widely used in metallurgy,papermaking, forestry, plastic, hardware, cutting board, pressing,etc..
Over the years, our company always adhere to the quality of products in order to survive, to technological progress and development, competitive advantage in product variety, quality service to the credibility of the enterprise policy, with strong technical force, sophisticated processing equipment, advanced processing technology, complete testing means and perfect qualityassurance system, thoughtful pre-sale after sale service, users all over the country in the acclaimed. The company always adhere to the "quality of refinement, prestige supreme, customer satisfaction"business philosophy, and strive to provide better products andservices for users. Warmly welcome new and old customers, friends from all walks of life to visit us, we are willing to cooperate with you,common development.

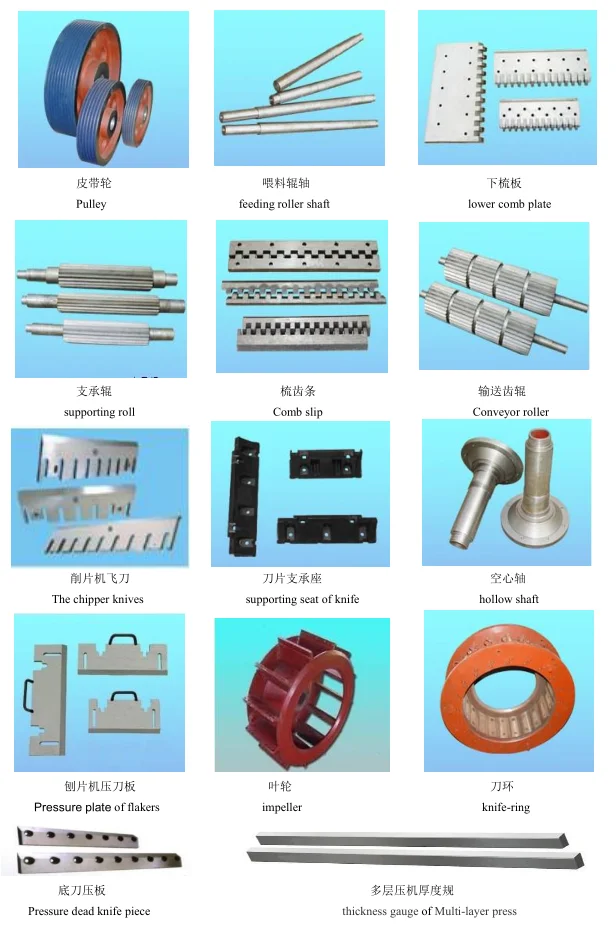

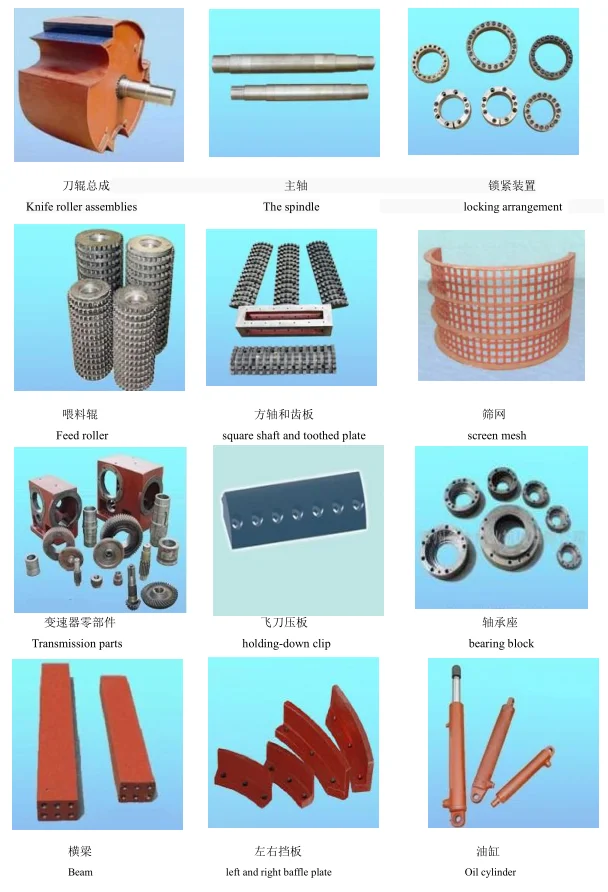

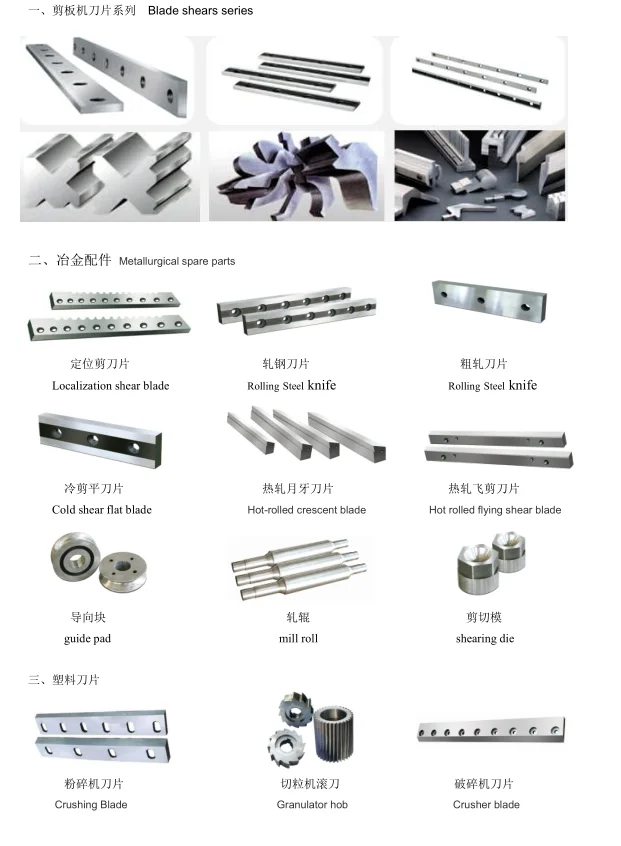

Forestry machinery accessories
