Manufacturing 50mm To 160mm SWT-V200/50H Hydraulic Butt Fusion Welding Machine Plastic Pipe Fusion Welder For Sale



Hydraulic Butt Fusion Machine SWT-V160/50H BEE 50MM-160MM (2" IPS -6" IPS) Product Details
WELDING RANGE O.D.
50MM - 160MM
PISTON AREA
6.27CM²
POWER SUPPLY
220V±10%, 50/60HZ
TEMPERATURE RANGE
MAX. 320°C
HEATER POWER
1.0KW

PACKING DIMENSION
820*400*380 MM
TRIMMER POWER
0.75KW
440*400*520 MM
PUMP POWER
0.75KW
650*340*380 MM
WORKING PRESSURE RANGE
0 - 80 BAR
GROSS WEIGHT
105KGS
Hydraulic Butt Fusion Machine SWT-V160H 50MM-160MM (2" IPS -6" IPS) Product Details
WELDING RANGE O.D.
50MM - 160MM
PISTON AREA
6.27 CM²
POWER SUPPLY
220V±10%, 50/60HZ
TEMPERATURE RANGE
MAX. 320ºC
HEATER POWER
1.0KW

PACKING DIMENSION
820*400*380 MM
TRIMMER POWER
0.75KW
440*400*520 MM
PUMP POWER
0.75KW
650*340*380 MM
WORKING PRESSURE RANGE
0 - 80 BAR
GROSS WEIGHT
133KGS
Hydraulic Butt Fusion Machine SWT-V200H 50MM-200MM Product Details
WELDING RANGE O.D.
50MM - 200MM
PISTON AREA
6.27 CM²
POWER SUPPLY
220V±10%, 50/60HZ
TEMPERATURE RANGE
MAX. 320ºC
HEATER POWER
1.5KW

PACKING DIMENSION
820*400*440 MM
TRIMMER POWER
0.75KW
450*470*550 MM
PUMP POWER
0.75KW
650*340*380 MM
WORKING PRESSURE RANGE
0 - 80 BAR
GROSS WEIGHT
156KGS
Hydraulic Butt Fusion Machine SWT-V250H (63*)90MM-250MM (2" IPS -8" IPS) Product Details
WELDING RANGE O.D.
(63*)90MM - 250MM
PISTON AREA
10.99 CM²
POWER SUPPLY
220V±10%, 50/60HZ
TEMPERATURE RANGE
MAX. 320ºC
HEATER POWER
2.0KW

PACKING DIMENSION
830*520*500 MM
TRIMMER POWER
1.5KW
560*540*600 MM
PUMP POWER
0.75KW
650*340*380 MM
WORKING PRESSURE RANGE
0 - 80 BAR
GROSS WEIGHT
192KGS
Hydraulic Butt Fusion Machine SWT-V315H 90MM-315MM (3" IPS -10" IPS) Product Details
WELDING RANGE O.D.
90MM - 315MM
PISTON AREA
20.02CM²
POWER SUPPLY
220V±10%, 50/60HZ
TEMPERATURE RANGE
MAX. 320ºC
HEATER POWER
3.0KW

PACKING DIMENSION
930*620*630 MM
TRIMMER POWER
1.5KW
630*600*730 MM
PUMP POWER
0.75KW
650*340*380 MM
WORKING PRESSURE RANGE
0 - 80 BAR
GROSS WEIGHT
241KGS

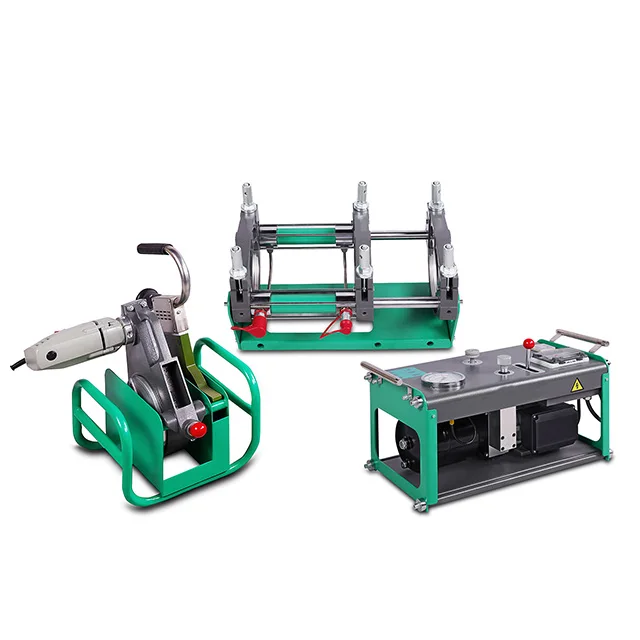

The hydraulically operated butt fusion machine is featured by robust, compact and rugged reliability.

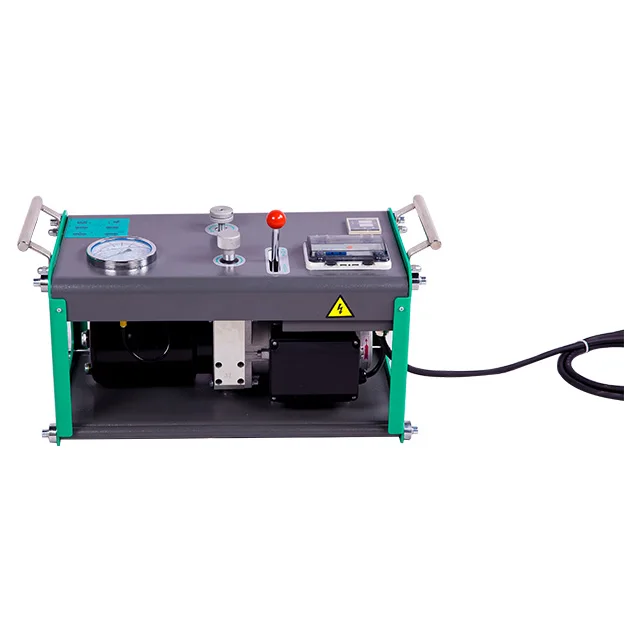

The hydraulic power station gives sufficient pressure to butt fusing pipes and fittings with a variety of pressure ratings.
Hydraulic butt fusion machine is compatible with data logger, which records and documents the key parameters of the fusion process.
