Машинка для производства шлака
3 500-3 980 $
Мелкомасштабное горное оборудование гематитовый графитовый цинковый Рудный флотационный аппарат
- Категории: >>>
- Поставщик: Henan,Hengtailong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
High recovery small mining equipment xjk sf sjm lead zinc inflatable flotation machine flotation selecting process

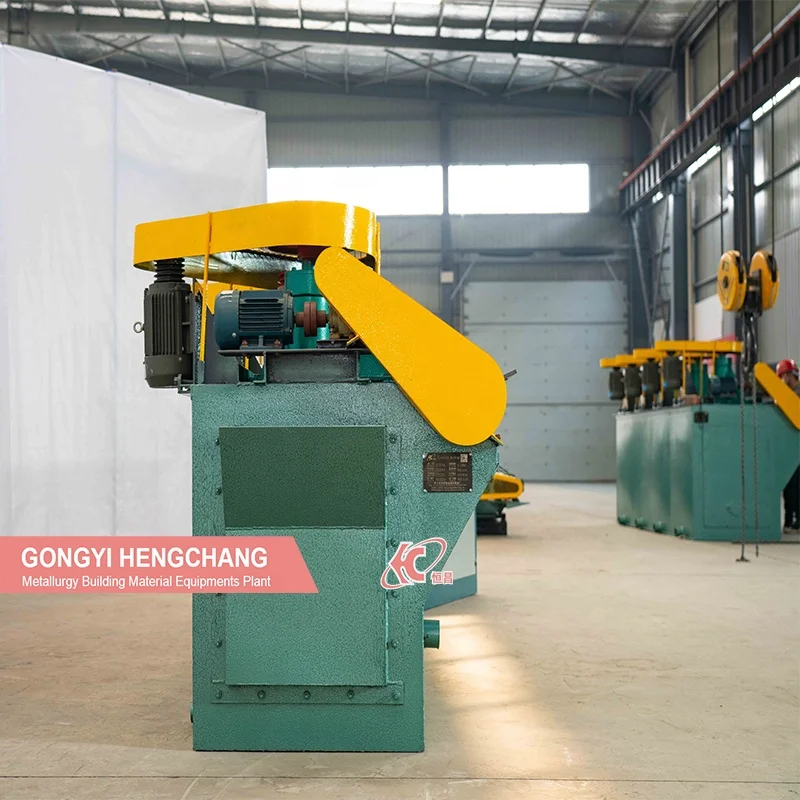

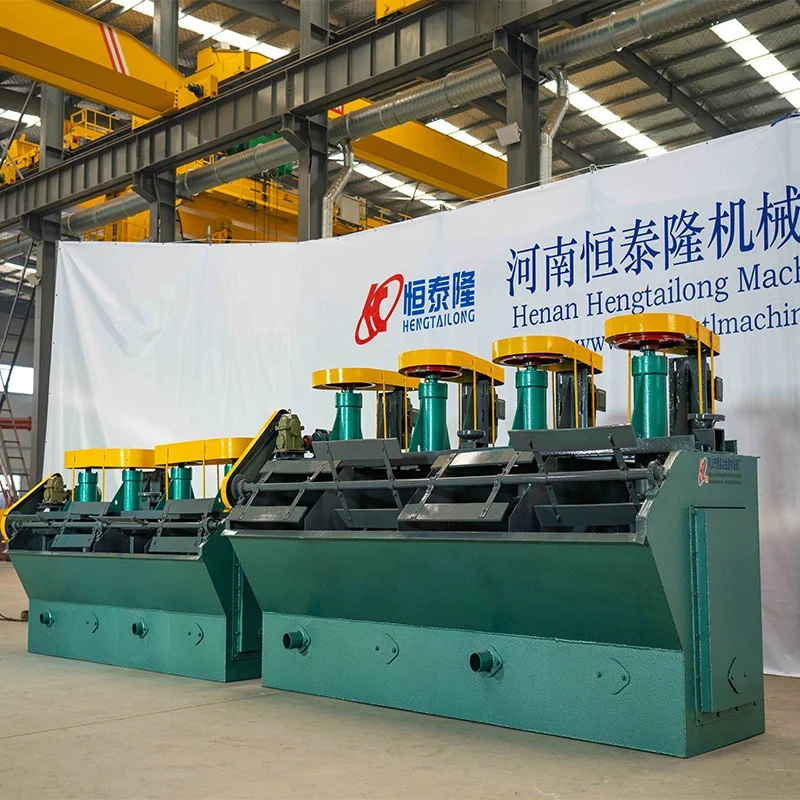

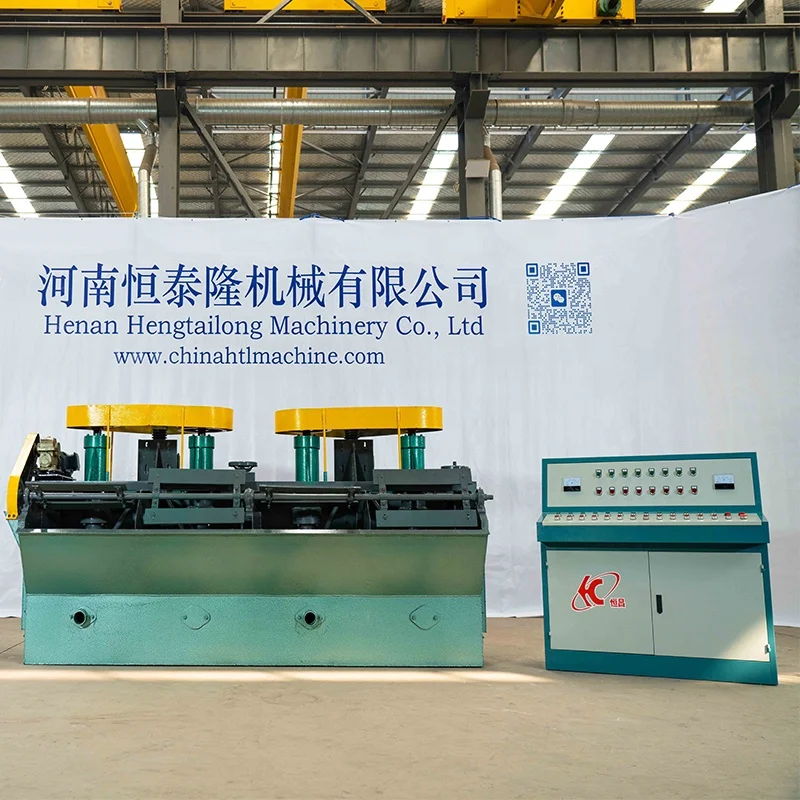

Flotation machine is also called flotation cell, which is the mineral separation equipment based on different physical and chemical properties of mineral particles, difference floating or chemical reaction to separate materials. The flotation machine has air suction, pulp suction and flotation functions, which can form self flotation circuit without any auxiliary equipment. It is horizontally configured, which is easy for process changes. The pulp has reasonable cycle, which can minimize the sand sediments.
Recommend Products

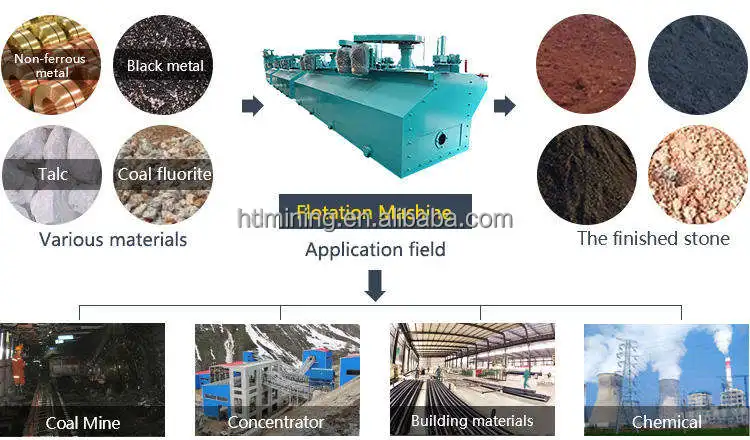

Product Application

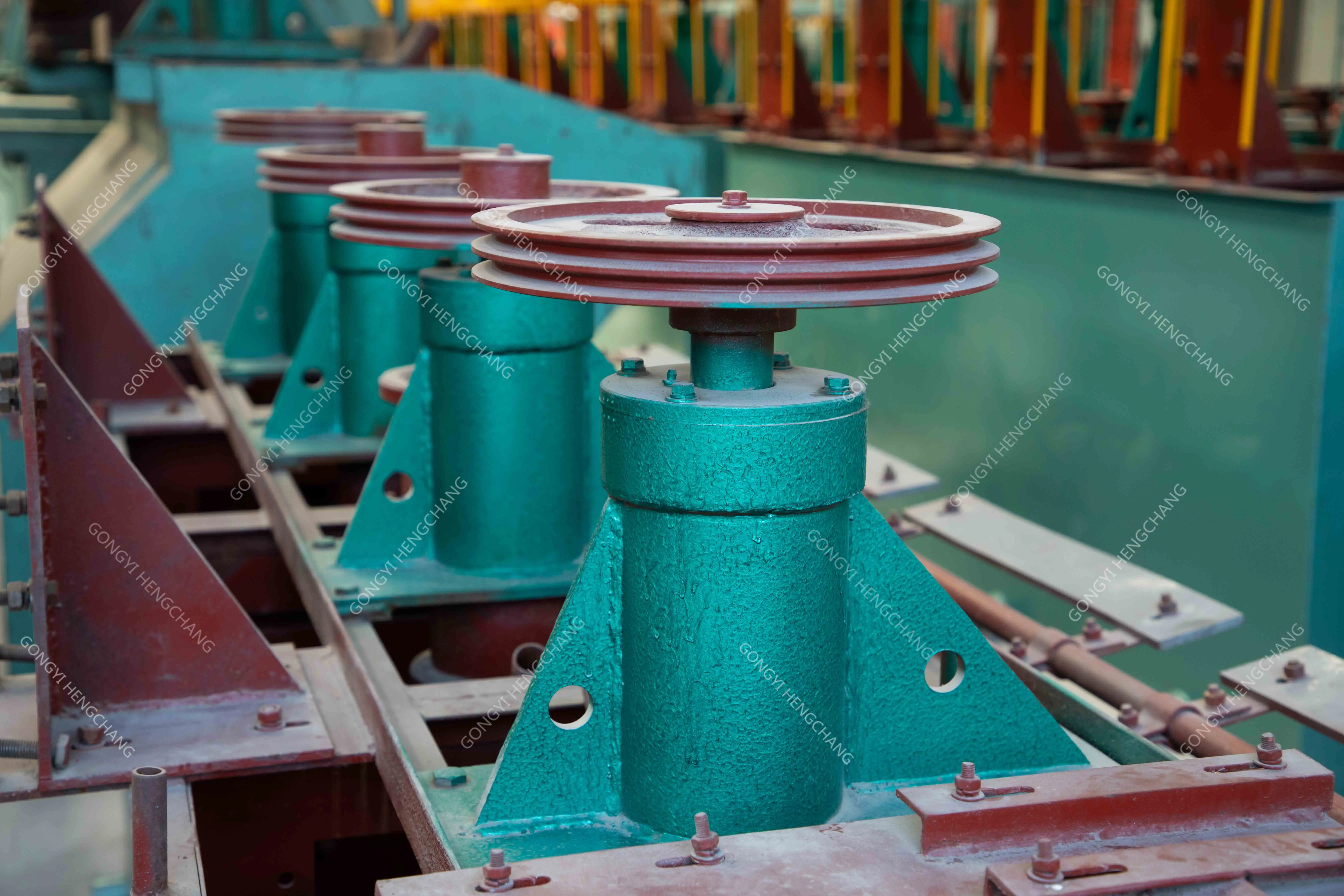

The flotation machine is mainly used for sorting non-ferrous metals such as copper, zinc, lead nickel and gold, and can also be used for rough selection and selection of ferrous and non-metal. The motor is driven by the motors V-belt drive to rotate the impeller, which generates centrifugal force to form a negative pressure On the one hand, it absorbs sufficient air to mix with the slurry.

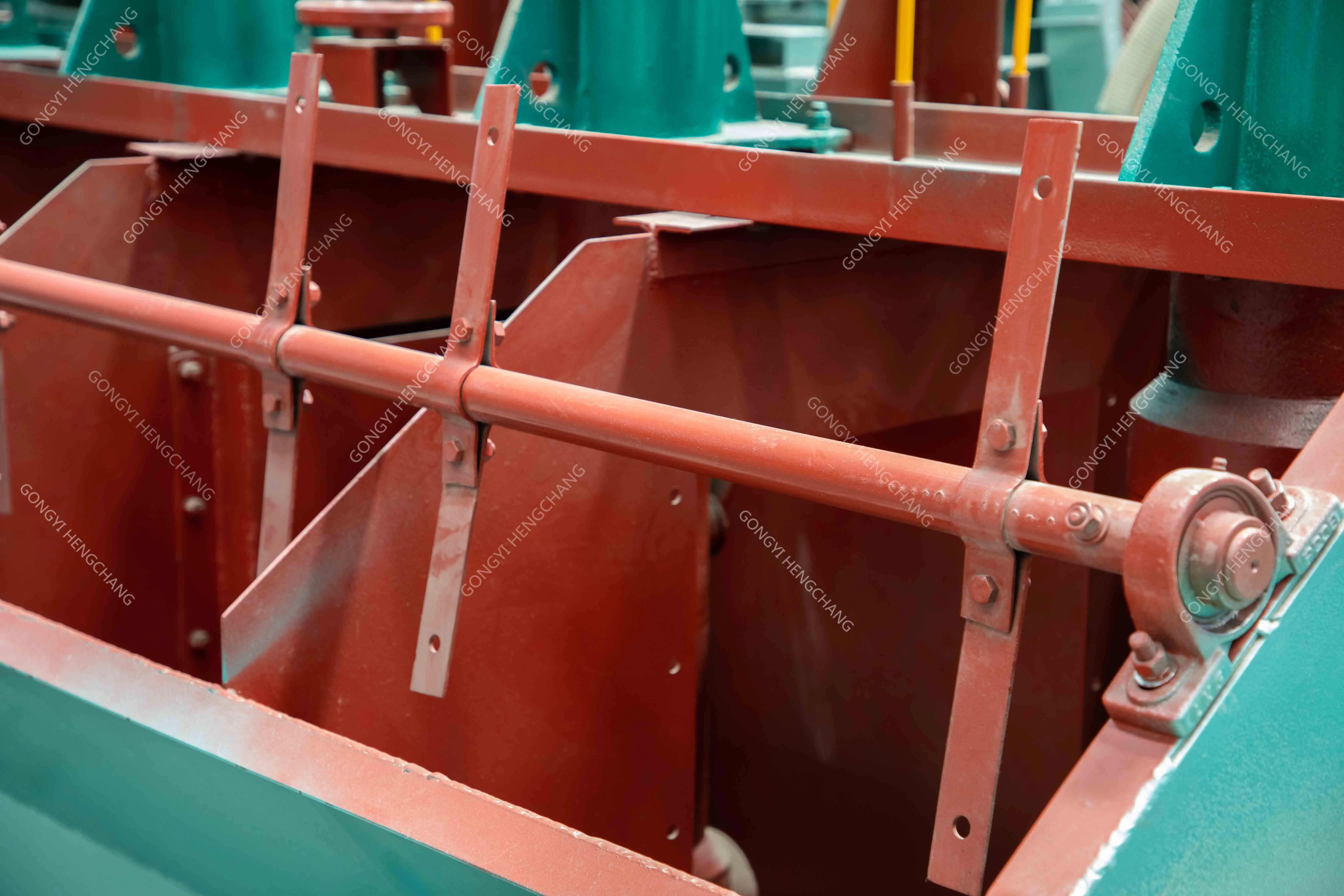

On the one hand, it mixes the slurry with the drug, and refines the foam to make the mineral bond foam Mineralized foam is formed on the slurry surface. Adjust the height of the shutter and control the liquid level so that the useful foam is scraped off by the scraper.
Metal ore such as gold, silver, copper, Lead (Pb), Zinc (Zn), Tin, Nickel (Ni) and so on, non-metal mineral, raw body and materials of chemical industry.
Product Advantages
1.Simple structure, strong agitation ability, and low energy consumption.
2.The impeller is equipped with holey cylinder air alloter.
3.The air scattering is uniform and the mixing effect of air and slurry is good.
4.U-shaped tank, little sedimentation of sand.
5.Solid particles can be fully suspended, high flotation index.
6.Long service life of vulnerable parts.
2.The impeller is equipped with holey cylinder air alloter.
3.The air scattering is uniform and the mixing effect of air and slurry is good.
4.U-shaped tank, little sedimentation of sand.
5.Solid particles can be fully suspended, high flotation index.
6.Long service life of vulnerable parts.
6 Types of Gold Ore:
Gold exists in quartzite. Usually, quartz appears as small stones in large cracks in riverbeds or mountain slopes and has crystals in different colors such as white, yellow, pink, purple, gray, or black. The most common types of quartz with gold ore are rose quartz gold ore and rainbow gold ore. A high gold-quartz ore contains 25% gold by mass, and it occurs in areas where the bedrock is fractured by tectonic and volcanic activity.
Flow chart of gold ore processing
It is mainly used for the treatment of alluvial gold, as well as in combination with other types of mineral processing techniques.In addition to deal with gold processing, it can also be used for processing tungsten ore, tin ore, manganese ore, titanium ore,tantalum niobium ore, barite, Iron pyrite, antimony, chrome ore, etc.

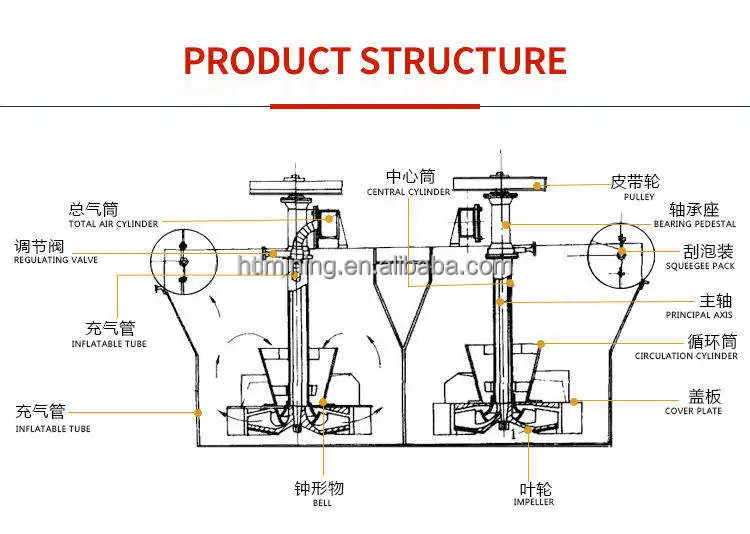

Working Principle
When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled
with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.
with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.
Model | SF0.37 | SF0.7 | SF1.2 | SF2.8 | SF4 | ||||
Volume (m³) | 0.37 | 0.7 | 1.2 | 2.8 | 4 | ||||
Impeller diameter(mm) | 300 | 350 | 450 | 550 | 650 | ||||
Capacity (m³/min) | 0.2-0.4 | 0.3-0.9 | 0.6-1.2 | 1.5-3.5 | 0.5-4 | ||||
Impeller Speed(r/min) | 352 | 400 | 312 | 268 | 238 | ||||
Impeller motor | Model | Y90L-4 | Y100L2-4 | Y132M2-6 | Y160L-6 | Y180L-6 | |||
Power (Kw) | 1.5 | 3 | 5.5 | 11 | 15 | ||||
Scraper motor | Model | Y90S-4 | Y90L-4 | ||||||
Power (Kw) | 1.1 | 1.5 | |||||||
Exhibition & Customer Visit
Before-sale services:We guide customers to choose the best and applicable device; provide the advanced, energy-saving and practical technological processes, as well as we are responsible for the planning and design of the site.
Sale services:
Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery.
After-sale services:
Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully satisfied. Moreover, we will design and produce machines according to the special requirements of customers.
Solemn Promise:
The quality guarantee period of machines is one year except the wearing parts.
Tips:
The prices in the web only to be reference,according to raw material's price fluctuations; Specific price is subject to the negotiation.
Sale services:
Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery.
After-sale services:
Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully satisfied. Moreover, we will design and produce machines according to the special requirements of customers.
Solemn Promise:
The quality guarantee period of machines is one year except the wearing parts.
Tips:
The prices in the web only to be reference,according to raw material's price fluctuations; Specific price is subject to the negotiation.
About Hengtailong
Hengchang is a company integrating industry and trade. Its main business is the sale of jaw crushers, drying equipment, and mineral processing equipment. We have our own factory, professional production team, quality control team, 10 years of export experience and many loyal customers. We have experience in exporting products to Southeast Asia, Australia, Europe, South America and Africa, and have gained a good reputation. At the same time, our excellent product quality and best service have won the trust of customers all over the world. Many of our products have obtained CE certification, and most of our partner factories have ISO9001 and IEC certifications. Some have also obtained certification. We believe that our company is your good choice, because we respond quickly to your enquiry, and we will reply you within 4 hours. Our experienced English-speaking trading staff will listen to your requirements and choose the right products for your market according to your requirements.
Product Packaging
Packaging Details:
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Q:Why we believe in Gongyi Hengchang company?
A: 1.More than 28 years’ experience.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q:Deliver time ?
A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q:Payment terms ?
A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign
the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q:What will you do if the machine is broken down?
A:The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if I want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q:Deliver time ?
A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q:Payment terms ?
A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign
the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q:What will you do if the machine is broken down?
A:The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if I want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
