Защитный клапан сброса давления с мембраной
- Категории: >>>
- Поставщик: Spider,(Xiamen),Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
FEATURES AT A GLANCE
Protective vent with e-PTFE membrane inserted pressure relief valve for solar equipment Vacuum eliminating vent
Product Name | screw-vent;screw in vent；air vent stainless steel screw type waterproof and；wps screw vent cap |
Airflow： | 5000 ml/min@70mbar ;3500 ml/min@70mbar ;2000 ml/min@70mbar; 1000 ml/min@70mba |
SIZES | M40*1.5 ; M32*1.5; M20*1.5 ; M12*1.5; Custom Size |
IP Rate： | IP 65, IP 66, IP 68 |
Vent Membrane Features： | Dustproof Waterproof Breathable Hydrophobic |
WEP： | 500kPa＞ ;1500kPa＞ |
Temperature： | -30℃~+140℃ |
Oil Rate | 6 |
Application | Battery pack system |
Breathable Membrance Material | ePTFE,PET |
Canning Material | steel |
OEM,ODM Service | Available |

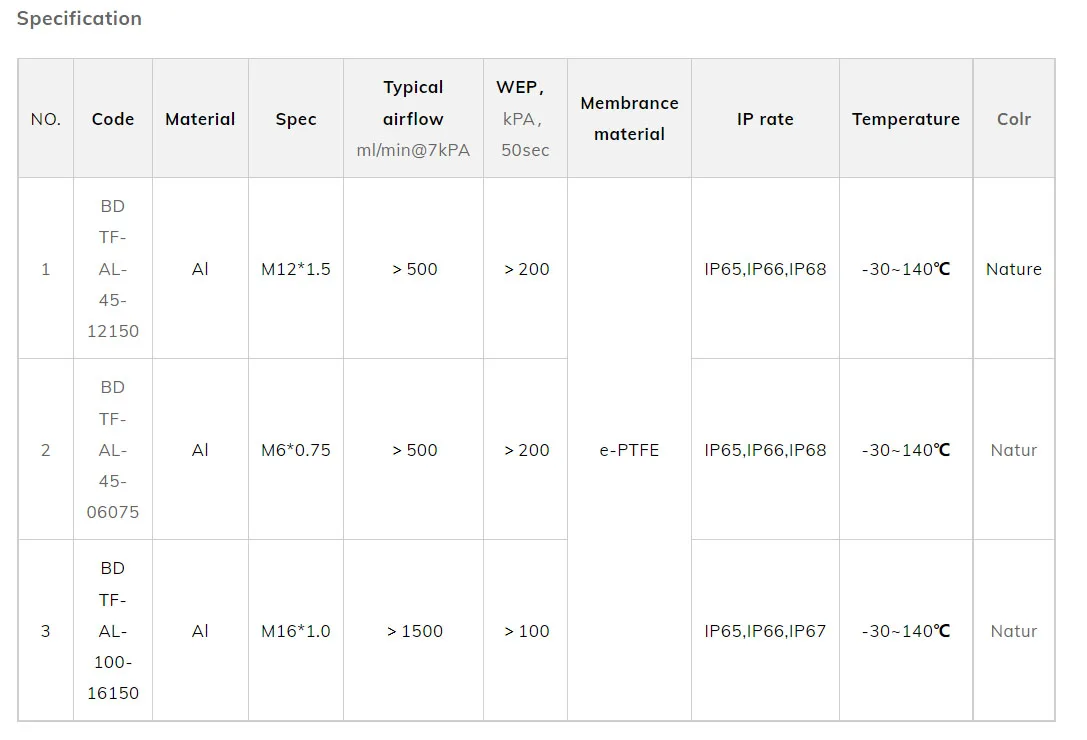

Product Parameters | ||||||

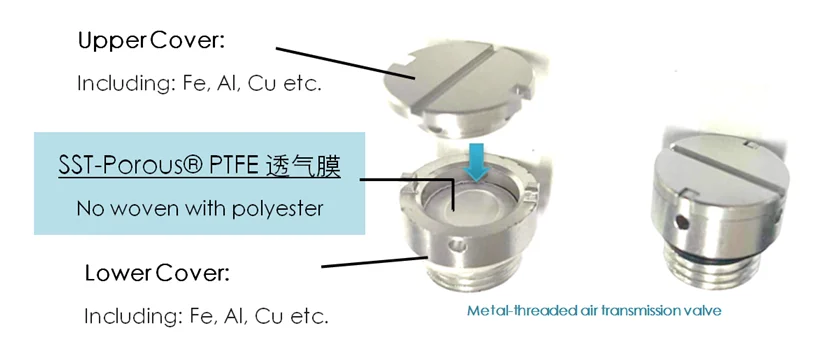

Benefit of metal Screw in venting
1. Easy Installation
2.More safer：apply O ring sealing for better protection
2.Reliable Protection：ePTFE membrane property
4.Durability ： designed for chemical resistance, UVIO resistance, thermal endurance, and Hydrolytic stalility
5.Quality assurance：100% inspection and 6.Flame resistance：rate UL94 V-0。
Customization: SPIDER Tech’s protective vents can be customized to match your products in spec., color, property and we can provide you with specific solutions. For more information, please contact us freely.
Don't hesitate to contact us at anytime, no matter inquiry, TM message, via email or skype. If we are online,we will reply you at once. Even if sometime we are not online because of time difference, we promise you will be replied within 8 hours.

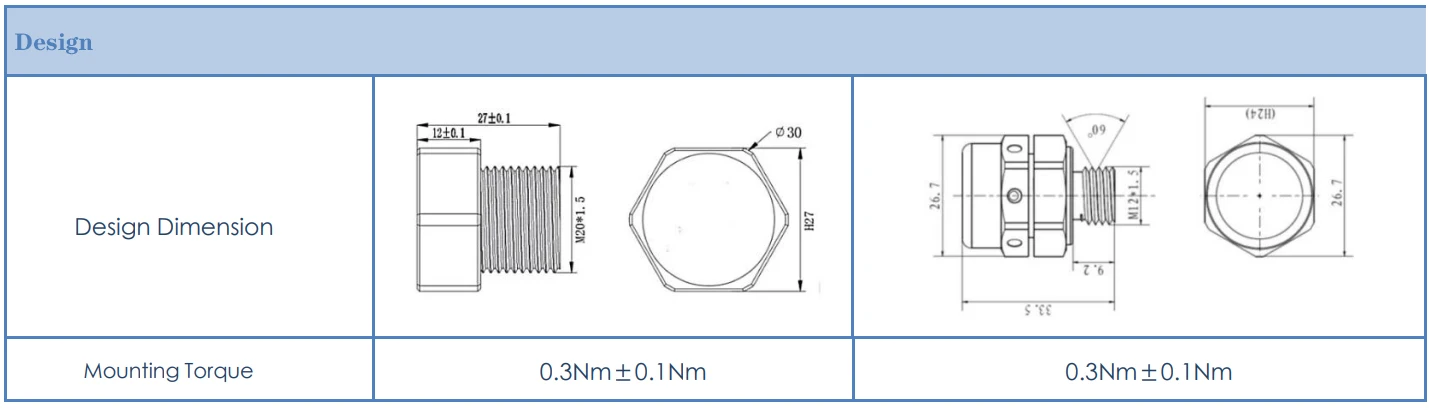

Design

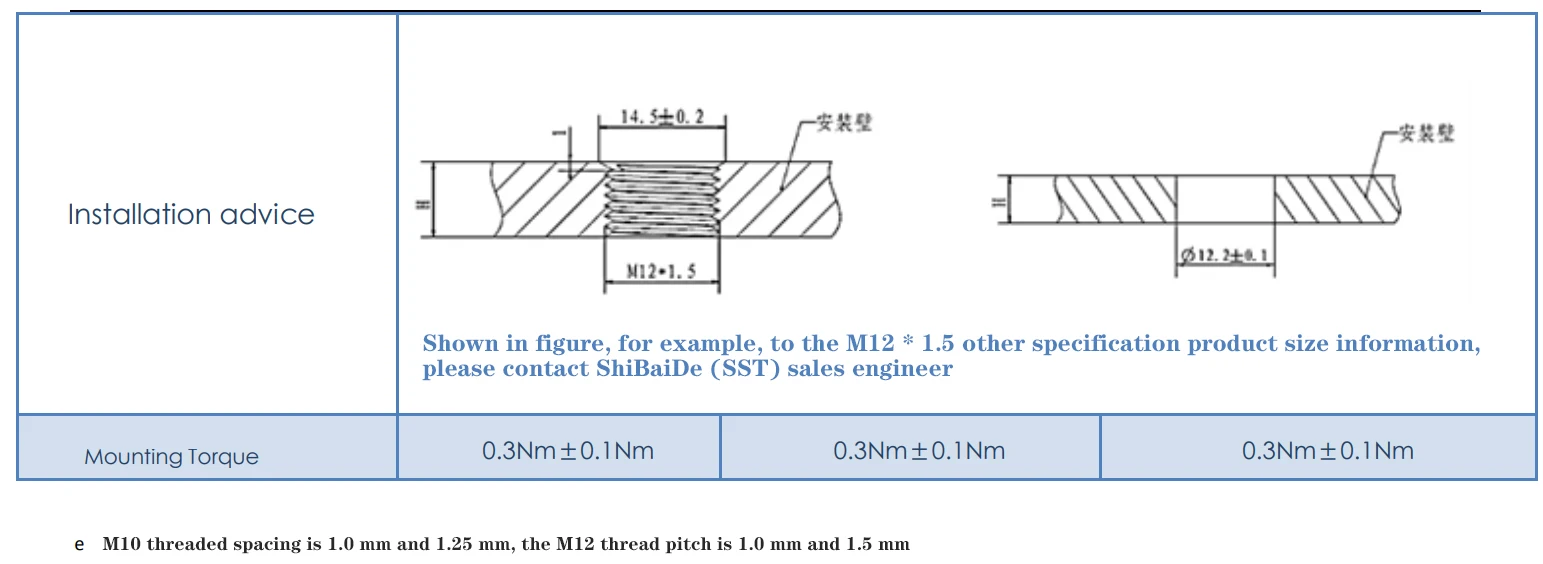

Threaded installation for Screw Vents
1. Clean the installation surface and the installation area of the screw installation vent to remove any pollutants.
2. The ideal installation position is on the flat and vertical surface of the shell wall. This location will prevent liquid accumulation
3. Insert the screw with correctly aligned thread into the housing with the vent, and then screw it into the housing
3. Insert the screw with correctly aligned thread into the housing with the vent, and then screw it into the housing
4.When the wall thickness is appropriate, it is recommended to use chamfer to optimize the O-ring seal
Assembly fastening torque | 0.4N.m~0.8N.m and no concerns for metal venting |
Breaking fastening torque | ≥2.0N.m for Plastic and no concerns for metal venting |
Assemblability | Repetitively assemble 10 times under torque 0.7N.m，top cover of the valve does not fall off for Plastic |
Advantages :
Using 2 identical lamps and lanterns, the lighting time will last 90min.
The internal pressure of headlamps without waterproof and breathable screw vents increased rapidly and eventually stabilized.
The internal pressure of the headlights increased slowly and gradually tended to zero with the waterproof and breathable screw
vents.
The internal pressure of headlamps without waterproof and breathable screw vents increased rapidly and eventually stabilized.
The internal pressure of the headlights increased slowly and gradually tended to zero with the waterproof and breathable screw
vents.

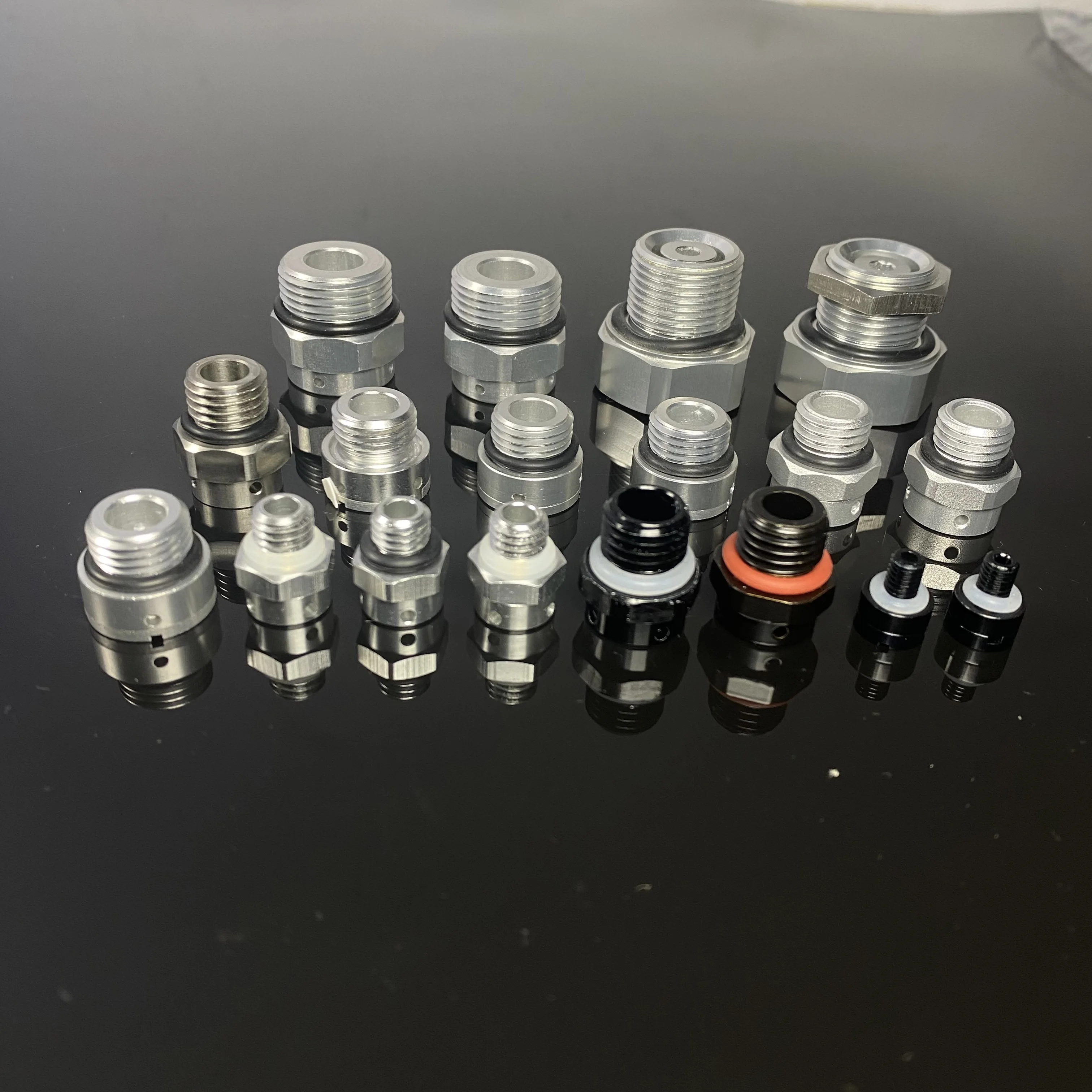

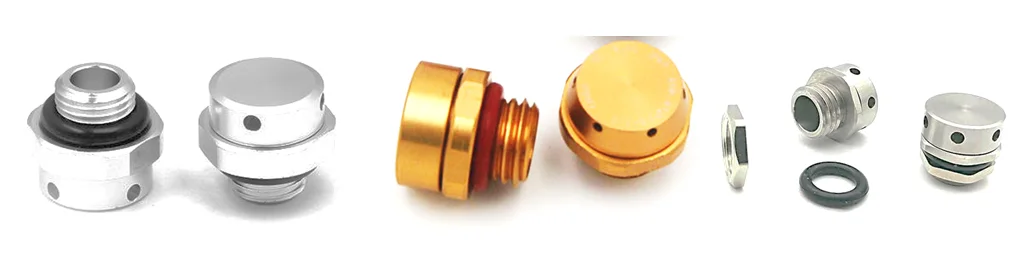

Typical protection vents display as above
Application Case
Application
LED Outdoor Screen;Security Devices;LED Outdoor Screen;Photovoltaic devices;Atomotive electronics;Telecommunication equipment etc
MORE APPLICATION
Why Choose Us
Payment & Logistics
Packing Details:
1) Packing in a PE bags and carton for outer packing, 500-1000pcs pure eptfe membrane /bags.
2) Carton Size: Customized or based on actual weight and volume.
Shipping Details :
1）By express （3-5 working days）Within 3-7 days upon receipt of the payment.
2）Tell us your requirement about the Shipping by CLICKING HERE, so that we can provide solution to save your
1) Packing in a PE bags and carton for outer packing, 500-1000pcs pure eptfe membrane /bags.
2) Carton Size: Customized or based on actual weight and volume.
Shipping Details :
1）By express （3-5 working days）Within 3-7 days upon receipt of the payment.
2）Tell us your requirement about the Shipping by CLICKING HERE, so that we can provide solution to save your
