Высококачественные автомобильные грейдеры дорожное оборудование

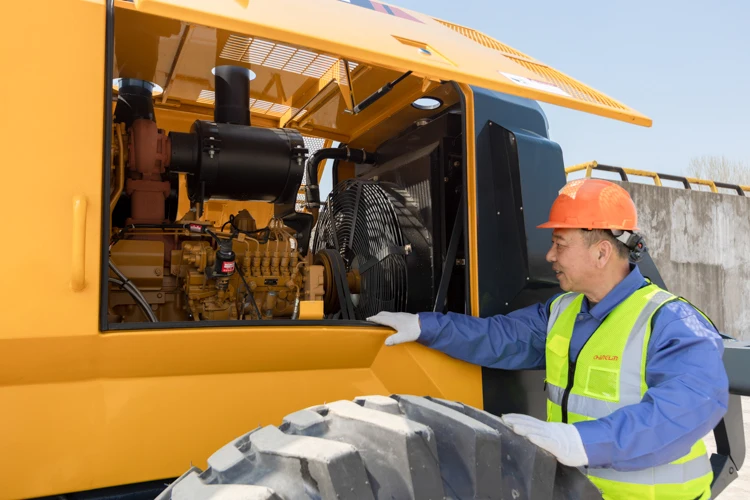

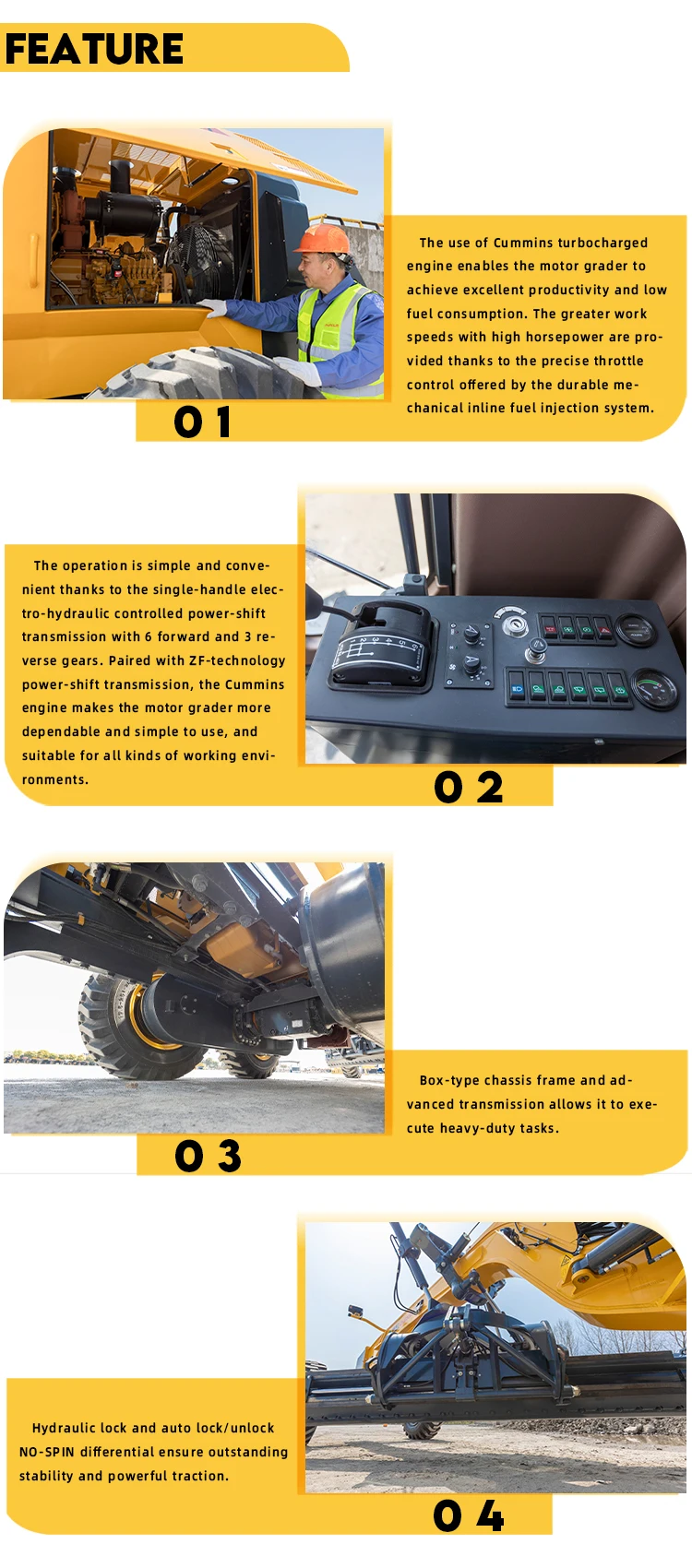

Cummins turbocharged engine, realizes high productivity and low fuel consumption. Durable mechanical inline fuel injection system
provides precise throttle control and thus it delivers higher work speeds with high horsepower.

Box-type frame and advanced T/M enable it to complete heavy-duty work.

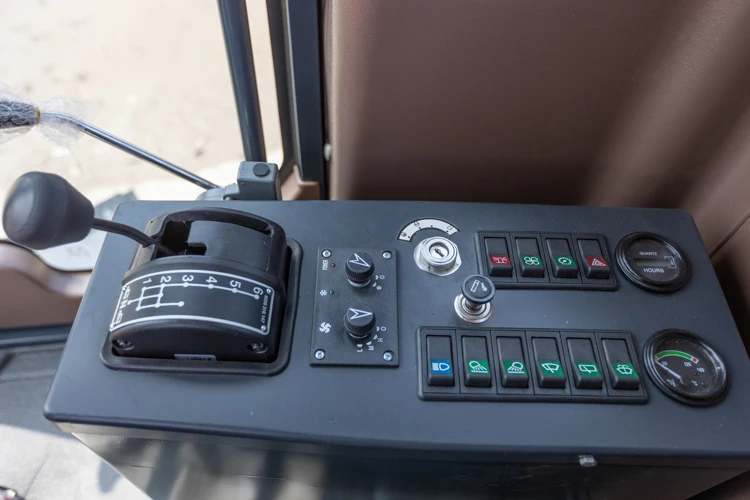

Sing-handle electro-hydraulic controlled power-shift T/M, 6forward & 3reverse shifts makes operation easy and convenient.

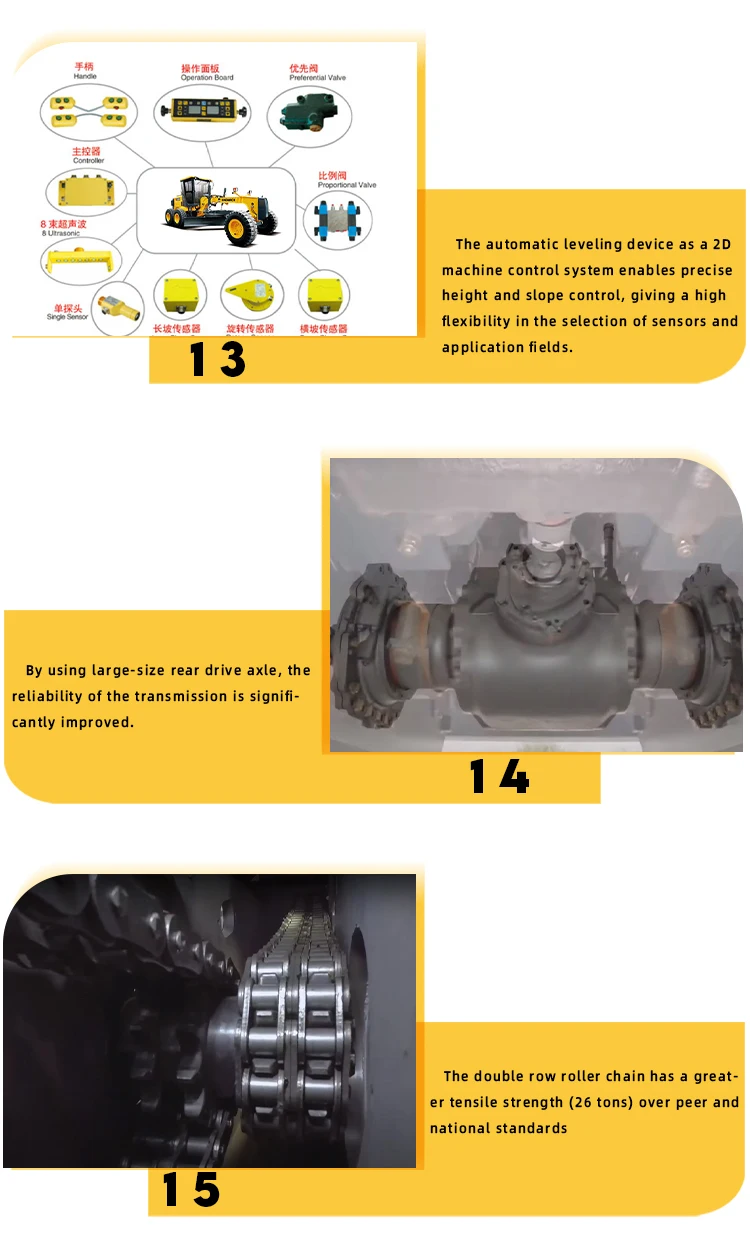

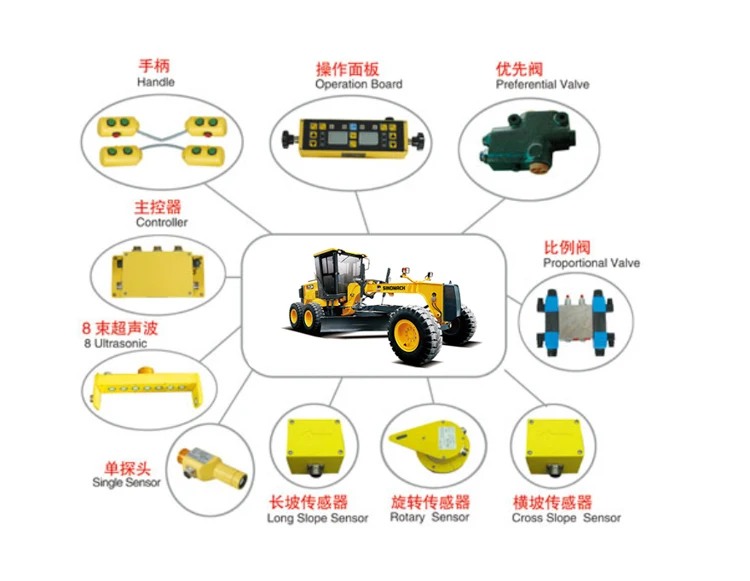

As a 2D control system, Automatic Leveling Device offers precise and reliable height and slope control and a high level of flexibility in the choice of sensors and fields of application.

Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability and powerful traction.

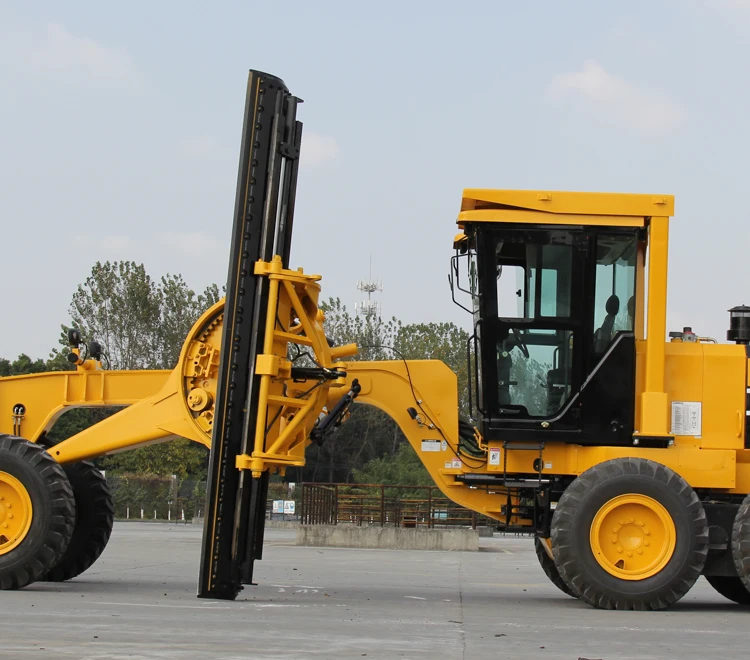

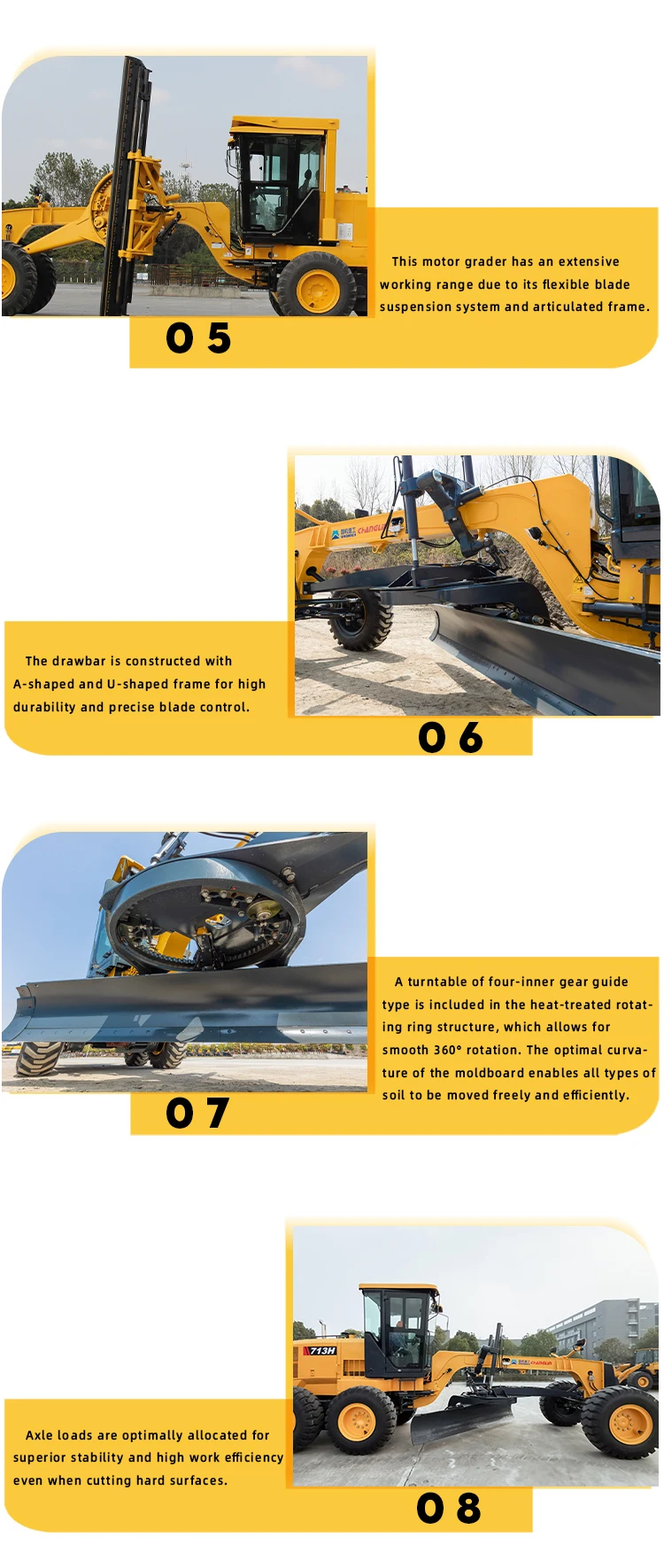

A wide working range is accomplished through flexible blade suspension system and articulated frame.

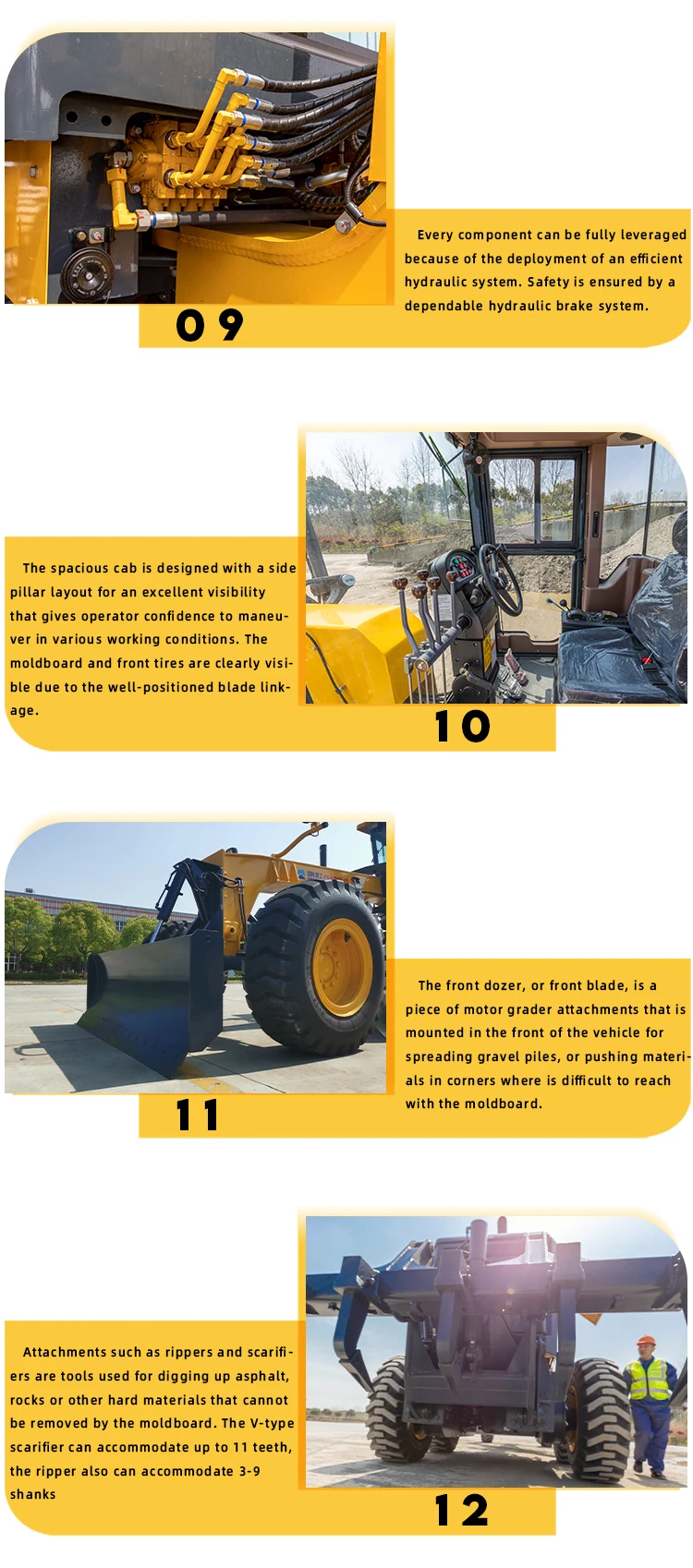

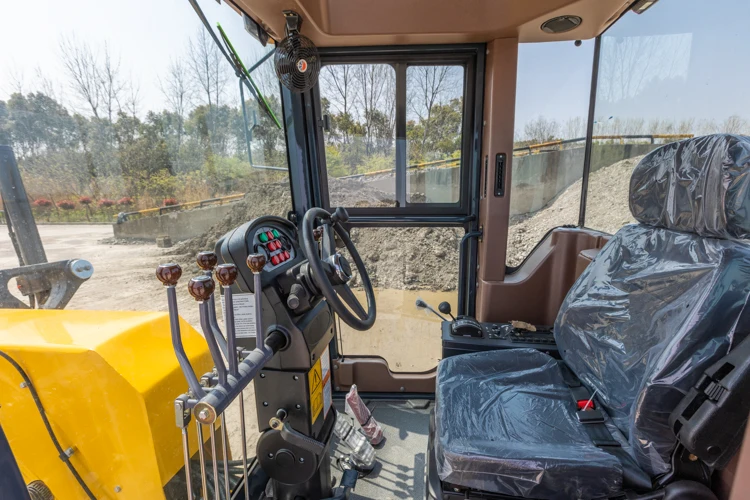

Excellent visibility and layout side pillar boosts operator’s confidence and productivity in all grader applications. Well-positioned blade linkage provides an unobstructed view of the moldboard and front tires.

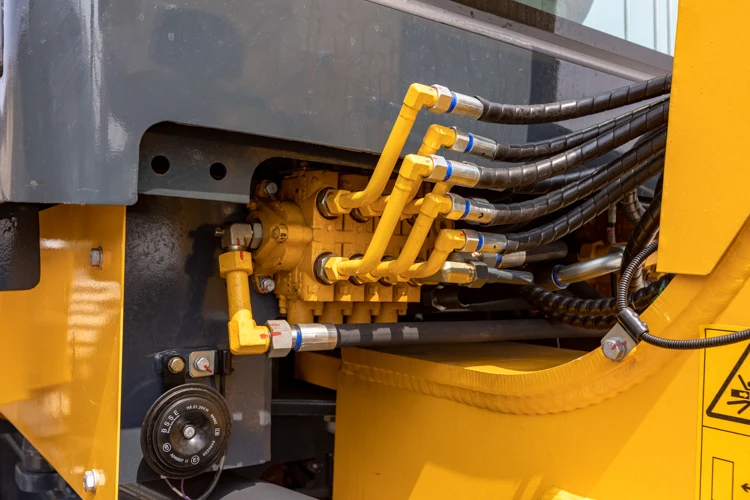

Serviceable, efficient hydraulic system enables every part to be fully used Reliable full hydraulic brake system ensures safety.

Ideal axle load allocation provides excellent stability while cutting hard surface.

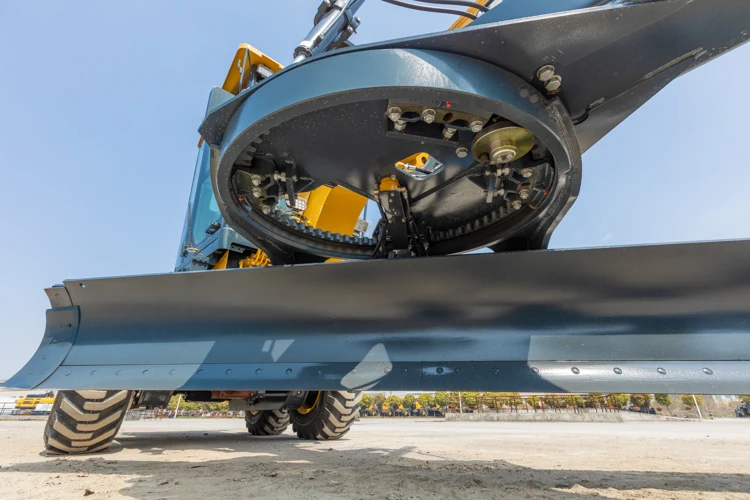

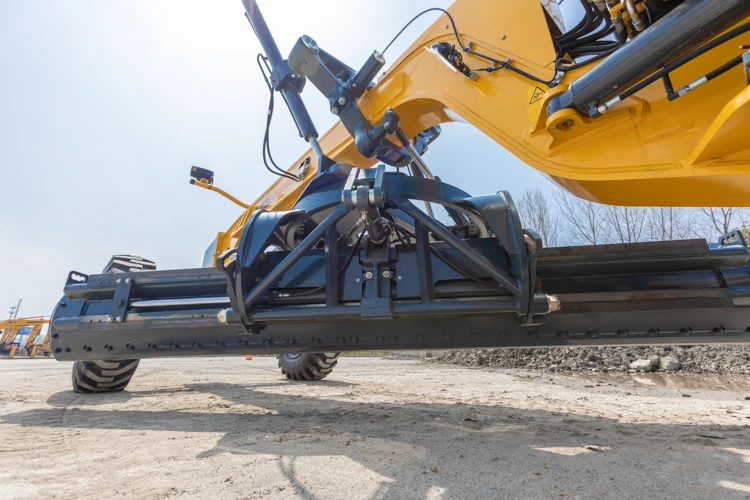

The heat-treated rotating ring structure is equipped with four turntable of inner gear guide type, can obtain 360° smooth rotation. The moldboard provides optimal curvature that helps move all soil types quickly and efficiently.

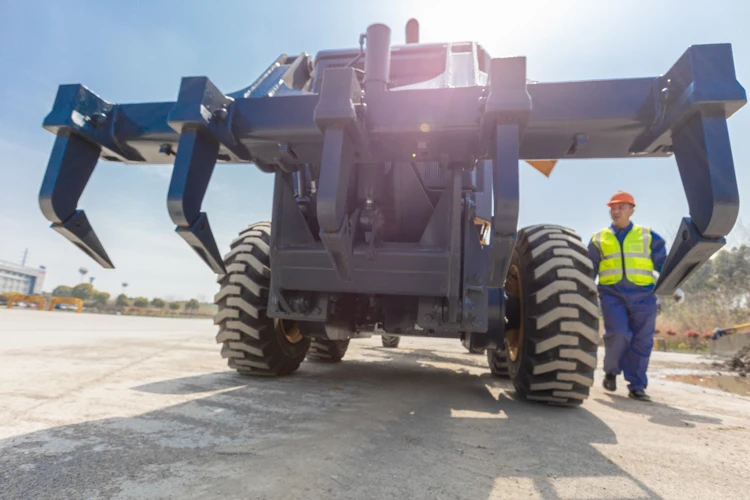

Digs up hard material cannot be removed by the moldboard. The V-type scarifier can accommodate up to 11 teeth, the ripper also accommodate 3 -9 shanks.

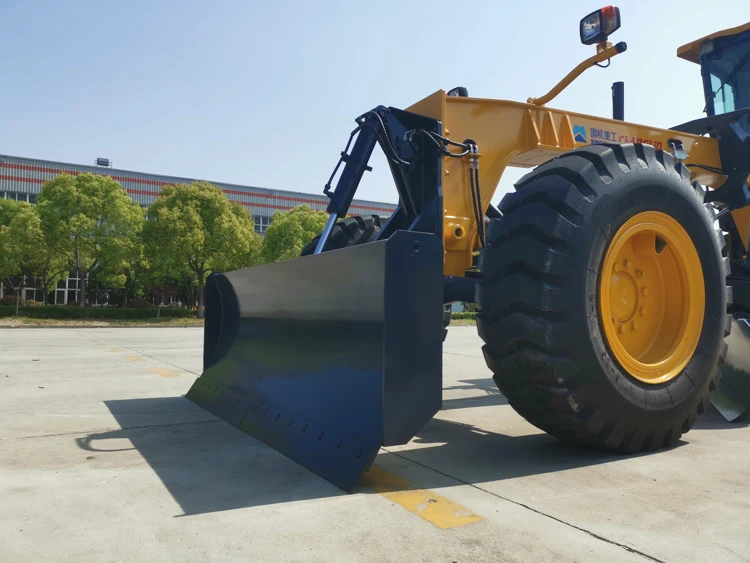

The front Dozer is a front mounted equipment used for spreading materials such as gravel piles or blading at the front of the machine where is difficult to access with the moldboard.

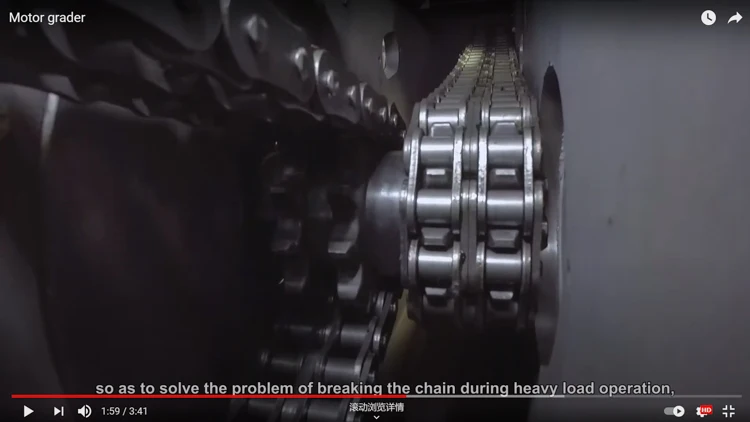

Double row roller chain，Fully guaranteed strength (tensile strength of 26 tons, far higher than the peer and national standards).

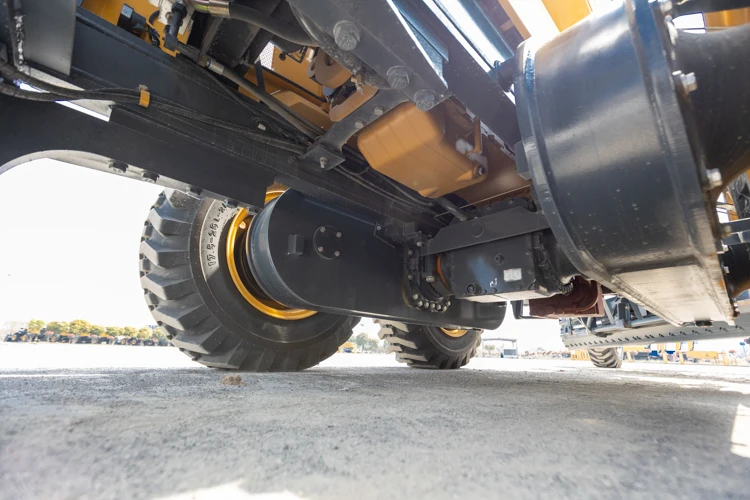

Adopt large size rear drive axle. With the same specification as 170H grader, the transmission reliability is stronger.

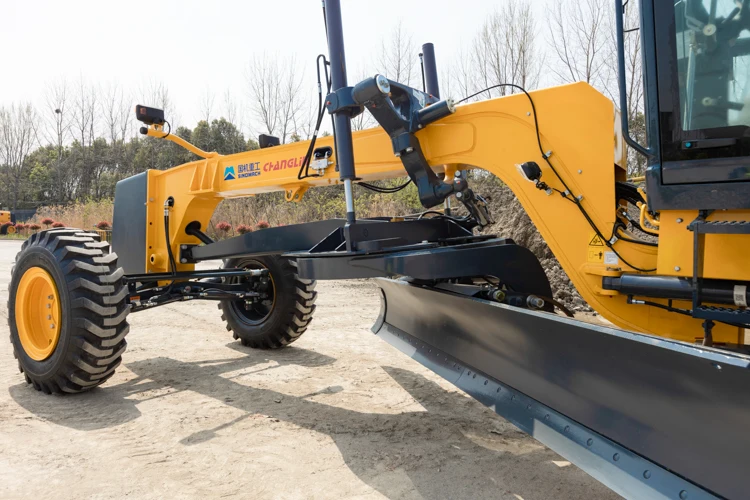

The drawbar is composed of strong A & U-shaped frame for strength durability, and precise blading control.
