Cell Parameters | ||
Cell type | LFP | |
Cell specification | 3.2V/280AH | |
Maximum magnification | 0.5C | |
Cycle life | 6000 times@25°C,0.5P/0.5P | |
Operating temperature | Charging temperature 0-55℃,Discharging temperature -20-55℃ | |
Battery Module Parameters | ||
Combination | 16S | |
Rated Capacity | 280Ah | |
Rated voltage | 51.2V | |
Rated energy | 14.336KWh | |
Maximum magnification | 0.5C | |
Battery Cluster Parameters | ||
Number of PACKs per cluster | 14 | |
Rated Capacity | 280Ah | |
Rated voltage | 716.8V | |
Rated energy | 200.704KWh | |
Maximum magnification | 0.5C | |

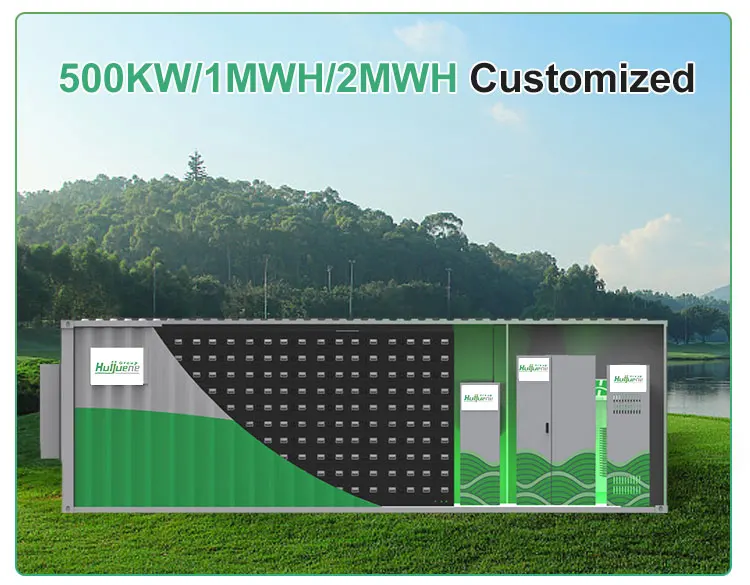

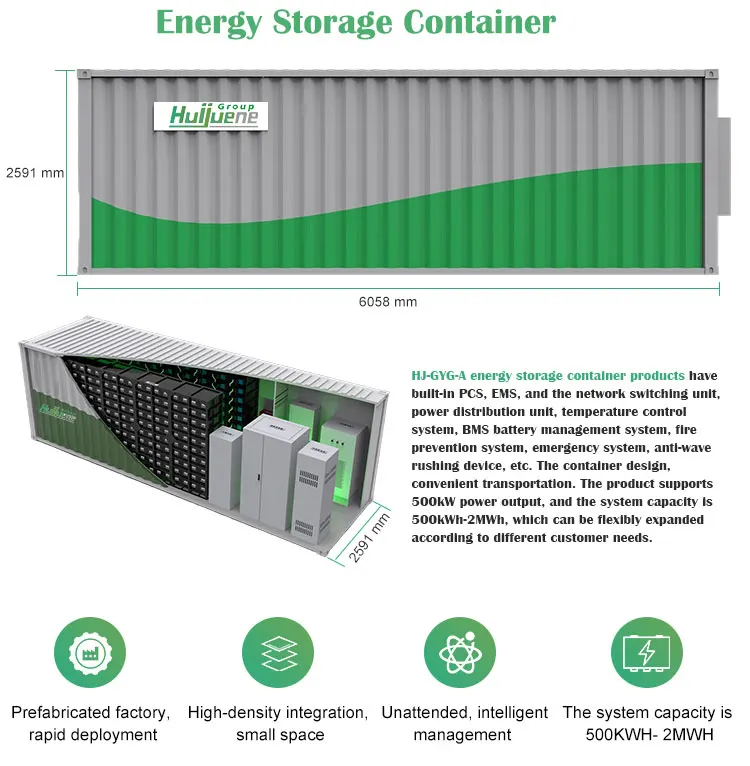

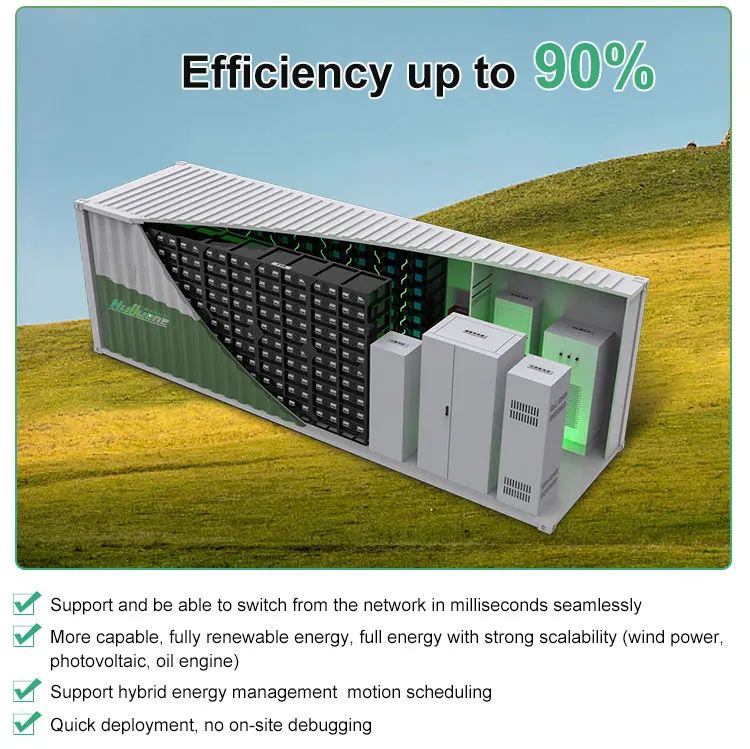

Battery Compartment System Parameters | ||
Rated energy | 2007.4kWh | |
Rated voltage | 716.8V | |
Maximum magnification | 0.5C | |
Cooling method | Air cooled | |
Maintenance method | Walk in | |
degree of protection | IP54 | |
Svstem communication interface | CAN/RS485/Ethernet | |
System Communication Protocol | Modbus-RTU/Modbus-TCP/IEC 61850 |
