Products Description

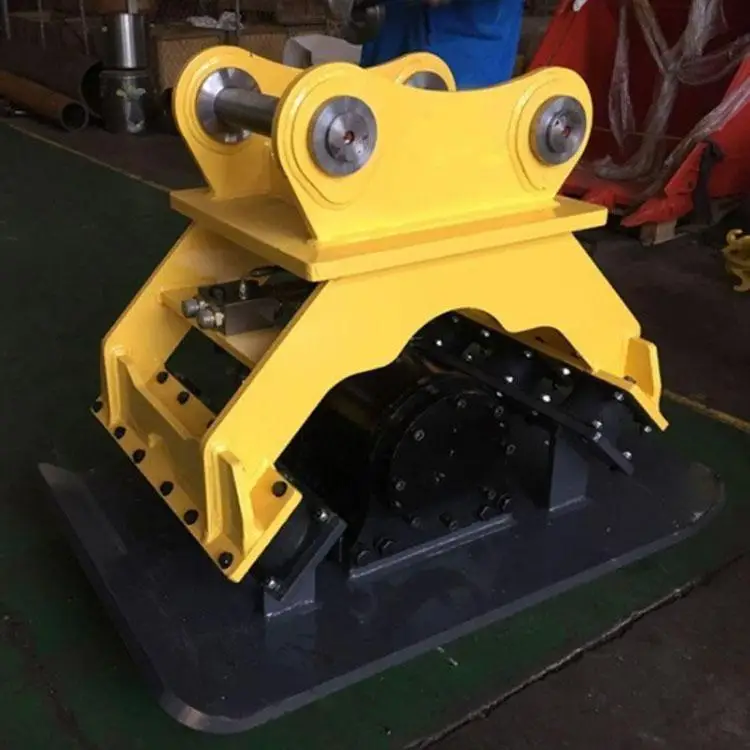

vibration tamper

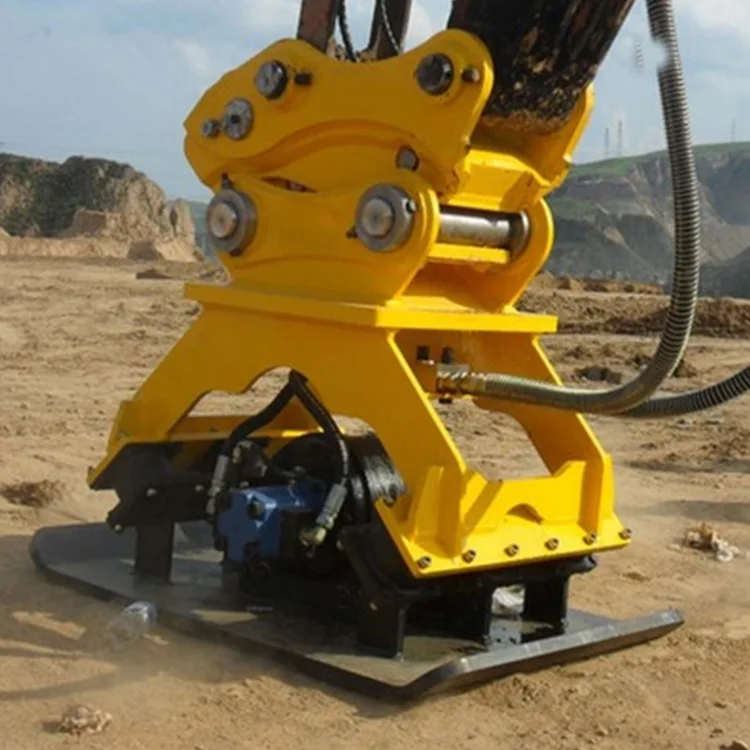

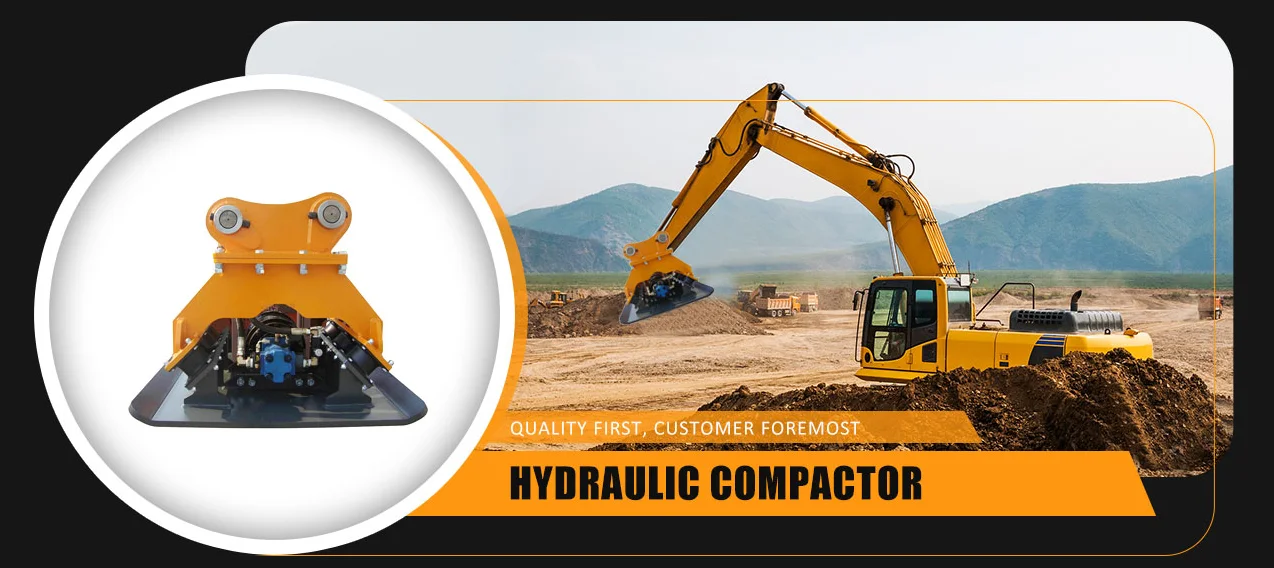

Excavator vibrating tamping rammer is installed in the original bucket position on the front-end of boom, using the excavator's hydraulic drive and control. Simple structure, convenient in operation and maintenance. Applicable to a variety of terrain and a variety of operation ways. lt can complete plane compaction, inclined plane compaction, the steps to consolidate, cement pits of groove and other complex foundation ramming processing.
Technical Date
Gategory | RB-mini | RB-02/04 | RB-06 | RB-08 | RB-10 |
Height (mm) | 435 | 530 | 650 | 720 | 730 |
Width (mm) | 442 | 550 | 700 | 900 | 900 |
Weight（kg） | 200 | 350-500 | 650-800 | 900-1000 | 1100-1300 |
Impulse force （ton） | 3 | 900 | 900-1000 | 11 | 15 |
Vibration frequency（rpm/min） | 2000 | 2000 | 2000 | 2200 | 2200 |
Oil flow（I/min） | 30-60 | 45-85 | 85-105 | 120-170 | 120-170 |
Operating pressure（kg/cm2） | 100-130 | 100-130 | 100-150 | 150-200 | 150-200 |
Bottom measurement（mm） | 800*442 | 900*550 | 1160*700 | 1300*900 | 1500*1000 |
Carrier（ton） | 2-4 | 4-10 | 12-16 | 18-24 | 30-40 |

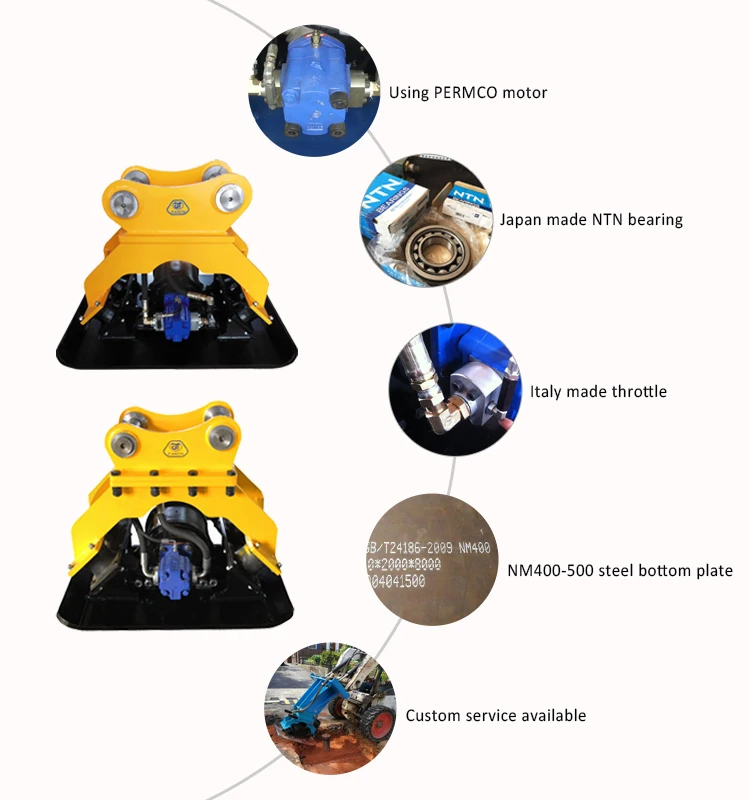

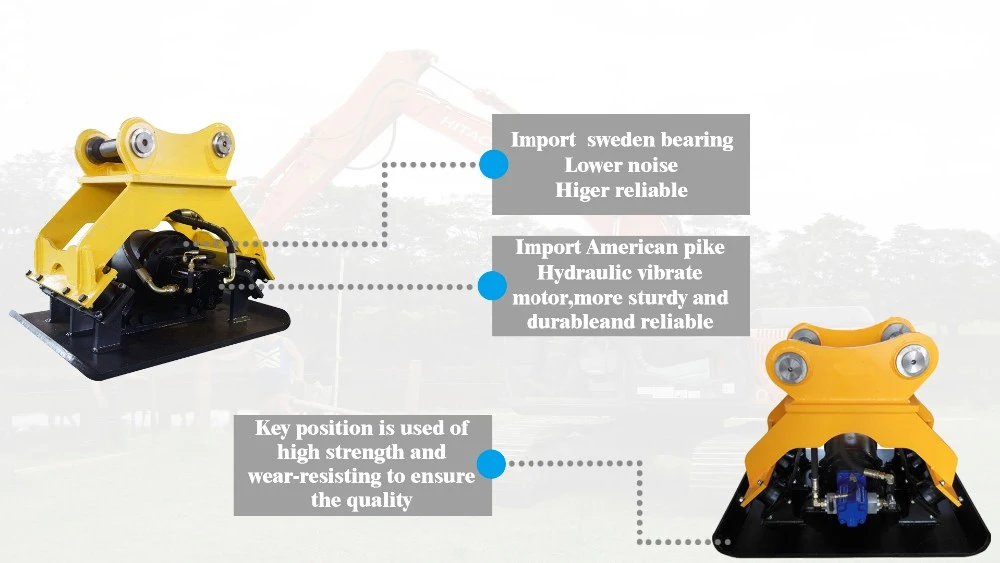

Product Paramenters

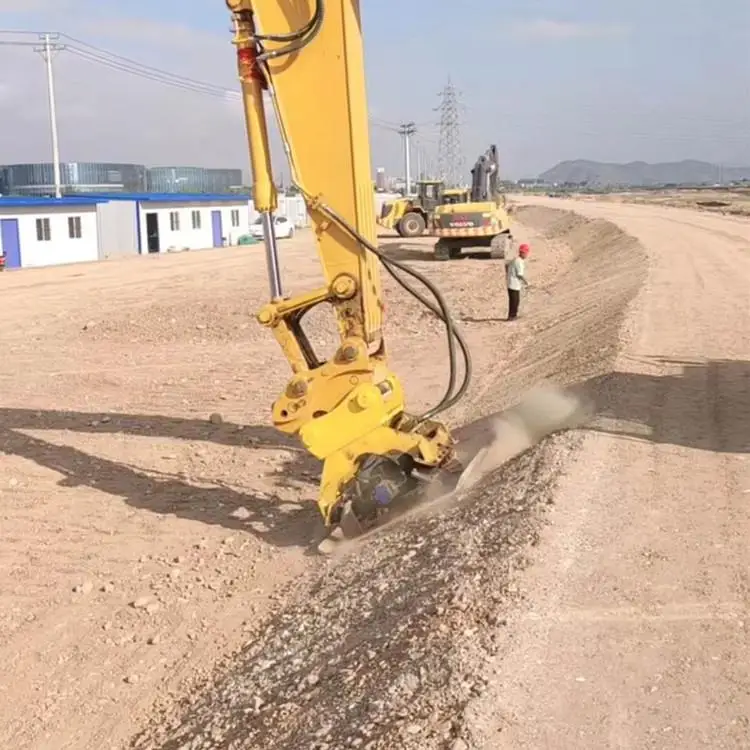

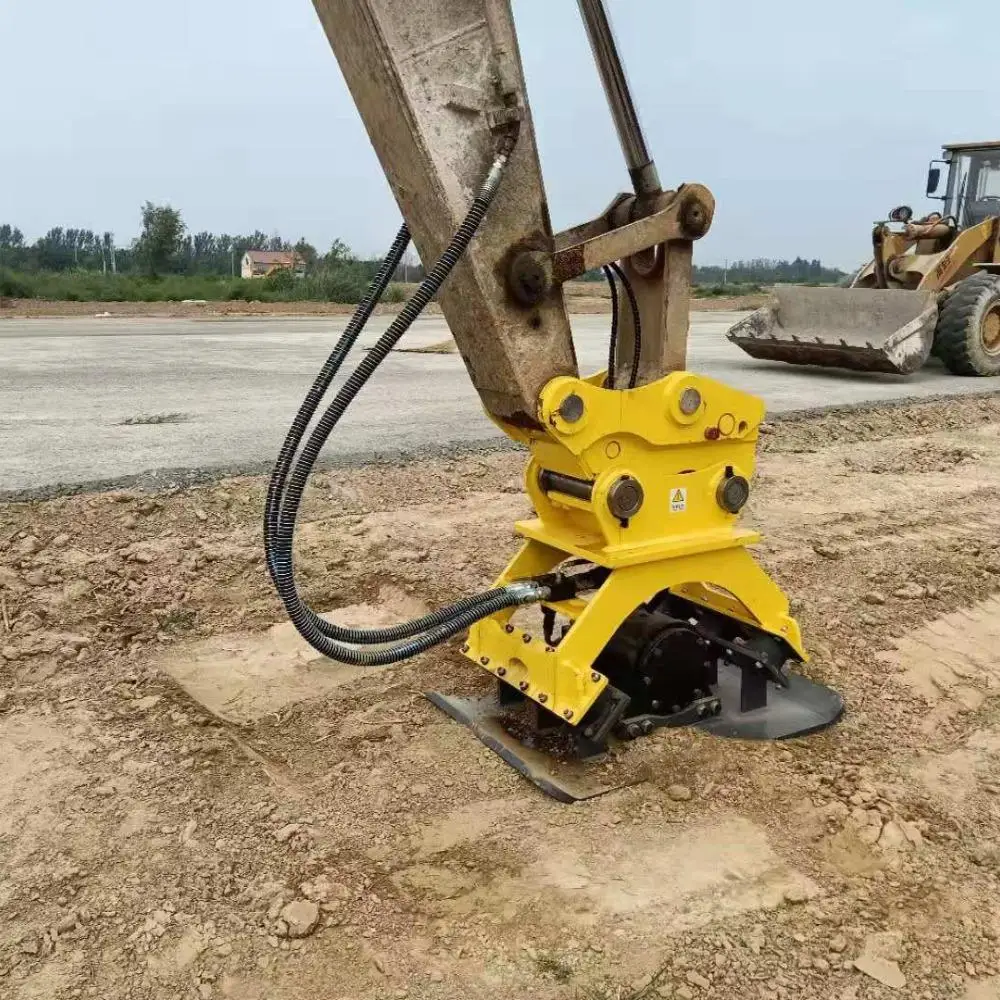

Product Applications

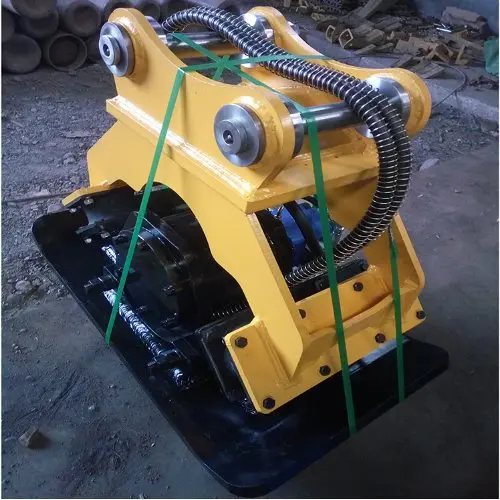

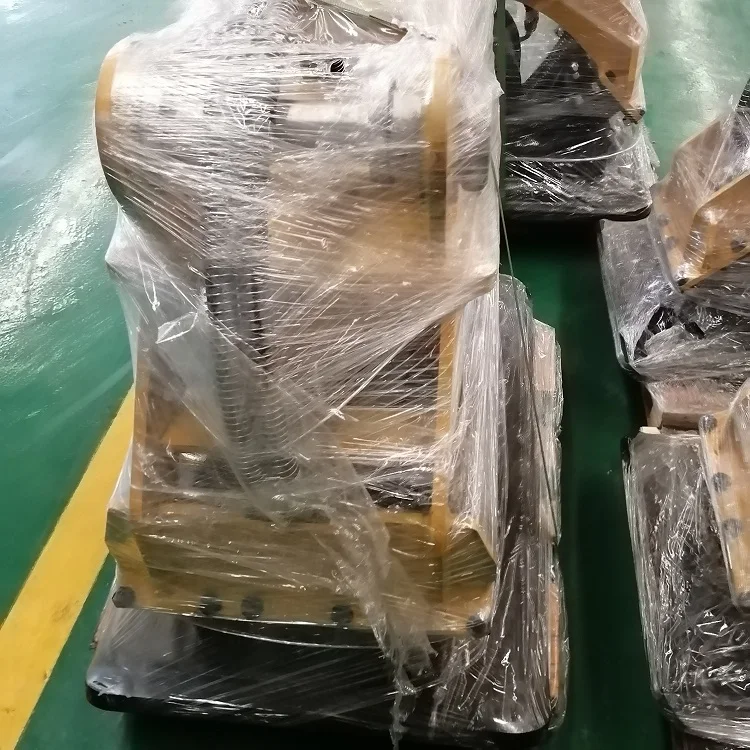

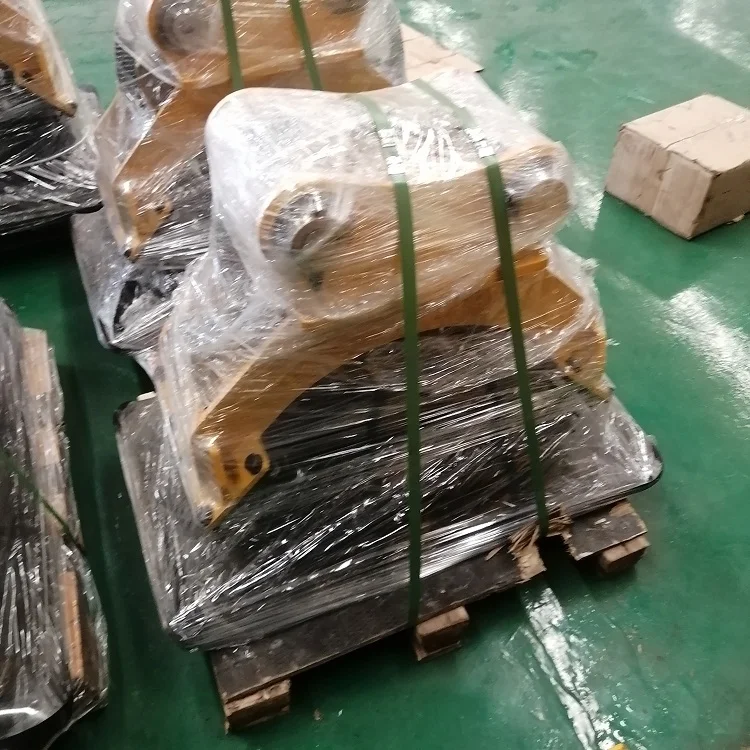

Product packaging
