Прозрачная светодиодная пленка высокого
- Категории: >>>
- Поставщик: Shanghai,Values,Glass,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Parameters

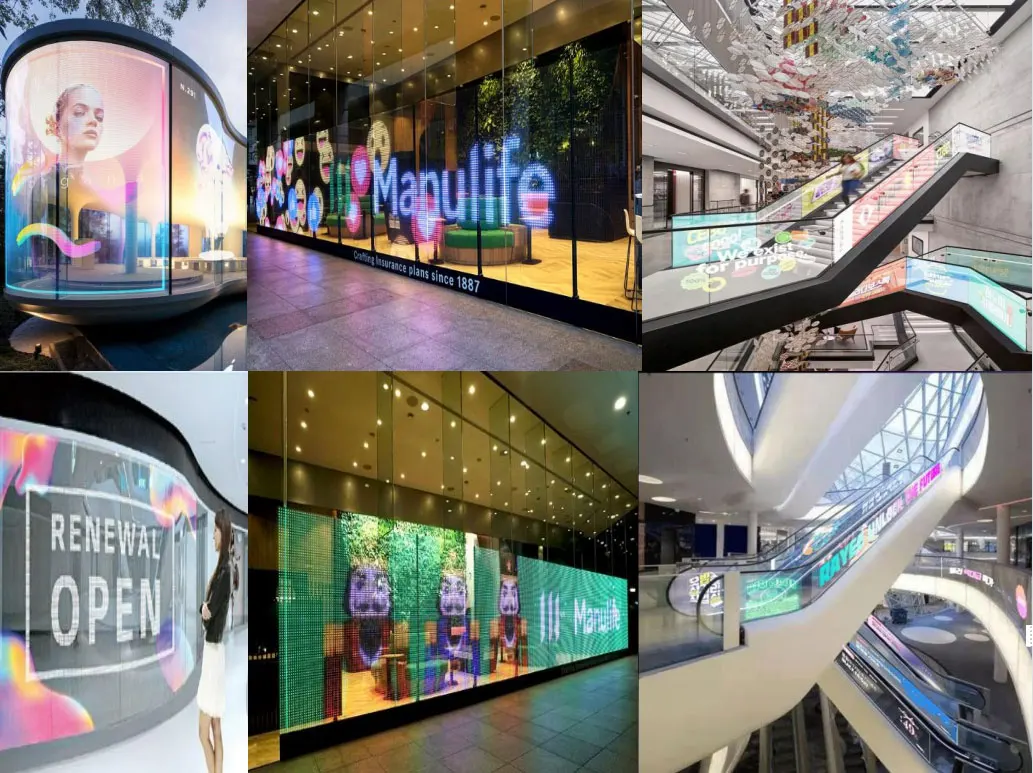

Application
Picture Display
Specification
Model | P6 | P6.25 | P8 | P10 | P15 | P20 |
Module size (mm) | 816*384 | 1000*400 | 1000*400 | 1000*400 | 990*390 | 1000*400 |
LED light | REE1515 | REE1515 | REE1515 | REE1515 | REE2022 | REE2022 |
Pixel composition | R1G1B1 | R1G1B1 | R1G1B1 | R1G1B1 | R1G1B1 | R1G1B1 |
Pixel spacing (mm) | 6*6 | 6.25*6.25 | 8*8 | 10*10 | 15*15 | 20*20 |
Module pixel | 136*64=8704 | 160*40=6400 | 125*50=6250 | 100*40=4000 | 66*26=1716 | 50*20=1000 |
Pixel/m2 | 27777 | 25600 | 16500 | 10000 | 6625 | 2500 |
Brightness | 2000/4000 | 2000/4000 | 2000/4000 | 2000/4000 | 2000/4000 | 2000/4000 |
Permeability | 90% | 90% | 92% | 94% | 94% | 95% |
Angle of view ° | 160 | 160 | 160 | 160 | 160 | 160 |
Input voltage | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz |
Peak power | 400w/㎡ | 600w/㎡ | 400w/㎡ | 400w/㎡ | 400w/㎡ | 400w/㎡ |
Average power | 200w/㎡ | 200w/㎡ | 200w/㎡ | 200w/㎡ | 200w/㎡ | 200w/㎡ |
Work environment | Temperature - 20~55 Humidity 10-90% | Temperature - 20~55 Humidity 10-90% | Temperature - 20~55 Humidity 10-90% | Temperature - 20~55 Humidity 10-90% | Temperature - 20~55 Humidity 10-90% | Temperature - 20~55 Humidity 10-90% |
Weight | 1.3kg | 1.3kg | 1.3kg | 1.3kg | 1.3kg | 1.3kg |
Thickness | 2.5mm | 2.5mm | 2.5mm | 2.5mm | 2.5mm | 2.5mm |
Drive mode | static state | static state | static state | static state | static state | static state |
Control system | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight |
Typical value of life | 100000H | 100000H | 100000H | 100000H | 100000H | 100000H |
Grayscale level | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
Refresh rate | 3840Hz | 3840 Hz | 3840 Hz | 3840Hz | 3840 Hz | 3840 Hz |
Company Profile
a continuous growing company, located in Shanghai, China.
Since year of 2005, stepped on furnish glasses;
Since year of 2010, ranges are expanded to building glasses;
Since year of 2014, VALUES GLASS in Shanghai is established to meet business need;
VALUES GLASS, aim to deliver ADDED VALUE for partners by:
-- Competitive price;
-- Quality products;
-- On time delivery;
-- Efficient communication;
Tempered glass, insulated glass, laminated glass, annual output-1.5 million
square meters.
-- Smart glass & self-adhesive PDLC film;
-- Anti-reflective glass, anti-glare glass;
-- Vacuum glass;
-- Stained glass, tinted glass;
-- LED mirror
Since year of 2005, stepped on furnish glasses;
Since year of 2010, ranges are expanded to building glasses;
Since year of 2014, VALUES GLASS in Shanghai is established to meet business need;
VALUES GLASS, aim to deliver ADDED VALUE for partners by:
-- Competitive price;
-- Quality products;
-- On time delivery;
-- Efficient communication;
Tempered glass, insulated glass, laminated glass, annual output-1.5 million
square meters.
-- Smart glass & self-adhesive PDLC film;
-- Anti-reflective glass, anti-glare glass;
-- Vacuum glass;
-- Stained glass, tinted glass;
-- LED mirror
About us
Why choose us?
2. Strictly quality control standards, 100% quality inspection.
3. One-stop glass project solution program.
4. Professional sales team, Offering personalied and dedicated service.
5. High quality glass with the highest cost performance.
6. Prompt and efficient service
FAQ
1. who are we?
We are based in Shanghai, China, start from 2014,sell to North America(40.00%),Eastern Europe(15.00%),Western Europe(10.00%),South America(5.00%),Oceania(5.00%),Southern Europe(5.00%),Central America(5.00%),Mid East(5.00%),Southeast Asia(5.00%),Northern Europe(3.00%),South Asia(2.00%). There are total about 5-10 people in our office.
2. How to install？
Without steel structure, just stick the thin screen slightly and connect the power signal.
3.What about product transparency？
The transmittance is more than 90%, which does not affect the glass daylighting.
4. why should you buy from us not from other suppliers?
The combination of light and drive, independent research and development, high reliability, industry leading.
Flame retardant and UV resistant.
5. How long is the warranty period？
If the product is broken due to non-human factors, it can be guaranteed within 1 year
We are based in Shanghai, China, start from 2014,sell to North America(40.00%),Eastern Europe(15.00%),Western Europe(10.00%),South America(5.00%),Oceania(5.00%),Southern Europe(5.00%),Central America(5.00%),Mid East(5.00%),Southeast Asia(5.00%),Northern Europe(3.00%),South Asia(2.00%). There are total about 5-10 people in our office.
2. How to install？
Without steel structure, just stick the thin screen slightly and connect the power signal.
3.What about product transparency？
The transmittance is more than 90%, which does not affect the glass daylighting.
4. why should you buy from us not from other suppliers?
The combination of light and drive, independent research and development, high reliability, industry leading.
Flame retardant and UV resistant.
5. How long is the warranty period？
If the product is broken due to non-human factors, it can be guaranteed within 1 year
