Ручной шаровой клапан из нержавеющей стали 2 304
91,56-100,71 ₽

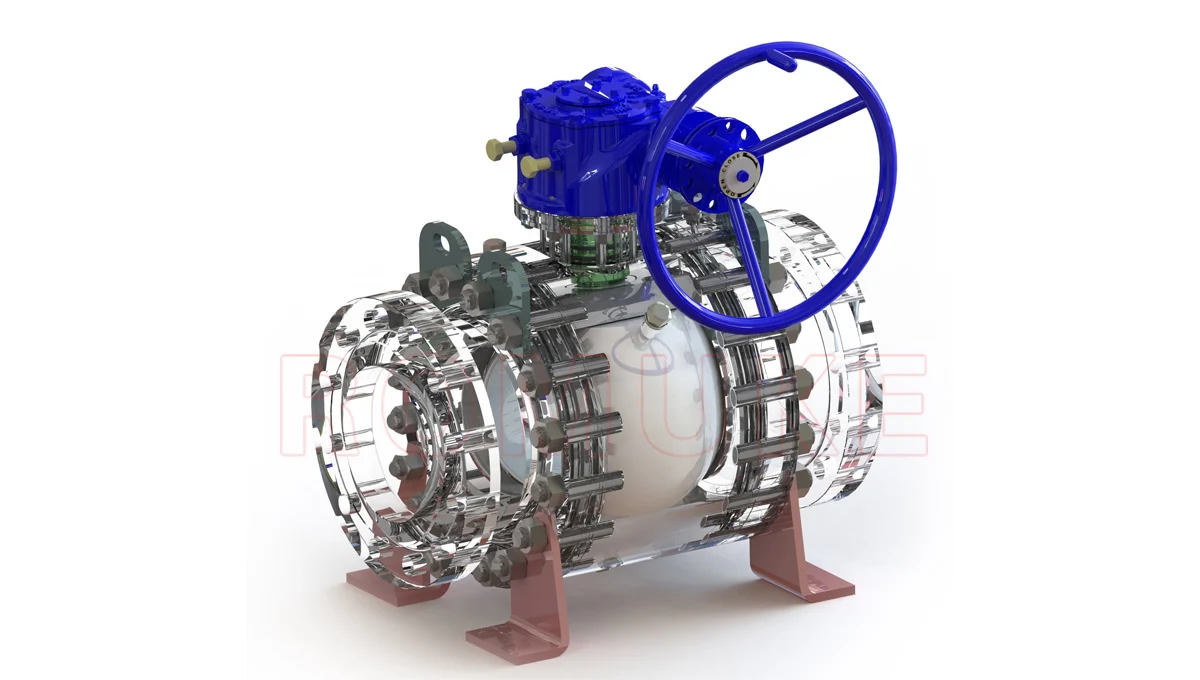

Q347W API стандартная нержавеющая сталь CF8/CF3/304/316L трехкомпонентный шаровой
- Категории: >>>
- Поставщик: Chengdu,Qusu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

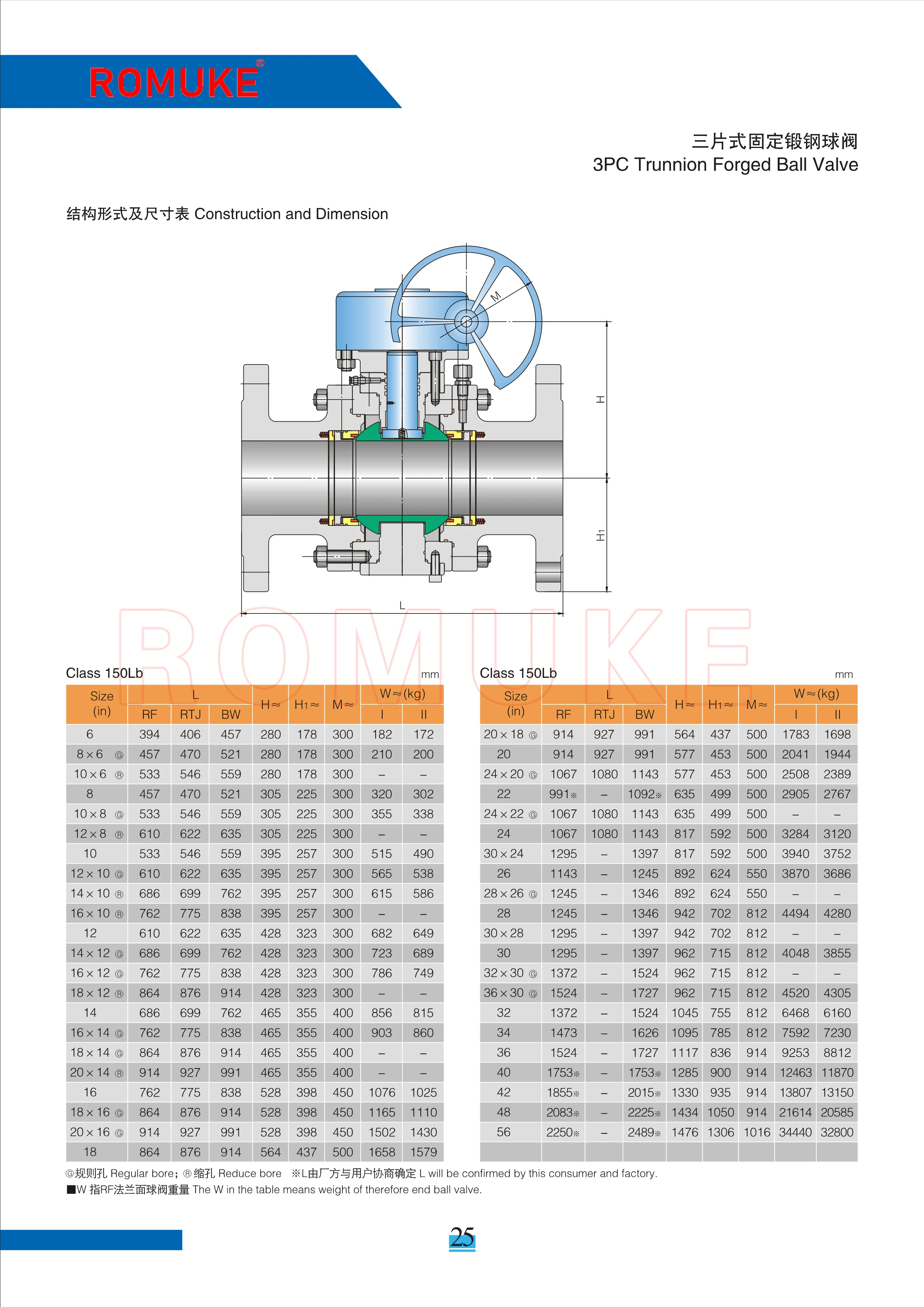

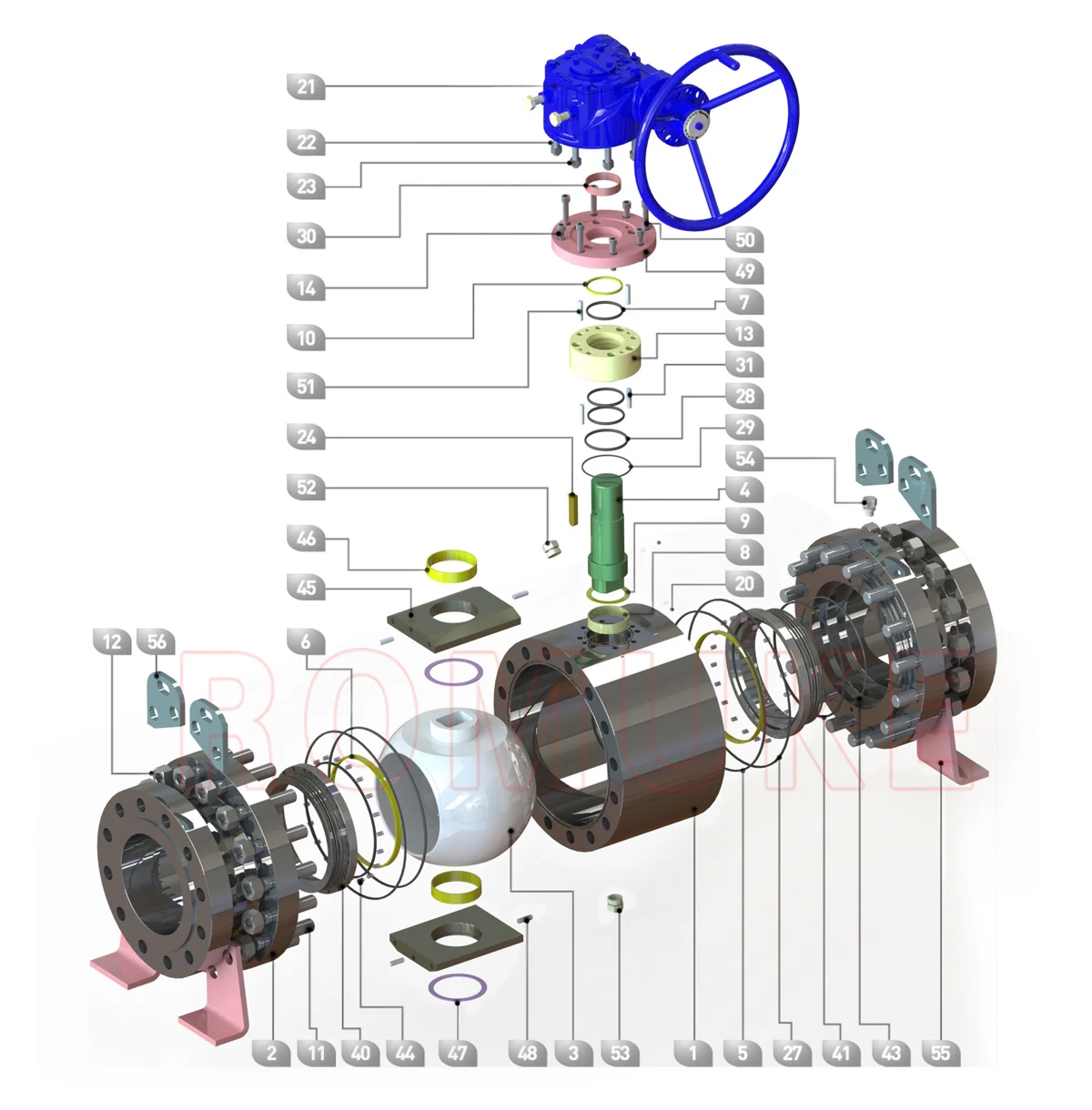

ITEM NO. | Description | ASTM A105/304 TRIM | ASTM A105/ENP TRIM | ASTM A350 LF2/316 TRIM | ASTM A182 F316/316 TRIM |
01 | Body | ASTM A105N | ASTM A105N | ASTM A350 LF2 | ASTM A182 F316 |
02 | Cap | ASTM A105N | ASTM A105N | ASTM A350 LF2 | ASTM A182 F316 |
03 | Ball | ASTM A182 F304/A351 CF8 | ASTM A105N .003 ENP | ASTM A182 F316/A351 CF8M | ASTM A182 F316 |
04 | Stem | ASTM | AISI 4140 .003 ENP | ASTM A479 316 | ASTM A479 316 |
05 | Body | HNBR | HNBR | VITON | HNBR |
06 | Seat | RTFE/RTFM/DEVLON | RTFE/RTFM/DEVLON | RTFE/RTFM/DEVLON | RTFE/RTFM/DEVLON |
07 | Stem O-Ring | HBNR | HNBR | VITON | HNBR |
08 | Stem Bush | STEEL+PTFE | STEEL+PTFE | STEEL+PTFE 304 | SS+PTFE |
09 | Thrust Washer(Back Seat) | RTFE | RTFE | RTFE | RTFE |
10 | Packing | GRAPHITE | GRAPHITE | GRAPHITE | GRAPHITE |
11 | Body/Cap Bolt | ASTM A193 B7/A193 B7M | ASTM A193 B7/A193 B7M | ASTM A320 L7M | ASTM A193 BBM |
12 | Body/Cap Nut | ASTM A194 2H/A194 2HM | ASTM A194 2H/A194 2HM | ASTM A194 7M | ASTM A194 8M |
13 | Gland | AISI 1045 | AISI 4140 .003 ENP | ASTM A350 LF2 | ASTM A182 F316 |
14 | Gland Bolt | A4135+H1150 | A4135+H1150 | A4135+H1150 | ASTM A193 B8M |
20 | Anti-Static | 316L SS | 316L SS | 316L SS | 316L SS |
21 | Gear Operator Assembly | GREY CAST IRON | GREY CAST IRON | GREY CAST IRON | GREY CAST IRON |
22 | Gear Operator Stud | ASTM A193 B7 | ASTM A193 B7 | ASTM A193 B7 | ASTM A193 B7 |
23 | Gear Operator Nut | ASTM A194 2H | ASTM A194 2H | ASTM A194 2H | ASTM A194 2H |
24 | Key | AISI 1045 | AISI 1045 | AISI 1045 | AISI 1045 |
27 | Body Gasket | GRAPHITE | GRAPHITE | GRAPHITE | GRAPHITE |
28 | Gland O-Ring | HNBR | HNBR | VITON | HNBR |
29 | Gland Gasket | GRAPHITE | GRAPHITE | GRAPHITE | GRAPHITE |
30 | Gland Bush | STEEL+PTFE | STEEL+PTFE | STEEL+PTFE | STEEL+PTFE |
31 | Gland Pin | AISI 1045 | AISI 1045 | AISI 1045 | 304 SS |
40 | Seat Holder | ASTM A351 CF8 | ASTM A105N .003 ENP | ASTM A351 CF8M | ASTM A182 F316 |
41 | Seat Holder O-Ring | HNBR | HNBR | VITON | HNBR |
43 | Seat Holder Gasket | GRAPHITE | GRAPHITE | GRAPHITE | GRAPHITE |
44 | Spring | INCONEL X-750 | INCONEL X-750 | INCONEL X-750 | INCONEL X-750 |
45 | Bearing Plate | AISI 1045 | AISI 1045 | ASTM A350 LF2 | ASTM A182 F316 |
46 | Bearing Plate Bush | STEEL+PTFE | STEEL+PTFE | STEEL+PTFE | 304 SS+PTFE |
47 | Bearing Plate Liner | RTFE | RTFE | RTFE | RTFE |
48 | Bearing Plate Pin | AISI 1045 | AISI 1045 | AISI 1045 | 304 SS |
49 | Mounting Plate | AISI 1045 | AISI 1045 | ASTM A350 LF2 | ASTM A182 F316 |
50 | Mounting Plate Bolt | A4135+H1150 | A4135+H1150 | A4135+H1150 | ASTM A193 B8M |
51 | Mounting Plate Pin | AISI 1045 | AISI 1045 | AISI 1045 | 304 SS |
52 | Vent | AISI 1020+Zn. | AISI 1020+Zn. | AISI 1020+Zn. | 316 SS |
53 | Drain | AISI 1020+Zn. | AISI 1020+Zn. | AISI 1020+Zn. | 316 SS |
54 | Sealant Injection | AISI 1020+Zn. | AISI 1020+Zn. | AISI 1020+Zn. | 316 SS |
55 | Supporting Leg | CARBON STEEL | CARBON STEEL | CARBON STEEL | CARBON STEEL+Zn. |
56 | Lifting Lug | CARBON STEEL | CARBON STEEL | CARBON STEEL | CARBON STEEL+Zn. |

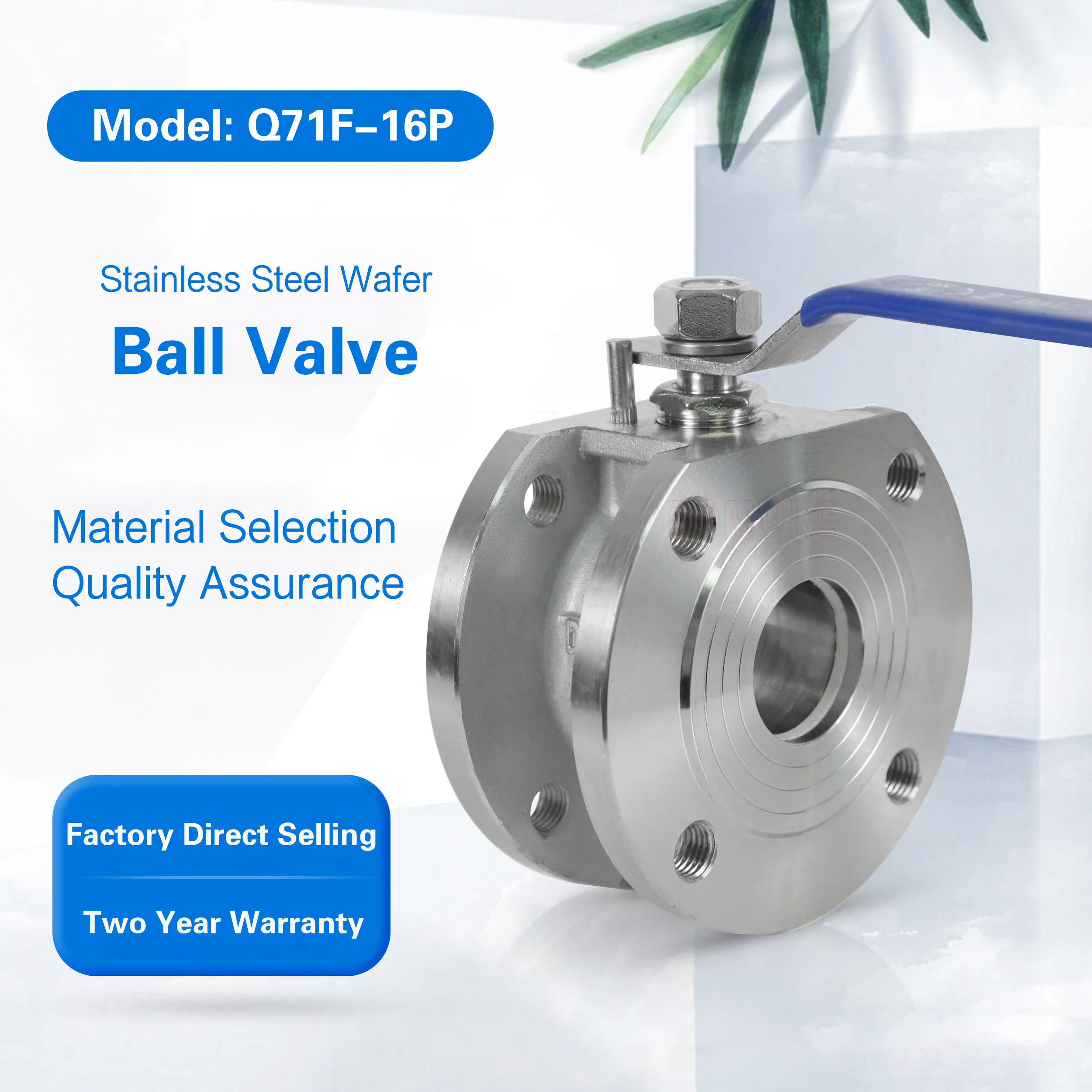

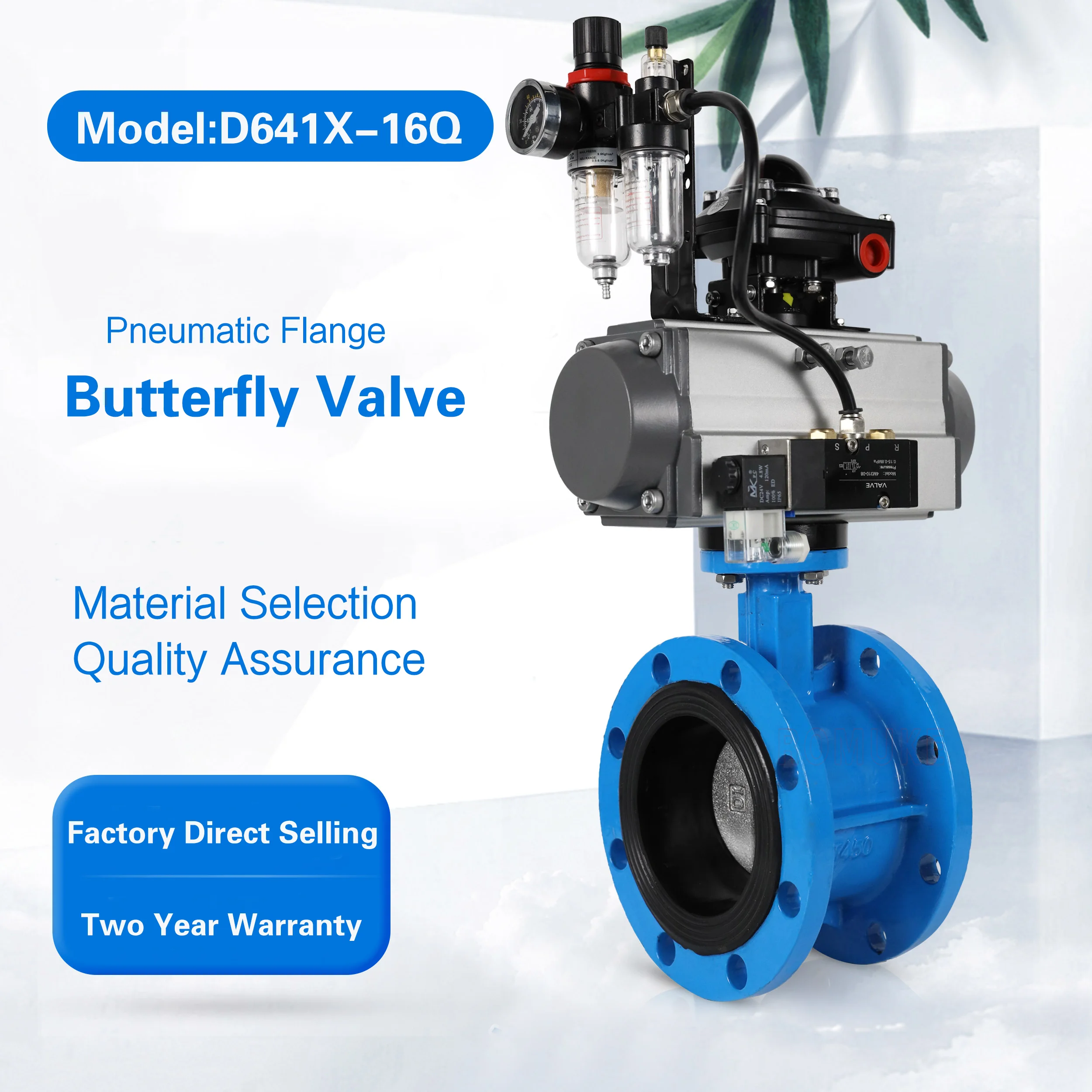

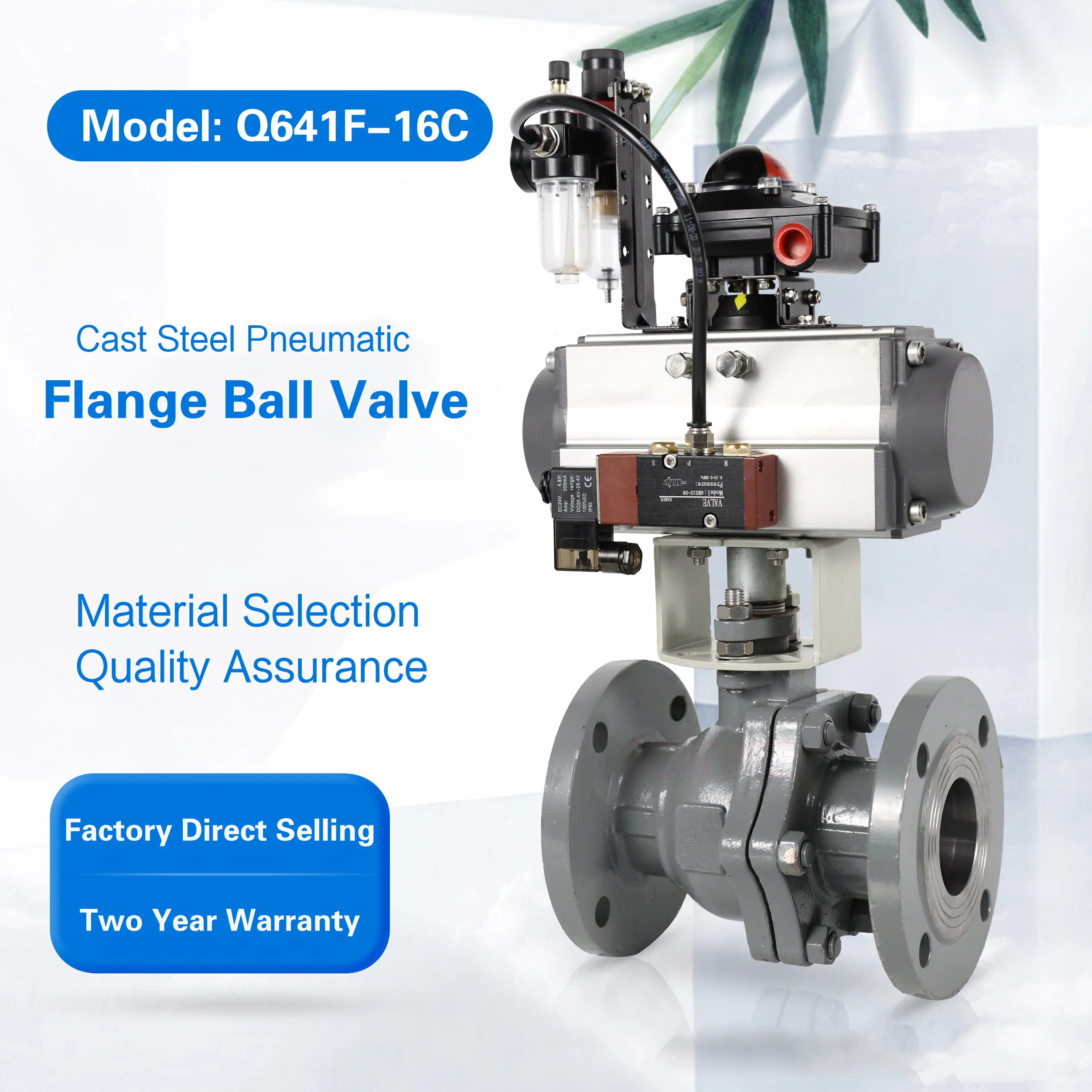

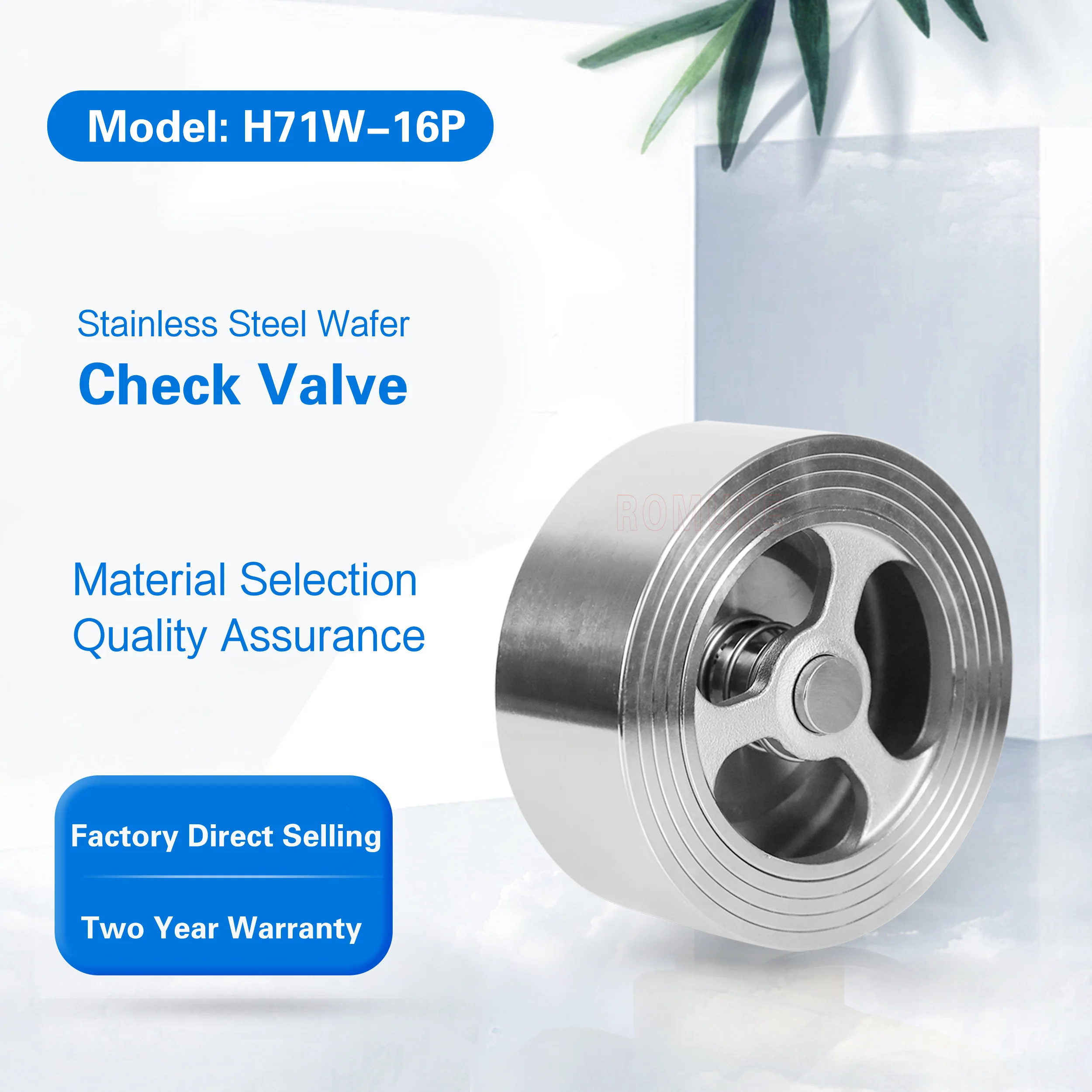

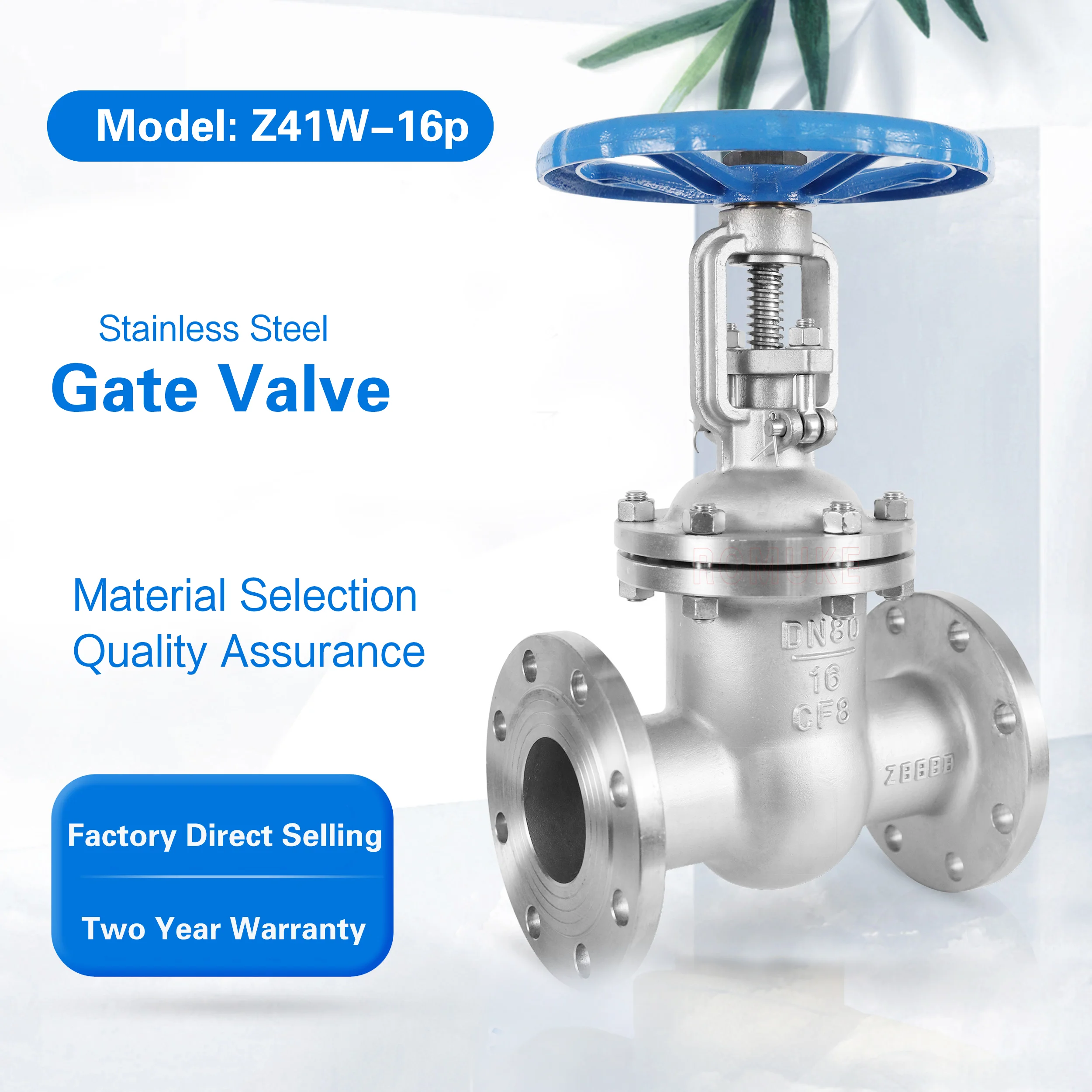

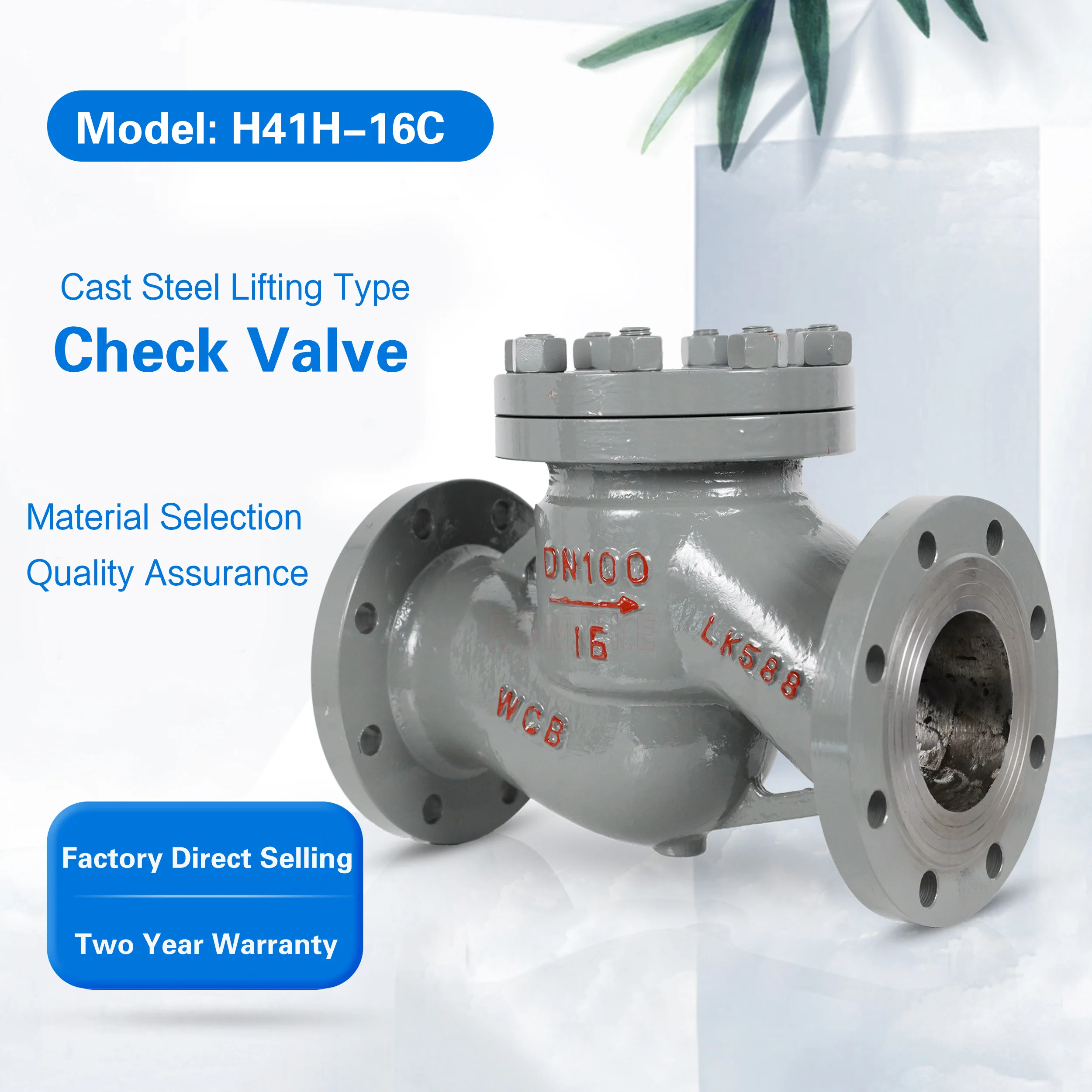

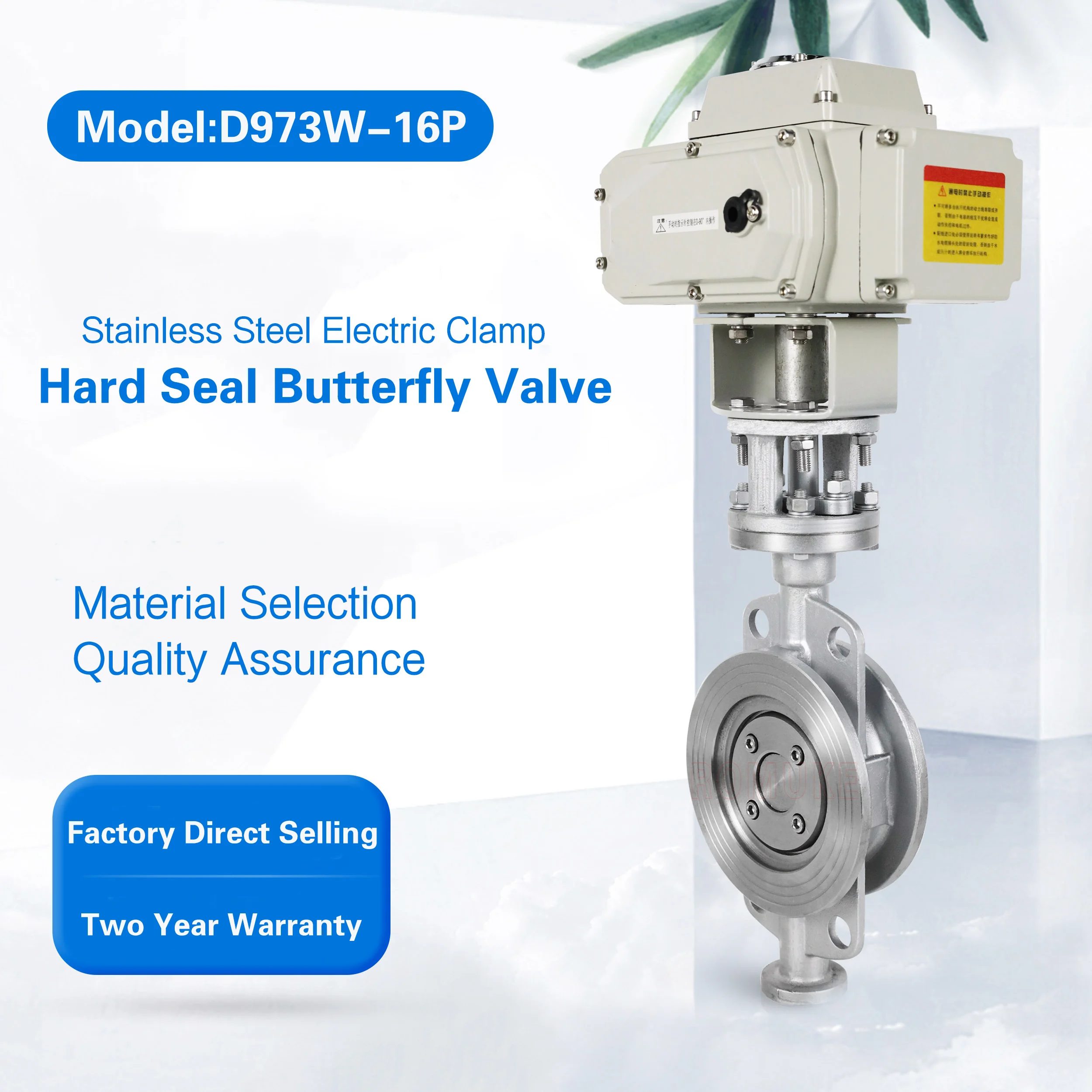

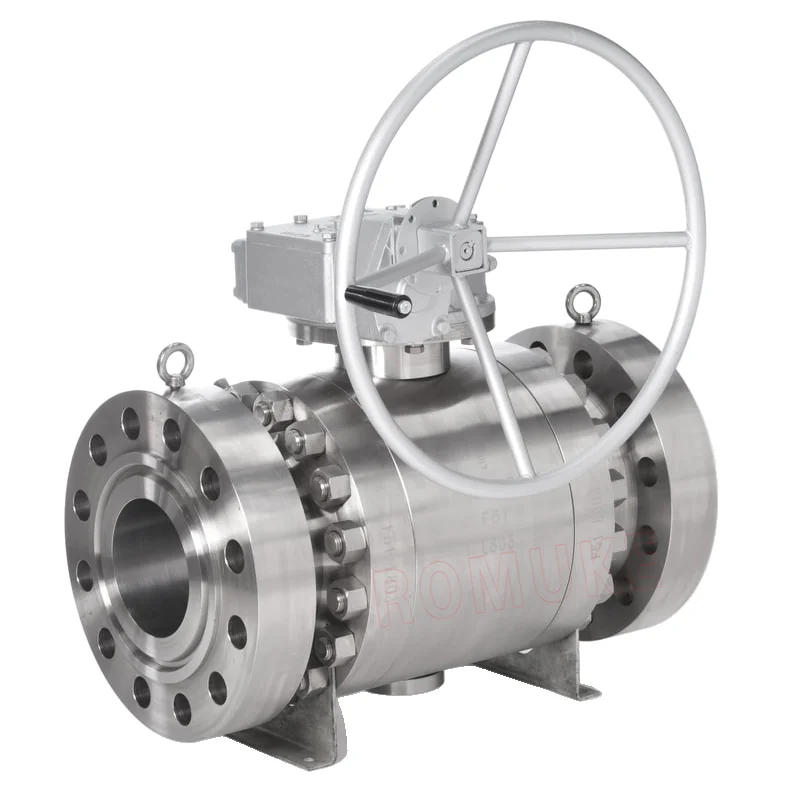

Product Display
Our FACTORY covers a wide range of valve products, and you can get free samples, welcome to consult us in order to get the best quotation and the highest quality products
Factory Display
Chengdu Qusu Technology Co., Ltd was established in 2004. We have been working in valves industry for 15 years. ROMUKE is an integrity valve manufacturer, who has own casting foundry, machining workshop and assembly line. So we can control overall quality by ourselves and guarantee the lead time. Our main products are ball valve,butterfly valve, gate valve, check valve and control valves.Moreover, we offer OEM production of VALVE PARTS, including valve body, disc, seat, stem and other spare parts. Looking forward to your inquiry and visit.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. Can I get free samples?
Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3. Can I have my own Logo on the product?
Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
4. Can you produce the products according to my own drawings?
Yes, we can produce the products according to your drawings that will be most satisfy you.
5. What's your terms of payment?
T/T, L/C , Alibaba Trade Assurance available, full protection for your orders.
Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3. Can I have my own Logo on the product?
Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
4. Can you produce the products according to my own drawings?
Yes, we can produce the products according to your drawings that will be most satisfy you.
5. What's your terms of payment?
T/T, L/C , Alibaba Trade Assurance available, full protection for your orders.
