CellMeter7 V2 с функцией баланса цифровой измеритель напряжения батареи cellmeter-7 для LiPo/LiFe/li-ion 2-7S 0 001
- Категории: >>>
- Поставщик: Hubei,Jingzhou,Mayatech,Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Cellmeter-7 V2 High Precision Voltage Display 2-7S Lithium Battery Voltage Display 0.001V Voltage difference detection
Please confirm that our store has the latest V2 model, support 0.001V accuracy
Please confirm that our store has the latest V2 model, support 0.001V accuracy

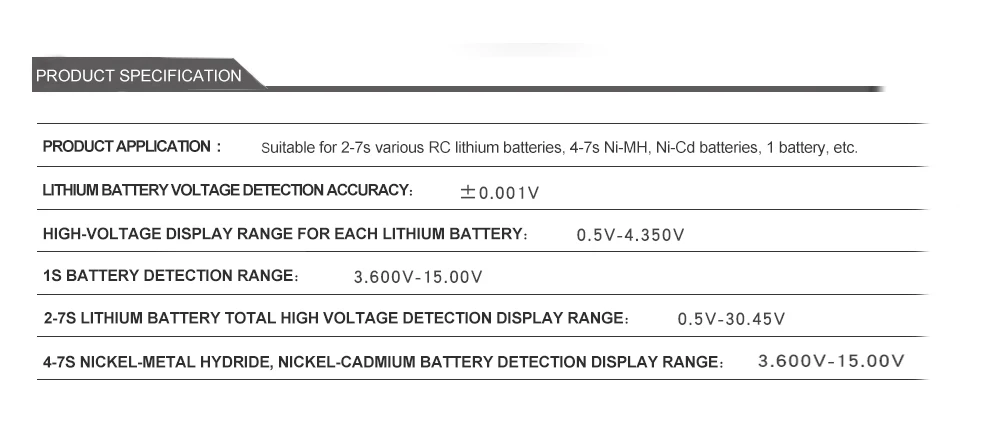

Product Specification
Applicability: Suitable for 2-7S lithium batteries, 4-7S nickel-hydrogen batteries, nickel-cadmium batteries, etc.

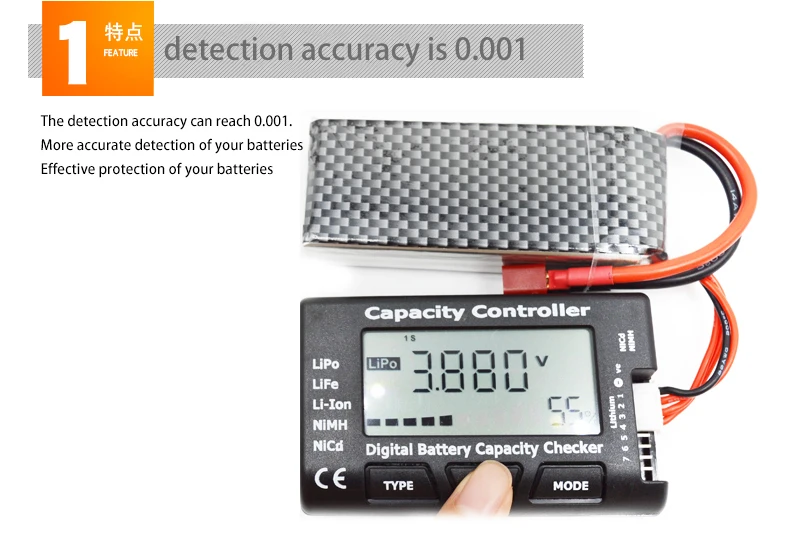

Voltage Detection Accuracy of Lithium Batteries: ±0.001V
Voltage Display Range of Lithium Battery Cell: 0.5V-4.35V
1S Battery Detection Range: 3.6V-15V
Detection and Display Range of Total Voltage of 2-7S Lithium Battery: 0.5V-30.45V
Detection and Display Range of 4-7S Ni-MH and Ni-Cd Batteries: 3.6V-15V
Applicability: Suitable for 2-7S lithium batteries, 4-7S nickel-hydrogen batteries, nickel-cadmium batteries, etc.
Voltage Detection Accuracy of Lithium Batteries: ±0.001V
Voltage Display Range of Lithium Battery Cell: 0.5V-4.35V
1S Battery Detection Range: 3.6V-15V
Detection and Display Range of Total Voltage of 2-7S Lithium Battery: 0.5V-30.45V
Detection and Display Range of 4-7S Ni-MH and Ni-Cd Batteries: 3.6V-15V

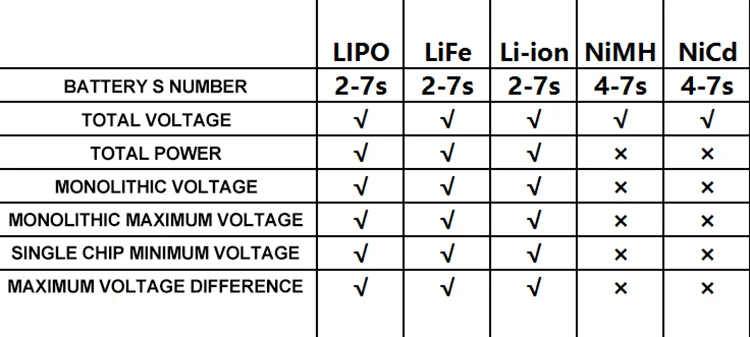

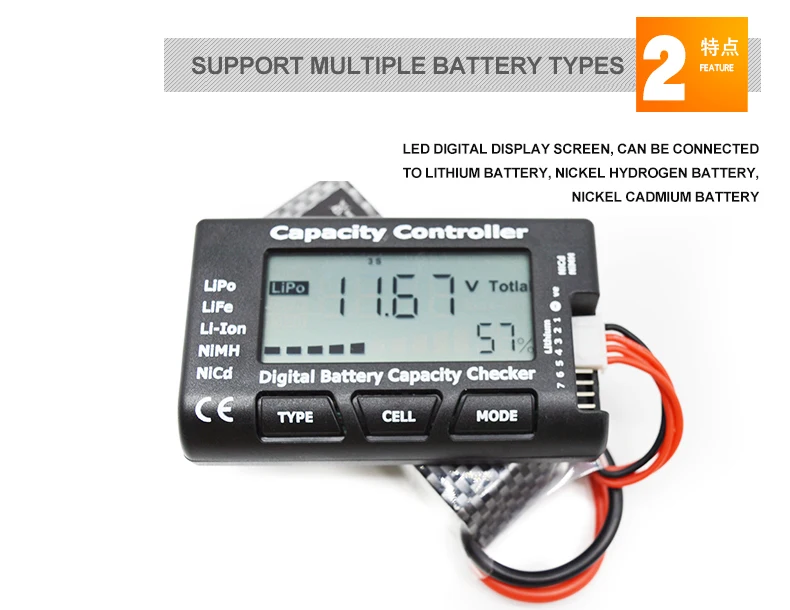

Cellmeter-7 support LiPo、LiFe、Li-ion、NiMH、Nicd(NiMH and Nicd can only measure the total voltage of 4-7S.)See table below.

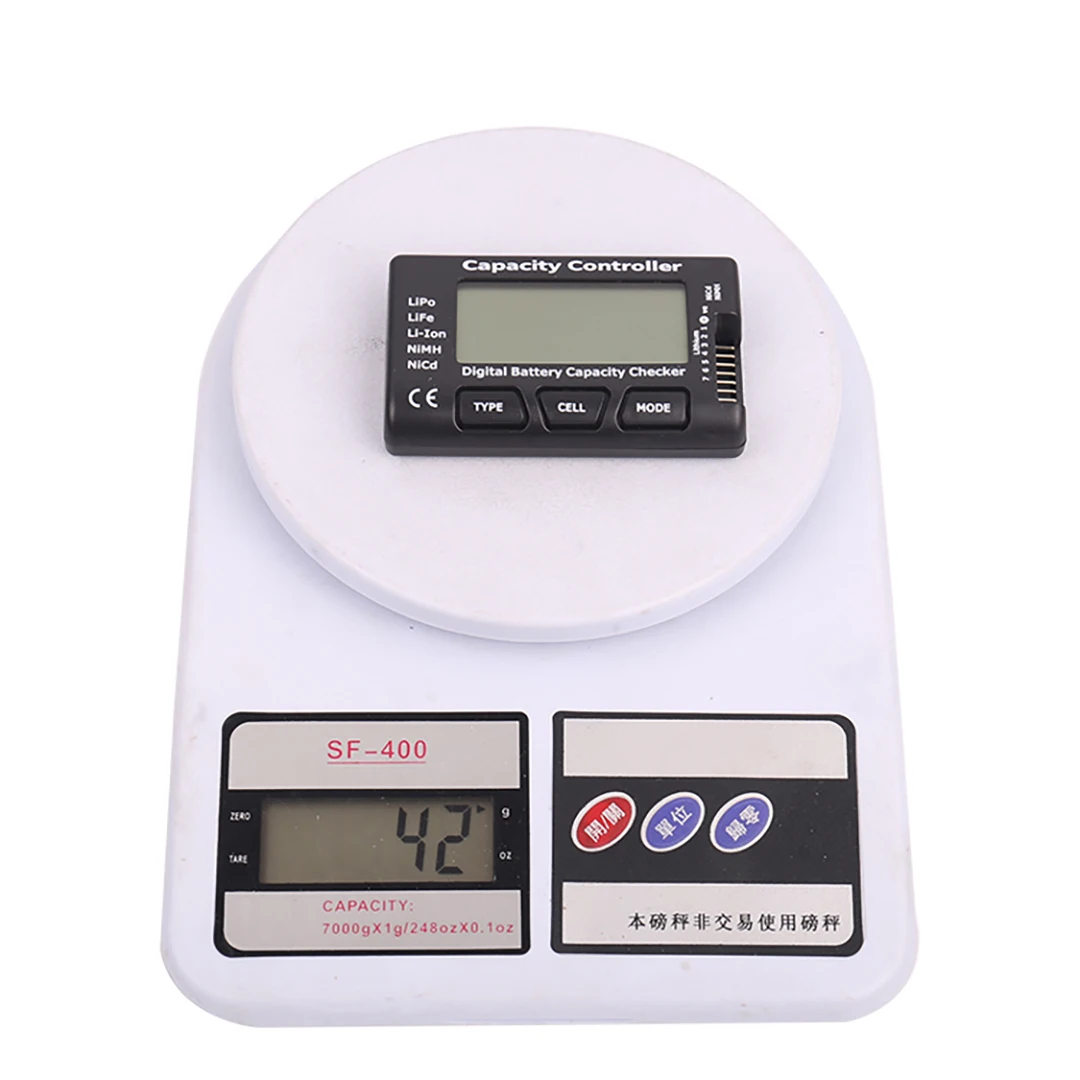

Product dimension and weight

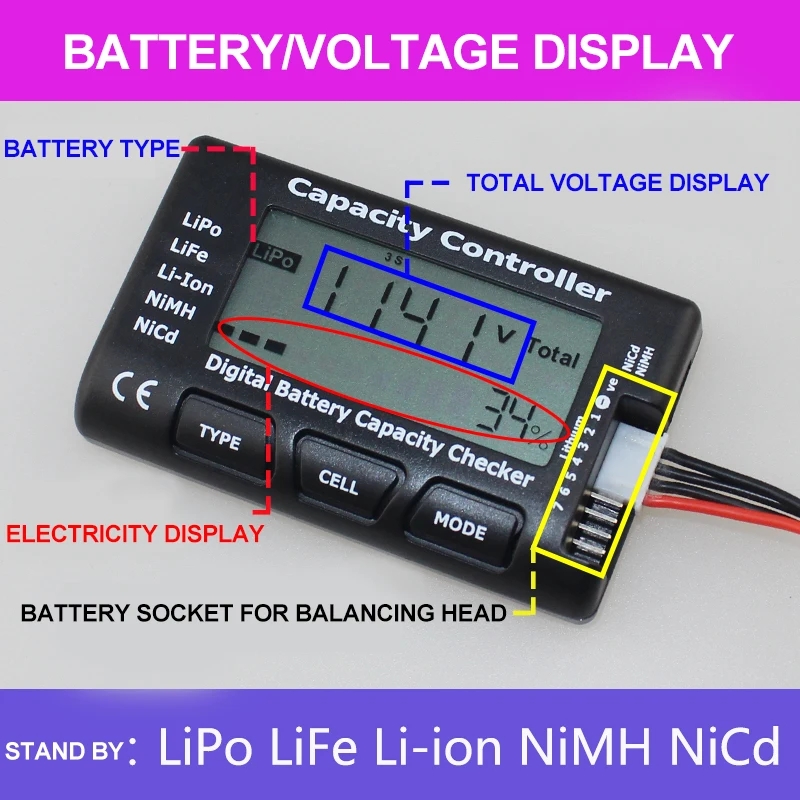

Product Display:
Product operation
1. By pressing TYPE, you can select the appropriate battery type (LIPO/LIFE/LIION) and display the corresponding voltage and power values.
2. By pressing MODE, total voltage and battery number TOTAL, maximum voltage MAX, minimum voltage MIN, voltage difference MAX-MIN of maximum voltage and minimum voltage can be selected.
3.By pressing CELL, you can view the voltage and power of each cell,total voltages and total powers of batteries.In Ni-Cd, Ni-MH battery mode:
(1):By pressing CELL, you can view the voltage and power of each cell,total voltages and total powers of batteries
(2):Can test 1S battery (voltage detection range 3.600V-15.00V, display voltage)
4.Key operation process:
(1)TYPE: Switching battery types between LIPO, LIFE and LIION
(2)CELL: Display the voltage of each cell
(3)MODE: Select display modes and switch between TOTAL, MAX, MIN, MAX-MIN
5. Instructions for Use:
When testing lithium battery, the negative pole on the balance head is aligned to the "-" extreme of the needle end of the 2-7S wire row, and the other holes on the balance head are inserted into the needle row in turn. When testing Ni-MH, Ni-Cd batteries, the negative pole of the output plug is aligned with the "-" pole of the needle end of the 3 PIN array of the electro-display.
The appearance may be different due to different batches. Please take the actual product as the standard.
1. By pressing TYPE, you can select the appropriate battery type (LIPO/LIFE/LIION) and display the corresponding voltage and power values.
2. By pressing MODE, total voltage and battery number TOTAL, maximum voltage MAX, minimum voltage MIN, voltage difference MAX-MIN of maximum voltage and minimum voltage can be selected.
3.By pressing CELL, you can view the voltage and power of each cell,total voltages and total powers of batteries.In Ni-Cd, Ni-MH battery mode:
(1):By pressing CELL, you can view the voltage and power of each cell,total voltages and total powers of batteries
(2):Can test 1S battery (voltage detection range 3.600V-15.00V, display voltage)
4.Key operation process:
(1)TYPE: Switching battery types between LIPO, LIFE and LIION
(2)CELL: Display the voltage of each cell
(3)MODE: Select display modes and switch between TOTAL, MAX, MIN, MAX-MIN
5. Instructions for Use:
When testing lithium battery, the negative pole on the balance head is aligned to the "-" extreme of the needle end of the 2-7S wire row, and the other holes on the balance head are inserted into the needle row in turn. When testing Ni-MH, Ni-Cd batteries, the negative pole of the output plug is aligned with the "-" pole of the needle end of the 3 PIN array of the electro-display.
The appearance may be different due to different batches. Please take the actual product as the standard.
