Products Description

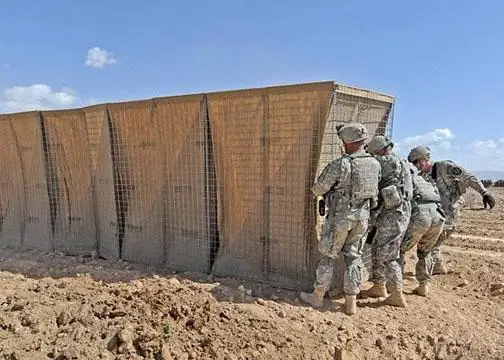

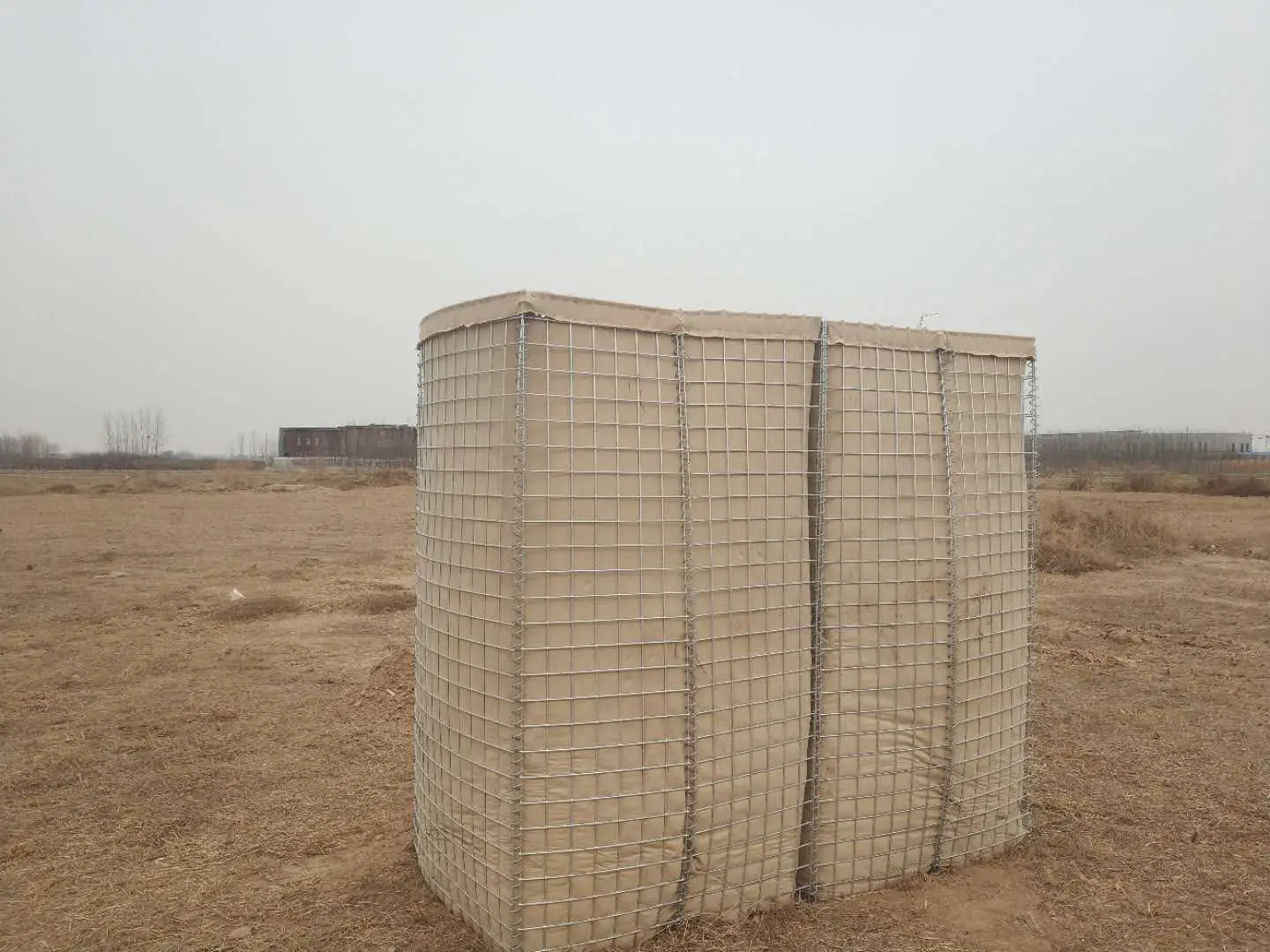

The Defensive bastion is a modern gabion primarily used for flood control and fortifications. It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee wall. It has seen considerable use in Iraq and Afghanistan
Product Name | Defensive bastion bunkers | ||||||
Product Type | Welded mesh | ||||||
Material | Galvanized steel wire or Galfan/zinc-5%aluminum wire | ||||||
Wire Diameter | 3.0-6.0mm | ||||||
Geotextile | 250g-400g | ||||||
Geotextile colour | sand clolor, Brown, Gray,and Green. | ||||||
Mesh hole | 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm | ||||||

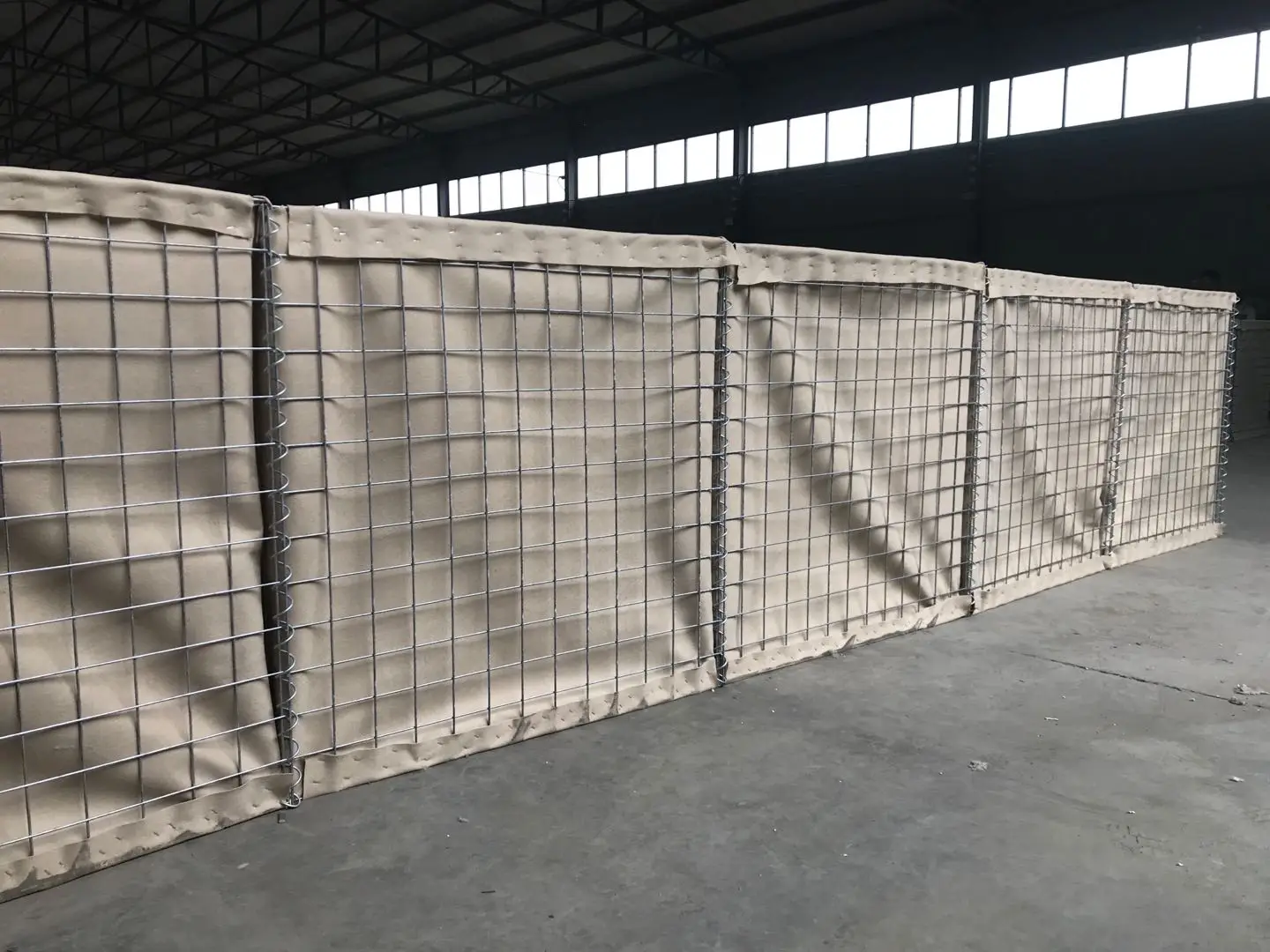

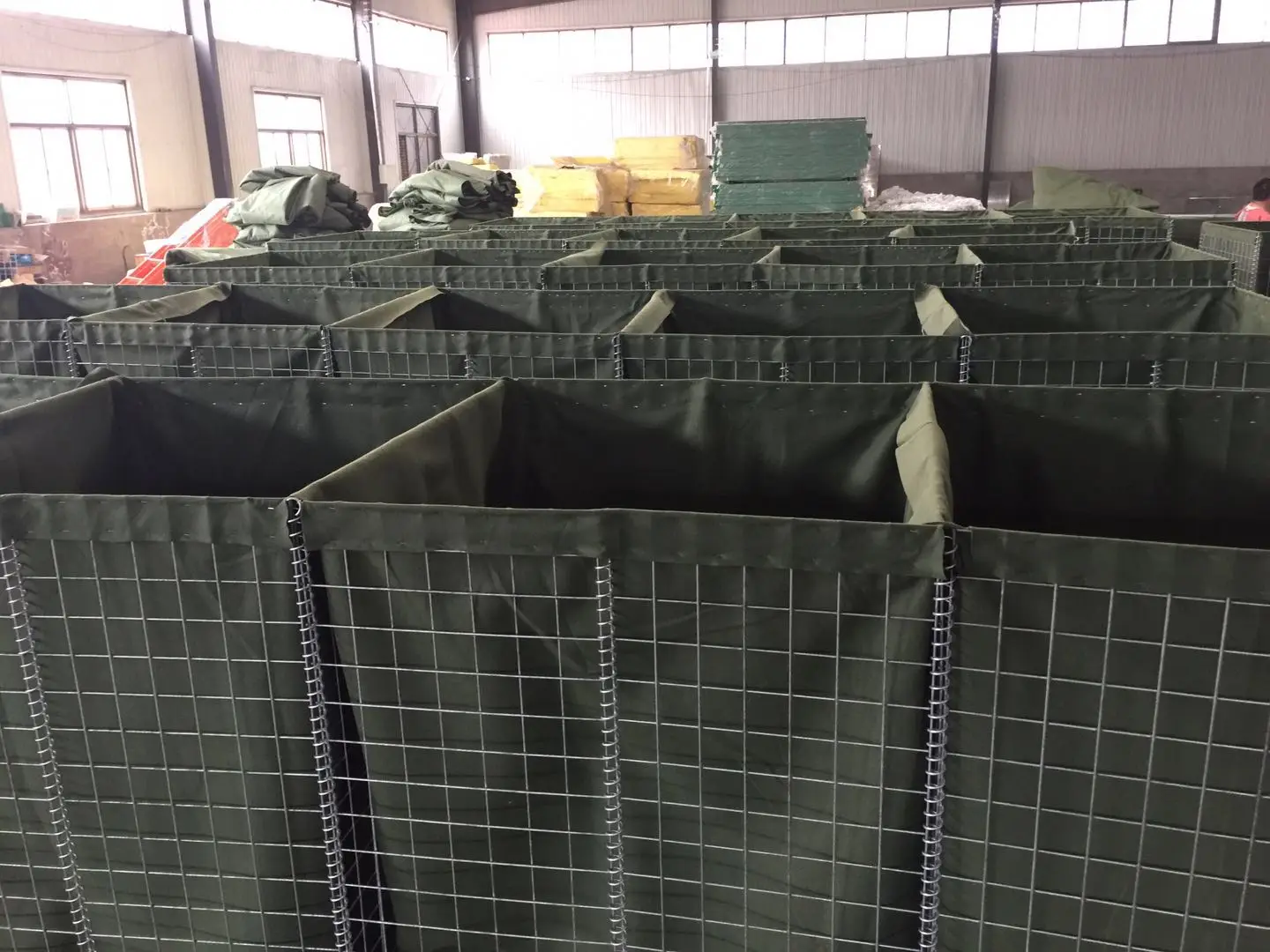

A geotextile-lined unit suitable for filling with earth, sand, gravel, crushed rock and other granular materials. Geotextile-lined welded mesh barrier coated to ASTM A 856. All wires conform to the BS EN 10218-2:2012. Zinc-Aluminum coatings are to BS EN 10244-2:2009, where appropriate. The geotextile is heavy-duty, non-woven, permeable, polypropylene fabric
Model | Height(M) | Width(M) | Length(M) | Number of cells |
ST-1 | 1.37 | 1.06 | 10 | 5+4=9 cells |
ST-2 | 0.61 | 0.61 | 1.21 | 2 cells |
ST-3 | 1.0 | 1.0 | 10 | 5+5=10 cells |
ST-4 | 1.0 | 1.5 | 10 | 5+5=10 cells |
ST-5 | 0.61 | 0.61 | 3.05 | 5 cells |
ST-6 | 1.68 | 0.61 | 3.05 | 5 cells |
ST-7 | 2.21 | 2.13 | 27.74 | 5+4+4=13 cells |
ST-8 | 1.37 | 1.22 | 10 | 4+5=9 cells |
ST-9 | 1.0 | 0.76 | 9.14 | 6+6=12 cells |
ST-10 | 2.12 | 1.52 | 30.5 | 5+5+5+5=20 cells |
Strong welded HDP galvanized mesh
Heavy zinc or galfan coated
Heavy zinc or galfan coated
Spring wire
3.0/4.0mm wire diameter
3.0/4.0mm wire diameter
High Strength Geotextiles
beige/green/white
beige/green/white
Defensive Barrier characteristics
1.Easy to handle and install

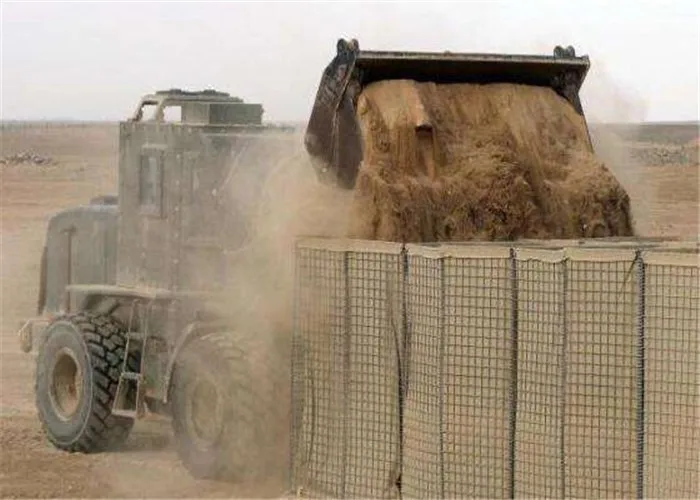

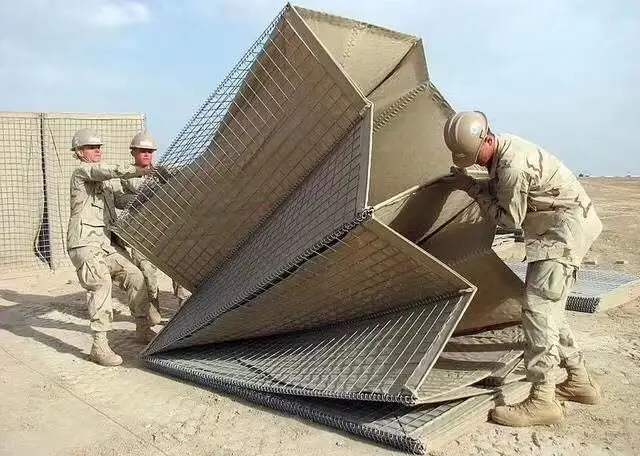

Defensive Barrier provides the easiest deploy methods -just unfold it and fill it using minimal manpower or commonlyavailable equipment. Previously, sandbag barrier is considered a slow undertaking as a person can only fll about 20sandbags per hour. Yet our Defensive Barrier do ten times the work.
2.High strength and impact resistance
Once flled with soil, sand or gravel, Defensive Barrier forms a solid and strong barrier with exceptional strength andstructural integrity to protect personnel and equipment from enemy fire. For example.Two feet thick Army Defensive Barrier can be used to stop rifle bullets and shell fragmentsFour feet thick Army Defensive Barrier can prevent most car bombs
Five feet thick Army Defensive Barrier is ideal for preventing penetration and explosion fragments from rocketpropelled grenade.
3.Long life, normal use
4It can be filled with sand, cement, stones, and soil.
Securest bastion barrier can be used in separate cell or some cells joined together by joint pins to suit different needsofyour proiects. Almost any locally filling material can be used such as soil sand. gravel. crushed rock and variousother granular materials.
2.High strength and impact resistance
Once flled with soil, sand or gravel, Defensive Barrier forms a solid and strong barrier with exceptional strength andstructural integrity to protect personnel and equipment from enemy fire. For example.Two feet thick Army Defensive Barrier can be used to stop rifle bullets and shell fragmentsFour feet thick Army Defensive Barrier can prevent most car bombs
Five feet thick Army Defensive Barrier is ideal for preventing penetration and explosion fragments from rocketpropelled grenade.
3.Long life, normal use
4It can be filled with sand, cement, stones, and soil.
Securest bastion barrier can be used in separate cell or some cells joined together by joint pins to suit different needsofyour proiects. Almost any locally filling material can be used such as soil sand. gravel. crushed rock and variousother granular materials.
Applications

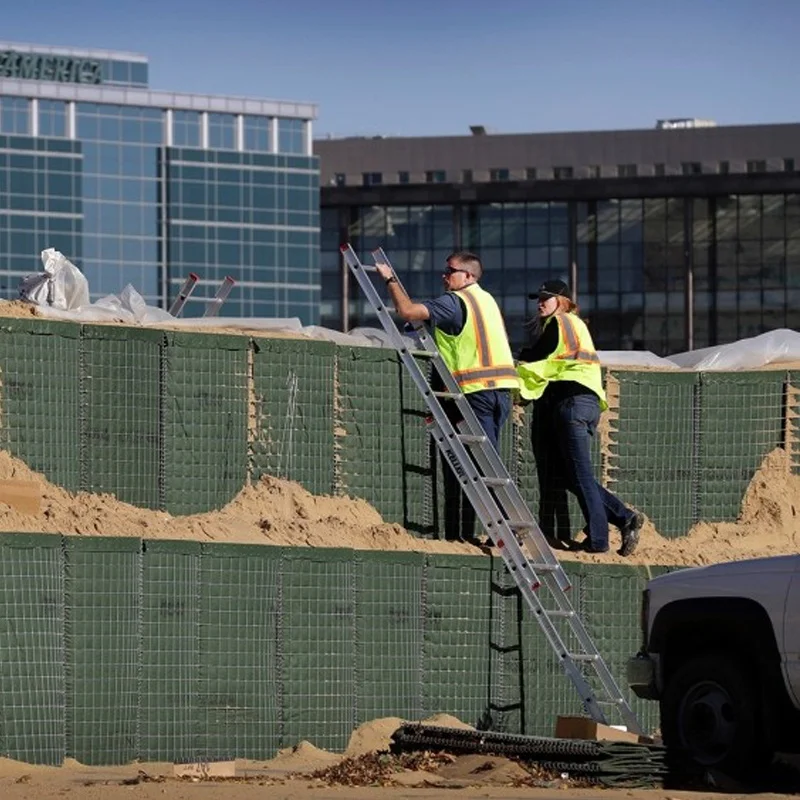

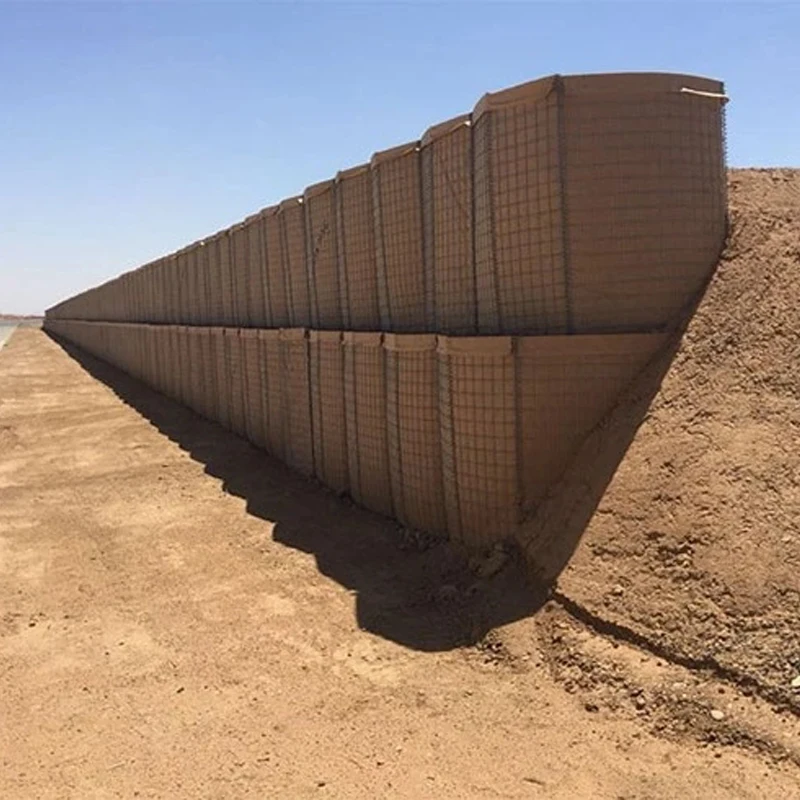

Defensive barrier can be widely used in surrounding security and defensive walls, equipment revetments.explosives and contraband search areas, ammunition compounds, personnel and material bunkers, observationpoints, defensive shooting positions, highway checkpoints, border checkpoints , protection of existing structureshighway traffic management,flood control, river courses. emergency flood control deplovment, erosion controlretaining walls.
Packing & Delivery
Defensive Barriers Packaging:
Defensive barrier packing on pallet then wrapped with plastic film outside .
Besides, customers' request are also available.
Defensive barrier packing on pallet then wrapped with plastic film outside .
Besides, customers' request are also available.
About Us

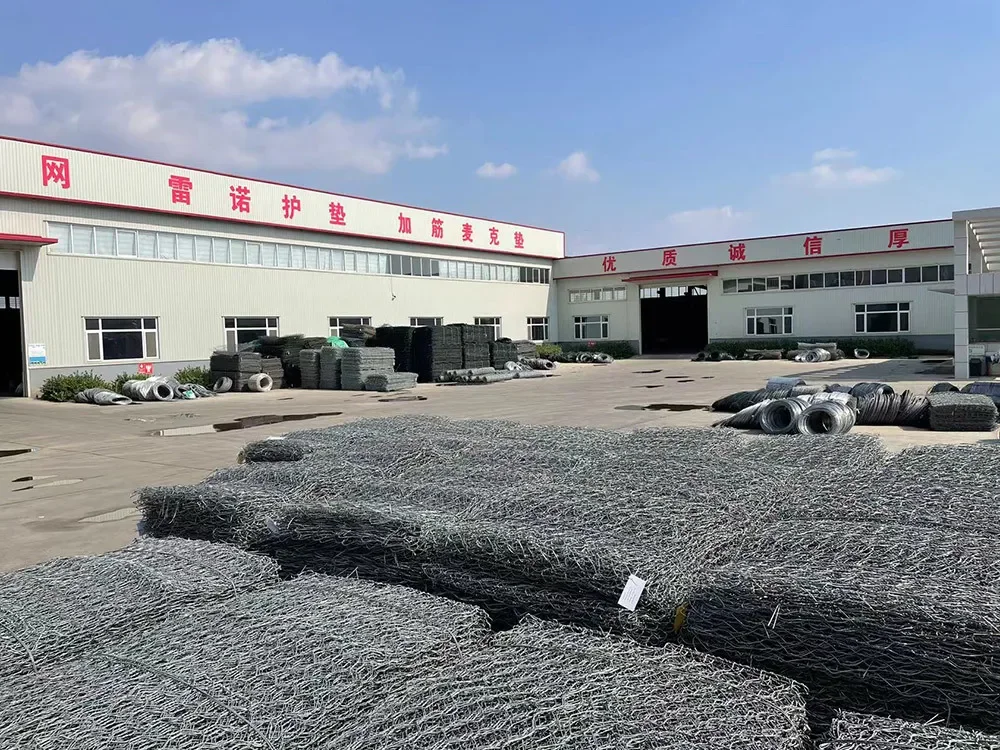

Hebei Zhongheng Wire Mesh Produce Co., Ltd which is founded in 1991, has been devoted into wire mesh production for 26 years, our main products include gabion mesh,chain link fence, babred wire, crimped wire mesh and stainless steel wire mesh etc. All of them have been up to EU, GB , ISO9001 and ASTM standards. With the philosophy of "Quality first, Customer first, Service first", Zhongheng wire mesh has gained good reputation in both domestic and overseas market.
