Product Description
Ideal for measuring air conditioning, heating, and combustion system noise.
The ideal instrument for daily use. Whether it is for air conditioning or heating, machine noise or noise in combustion systems, Testo 815 is the ideal partner.

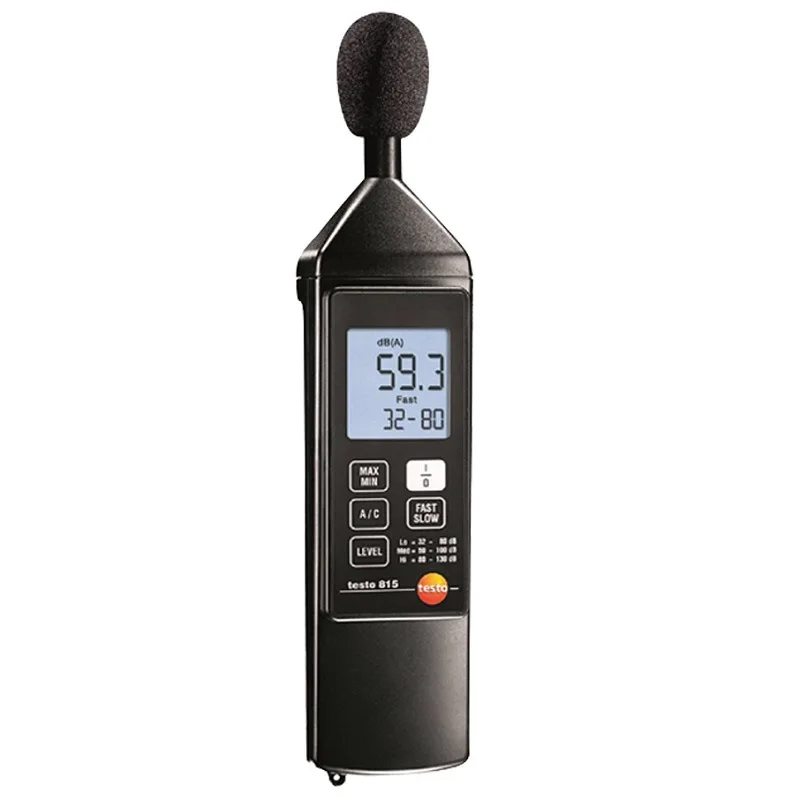

testo 815 Sound Level Meter
* Frequency evaluation according to characteristic curves A and C
* Easy to adjust
* Maximum and minimum store
* Switchable time evaluation Fast/Slow
* Frequency evaluation according to characteristic curves A and C
* Easy to adjust
* Maximum and minimum store
* Switchable time evaluation Fast/Slow
* Frequency evaluation according to characteristic curves A and C
* Easy to adjust (adjustment screwdriver included in the scope of delivery)
* Min./max. memory
* Integrated tripod knuckle screw (1/4 inch)
* Easy to adjust (adjustment screwdriver included in the scope of delivery)
* Min./max. memory
* Integrated tripod knuckle screw (1/4 inch)
The testo 815 is the ideal instrument for the evaluation of sound level in everyday work. The instrument can be used for
monitoring measurements in the areas of air conditioning or heating, on combustion plants or at workplaces, however machine or discotheque noise can also be evaluated quickly and precisely.
monitoring measurements in the areas of air conditioning or heating, on combustion plants or at workplaces, however machine or discotheque noise can also be evaluated quickly and precisely.
Using the Fast/slow button, the measurement time can be set from 1 s to 125 ms, in order to better evaluate the noise source. The frequency analysis can also be switched from characteristic curve A to C. The characteristic curve A corresponds to the sound pressure perception of the human ear, whereas characteristic curve C can also evaluate the low-frequency components of a sound.
With the help of the optional calibrator, the measuring instrument can be recalibrated directly on site with the screwdriver provided. The wind protection cap included in delivery ensures correct measurement results when measuring outdoors, and if required can protect the microphone from dirt and dust.
Specification
Sound Pressure | ||
Measuring range | 32 to 130 dB | |
Frequence range | 31.5 Hz to 8 kHz | |
Accuracy | ±1.0 dB | |
Resolution | 0.1 dB | |
Measuring rate | 5 sec | |
General technical data | ||
Dimensions | 10 x 2 x 2 in. / 255 x 55 x 43 mm | |
Operating temperature | 32° to 104 °F / 0 to +40 °C | |
Housing | ABS | |
Pressure dependency | -0.002 dB/hPa | |
Frequency weighting | A/C | |
Section measuring range | 30 - 80 dB; 50 - 100 dB; 80 - 130 dB | |
Time weighting | FAST 125 ms setting / SLOW 1 s setting | |
Battery type | 9V block battery, 6F22 | |
Battery life | 70 h | |
Storage temperature | 14° to 140 °F / -10 to +60 °C | |
Weight | 7 oz. / 195 g | |
