415 В 2500 Вт 1100 мм средневолновой кварцевый инфракрасный излучатель Золотой отражатель
415 В 2500 Вт 1100 мм средневолновой кварцевый инфракрасный излучатель Золотой отражатель
415 В 2500 Вт 1100 мм средневолновой кварцевый инфракрасный излучатель Золотой отражатель
415 В 2500 Вт 1100 мм средневолновой кварцевый инфракрасный излучатель Золотой отражатель
415 В 2500 Вт 1100 мм средневолновой кварцевый инфракрасный излучатель Золотой отражатель
415 В 2500 Вт 1100 мм средневолновой кварцевый инфракрасный излучатель Золотой отражатель
415 В 2500 Вт 1100 мм средневолновой кварцевый инфракрасный излучатель Золотой отражатель

415 В 2500 Вт 1100 мм средневолновой кварцевый инфракрасный излучатель Золотой отражатель


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Medium wave IR Quartz Emitter
Medium wave infrared quartz emitters are particularly suitable for the fast heating of surface or thin materials, and the range of IR radiation wave is 2.2-3.2μm. Plastic, water and other solvents absorb well this medium wave radiation. Because of its long working life and economical efficiency, medium wave quartz emitters are popular used in continuous heating processes, such as making natural herbal medicine or drying the tea in a continuous running oven. Twin tube shape is a better stable design for medium wave infrared emitter with high radiation density and high power intensity.

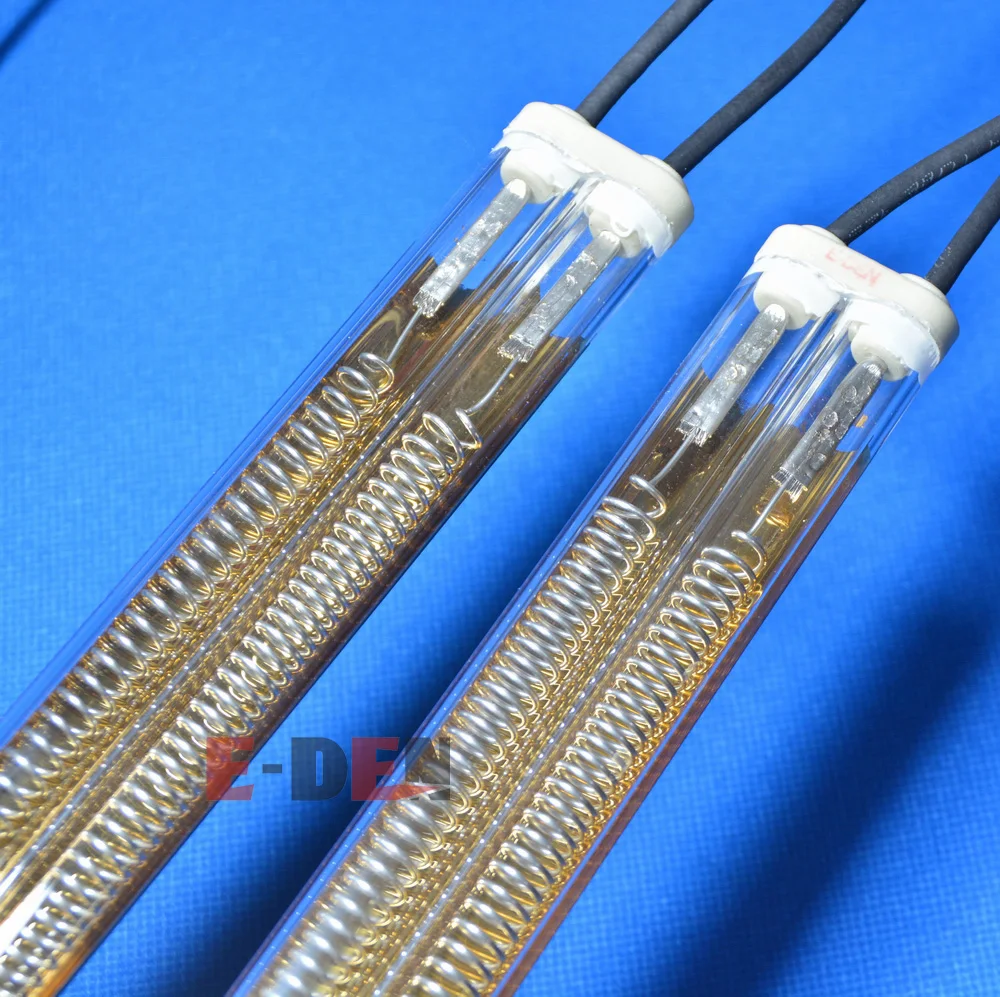

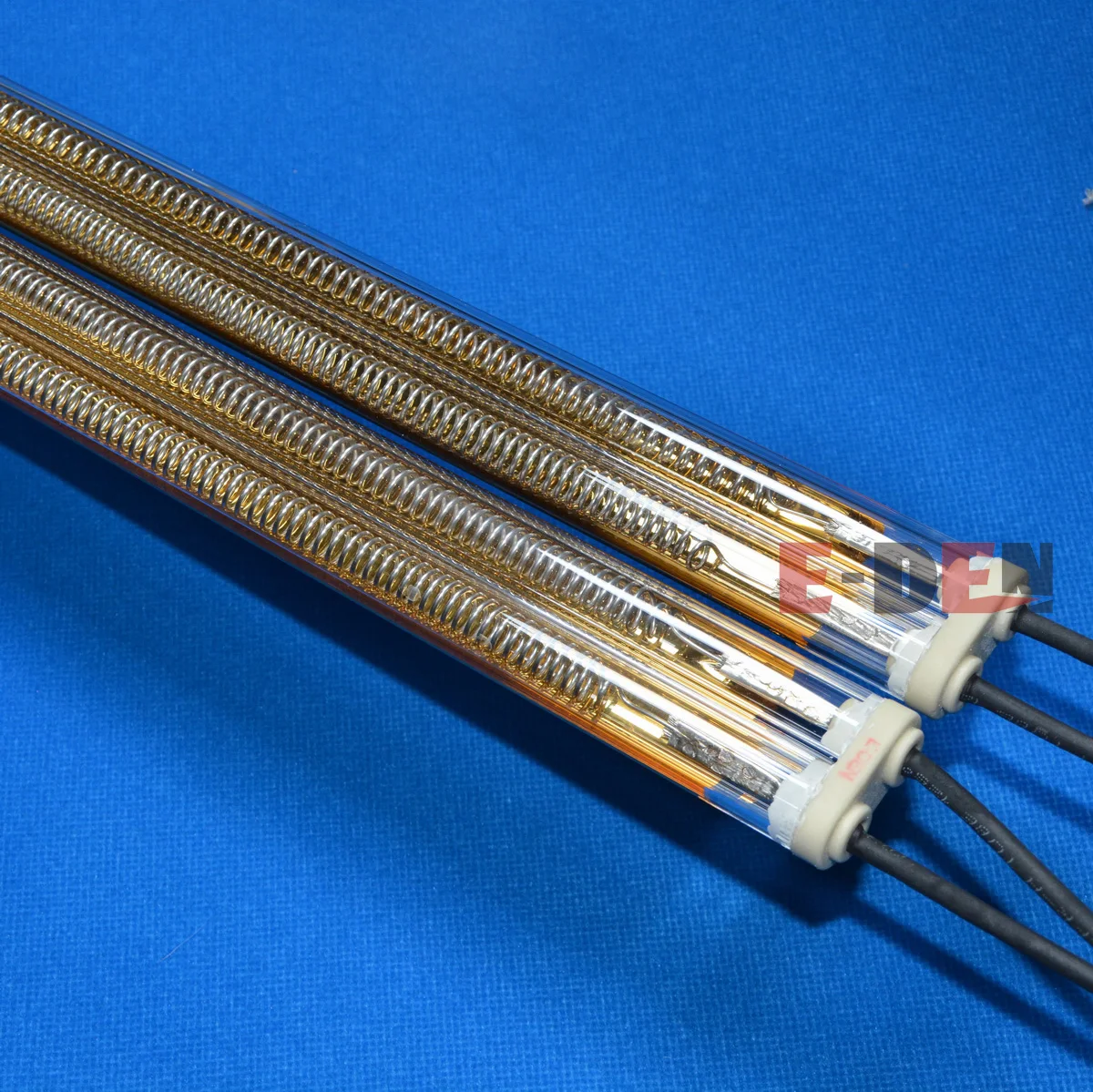

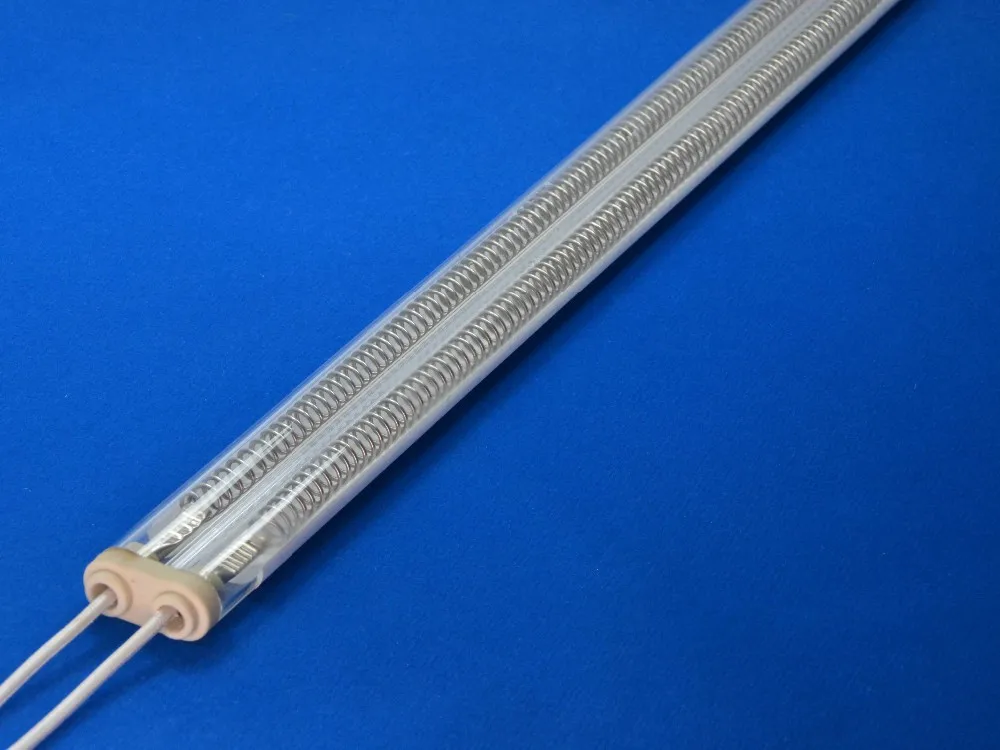

Medium Wave Twin Tube IR Lamp Emitter
Peak wavelength
2.2-3.2μm
Response time
＞60 seconds
Max. surface power density
60 kw/m2
Cross Section(mm)
23×11
33×15
Total length(mm)
200-3200
200-6000
Heated length(mm)
140-3100
140-5900
Voltage(V)
220/230/240/380/400/415/480
220/230/240/380/400/415/480
Wattage (W)
200-6000
200-16000
Reflector
White or Gold
White or Gold
Burning position
Horizontal
Horizontal

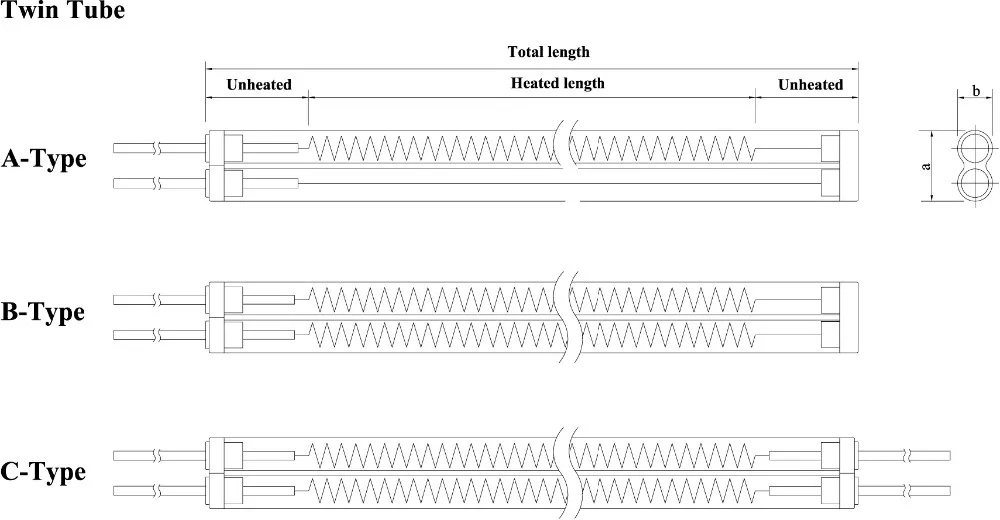

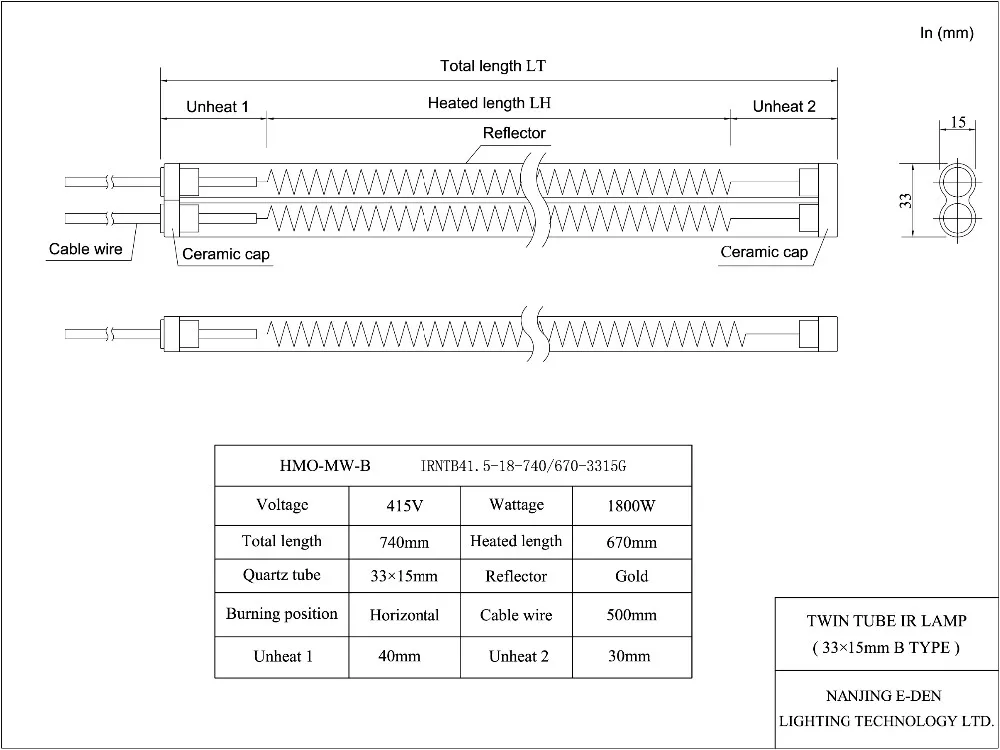

IR Emitter Design




Standard Product


Total length (mm)
Heated length （mm）
Voltage (V)
Wattage
(W)
Cross section (mm)

Reflector

Burning position

Connection side

Type
400
300
230
600
18×8
Gold
Horizontal
One-side
B
550
500
400
1000
23×11
Gold
Horizontal
One-side
B
650
600
230
1200
23×11
Gold
Horizontal
One-side
B
780
730
240
2000
33×15
White
Horizontal
One-side
B
800
750
220
2000
33×15
Gold
Horizontal
One-side
B
900
840
230
2000
33×15
Gold
Horizontal
One-side
B
1000
900
230
2250
33×15
Gold
Horizontal
One-side
B
1100
1000
230
2500
33×15
White
Horizontal
Two-side
C
1300
1200
400
3000
33×15
Gold
Horizontal
One-side
B
1800
1700
380
3500
33×15
White
Horizontal
Two-side
C
2400
2300
400
5500
33×15
Gold
Horizontal
Two-side
C
2600
2500
400
6000
33×15
White
Horizontal
Two-side
C

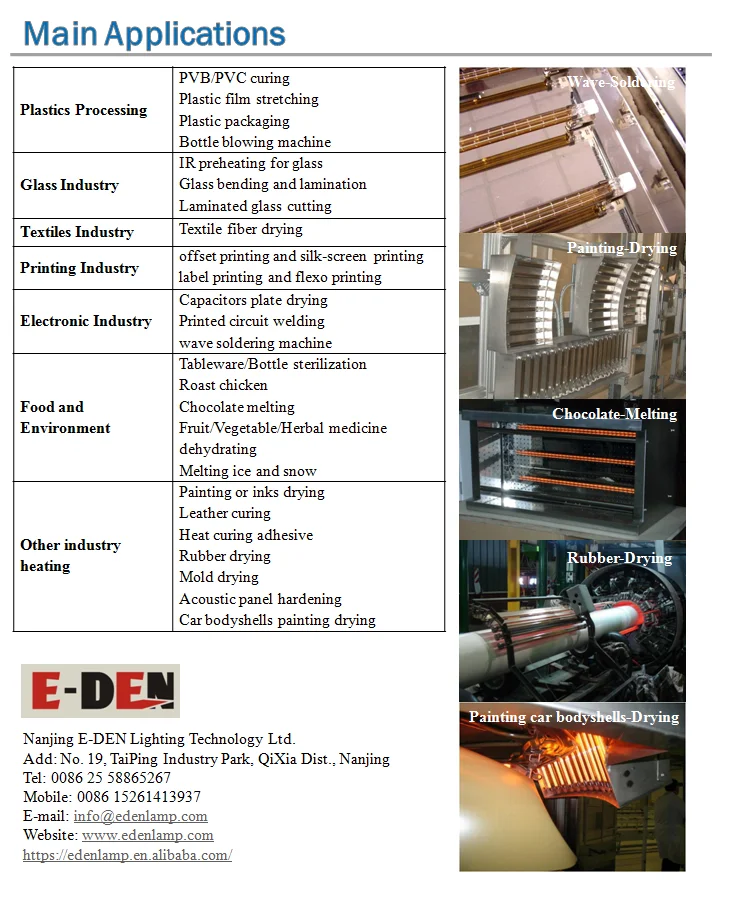

Applications






Certifications




For other more specification IR lamps or heating solution, please feel free to contact with us! https://edenlamp.en.alibaba.com/


Please Do Not Choose Bad Quality Lamps, Lost Money, Waste Time!








\t\t\t\t\t\t\t\t\tCompany Information \t\t\t\t\t\t\t




Nanjing E-DEN Lighting Technology Co., Ltd., a professional manufacturer and trading company established in 2011, specialized in producing infrared heating lamps and providing IR heating solutions. Our customers spread all over the Euro-Asia and south and north America, such as Germany, Italy, UK, Spain, USA, Canada, Russia and other dozens of countries. We also offer OEM/ODM manufacturing service for our customers all over the world. We can design and produce infrared heating lamps or heaters according to your requests. We manufacture singe and twin tube IR heating lamps in short wave, fast response medium wave, carbon medium wave and medium wave. Base on reliable quality and honest reputation, our IR products pass the ISO 9001 international quality certification and CE safety certificate. We always do our best to provide our customers highest quality products and most satisfactory after-sales service.
