Чистка электроники без пыли прямоугольные квадратные губчатые
- Категории: Cotton Bud >>>
- Поставщик: CLEANMO,INTERNATIONAL,(HK),CO.,LIMITED
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Name | Dust Free Electronics Cleaning Cleanroom Rectangular Square Sponge Foam Swabs |
P/N | CM-FS707 |

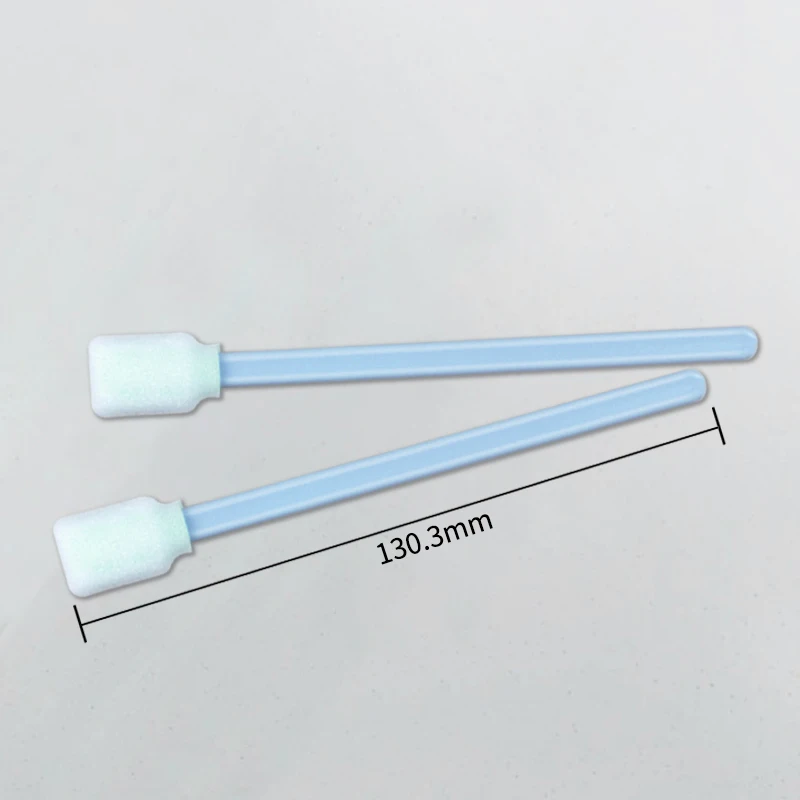

Length | 130.3mm |
Remarks | Cleanroom sponge foam head |
Package | 50pcs/bag, 50bags/carton |
Product performance description
产品性能介绍说明
产品性能介绍说明

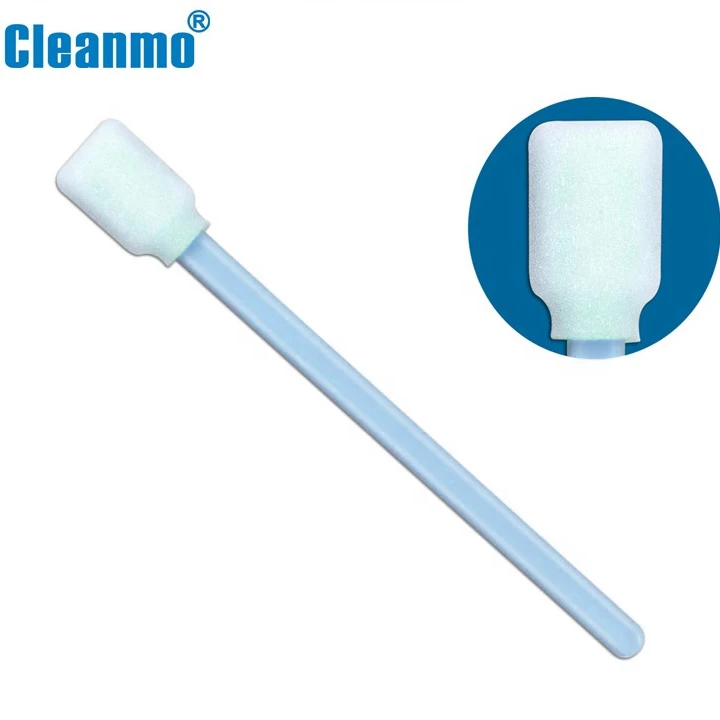

Cleanmo’s CM-FS707 Cleanroom Foam Swabs good substitute with excellent quality and reasonable price. It is constructed from compressed 100 ppi closed-cell polyurethane foam.
The Micro Swab is an excellent dissipative swab for cleaning very small areas. Its laundered head possesses good capacity and cushioning. A compact, electrically dissipative, round handle and flexible head paddle provide support without added thickness.This swab is well suited for cleaning thin, grooved areas of parts and assemblies.
The Micro Swab is an excellent dissipative swab for cleaning very small areas. Its laundered head possesses good capacity and cushioning. A compact, electrically dissipative, round handle and flexible head paddle provide support without added thickness.This swab is well suited for cleaning thin, grooved areas of parts and assemblies.
Details Images
Foam swabs Features
Material: 100% Compressed polyurethane foam from Japan and polypropylene handle
100ppi: 100 pore per inch, the foam swab or high density foam is also 100ppi.
Open-cell: have better absorbency but abrasion resistance not good
Closed-cell: have better abrasion-resisting,but absorbency is not good Foam swab is better use with 75% IPA, the IPA swab of 707 is high density foam so can stand 99.9IPA
Big head foam swabs are good for cleaning injet printer head which have strong absorbency.
While the small head foam swabs have widly application,so depend on the customers application. such as FS750 and FS751 can clean the hole on the phone.
Sterizilation: Foam swab can not via EO or high temperature sterilization,will turn yellow.
Double layered foam swabs:
FS706, FS707, FS707W, FS707W-HD, FS708 is double layered, other types are all single layered.
100ppi: 100 pore per inch, the foam swab or high density foam is also 100ppi.
Open-cell: have better absorbency but abrasion resistance not good
Closed-cell: have better abrasion-resisting,but absorbency is not good Foam swab is better use with 75% IPA, the IPA swab of 707 is high density foam so can stand 99.9IPA
Big head foam swabs are good for cleaning injet printer head which have strong absorbency.
While the small head foam swabs have widly application,so depend on the customers application. such as FS750 and FS751 can clean the hole on the phone.
Sterizilation: Foam swab can not via EO or high temperature sterilization,will turn yellow.
Double layered foam swabs:
FS706, FS707, FS707W, FS707W-HD, FS708 is double layered, other types are all single layered.
Product Usage
Product usage introduction
产品使用方式介绍
产品使用方式介绍
The large rectangular head swab is a large, general purpose swab for cleaning surfaces. Its closed-cell polyurethane foam head
possesses excellent durability and cushioning. A rigid internal paddle provides firm support. The large polypropylene handle
enables good control and ease of use.

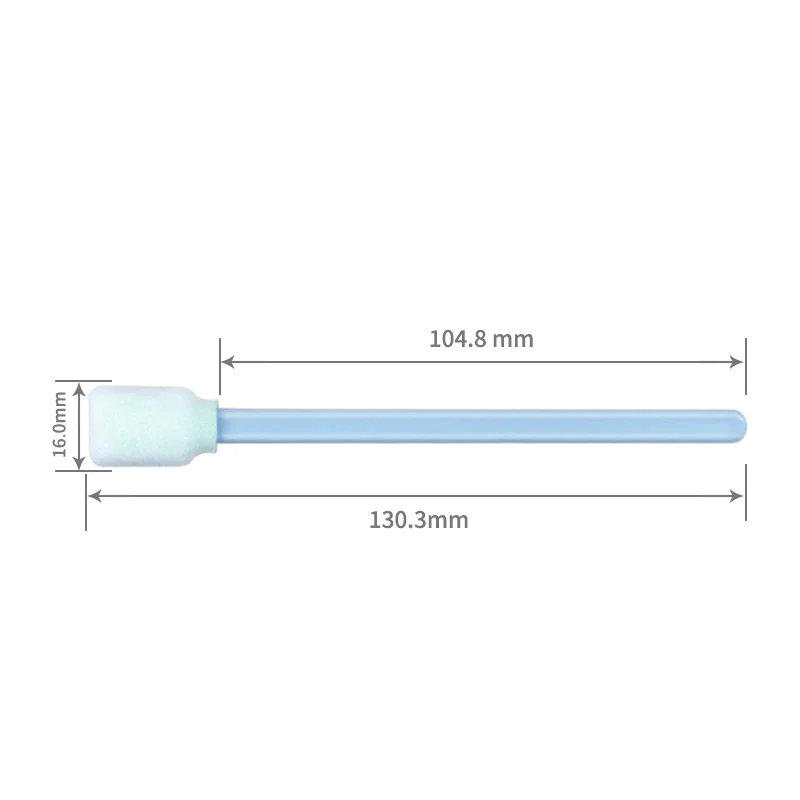

-Head Material:Sponge
-Head width: 16 mm
-Head thickness: 8.0 mm
-Head length: 25 mm
-Handle Material:polypropylene
-Handle width: 6.6 mm
-Handle length: 106 mm
-Total length: 130.3mm
possesses excellent durability and cushioning. A rigid internal paddle provides firm support. The large polypropylene handle
enables good control and ease of use.
-Head Material:Sponge
-Head width: 16 mm
-Head thickness: 8.0 mm
-Head length: 25 mm
-Handle Material:polypropylene
-Handle width: 6.6 mm
-Handle length: 106 mm
-Total length: 130.3mm
-Magneto-resistive (MR) head manufacturing and assembly
-Cleaning with solvents such as IPA
-Applying lubricants and other liquids
-Removing excess materials
-Micro-mechanical cleaning
-Effectively clean small,slotted.recessed areas
-Remove flux residue and excess material
-Use in the cleaning static sensitive components parts
-Used in the electronics,semiconductor,hard disk drive, LCD,PCB,SMT,medical and biotech field
-Cleaning with solvents such as IPA
-Applying lubricants and other liquids
-Removing excess materials
-Micro-mechanical cleaning
-Effectively clean small,slotted.recessed areas
-Remove flux residue and excess material
-Use in the cleaning static sensitive components parts
-Used in the electronics,semiconductor,hard disk drive, LCD,PCB,SMT,medical and biotech field
Cleanmo swabs | Other suppliers |
Imported Foam Material | Domestic Material |
Fresh Materials of the Handle | Renewable Material |
Produce in Cleanroom | Produce in ordinary work shop |
Washed by EDI pure water | Washed by tape water or no washing |
Can store for 2 years | Several months and less than one year |

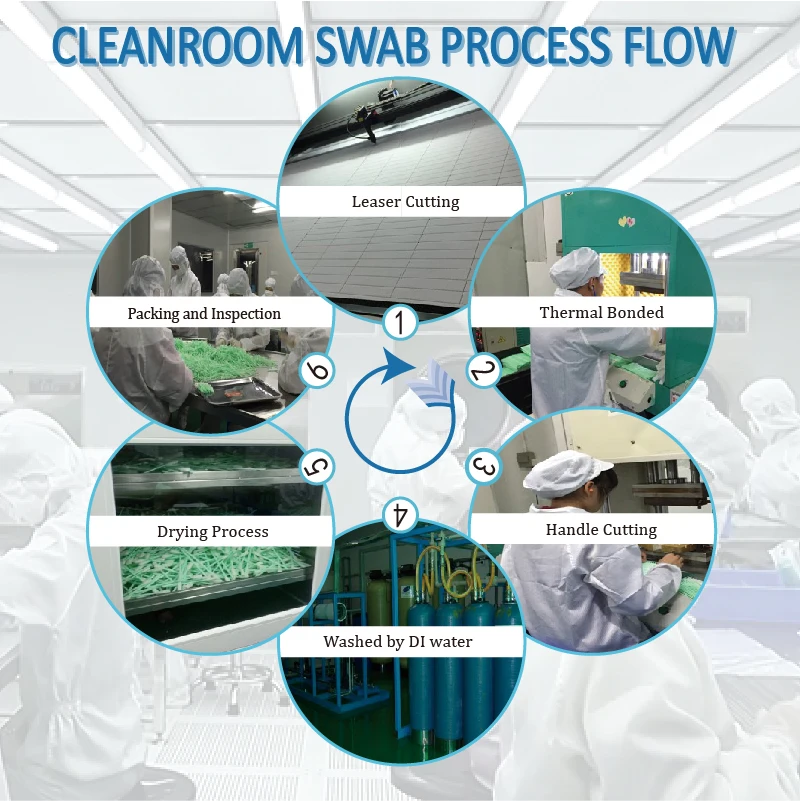

Cleanroom Swabs Features
Cleanliness
Washed 3-4 times in EDI pure water to ensure the cleanliness.
Handle
Handle
The handle is made with new materials without rough edges for a smoother surface and no any chemicals.
Storage
Sealed packed swabs in the cool environment can be stored for 2 years
Washed by EDI pure waterLow non-volatile residue
Low in both particles and ion content
Thermal bonded
--No contaminating adhesives or coating produce second pollution
Cleanroom
Laundered and packed under an ISO Class 5 Cleanroom
Related Products
Company Introduction
Cleanmo is a scientific and industrial enterprise integrating R & D, production and trade with years of experience.
The Cleanmo brand has a certain influence at home and abroad, focusing on manufacturing medical swabs, ESD swabs, cleaning
swabs,flocked swabs, cleanroom wipes, cleaning kits, cleaning cards,etc.
Swabs Products are exported to Europe, America, Southeast Asia, the Middle East and other countries, and establish a good trade
relations with other countries agents.Cleanmo regards honesty as the foundation and treats customers sincerely when providing
services. We solve their problems in time and provide one-stop and thoughtful services.
The Cleanmo brand has a certain influence at home and abroad, focusing on manufacturing medical swabs, ESD swabs, cleaning
swabs,flocked swabs, cleanroom wipes, cleaning kits, cleaning cards,etc.
Swabs Products are exported to Europe, America, Southeast Asia, the Middle East and other countries, and establish a good trade
relations with other countries agents.Cleanmo regards honesty as the foundation and treats customers sincerely when providing
services. We solve their problems in time and provide one-stop and thoughtful services.
FAQ
Q:Are you manufacturer or trading company?
A:We are a manufacturer and engaged in manufacturing cleanroom swabs/wipes,cleaning cards/kits,medical swab/applicator.
Q: Do you have MOQ?
A: We don’t set strict MOQ for Swabs, Wipes,Cleaning Cards,but Sticky Mats and Sticky Roller or other Cleanroom Consumables do.
The more you buy, the more economic have, it would especially be illustrated in the delievery cost.
Q: What’s your delivery time?
A: The delievery time is depends on the quantity, generally 3-7 worrking days after payment received.
Q: What’s your payment term?
A:Normally we accept the payment by T/T in advance, but if the total is under 300$, we could accept Paypal or Western union in
advance.
Q: What’s your shipping term?
A: Normally,our shipping term is EXW,FOB,CIF, DDP,DDU,depend on customer’s requirement.
Q:What’s your shipping method?
A:We can ship by Express,by air or by sea as you like .
A:We are a manufacturer and engaged in manufacturing cleanroom swabs/wipes,cleaning cards/kits,medical swab/applicator.
Q: Do you have MOQ?
A: We don’t set strict MOQ for Swabs, Wipes,Cleaning Cards,but Sticky Mats and Sticky Roller or other Cleanroom Consumables do.
The more you buy, the more economic have, it would especially be illustrated in the delievery cost.
Q: What’s your delivery time?
A: The delievery time is depends on the quantity, generally 3-7 worrking days after payment received.
Q: What’s your payment term?
A:Normally we accept the payment by T/T in advance, but if the total is under 300$, we could accept Paypal or Western union in
advance.
Q: What’s your shipping term?
A: Normally,our shipping term is EXW,FOB,CIF, DDP,DDU,depend on customer’s requirement.
Q:What’s your shipping method?
A:We can ship by Express,by air or by sea as you like .
