Product Overview
Product Paramenters

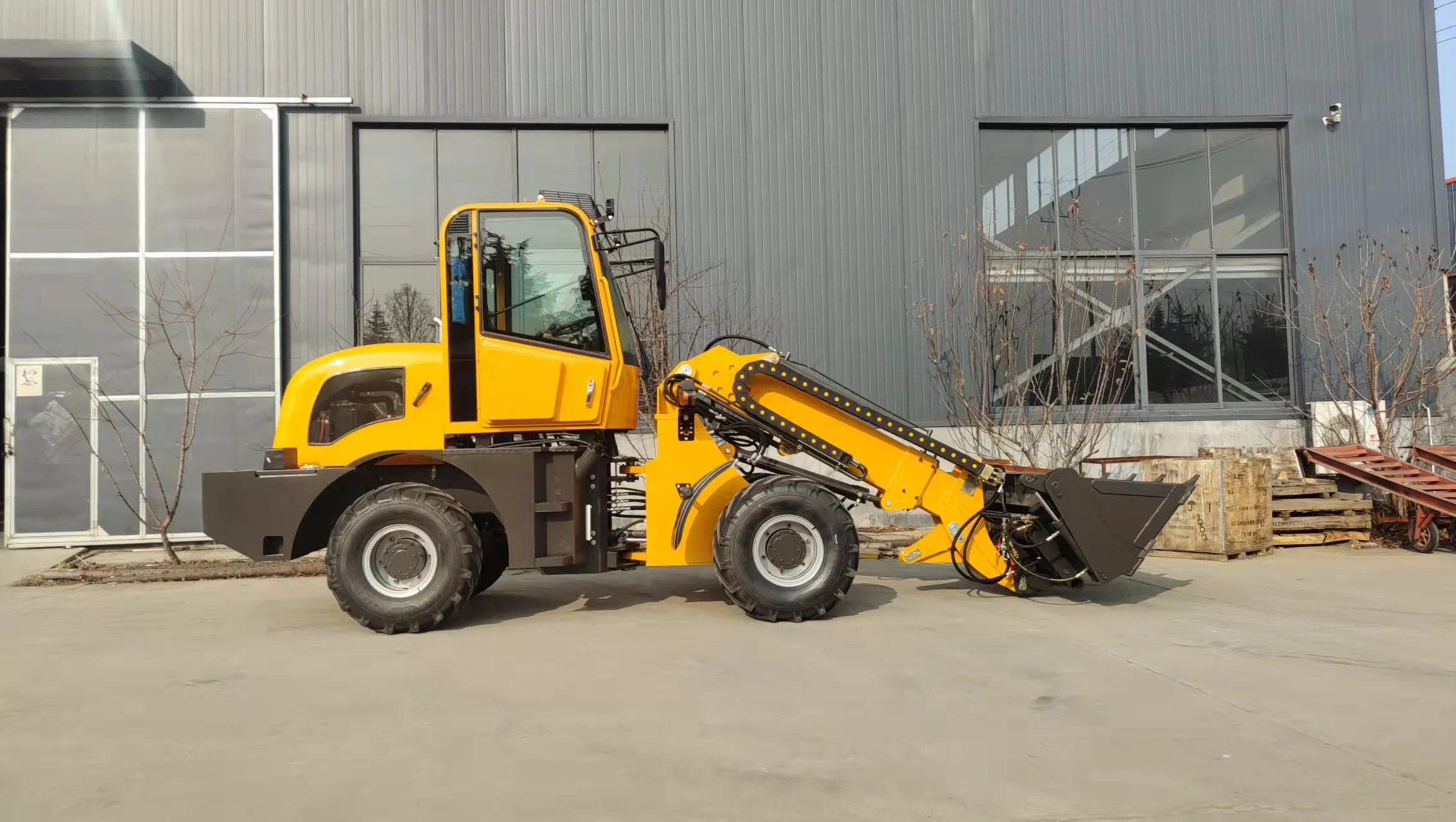

YT1800 telescopic loader | ||
1.0 Engine | ||
(1) Brand/Model: | Yunnei YN27GBZ | |
(2) Type: | In-line arrangement, water-cooled, four cylinder, diesel engine | |
(3) Rated Power: | 58KW | |
2.0 Overall Dimensions | ||
(1) Overall Length: | 5800mm | |
(2) Overall Width: | 1900mm | |
(3) Overall Height: | 2680mm | |
(4) Bucket hinge pin Height: | 4400mm | |
(5)Bucket Max.lift height | 4800mm | |
(7) Bucket Max.unloading height | 3700mm | |
3.0 Transmission System： Gearbox+Hydraulic converter + Drive shaft + Hub reduction axle(Disc brake) | ||
4.0 Bucket： | ||
(1) Capacity: | 0.75 m³ | |
(2) Type: | Heavy-duty bolt on teeth | |
(3) Max. Load: | 1800kg including bucket or attachment | |
5.0 Operating Specifications | ||
(1) Steering System: | Articulated hydraulic steering | |
(2) Driving System: | Four wheel drive | |
(3) Hydraulic quick release | Yes | |
(4) Mechanical pilot joystick | Yes | |
(5) Steady rise | Yes | |
6.0 Brake System | ||
(1) Service Brake: | Four wheel disc brake | |
(2) Parking Brake: | Disc brake | |
7.0 Tyre | ||
(1) Model: | 23.5/70-16 | |
(2) Size: | Width: 330mm Diameter: 920mm | |
8.0 Wheel base: | 2500mm | |
9.0 Tread: | 1550mm | |

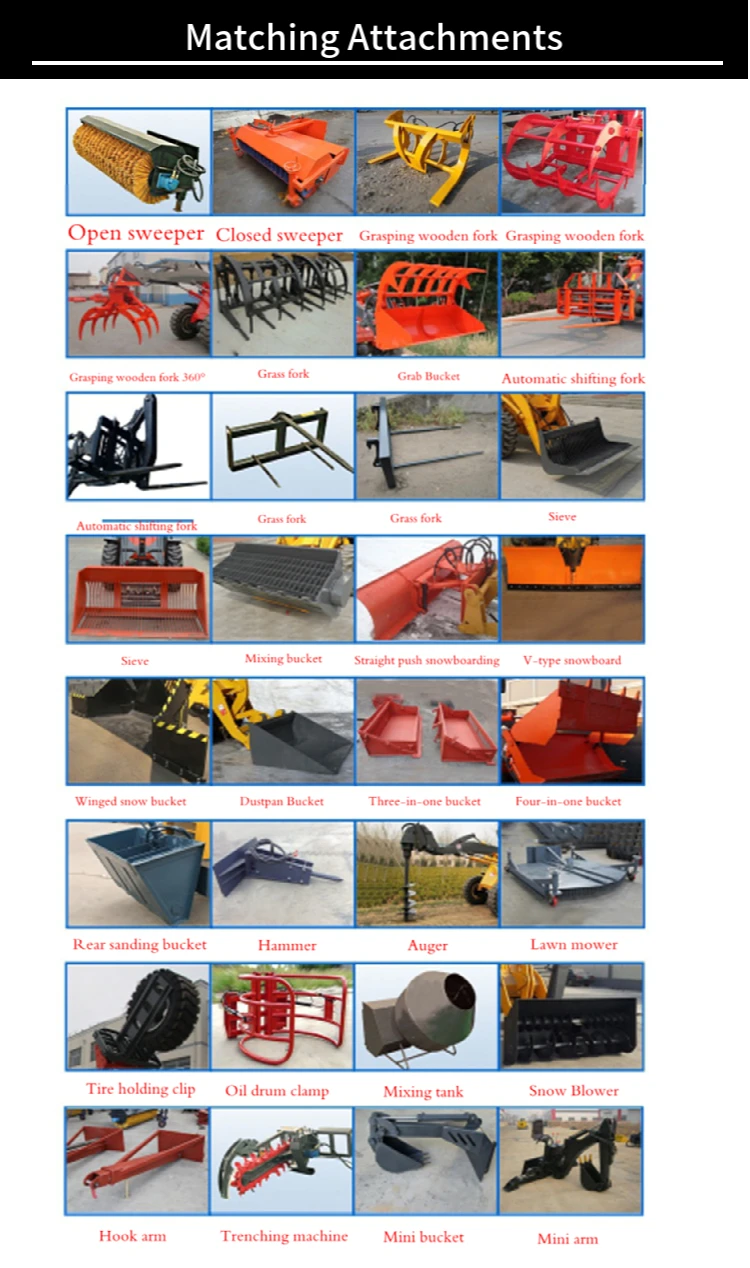

We have various attachments to choose, can help you do different works, please kindly contact WhatsApp: +8613332487466 to get more options

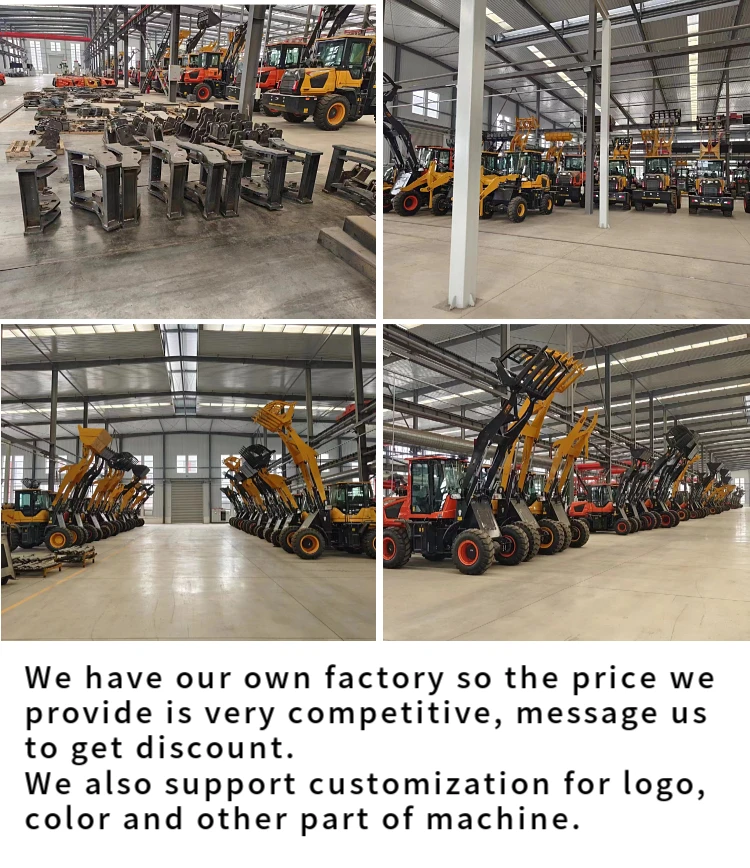

Company Profile

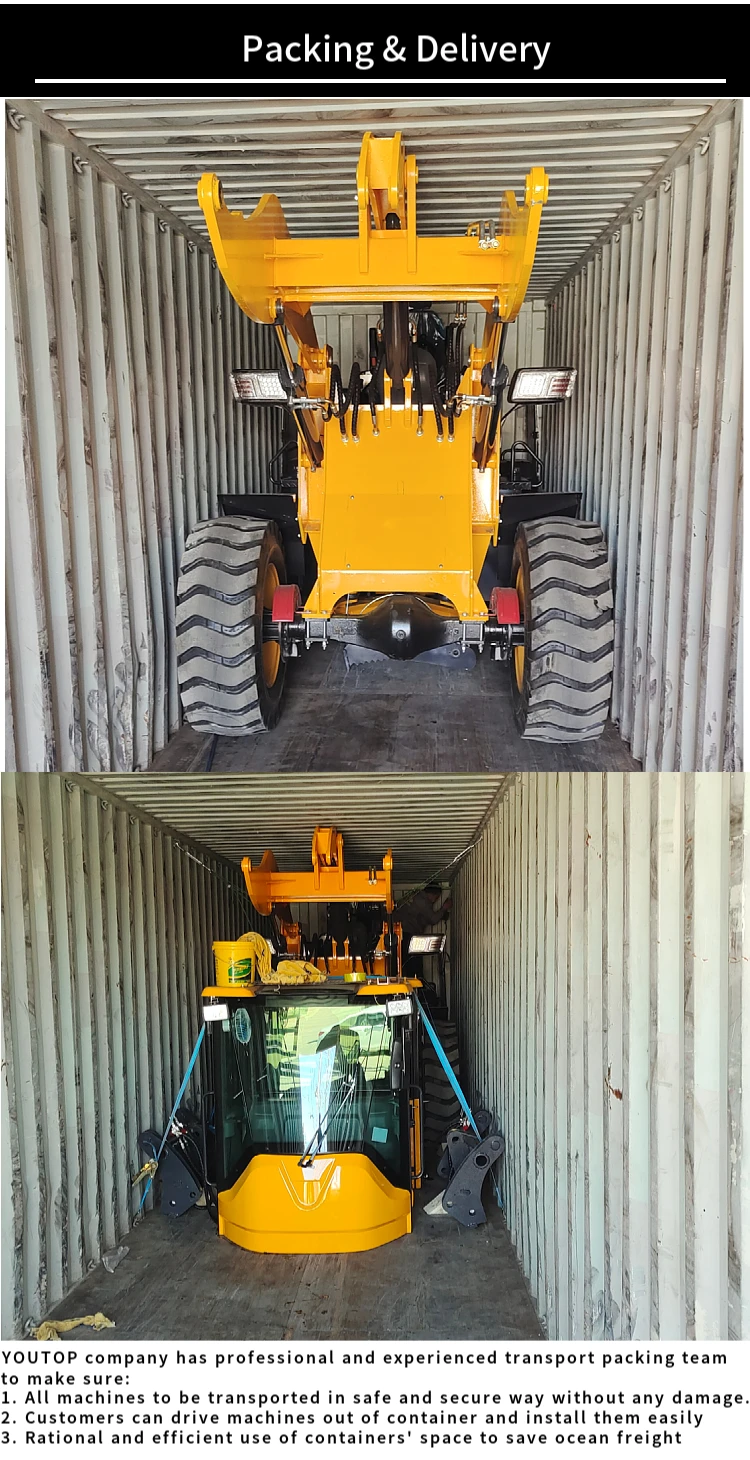

Product packaging
