Цена:19,80 $ - 20,90 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики





Welcome to Minisite





















Product Description

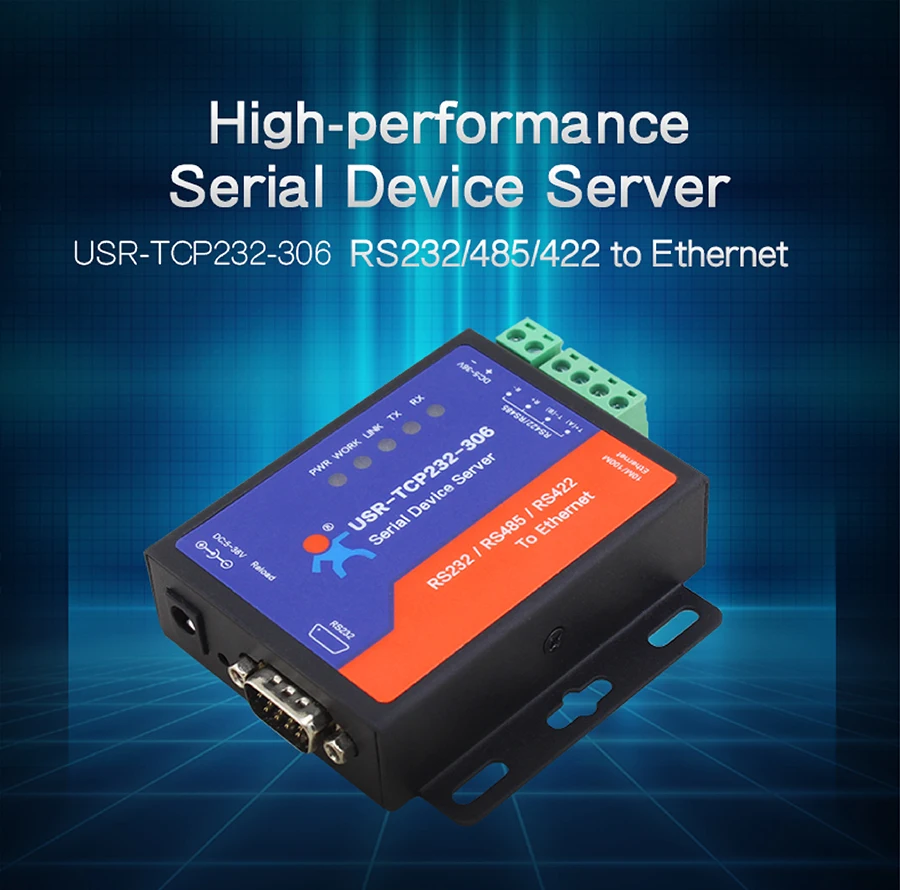

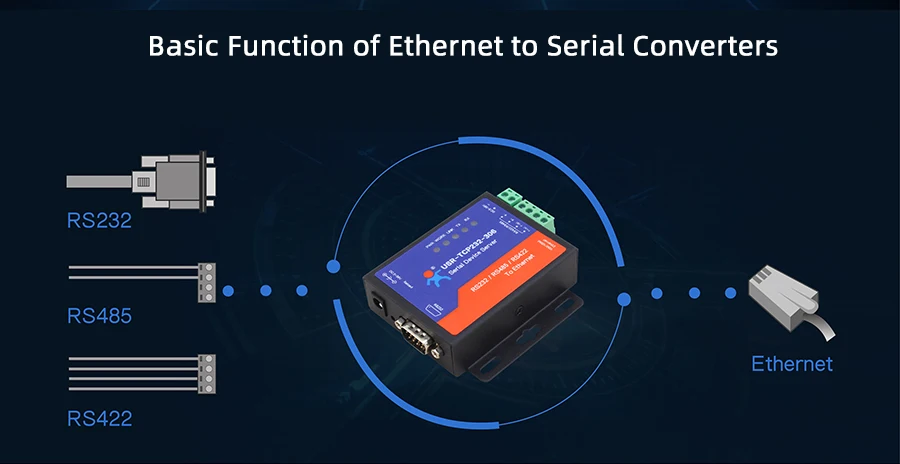

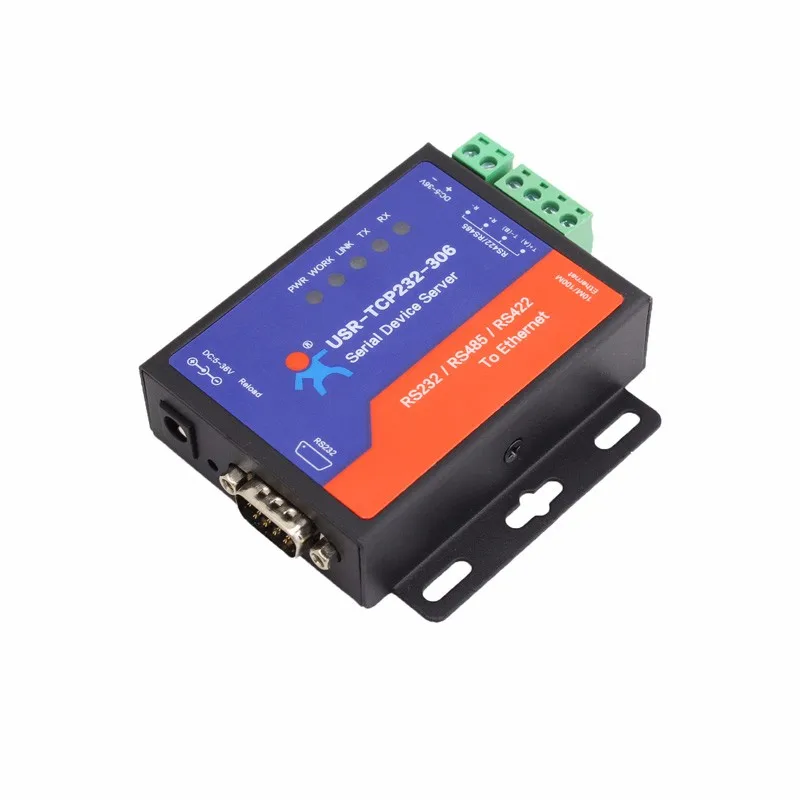

This is a serial RS232, RS485 or RS422 to Ethernet server, used for data transparent transmission. USR-TCP232-306 is a low-cost serial device server, whose function is to realize bidirectional transparent transmission between RS232, RS485 or RS422 and Ethernet. USR-TCP232-306 is internally integrated with TCP/IP protocol. User can apply it to device networking communication.











Feature







































Chip Solution


Atmel, work temp at -20~75C

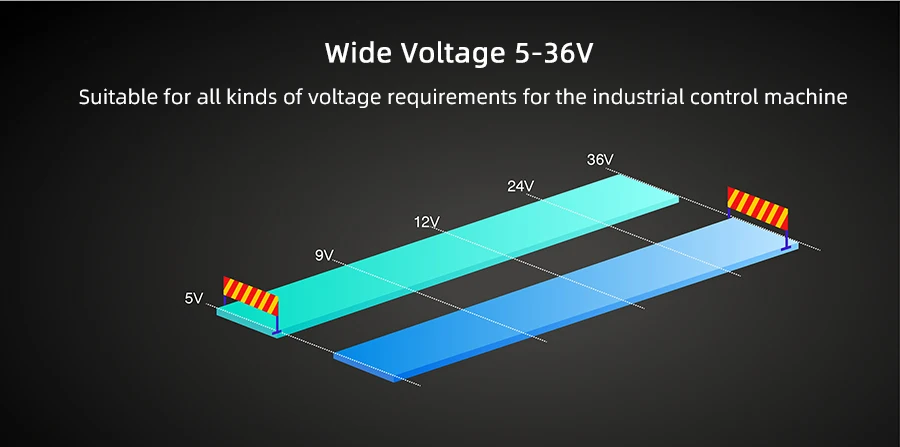

Power Supply


DC/Terminal type 5V~36V


Serial Port


Supports RS232/RS485/RS422, can't be worked at one time

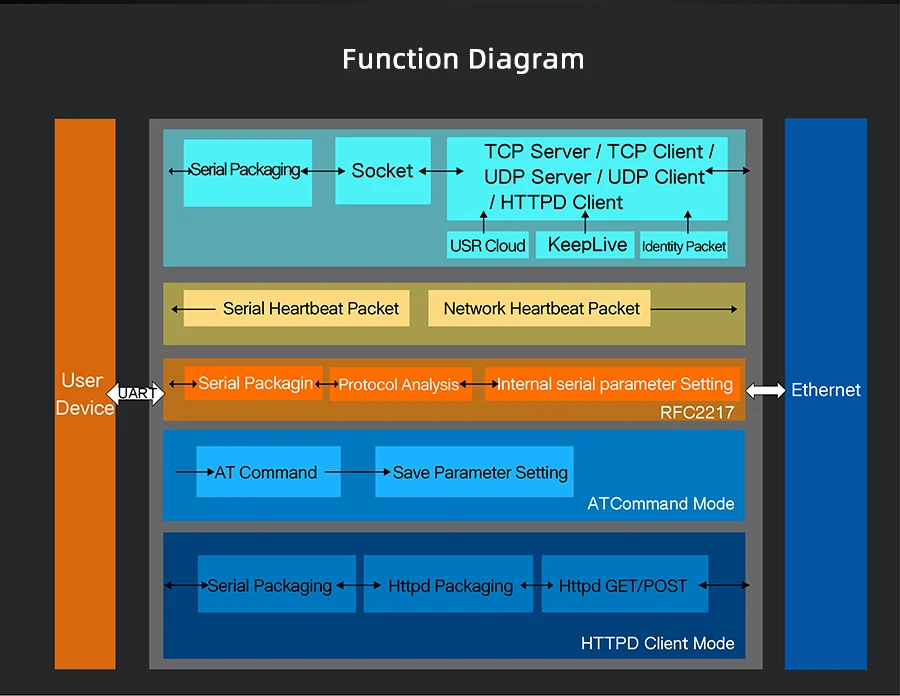

Work Mode

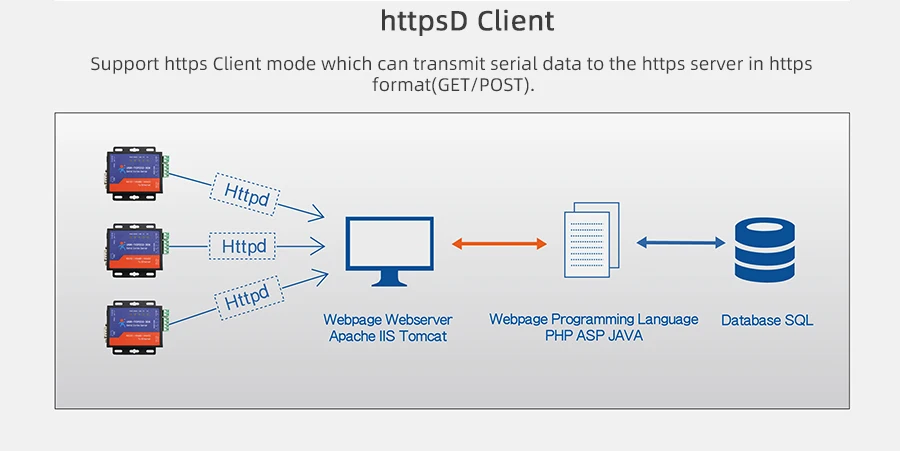

TCP Client/TCP Server/UDP client/ UDP server/HTTPD client


Basic Function


DHCP/DNS/Webpage


Baud rate


600~230.4K bps


Certification


CE/FCC/RoHs/WEEE












Point 1





1.Can work in LAN, also across the Internet by router
2.Restore factory defaults by hardware and software
3.TCP Server mode, max 16 TCP Clients can connect with it


4. Support firmware upgrade via network










Point 2

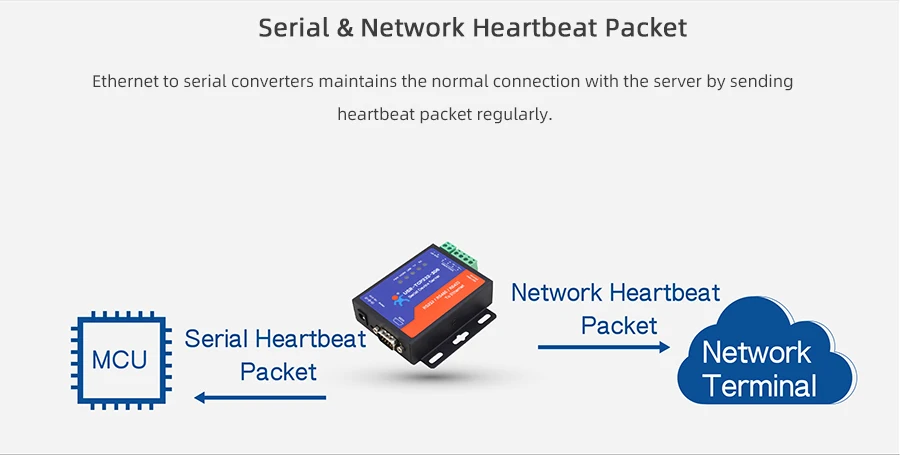

1.Heartbeat packet, ensure connection reliable
2.Register packet, check connection status and use as custom packet header


3.Query IP address through serial setting protocol











Character

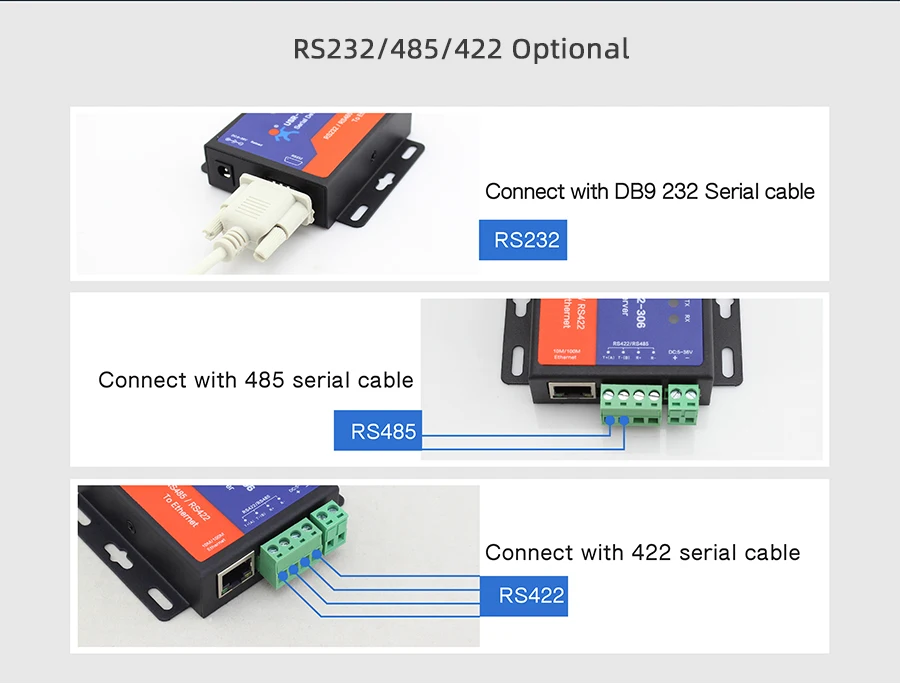

Serial Port


RS-232 / RS-485 / RS422


Port Type

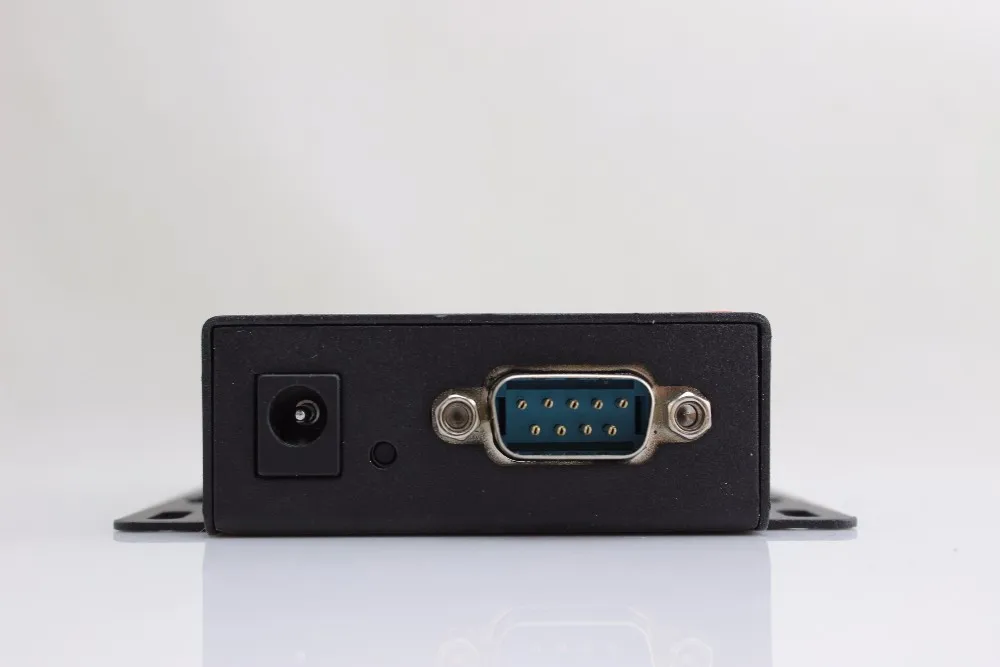

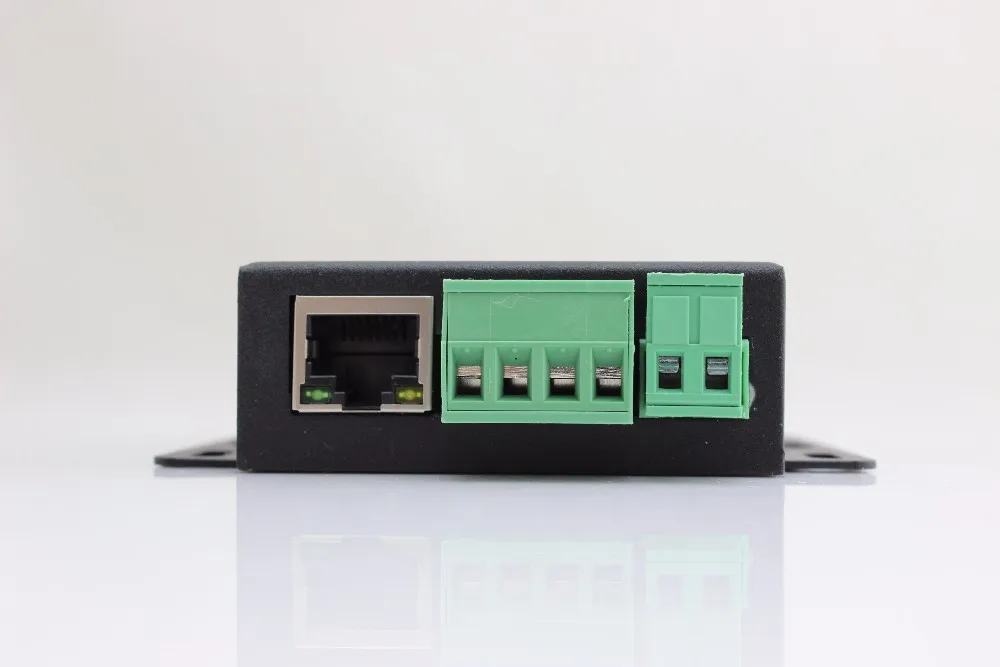

RS-232: DB9 male port; RS-485: A+/B; RS422: TX+/TX-/RX+/RX-


Baud Rate


600 bps ~230.4K bps


Data Bit


5/6/7/8


Stop Bit


1/2


Buffer


Receive: 2K bytes;


Flow Control


Not this function


Protect


RS-485: ESD/lightning protection/ 2KV electric static protection










































Ethernet


1 Port


Speed Rate


10/100 Mbps, MDI/MDIX


Buffer


Receive: 4K byte / Send: 6K byte


Protection


2 KV Electromagnetic isolation for Ethernet port


Network Protocol


IP/TCP/UDP/DHCP/DNS/HTTPD client


Power Supply


DC 5-36 V (ESD/ Surge prevention)


Work Temp


-25~75C


Software

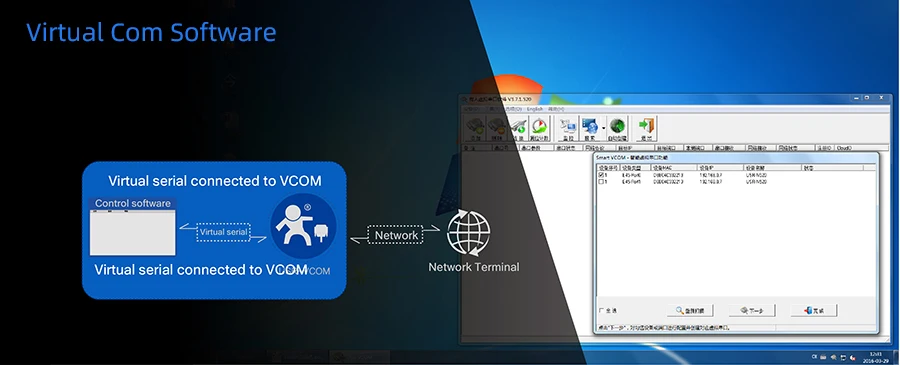

Setup/Virtual COM

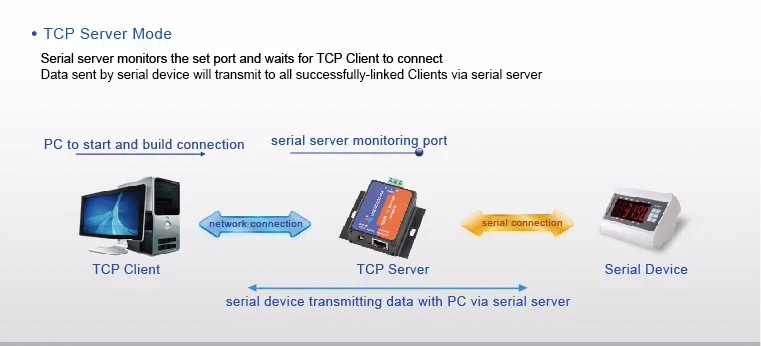

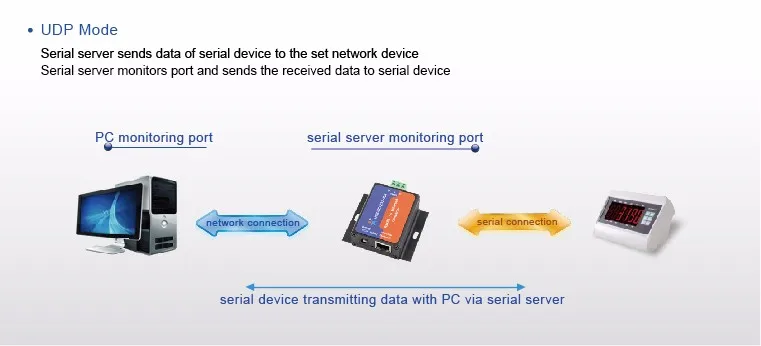

Working mode

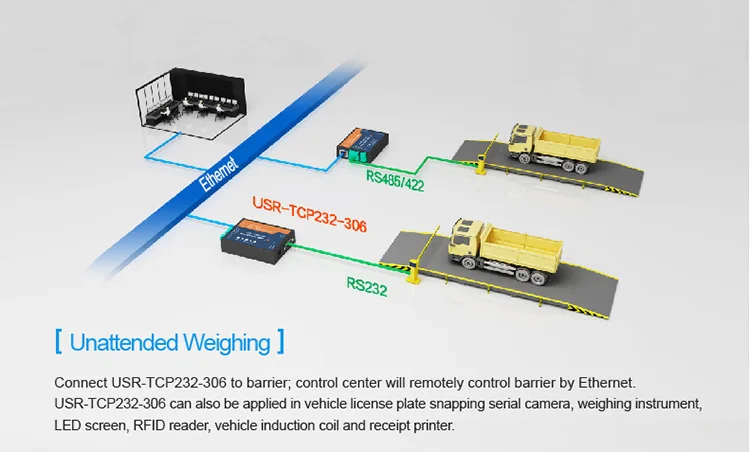

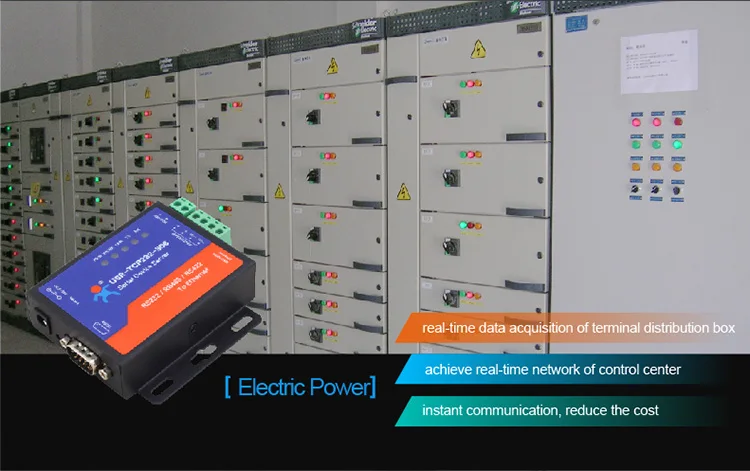

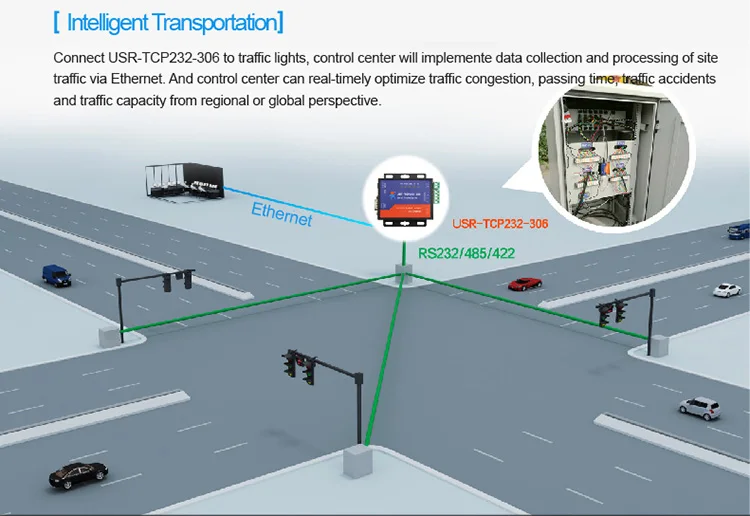

Application fields
