Products Description

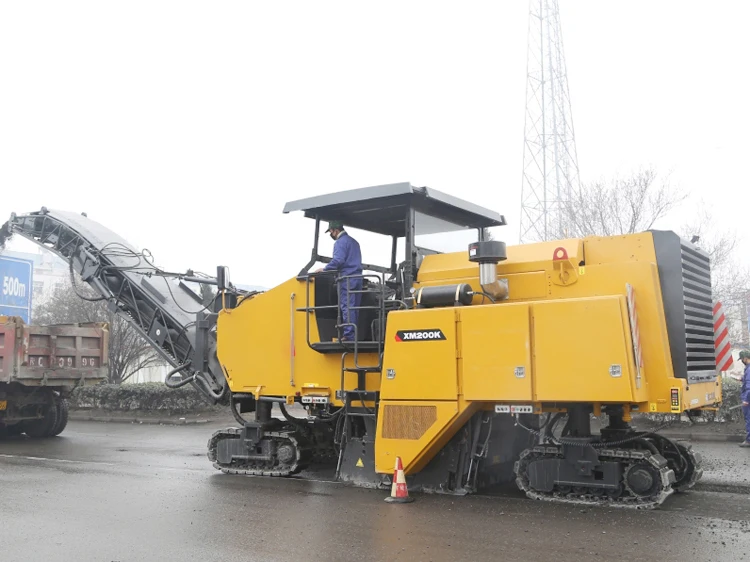

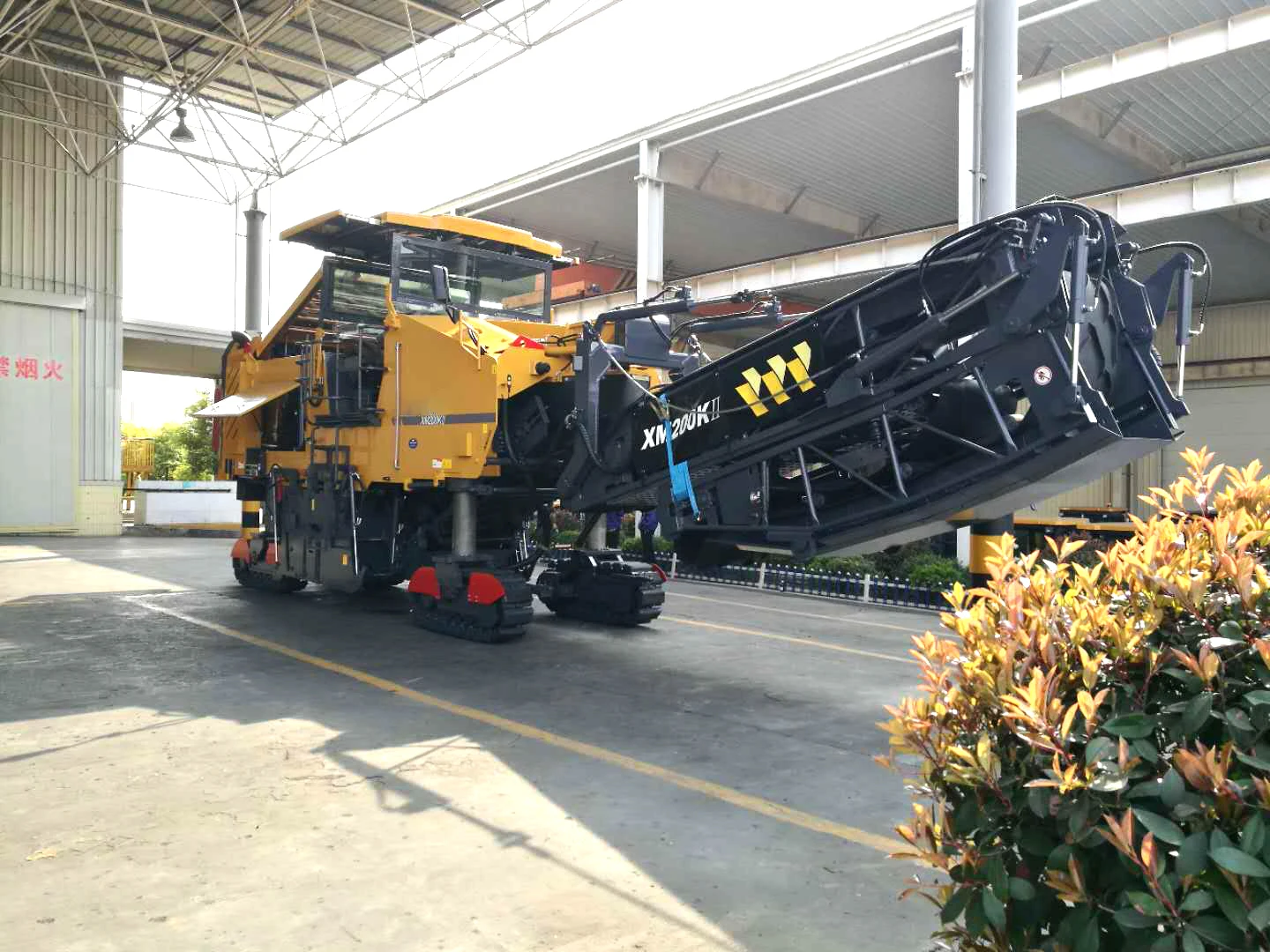

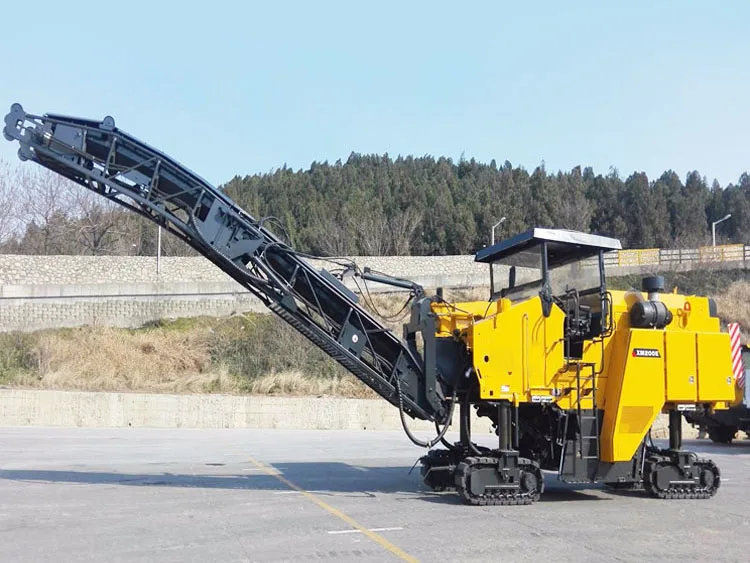

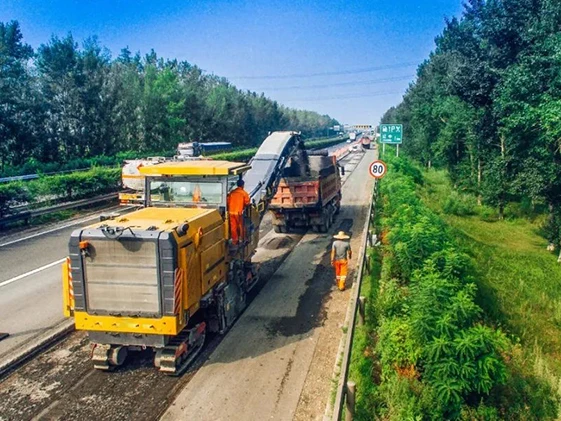

XM200K road milling machine is for maintaining the asphalt concrete pavement and mainly applied to the excavation and refurbishment of large areas of highways, roads of cities and towns, airports, goods yards and parking lots etc.
It can remove the upheaval, oil wave, overlapping curve, track and others of the pavement; It can also excavate the pit slot and grooves of the pavement; It can be applied to the napping of cement pavement and milling faulting of surface course.
The working efficiency of this equipment is high, the construction process is simple, and it is easy to control the milling depth, and it is convenient and flexible to operate and has good maneuvering characteristics, the used materials of milling can be recycled directly and widely applied to the repair, refurbishment and maintenance of asphalt pavement.
* The XM200K road milling machine is mainly composed of milling rotor driven by machinery and two groups of belt conveyors.
* All chassis with strong torque resistance are made of sectional materials, steel plates with high strength and can withstand deformation under the condition of various loads and terrains.
* The machine is equipped with four crawler steering system auxiliary by flick-type hydraulic power. It can make steering of four types, namely, front axle, rear axle, full crawler or crab-walk.
* The full automatic power regulator can make the engine load automatically realize the mutual matching between the milling and driving power.
* There is a set of high-voltage watering device around the milling rotor, which can effectively clean the dust and cool the milling tools to extend its service life.
It can remove the upheaval, oil wave, overlapping curve, track and others of the pavement; It can also excavate the pit slot and grooves of the pavement; It can be applied to the napping of cement pavement and milling faulting of surface course.
The working efficiency of this equipment is high, the construction process is simple, and it is easy to control the milling depth, and it is convenient and flexible to operate and has good maneuvering characteristics, the used materials of milling can be recycled directly and widely applied to the repair, refurbishment and maintenance of asphalt pavement.
* The XM200K road milling machine is mainly composed of milling rotor driven by machinery and two groups of belt conveyors.
* All chassis with strong torque resistance are made of sectional materials, steel plates with high strength and can withstand deformation under the condition of various loads and terrains.
* The machine is equipped with four crawler steering system auxiliary by flick-type hydraulic power. It can make steering of four types, namely, front axle, rear axle, full crawler or crab-walk.
* The full automatic power regulator can make the engine load automatically realize the mutual matching between the milling and driving power.
* There is a set of high-voltage watering device around the milling rotor, which can effectively clean the dust and cool the milling tools to extend its service life.
Specifications
Item | Unit | XM200K | ||
Maximum milling width | mm | 2000 | ||
Maximum milling depth | mm | 320 | ||
Milling wheel | Tool spacing | mm | 15/18 | |
Number of tools | 168/146 | |||
Milling wheel diameter (with tool) | mm | 980 | ||
Milling wheel maximum inclination | ° | 5 | ||
Diesel engines | Cooling method | Water cooling | ||
Model | QSX15 | |||
Number of cylinders | 6 | |||
Rated power | kw | 447 | ||
Engine speed | rpm | 2100 | ||
Fuel consumption: full load | l/h | 120 | ||
Speed/grade ability | Working speed | m/min | 0-84 | |
Walking speed | km/h | 0-5 | ||
Theoretical Gradeability (Working Blocks) | % | 80 | ||
Ground clearance | 320 | |||
Weight / load | Shipping weight | kg | 30000 | |
Working weight | kg | 34000 | ||
Track device | Front track | mm | 1720×300×620 | |
Rear crawler | mm | 1720×300×620 | ||
Box volume | Fuel tank | L | 1400 | |
Hydraulic tank | L | 300 | ||
Water tank | L | 3400 | ||
Electrical system | V | 24 | ||
Conveyor belt device | Aggregate conveyor belt width | mm | 800 | |
Discharging conveyor width | mm | 800 | ||
Conveyor belt conveying capacity | ≤m3/h | 330 | ||
Shipping dimensions | Machinery (length×width×height) | mm | 7650×2580×3000 | |
Belt conveyor (length × width × height) | mm | 8060×1150×1500 | ||
