Автоматический выключатель Bluesun DC PV combiner box 2 входа выхода
- Категории: >>>
- Поставщик: Bluesun,Outdoor,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

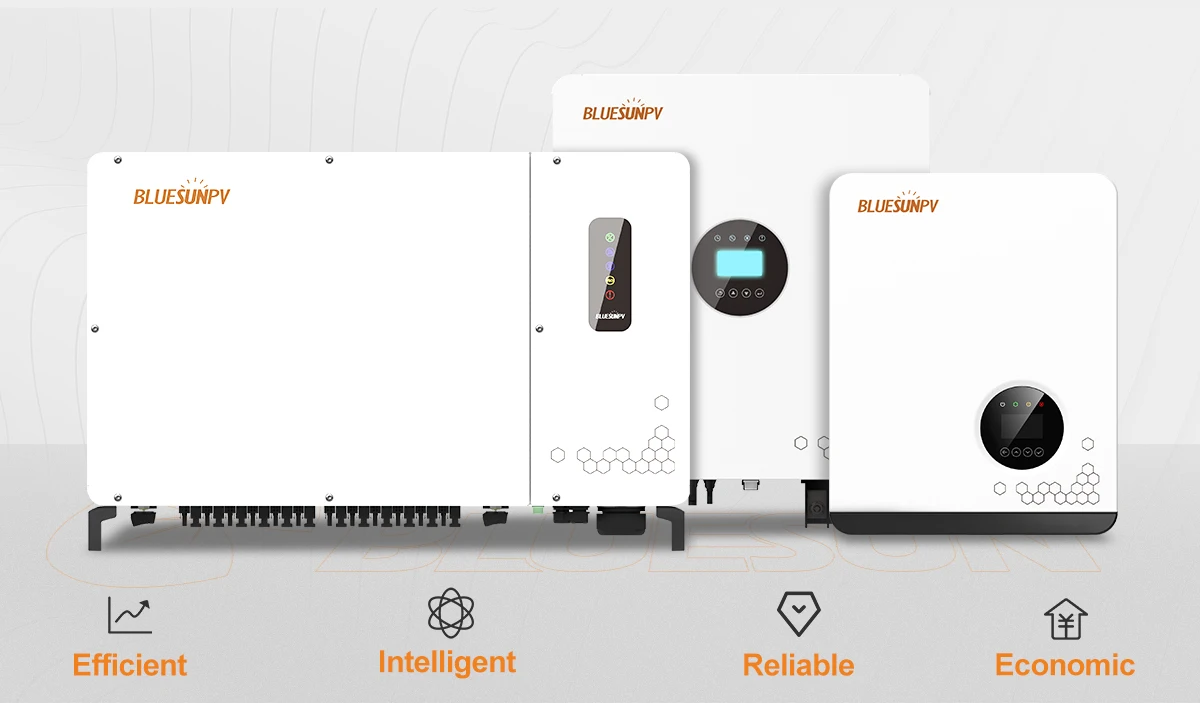

Product Description
Efficient
Multiple MPPT
Wide Vmpp range
Max. input current per MPPT 30A
Max. DC/AC ratio up to 1.5
Max. efficiency up to 99%
Fuse-less design
Wide Vmpp range
Max. input current per MPPT 30A
Max. DC/AC ratio up to 1.5
Max. efficiency up to 99%
Fuse-less design
Intelligent
String Monitoring
Intelligent I-V curve scan
Insulation detection
Remote upgrade
Intelligent Export Control
Intelligent I-V curve scan
Insulation detection
Remote upgrade
Intelligent Export Control
Reliable
DC & AC type II SPD
Anti-PID function
IP66 protection degree
DC reverse polarity protection
Leakage current fault protection
Smart Forced Air Cooling
Anti-PID function
IP66 protection degree
DC reverse polarity protection
Leakage current fault protection
Smart Forced Air Cooling
Economic
Support PLC communication
Support AC aluminum cable
Support SVG function
Support Y connector
Support AC aluminum cable
Support SVG function
Support Y connector

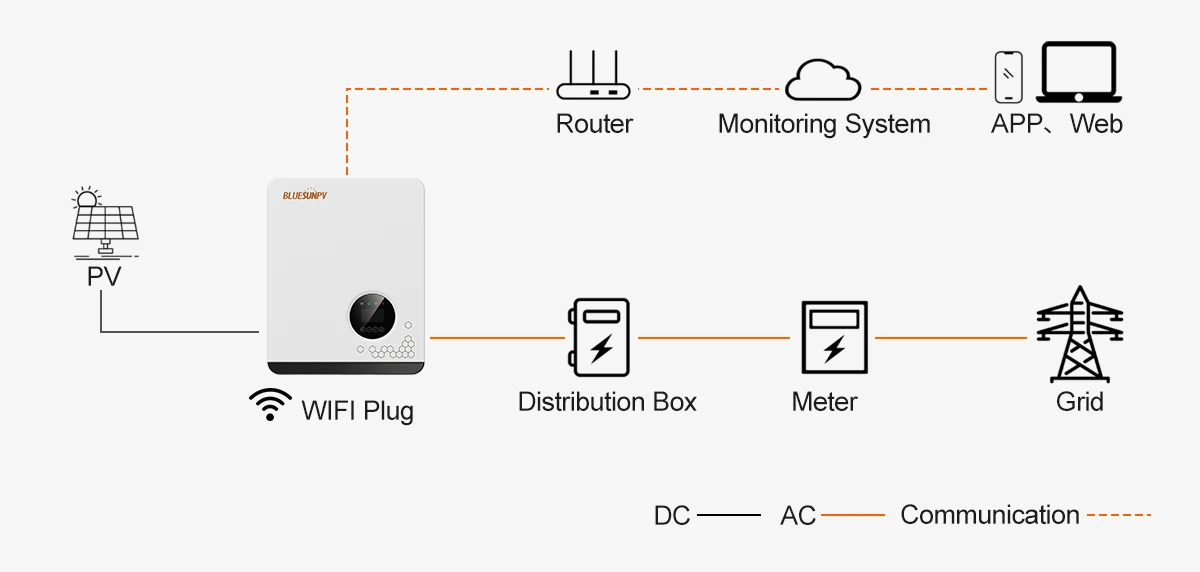

Configuration Detail
Product Paramenters
MODEL | BSM5K-B | BSM12K-B | BSM15K-B | BSM30K-B | ||||
Input(DC) | ||||||||
Max. DC Voltage | 1100V | 1100V | 1100V | 1100V | ||||
Nominal Voltage | 620V | 620V | 620V | 620V | ||||
Start Voltage | 250V | 250V | 250V | 250V | ||||
MPPT Voltage Range | 140 V~1,000 V | 140 V~1,000 V | 140 V~1,000V | 200 V~1,000V | ||||
Number of MPPT Tracker | 2 | 2 | 2 | 3 | ||||
Strings Per MPPT Tracker | 1 | 1 | 2/1 | 2 | ||||
Max. Input Current Per MPPT | 15A | 15A | 30A/15A | 30A | ||||
Max. Short-circuit Current Per MPPT | 20A | 20A | 40A/20A | 40A | ||||
Output(AC) | ||||||||
Nominal AC Output Power | 5000W | 12000W | 15000W | 30000W | ||||
Maximum AC Output Power | 5500VA | 13200VA | 16500VA | 33000VA | ||||
Nominal AC Voltage | 400V 3L+N | |||||||
AC Grid Frequency Range | 50Hz / 60Hz(±5Hz) | |||||||
Maximum Output Current | 8.0A | 19.2A | 23.9A | 47.8A | ||||
Power Factor(Φ) | 0.8leading-0.8lagging | |||||||
THDi | 3% | |||||||
Efficiency | ||||||||
Max. Efficiency | 98.40% | 98.60% | 98.60% | 98.70% | ||||
Euro Efficiency | 97.50% | 98.10% | 98.20% | 98.40% | ||||

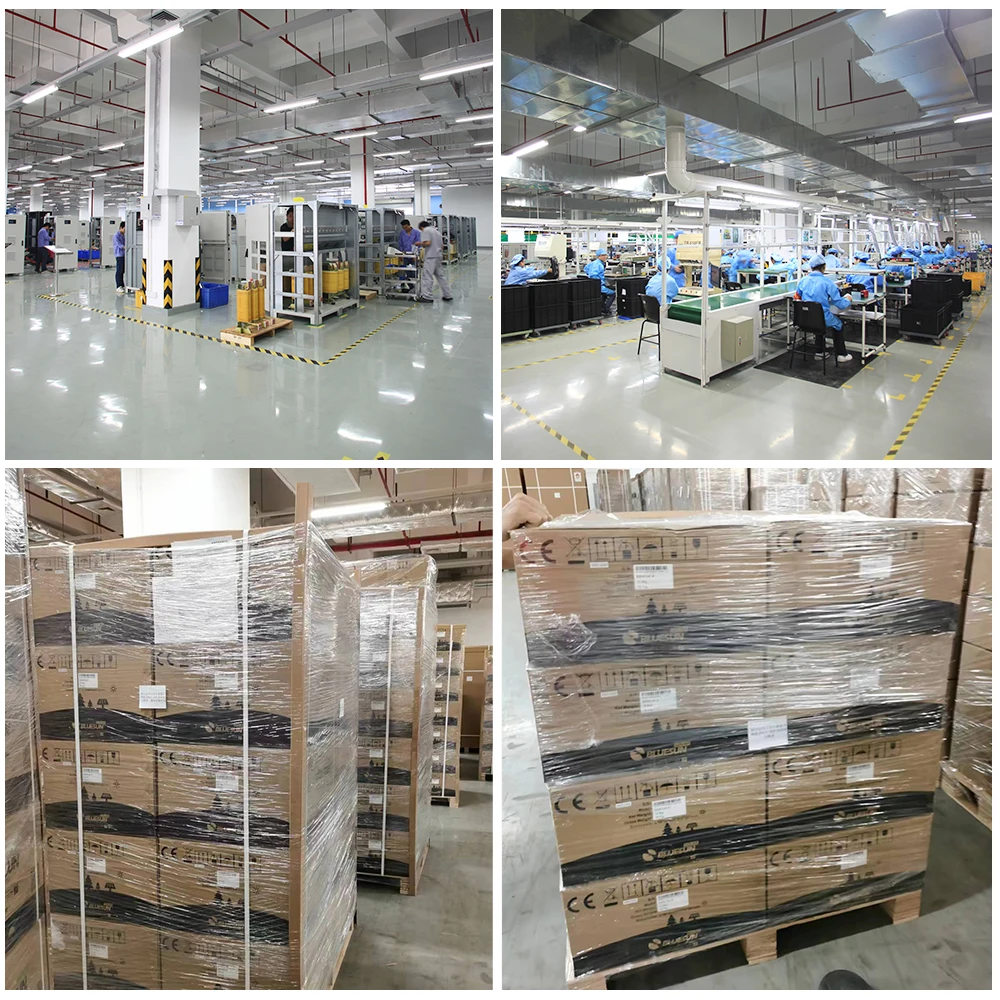

Product Packing
Our Factory
Global Exhibitions 2023
INTER SOLAR NORTH AMERICA
SOLARTECH INDONESIA
SOLAR SOLUTIONS INT
2023 CANTON FAIR
THE FUTURE ENERGY SHOW PHILIPPINES
Payment
Payment Term | T/T | EXW | |||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
Paypal | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
