Product Description
Working area | 580*380*100mm |
Machinable material thickness | ≤140mm |
Dimension | 950*650*590mm |
Frame material | 6061 aluminium alloy |
Rail type | TBI20 linear guide way |
Screw type | TBI SFU1605 ball Screw |
Carving accuracy | ± 0.015mm |
Spindle motor | Frequency conversion spindle motor，2.2KW |
Spindle speed | 24000rpm |
Cooling mode | Water cooling |
Chuck type | ER20（3.175mm，6mm） |
XYZ motor | 57 Hybrid servo motor |
Control system | Mach3/ DSP |
Driver | Leadshine Driver |
Carving speed | 6000mm/min |
Communication interface | USB2.0 |
System requirement | WIN-XP or WIN-7 |
Order code | G code/.nc/.ncc/.tab/.txt |
Voltage | AC220V/AC110V |
Operation environment | Temp.：5℃-40℃；Humidity：35%-80% |
Package size | 103*60*73cm |
140KGS |

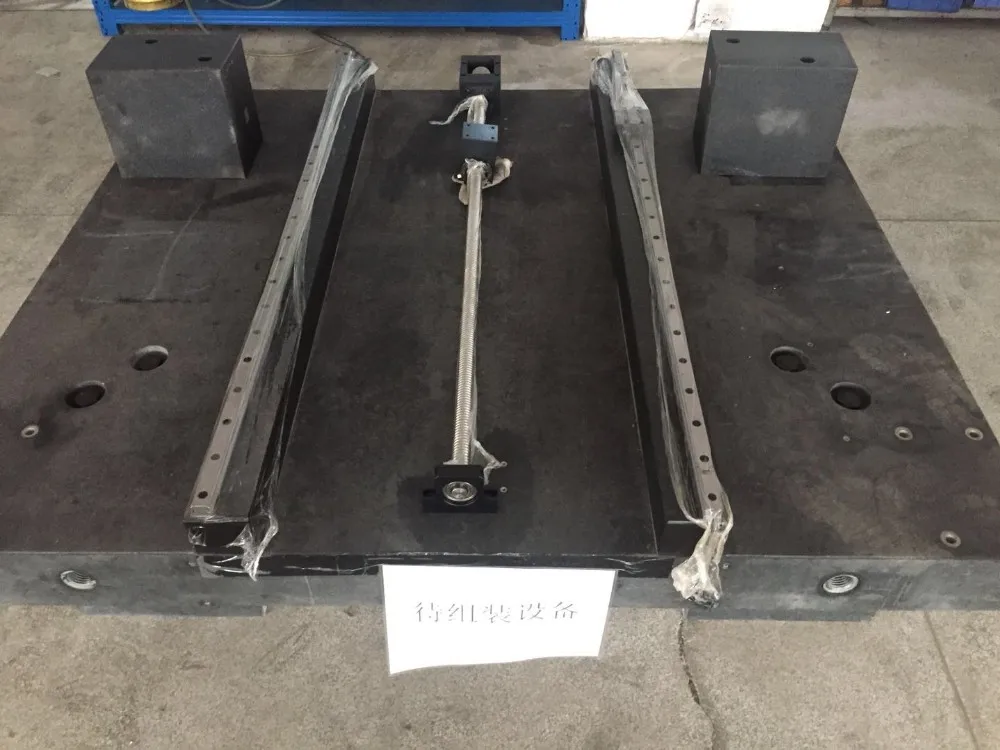

Machine Base
Jinanqing Marble

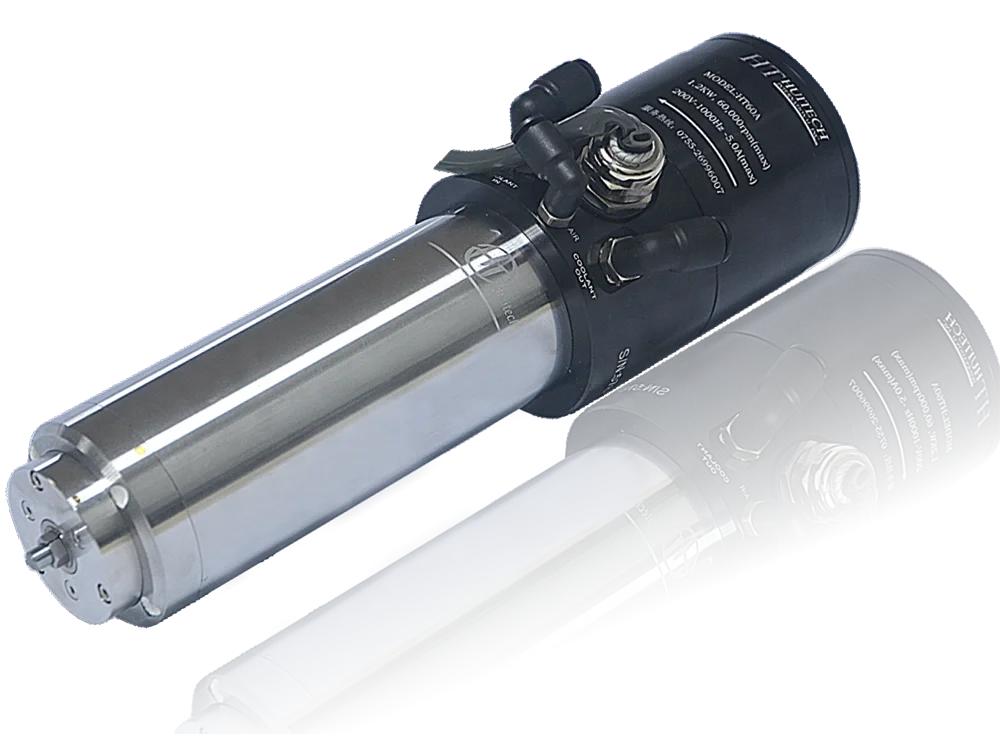

Spindle
KLKG 60000 RPM Water Cooling Spindle

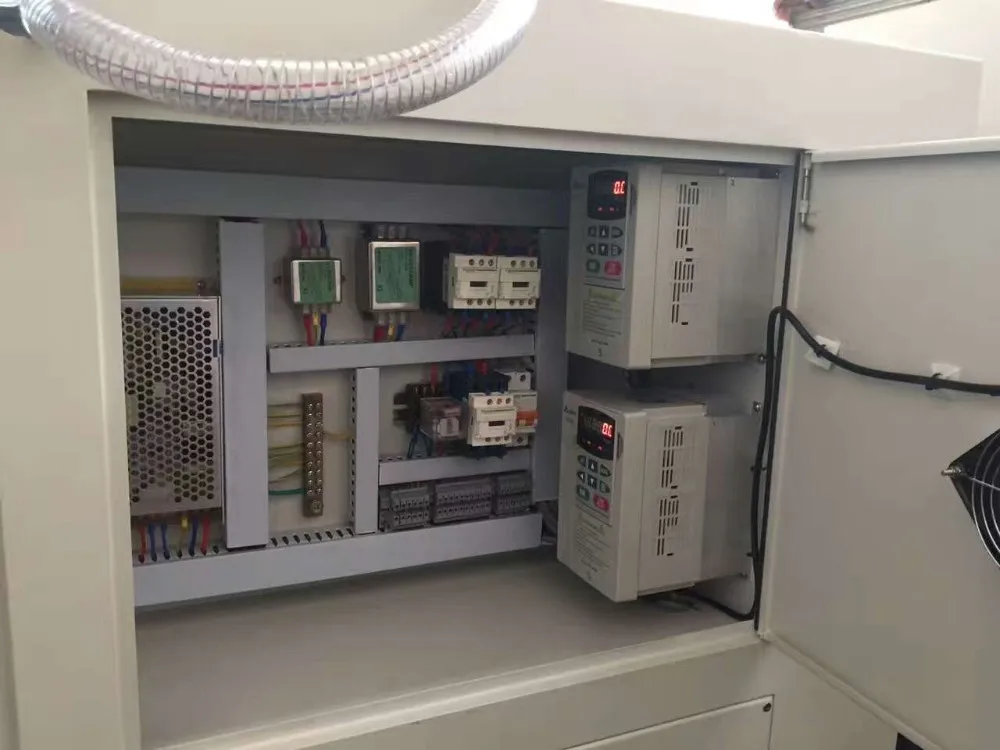

VFD
TAIWAN Delta
VFD7A5MS21ANSHA 2sets

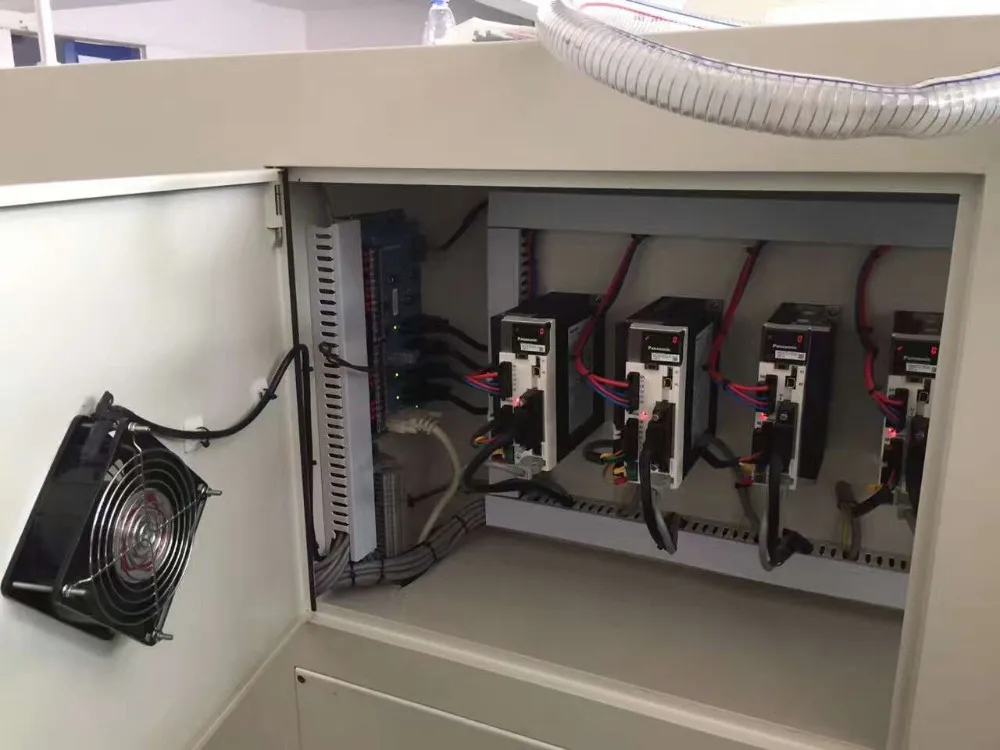

Servo /Motor
Panasonic

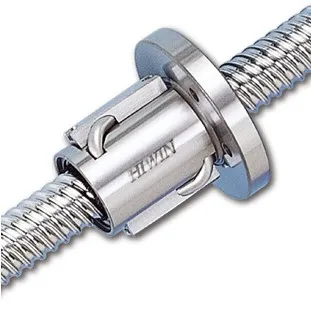

Ball Screw
TaiWan HWIN C5 Ball screw
Packing & Delivery
Packaging | ||
Weight | 2.6T | |
Size | 2300*1700*1750mm | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
