Машина для прокатки листового металла
US $10000
Сменная солнечная панель разных размеров машина для изготовления стеллажей фотоэлектрической
- Категории: >>>
- Поставщик: Sussman,Machinery,(wuxi),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Strut channel roll forming machine is also called like seismic support roll forming machine or seismic channel roll forming machine, its product is used to mount, brace, support, and connect lightweight structural loads in building construction. Our strut channel roll forming machine is suitable to produce strut channels with 12 gauge(2.6mm) or 14 gauge(1.9mm) thick sheet metal (normally range 2-2.5mm), raw material could be Hot-rolled and cold rolled steel, Hot-dip galvanized sheet, Pre-Galvanized Steel, Mill(Plain/Black) Steel, Aluminum, Stainless Steel etc. And according to slot type, our machine could produce solid channel, slotted channel, half slotted channel, long slotted channel, punched channel, punched and slotted channel etc.
And the machine is according to the EN 2081:2011 or EN ISO 4042:2001
Forming stations | About 20-22 stations or according to you profile drawings |
Machine structure | cast iron strcture |
Rollers material | GCr15,quenching treatment:HRC58-62; Cr12, SKD11（optional） |
Way of drive | Gearbox drive |
Raw material request | Cold rolled or hot rolled steel,galvanized steel,SS316L, Mild Steel |
Whole line working speed | 8-10m/min |
Length precision | 6+-1.0mm |
Punching system | 110 tons punching press machine(option) |

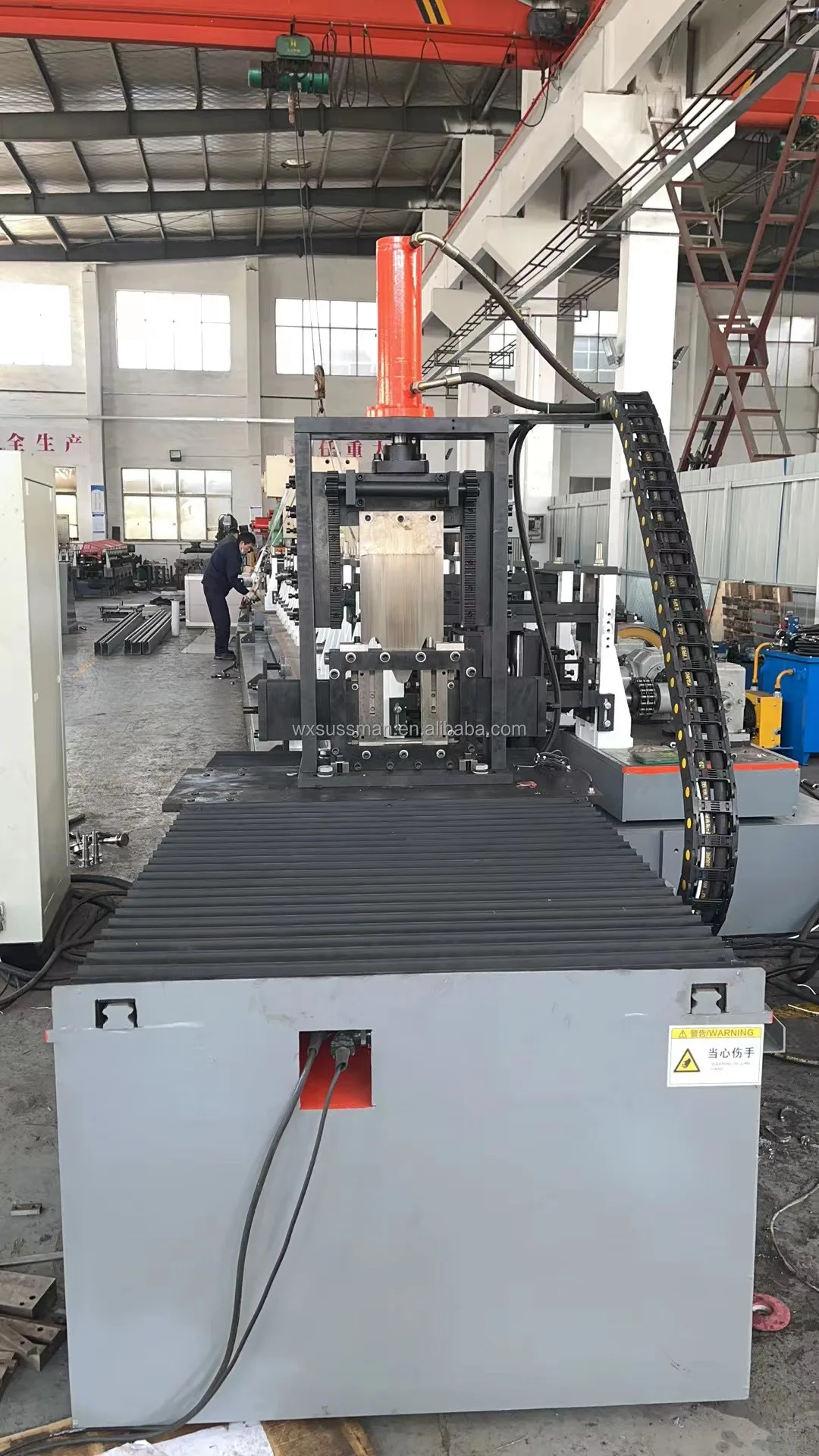

Cutting system | servo Tracking cutting |
Inverter | Siemens,Mitsubishi, panasonic (option Brand) |
PLC | Siemens,Mitsubishi, panasonic (option Brand) |
Main Power with reducer | 22KW WH Chinese Famous |
Cutting holder | Servo following cutting |
Motor power of hydraulic station | 5.5KW |
Cutting type | Hydraulic drive, cut after forming |
Material of cutting blade | Cr12Mov , quenching process |
Strut Channel systems are used for light and medium-duty application, generally for support of pipework, ventilation systems, air-condition systems, wiring, plumbing, electrical conduits, cable trays, rooftop installations, etc.
