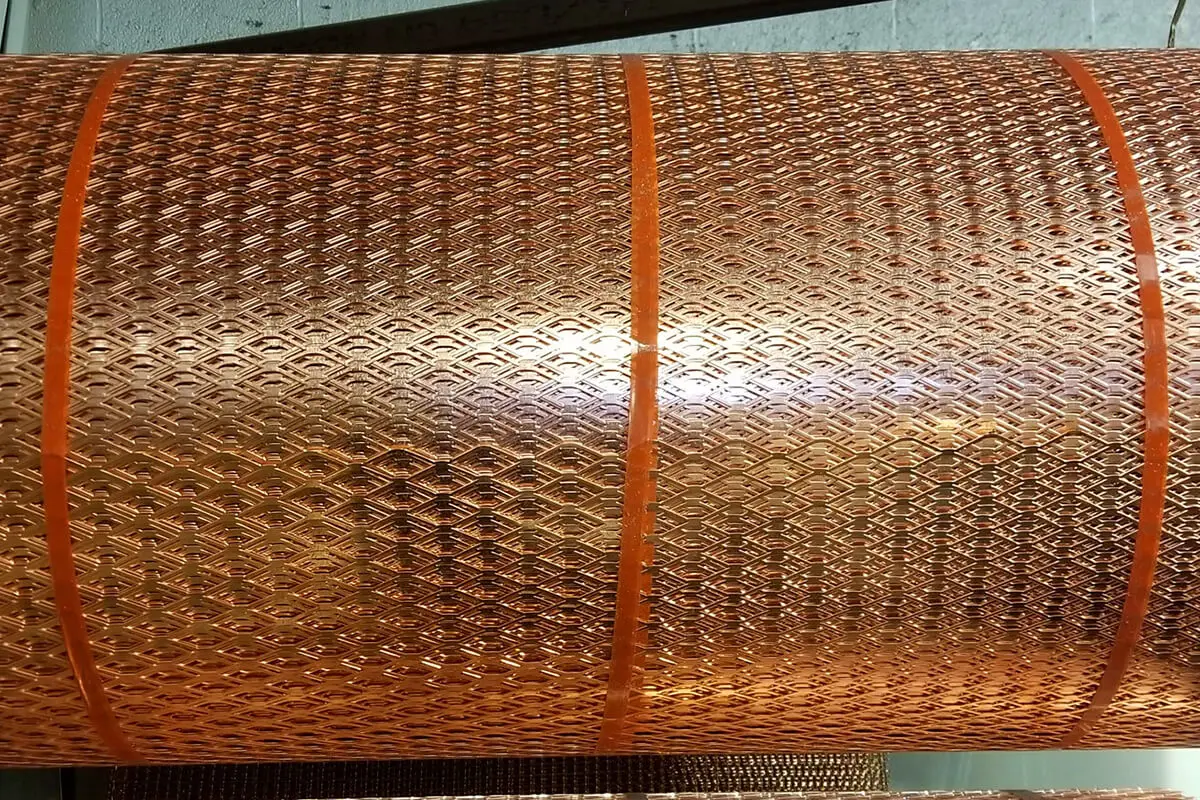

3D Расширенная медная сетка для
- Категории: Copper Wire Mesh >>>
- Поставщик: Hebei,Boni,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Copper mesh is divided into brass, copper, copper mesh, phosphor bronze
Material: Brass wire (65% copper, 35% zinc, also called H65 brass mesh. In addition, there are brass with different copper-zinc ratios)
Red copper wire (99.8% pure copper content, up to 99.99%)
Phosphor copper wire (85%-90% copper, 5%-15% tin)
Weaving method: plain weave or twill weave.
Advantages: good electrical conductivity and heat transfer properties, non-magnetic, anti-corrosion, low ductility, anti-wear.
Material: Brass wire (65% copper, 35% zinc, also called H65 brass mesh. In addition, there are brass with different copper-zinc ratios)
Red copper wire (99.8% pure copper content, up to 99.99%)
Phosphor copper wire (85%-90% copper, 5%-15% tin)
Weaving method: plain weave or twill weave.
Advantages: good electrical conductivity and heat transfer properties, non-magnetic, anti-corrosion, low ductility, anti-wear.

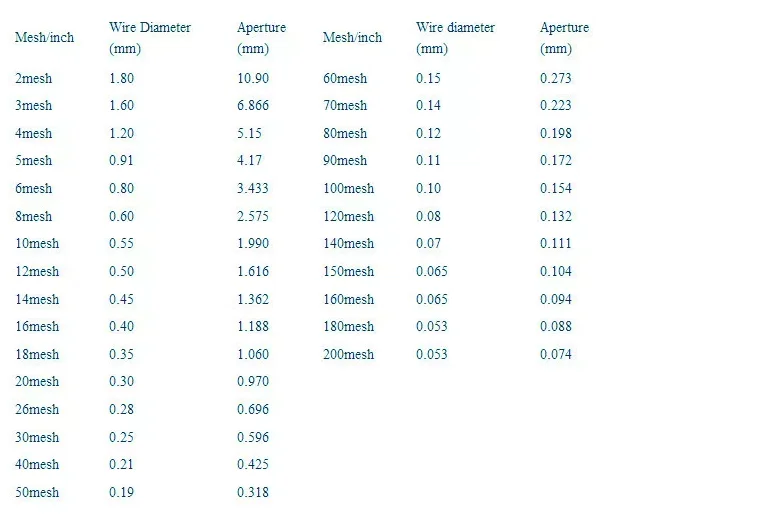

Product Paramenters
Item | Red copper wire mesh | Brass wire mesh | Phosphor bronze wire mesh | Tinned copper wire mesh | |||
Materail | 99% pure copper wire | H65 wire (65%Cu-35%Zn ) | Tin bronze wire | Tinned copper wire | |||
Mesh count | 2-250 mesh | 2-250 mesh | 2-350 mesh | 2-100 mesh | |||
Weave type | Plain/ twill/ dutch weave | ||||||
Common size | width 0.5-1.5m ;length 30m/roll Aslo can be as per your demand | ||||||
Common feature | Nonmagnetic , good ductility , Wear resistance , Fast heat transfer, Good electrical conductivity | ||||||
Special features | Sound insulation; Electron filtration ; | Apply to Newspaper/typing/chinaware printing usual ; Smoking screen; | Apply to Chinaware printing, screening all kinds of particles,powders ,and porcelain clay ... | High temperature resistance , anti-aging ,and long service life | |||
Common Applications | EMI/rfi shielding; Faraday cage ; | Engine filter to car , Noise reduction , damping(suspension ) | |||||
Sample | Free | ||||||
Customized | Acceptable | ||||||
Material | brass wire--purity--Cu: 65% , Zn:35% red copper wire--purity--Cu:99.8% phoshpor bronze wire--purity--Cu:85%-90% , Sn:5%-15% |
Wire diameter | 0.05-2.03mm |
Mesh counts | 2-250mesh |
Weave style | Plain weave,Twill weave |
Sample | Free and available |
Surface | Flat and bright |
Applications of Red Copper Wire Mesh | * used as the shielding screen in the cable circuits, laboratories and computer rooms. * widely used in the power sector, aerospace, information industry and RFI and EMI shielding. * used as the faraday cage. * installed onto buildings to insulate noise. * made to filter discs for liquid, gas and solid filtering. |
Technique | Woven wire mesh |

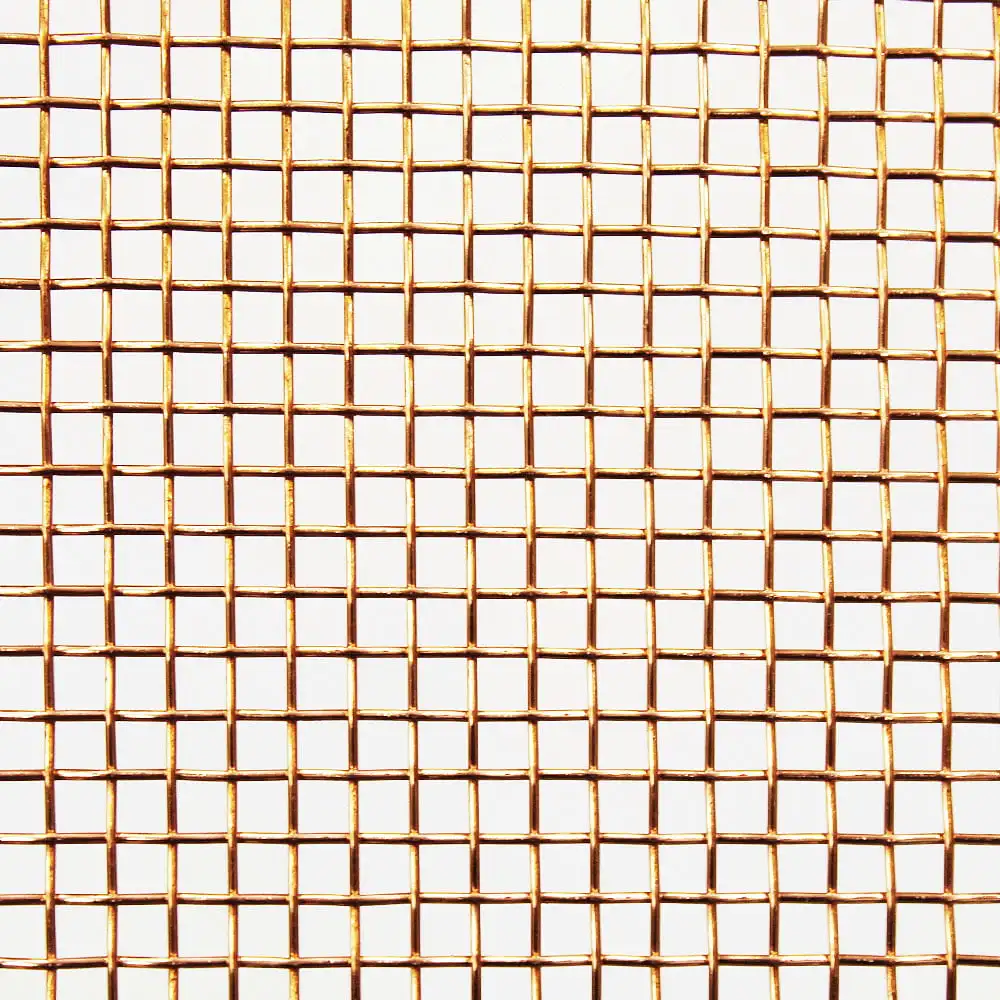

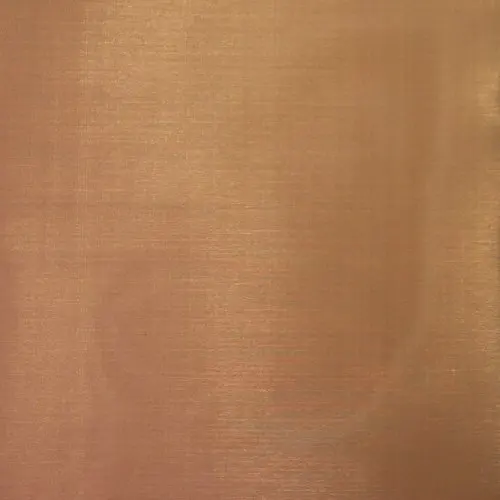

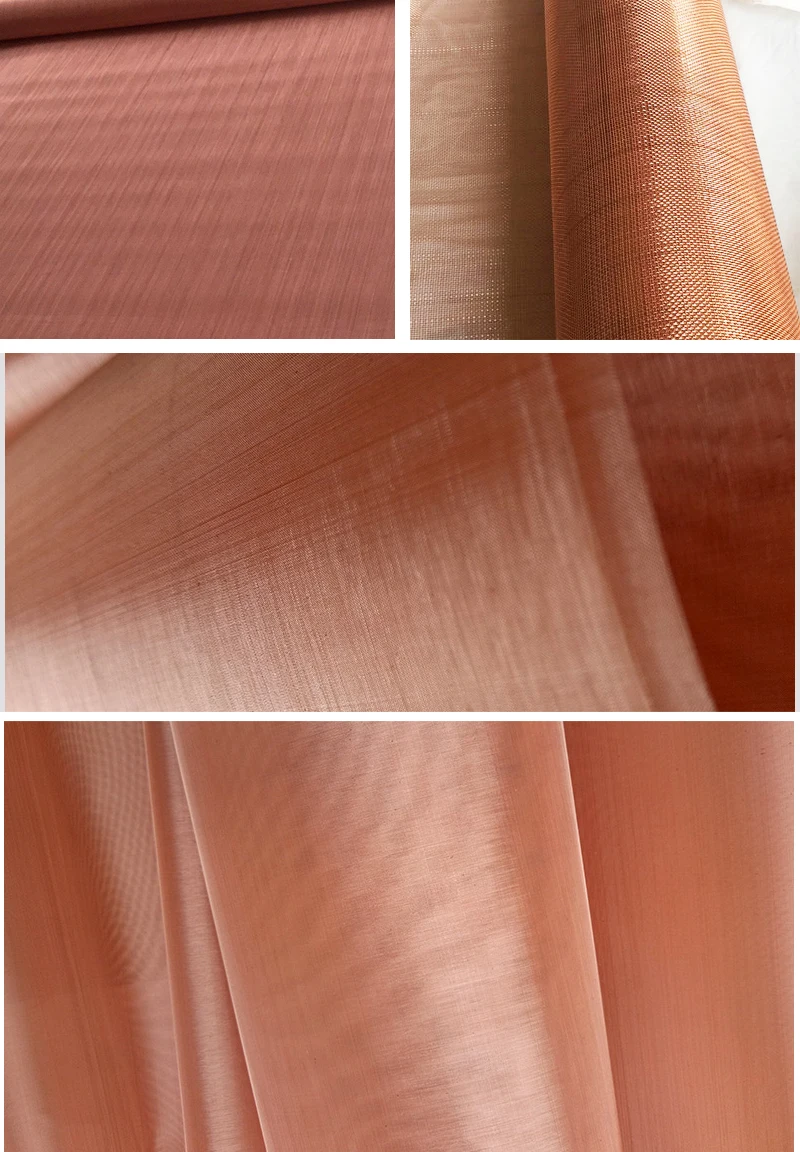

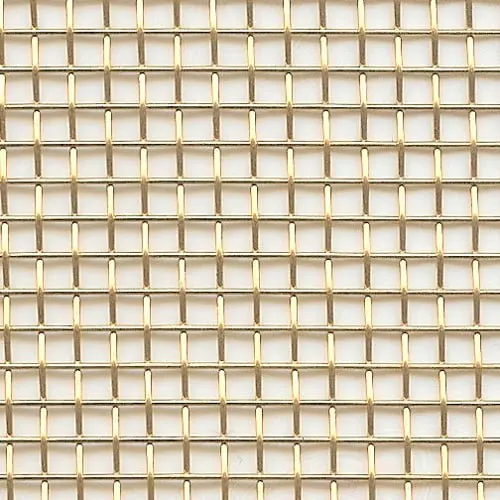

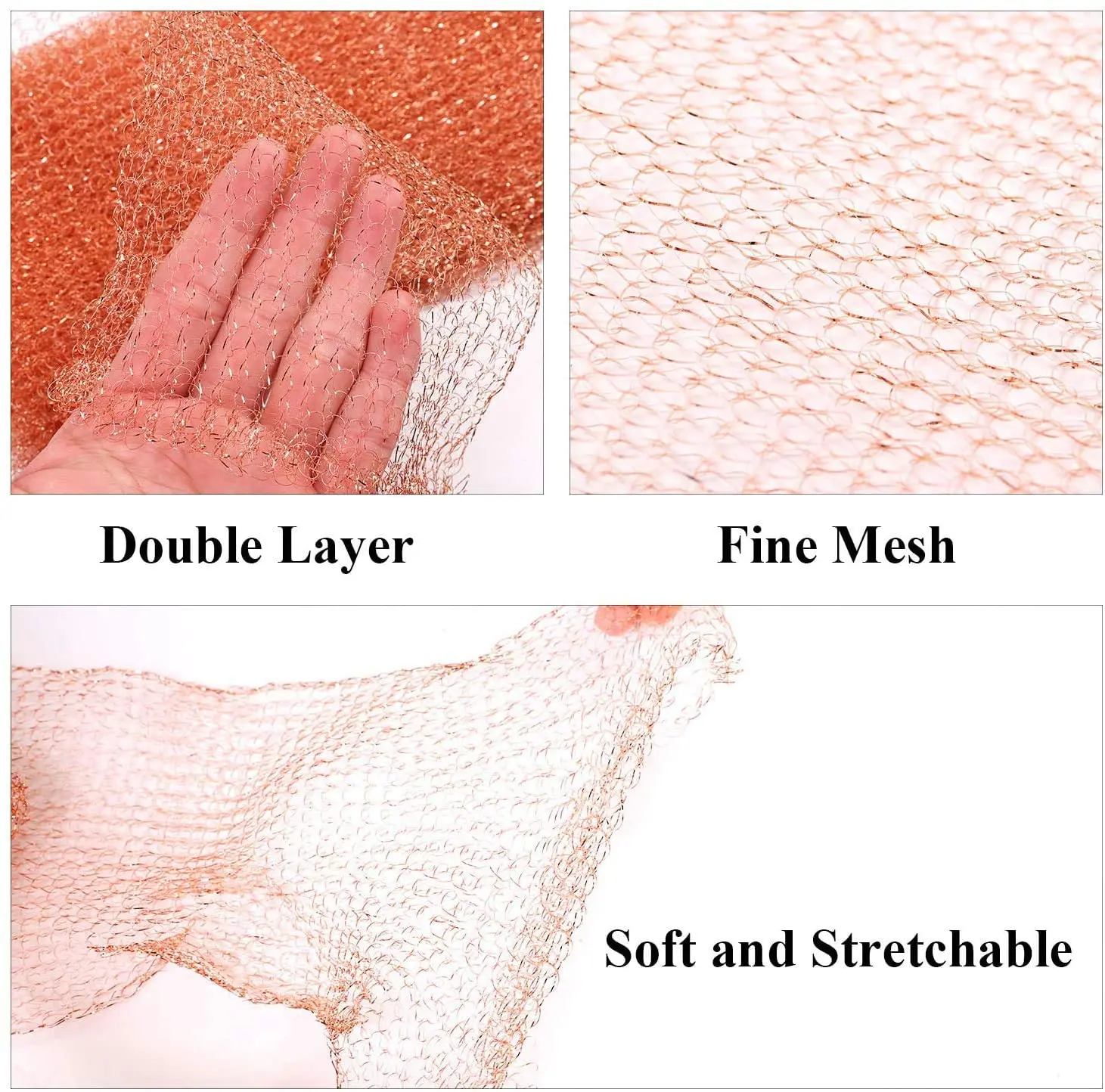

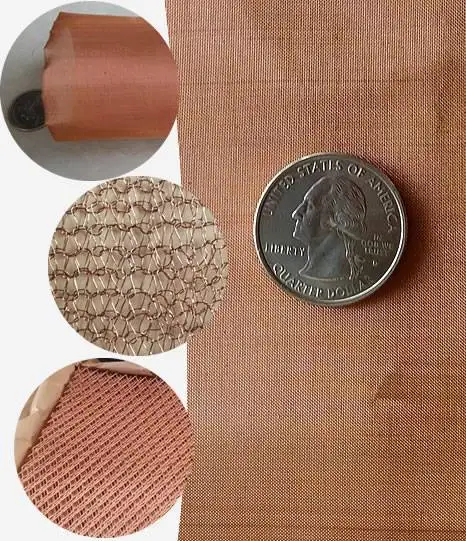

Details Images

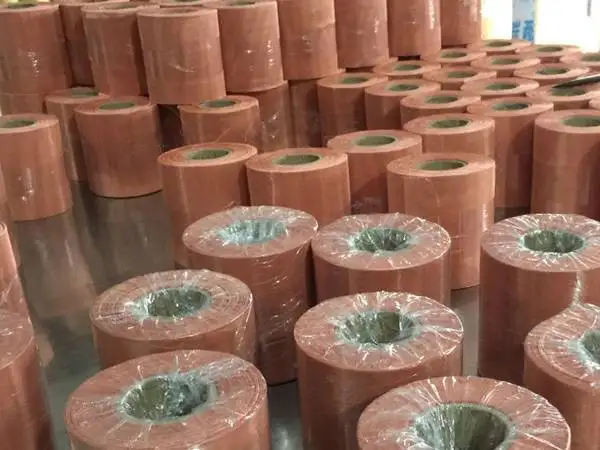

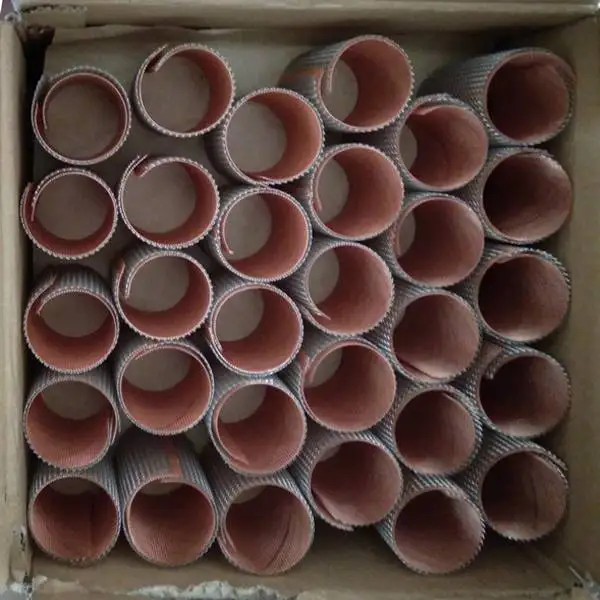

Product packaging
Manufacturing Technique
Company Profile
Customer Photos
FAQ
Q:What the wire mesh price depend on?
A: Pricing for wire mesh depend on many factors,such as wire diameter,mesh counts,weight per rolls,etc,If the specification is
definite, then the price upon quantity required, Generally speaking, the quantity is larger ,the price is better. The most common
way pricing is provided is by the square foot or square meter.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge but need buyer to pay the cost of freight.
Q: What is your minimum order quantity?
A: Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.
Q: How about your delivery time?
A:One 20ft container can be produced within 25-30 days. A 40ft container can be produced within 30-35 days.
Q: What is your minimum order quantity?
A: Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.
A: Pricing for wire mesh depend on many factors,such as wire diameter,mesh counts,weight per rolls,etc,If the specification is
definite, then the price upon quantity required, Generally speaking, the quantity is larger ,the price is better. The most common
way pricing is provided is by the square foot or square meter.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge but need buyer to pay the cost of freight.
Q: What is your minimum order quantity?
A: Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.
Q: How about your delivery time?
A:One 20ft container can be produced within 25-30 days. A 40ft container can be produced within 30-35 days.
Q: What is your minimum order quantity?
A: Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.
