Hi-Target TS5pro Ihand55 Controller Latest Hi Survey Software Base And Rover Set

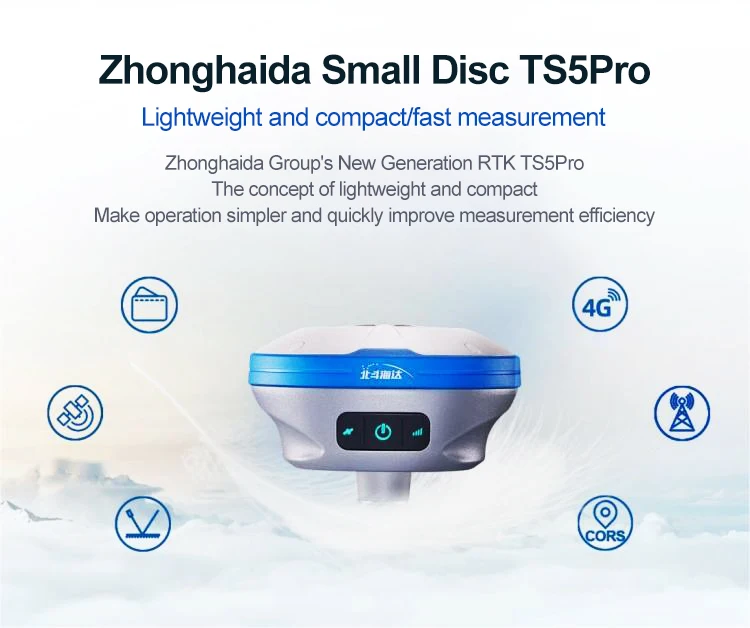

TS5Pro is a mini high-end GNSS receiver under the HI-TARGET brand, which supports satellite station differential, built-in 4G full network communication, and multi-protocol radio. Adopting a brand new design and magnesium alloy structure, it is an ultimate, intelligent, and lightweight measurement GNSS receiver.
Linux 3.2.0 operating system with built-in high-definition OLED display screen and capacitive touch screen.
Linux 3.2.0 operating system with built-in high-definition OLED display screen and capacitive touch screen.
PRODUCT SPECIFICATIONS
Performance | Channels | 800 | ||
1 | GPS | L1C/A, L1C, L2P, L2C, L5 | ||
2 | BDS | B1I, B2I, B3I,BIC,B2a,B2b | ||
3 | GLONASS | G1, G2, G3 | ||
4 | Galileo | E1, E5a, E5b, E6c, E5 AltBOC | ||
5 | QZSS | L1C/A, L2C, L5, L1C | ||
6 | ||||
7 | ||||
8 | Signal Recapture | ≤1s | ||
RTK Initialization Time | ＜10s | |||
Static and Fast Static | 2.5 mm + 0.5 ppm Horizontal 5 mm + 0.5 ppm Vertical | |||
SBAS | 0.5m Horizontal 0.8m Vertical | |||
Standalone | 1.5m 3D RMS | |||
Data Update Rate | 1Hz, 2Hz, 5Hz, 10Hz | |||
reliability | ≥99% | |||
Internal Memory | 8GB(default),16GB/32GB(optional) | |||

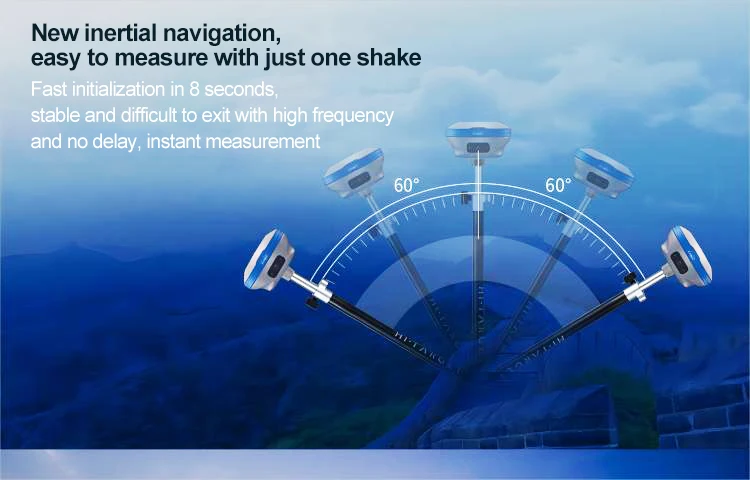

Tilt Survey | Up to 60°tilt with 2.5 cm accuracy | |||

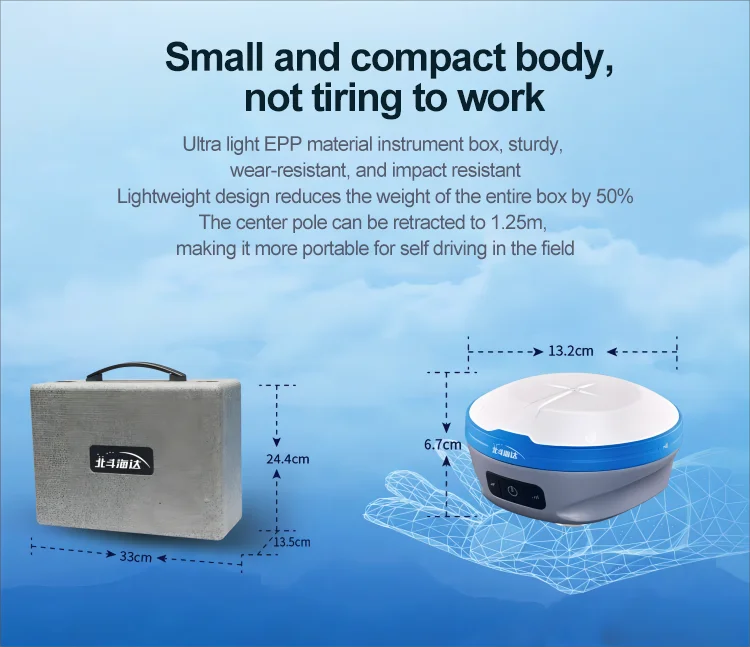

Physical | Dimension | 139±1mm(φ), 65±1mm(H) | ||
Weight | 670g including battery | |||
Working Temperature | -30℃~+65℃ | |||
Storage Temperature | -40℃~+85℃ | |||
Humidity | 100% non-condensing | |||
Waterproof and Dustproof | IP67 | |||
Voltage | 5/9V | |||
Power Consumption | RX mode≤1.8W, TX mode≤3.6W | |||
Over Current Protection Voltage | 30V, VBUS 9.99V | |||
Charging Time | <5h(QC2.0) | |||
Battery life | up to 13h | |||
Bluetooth | Bluetooth 5.0 Dual-Mode | |||
UHF Power Consumption | 0.5W, 1W, 2W adjustable | |||
Air Baud Rate | 9600/19200 adjustable | |||
Datalink Channel Space | Tx/Rx with full frequency range from 410-470MHz | |||
Serial Port | Support serial communication | |||
USB | Type-C | |||
