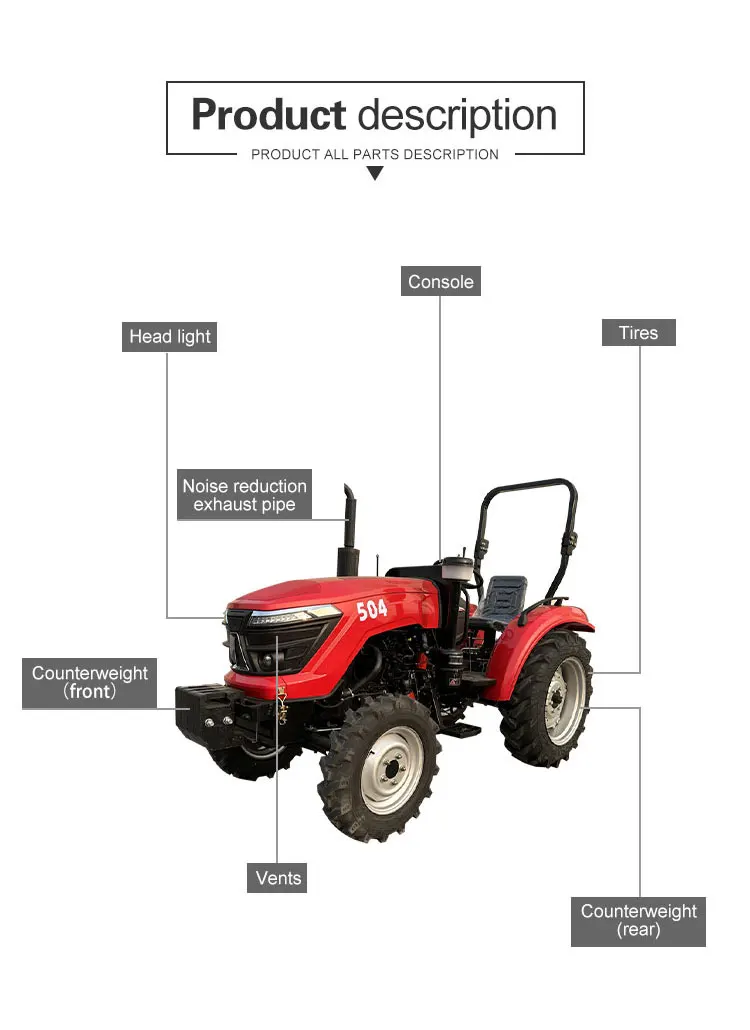

Product Overview

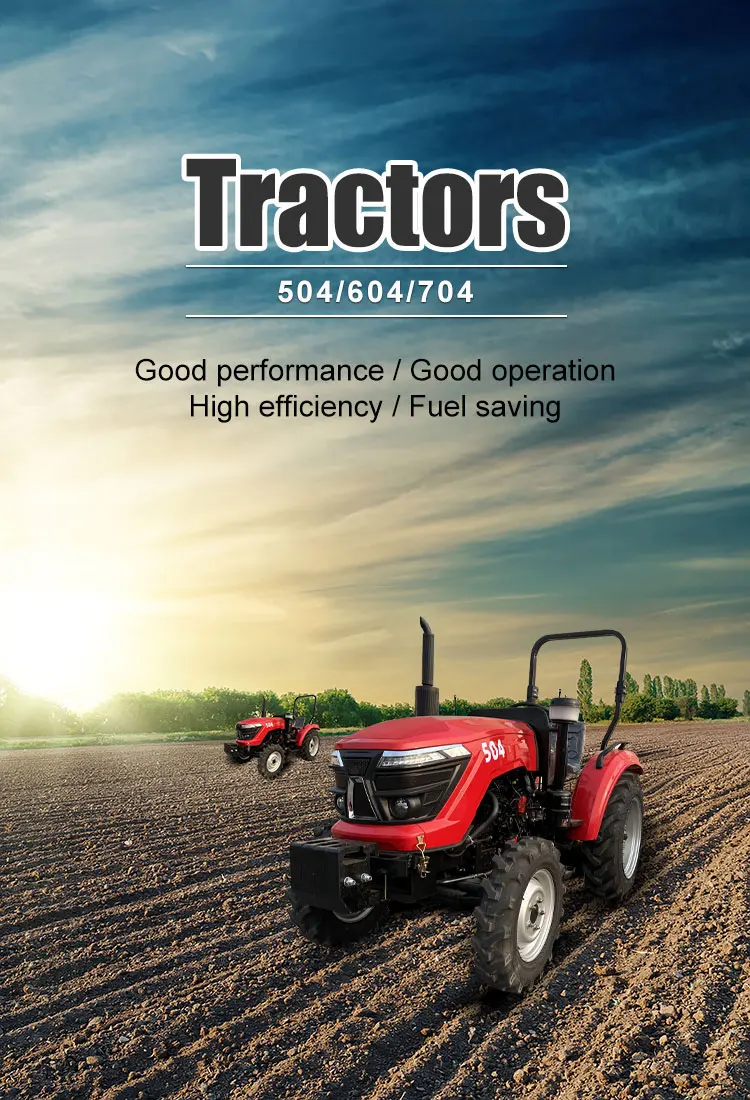

50-80HP Tractor
A heavy duty tractor with excellent maneuverability, visibility and comfort in one package.This tractor equipped with Heavy-duty MFWD front axle with limited slip increases traction in tough conditions . It also reduces wheel slippage with less tractor ballasting for reduced soil compaction, increased fuel economy, and longer tire life
PRODUCT SPECIFICATIONS
Model | 50HP, 4x4WD | |
Engine | LAIDONG KM490B | |
Rated power | 36.8 KW | |
Weight with ROPs | 1650kgs | |
External Dimensions (L*W*H) | 3100*1400*1640mm (with ROPs) | |
1x40”HC container Load capacity | 16units (without cabin) 6units (with cabin) | |
Configuration | ||
Double-stage clutch | ||
Hydraulic steering | ||
Front Ballast 50kg | ||
Rear Ballast 60kg | ||
Creeper gear 8F+2R(optional 8F+8R) | ||
One Valve Device | ||
ROPs | ||
Swing bar | ||
Specification | ||||||
Tractor Parameters | Model | 504 | ||||
Drive type | 4WD | |||||
Overall dimension LXWXH(mm) | 3100*1400*1640 | |||||
Wheel track(mm) | 1100 | |||||
Wheel base(mm) | 1950 | |||||
Min. distance from ground(mm) | 310(front drive axle under) | |||||
Structure Weight | with ROPs | 1650kg | ||||
Turning Round Radius(m) | without single break | 3.6±0.3 | ||||
Theoretical Speed(km/h) | Forward | 2.31/31.46(general gear) 0.46-31.46(creeping gear) | ||||
Reverse | 3.1-10.78(general gear) 0.62-10.78(creeping gear) | |||||
Engine Specifications | Type | Diesel, Vertical put, Four-stroke, water-cooling, spray directly combustion chamber | ||||
Rated Power(km)/Rotation(r/min) | 36.8/2400 | |||||
Diesel Consumption(g/km/h) | ≤228 | |||||
Machine Oil Consumption(g/km/h) | ≤1.63 | |||||
Cylinder no. | 4 | |||||
Drive System | Clutch | Dual-stage clutch | ||||
Gear Box | 8F+2R(optional 8F+8R) | |||||
Hydraulic System | Hydraulic Capacity(L) | 20 | ||||
Hydraulic Flow(L) | 33.6 | |||||

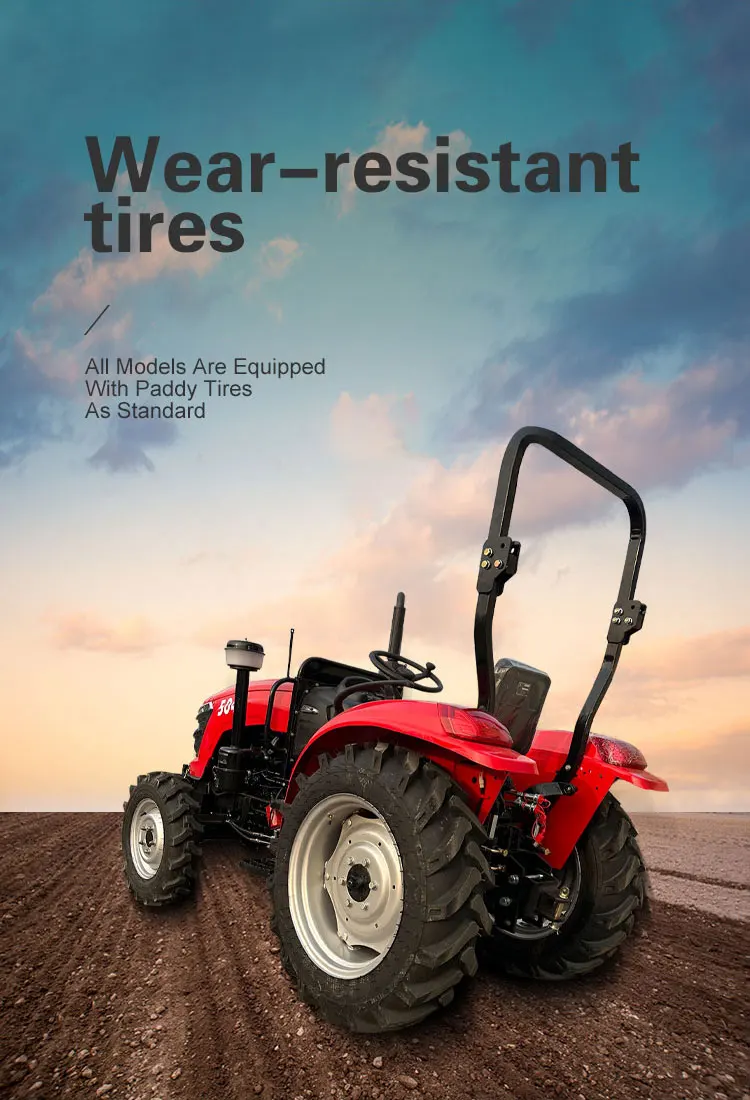

Travelling Mechanism | Tyre Size | Front | 650-16 | |||
Rear | 11.2-24 | |||||
Steering Gear Type | hydraulic steering | |||||
Driver Brake | Disk type | |||||
Working Device | Hydraulic System | System Max. Lift Capacity at 610mm of Suspension Point(KN) | >11.5 | |||
Suspension model | Rear, three-points suspension，Category: I | |||||
P.T.O Shaft | Rotating Speed(rpm) | 540/720 | ||||
Spline Size | φ35，6 Rectangular spline | |||||
Company Profile
RIMA Machinery is established in 2009,located in Xibeiyu Industry Zone,Laizhou,Shandong,China.
With its strong technique power,complete set of manufacture equipments and experimental devices,advanced CAD R&D means, the company has complete production capaicty from cutting,profiling,welding,maching,paiting to packing.
RIMA has aleady manufactured a full range of high quality implements for the small to medium-sized tractor owners across the world,Such as Front End loader, Backhoe, Mower, rotary tiller, Wood Chipper, Log Splitter, Post Hole Diggers. more than 50 serialsand more than 150 models of various implements.
With its strong technique power,complete set of manufacture equipments and experimental devices,advanced CAD R&D means, the company has complete production capaicty from cutting,profiling,welding,maching,paiting to packing.
RIMA has aleady manufactured a full range of high quality implements for the small to medium-sized tractor owners across the world,Such as Front End loader, Backhoe, Mower, rotary tiller, Wood Chipper, Log Splitter, Post Hole Diggers. more than 50 serialsand more than 150 models of various implements.
