Электронные Многослойные Печатные платы Fumax shenzhen сборка печатных плат
- Категории: Multilayer PCB >>>
- Поставщик: Shenzhen,Fumax,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

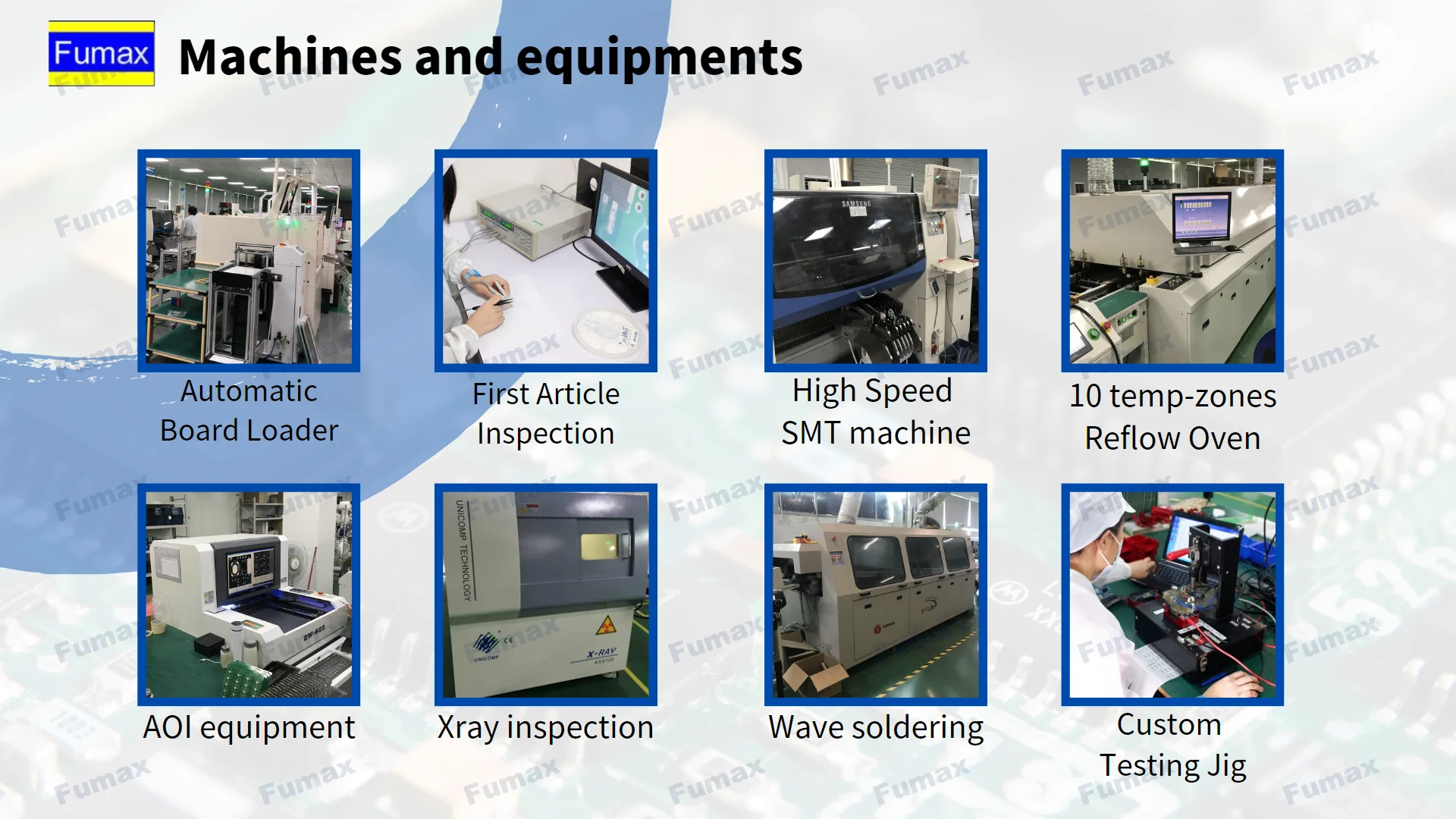

Why Fumax
Types of Assembly | SMT (Surface-Mount Technology) |
THD (Thru-Hole Device) | |
SMT & THD mixed | |
Double sided SMT and THD assembly | |
SMT capability | PCB layer: 1-32 layers; |
PCB material: FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, FR-1, FR-2, Aluminum Boards; | |
Board type: Rigid FR-4, Rigid-Flex boards | |
PCB thickness: 0.2mm-7.0mm; | |
PCB dimension width: 40-500mm; | |
Copper thickness: Min:0.5oz; Max: 4.0oz; | |
Chip accuracy: laser recognition ±0.05mm; image recognition ±0.03mm; | |
Component size: 0.6*0.3mm-33.5*33.5mm; | |
Component height: 6mm(max); | |
Pin spacing laser recognition over 0.65mm; | |
High resolution VCS 0.25mm; | |
BGA spherical distance: ≥0.25mm; | |
BGA Globe distance: ≥0.25mm; | |
BGA ball diameter: ≥0.1mm; | |
IC foot distance: ≥0.2mm; | |

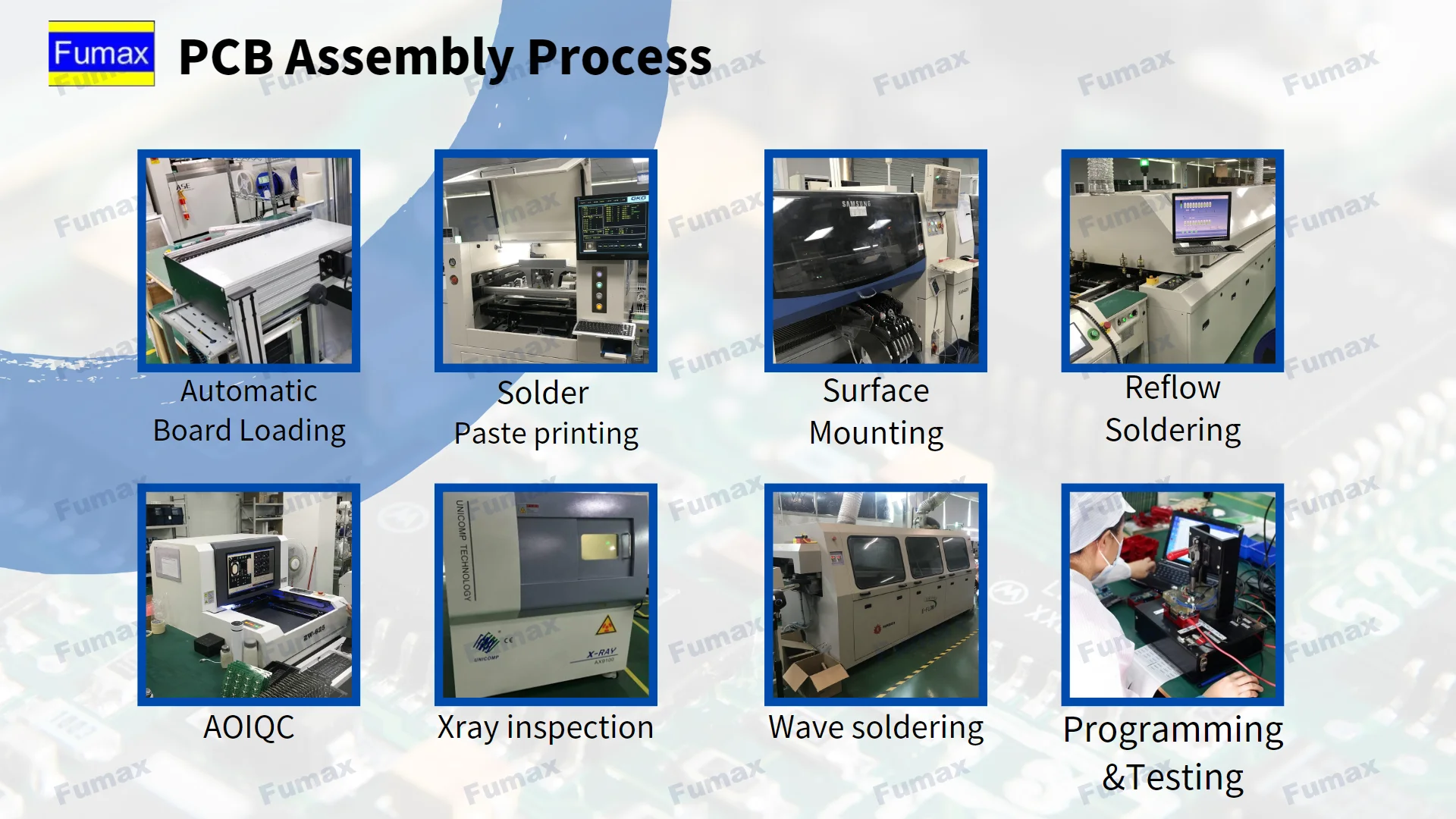

Assembly process | Lead-Free (RoHS, REACH) |
Electrical testing | AOI (Automated Optical Inspection), |
X-ray Inspection | |
ICT (In-Circuit Test)/ Functional testing |
Our Certificate

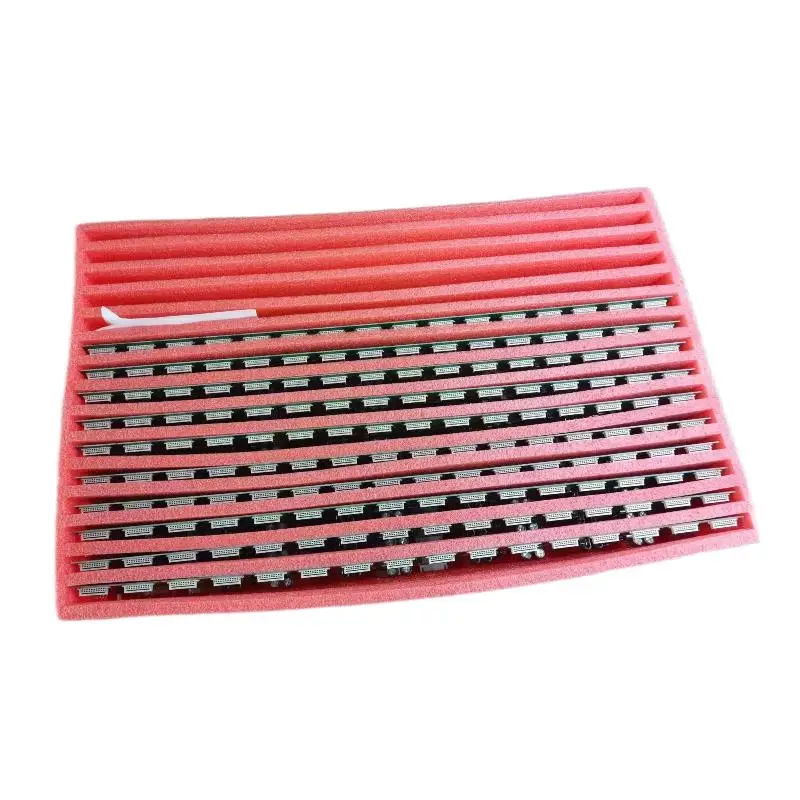

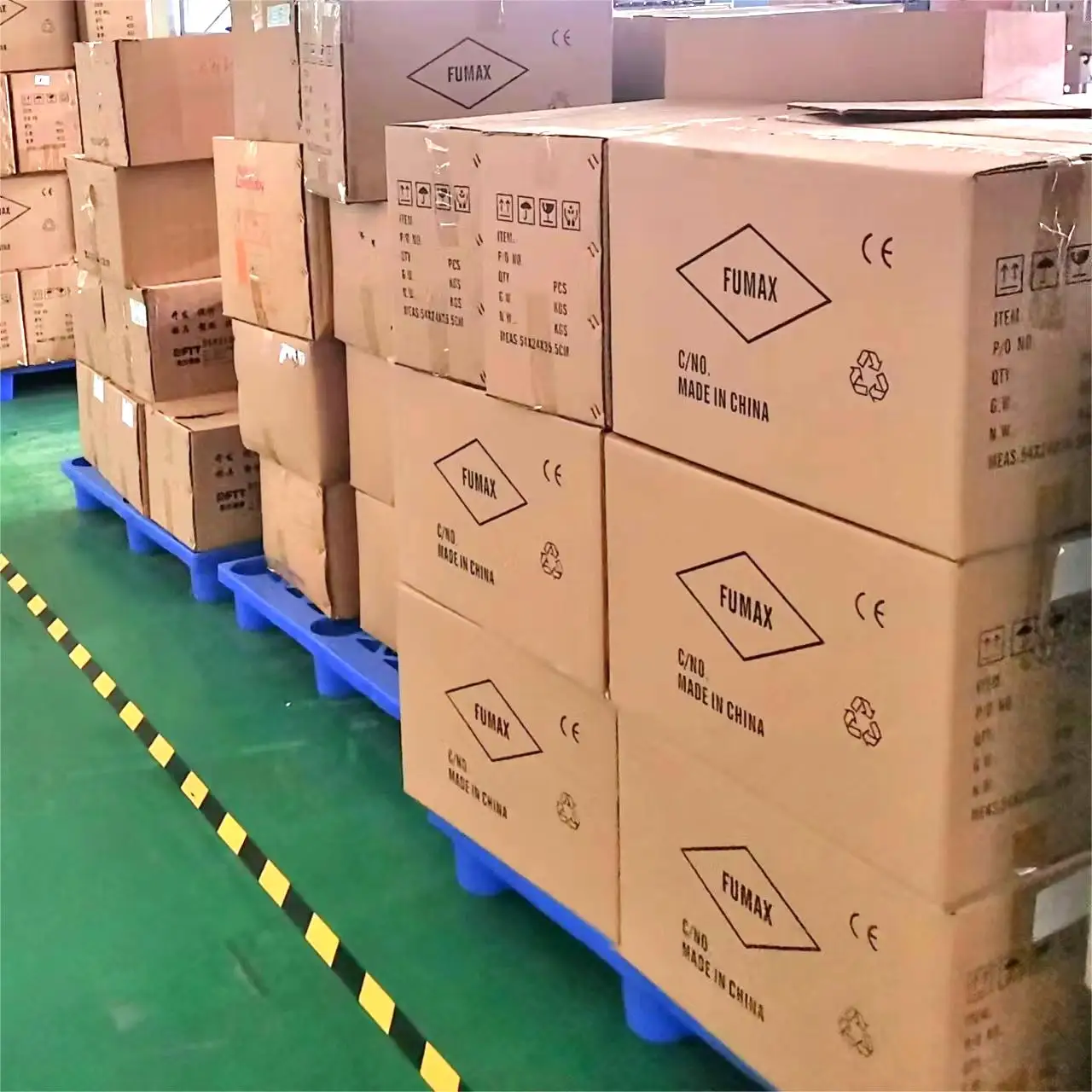

Shipment and Payment
FAQ
Customer: For small quantity orders, can you produce prototype PCBs?
Fumax: YES, Fumax can produce prototypes, but the greater the quantity, the greater the cost saving
Fumax: We mainly focus on electronic contract manufacturing service for OEM&ODM( PCB fabrication,
components procurement, and PCB assembly service). Besides providing IC programming,
PCBA functional testing, cables, box build assembly and shipping service.
Customer: What file formats do you accept for PCB and PCB assembly?
Fumax: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
Customer: What's your testing policy?
Fumax: In order to guarantee the product quality, usually tested by flying probe; Electrical fixture; AOI;
Customer: What file formats do you accept for PCB and PCB assembly?
Fumax: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
Customer: What's your testing policy?
Fumax: In order to guarantee the product quality, usually tested by flying probe; Electrical fixture; AOI;
X-Ray for BGA parts; First article inspection(FAI).
Customer: What are the main products of your PCB/PCBA services?
Fumax: Automotive, Medical, Industry Control, IOT, Smart Home, Military, Aerospace, Customer Electronics.
