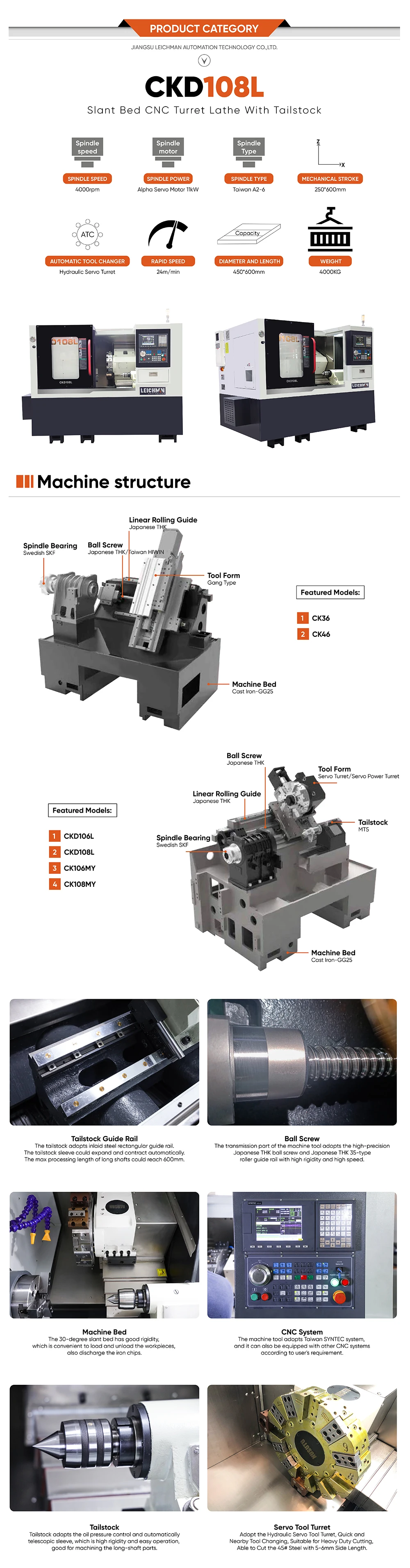

Leichman дешевая заводская цена CKD108L CNC Live Tooling японский токарный станок с живой

Item

Unit

CKD108L

CKD106L

Capacity

Max swing over bed

mm

450

450

Max cutting diameter

mm

450

450

Max cutting length

mm

600

600

Travel

X axis travel

mm

250

250

Z axis travel

mm

600

600

Precision

Spindle runout

mm

0.004

0.004

X//Y/Z axis reposition precision

mm

0.002

0.002

Spindle

Spindle speed

rpm

4000

5000

Chuck diameter

inch

8”

6”

Spindle nose

A2-6

A2-5

Spindle bore

mm

63

56

Max bar diameter

mm

52

45

Turret

Type

12-station servo turret

12-station servo turret

Outer Shank dia.

25

25

Inner shank dia.

mm

40

40

Tailstock

Sleeve diameter

mm

80

80

Sleeve taper

MT5

MT5

Travel(manual)

mm

480

480

Sleeve travel

mm

100

100

Rapid speed

X axis rapid speed

m/min

24

24

Z axis rapid speed

m/min

24

24

Motor power

Spindle

kw

11

7.5

X axis feed motor

kw

2.4

2.4

Y axis feed motor

kw

2.4

2.4

Other

Dimension

Mm

2440×1700×1800

2440×1700×1800

Weight

kg

4000

4000
