Многоканальный IP аудио
Многоканальный IP аудио

Многоканальный IP аудио


Поделиться:

Цена:400,00 $ - 422,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



KEY FEATURES

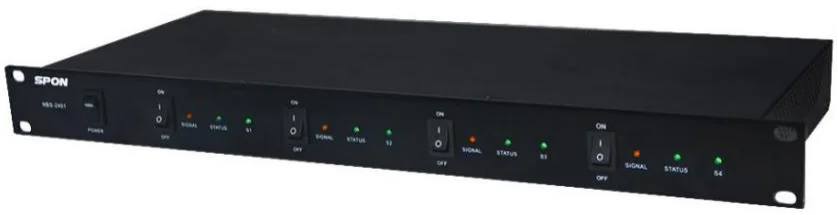

● 1U rack-mount design with a brushed aluminum panel and rugged all-metal housing, sturdy and durable.
● Easy configuration via user-friendly web interface.
● 4 separate line inputs (one for each channel) are available for connecting external music source equipment such as CD player or AM/FM tuner.
● 4 independent network encoders (one for each channel) for encoding 4 separate channels of analog audio signal, the encoded network audio signals will be transmitted to the server via the network and thus transmitted to any other IP audio device in the same IP PA system.
● 4 separate line outputs (one for each channel) can be used to connect to the external analog amplifiers for the transmission of the decoded analog audio signal.
● 4 independent network decoders (one for each channel) for decoding 4 separate channels of network audio signal simultaneously, the decoded analog audio signals will be transmitted to external analog amplifier via 4 line outputs.
● Work with SPON® audio management software for powerful features such as live and scheduled voice announcements, real-time and timed background music, emergency notification alerting, zone paging, etc.


Product Parameters


Power Supply:
AC 120V-240V 50/60Hz
Power Consumption:
≤20W
Network Protocol:
TCP/IP, UDP, ARP, ICMP, IGMP
Audio Codec:
MP3, PCM/L16, ADPCM
S/N (Signal-to-Noise) Ratio:
≥90dB
Audio Sampling & Bit Rate:
22.05kHz-44.1kHz, 16bit, 8kbps-320kbps
THD (Total Harmonic Distortion):
≤0.3% at 1kHz
Frequency Response:
100Hz-20kHz
Interface:
4×RJ45 Ethernet Port, 4×Line Input, 4×Line Output, 4×Relay Input, 4×Relay Output, 1×Power Input
Dimensions:
483×183×44mm
Weight:
4.2kg
Standard Accessories:
4×4-Pin Terminal Block Connector, 4×5-Pin Terminal Block Connector, 4×5 ft. RCA 2-Male to 2-Bare Wire Audio Cable, 1×Installation
Manual
Optional Accessories:
IEC C13 Power Cord (US/EU/UK/AU)

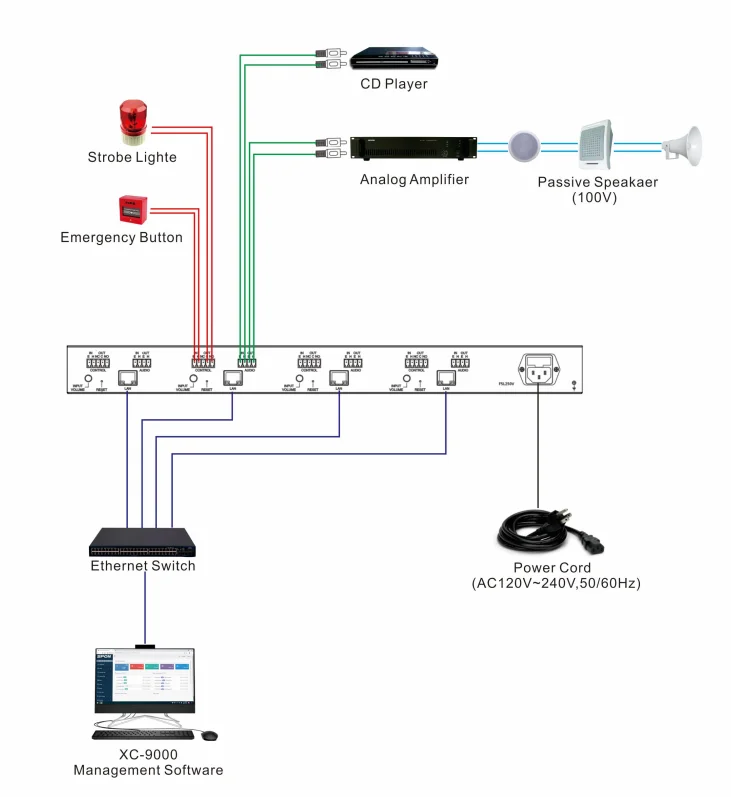

System Topology Diagram

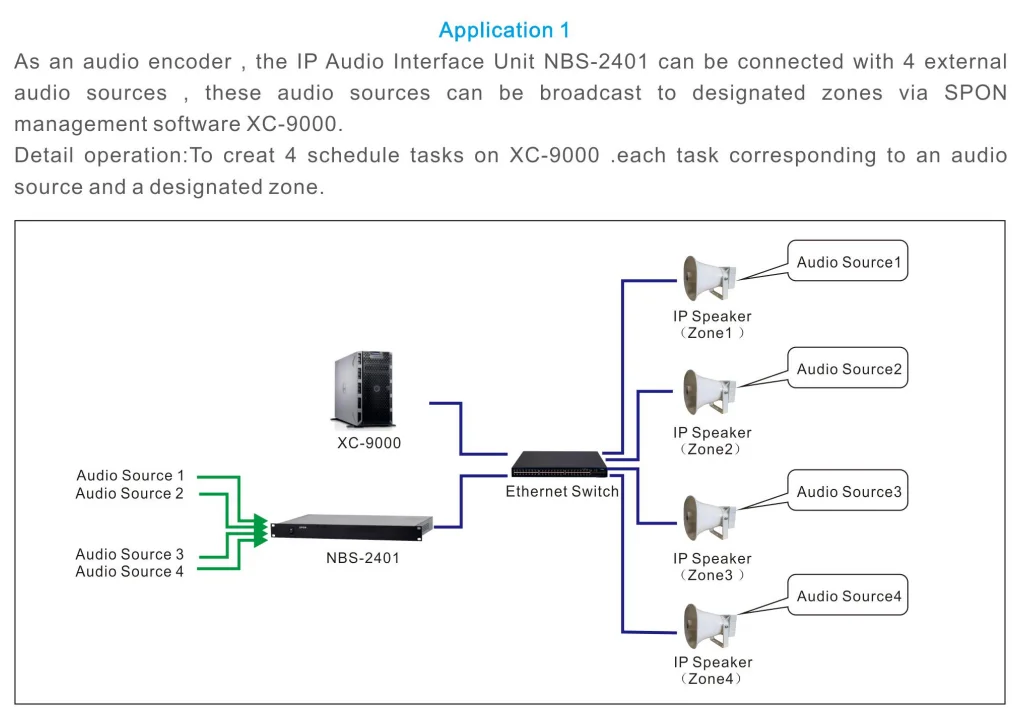

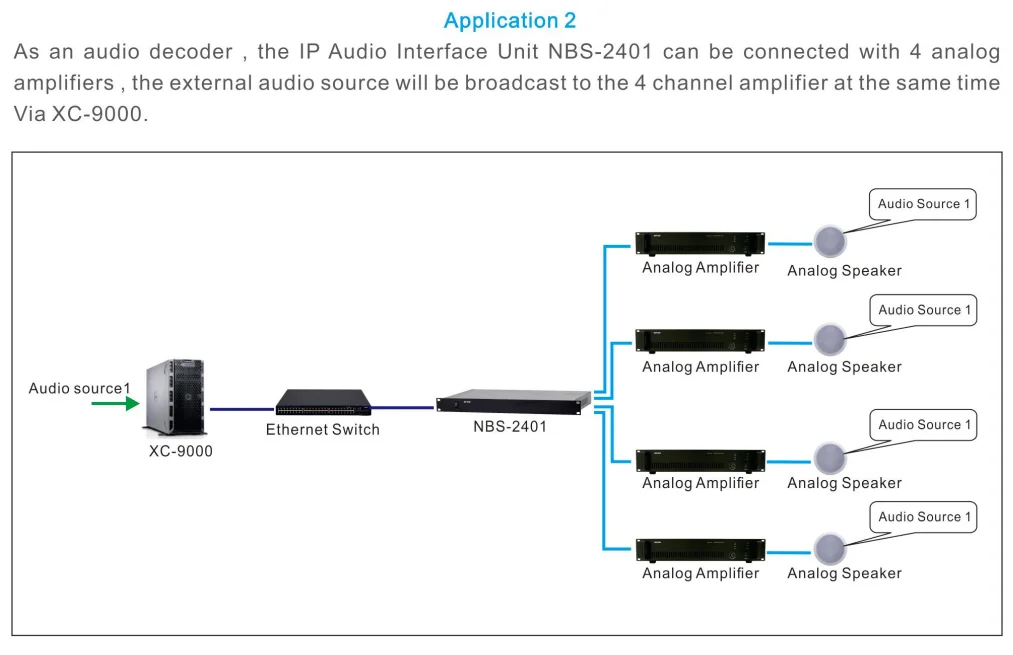

Typical Application






Company Profile








With over 20 years of experience in audio IoT research, development, and production, SPON stands at the forefront of the industry. Our state-of-the-art acoustic noise reduction laboratory, fully automated SMT factory, and spacious company premises spanning 15,000 square meters reflect our commitment to innovation and excellence.


Our Advantages




SPON's advantages lie in our technological expertise, customized approach, extensive experience, comprehensive support, state-of-the-art facilities, and unwavering commitment to quality. These factors set us apart and make us the preferred choice for audio technology solutions in the IoT industry.


SPON's Proud Team




FAQ


Q: How can I contact SPON's customer support team?
A: You can reach out to our customer support team through our hotline, email, or online support platform. Our dedicated team will promptly respond to your inquiries and provide the necessary technical supportand solutions.

Q: Does SPON offer OEM/ODM services?
A: Yes, SPON provides OEM/ODM services. We have extensive experience in working with clients to develop and manufacture customized products according to their specific requirements and branding needs.

Q: What are the benefits of choosing SPON for OEM/ODM services?
A: By choosing SPON for OEM/ODM services, you can benefit from our expertise in audio technology, extensive manufacturing capabilities, and dedicated team of professionals. We can help you bring your ideas to life, offering flexible customization options, quality assurance, and timely delivery of products. Our goal is to collaborate closely with you to create innovative and tailored solutions that meet your unique business needs.
