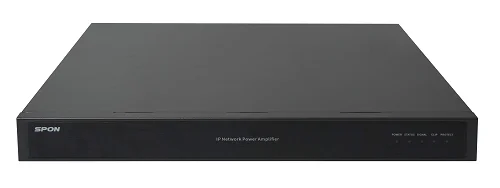

130/260/360/500 ватт 100 Вольт IP-Интегрированный усилитель IP-стоечный
130/260/360/500 ватт 100 Вольт IP-Интегрированный усилитель IP-стоечный
130/260/360/500 ватт 100 Вольт IP-Интегрированный усилитель IP-стоечный
130/260/360/500 ватт 100 Вольт IP-Интегрированный усилитель IP-стоечный
130/260/360/500 ватт 100 Вольт IP-Интегрированный усилитель IP-стоечный
130/260/360/500 ватт 100 Вольт IP-Интегрированный усилитель IP-стоечный

130/260/360/500 ватт 100 Вольт IP-Интегрированный усилитель IP-стоечный


Поделиться:

Цена:150,00 $ - 195,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Products Description


KEY FEATURES
● 1U rack-mount design with rugged steel housing, sturdy and durable.
● Easy configuration via user-friendly web interface.
● Fully integrated amplifier with multiple components built into one box, including preamp, network audio decoder and 70-volt/100-volt constant-voltage digital amplifier.
● Separate indicator LED (power/status/signal/clip/protection) on the front panel and independent volume adjustment knobs on the back panel give the user powerful local control on the amplifier.
● Complete protection circuits including over-current protection, short-circuit protection, overload protection, thermal protection, lightning protection, surge protection, etc.
● Scheduled bell ringing tasks with custom MP3 audio files can be stored in the FTP server of the amplifier, specific audio files can be played automatically at the specified time even when the amplifier is offline.
● Fully compliant 3rd party SIP endpoint, compatible with most mainstream on-premise and cloud/hosted VoIP telephone systems.
● Work with VoIP telephone system for live voice announcements.
● Work with SPON audio management software for powerful features such as live and scheduled voice announcements, real-time and timed background music, emergency notification alerting, zone paging, etc.

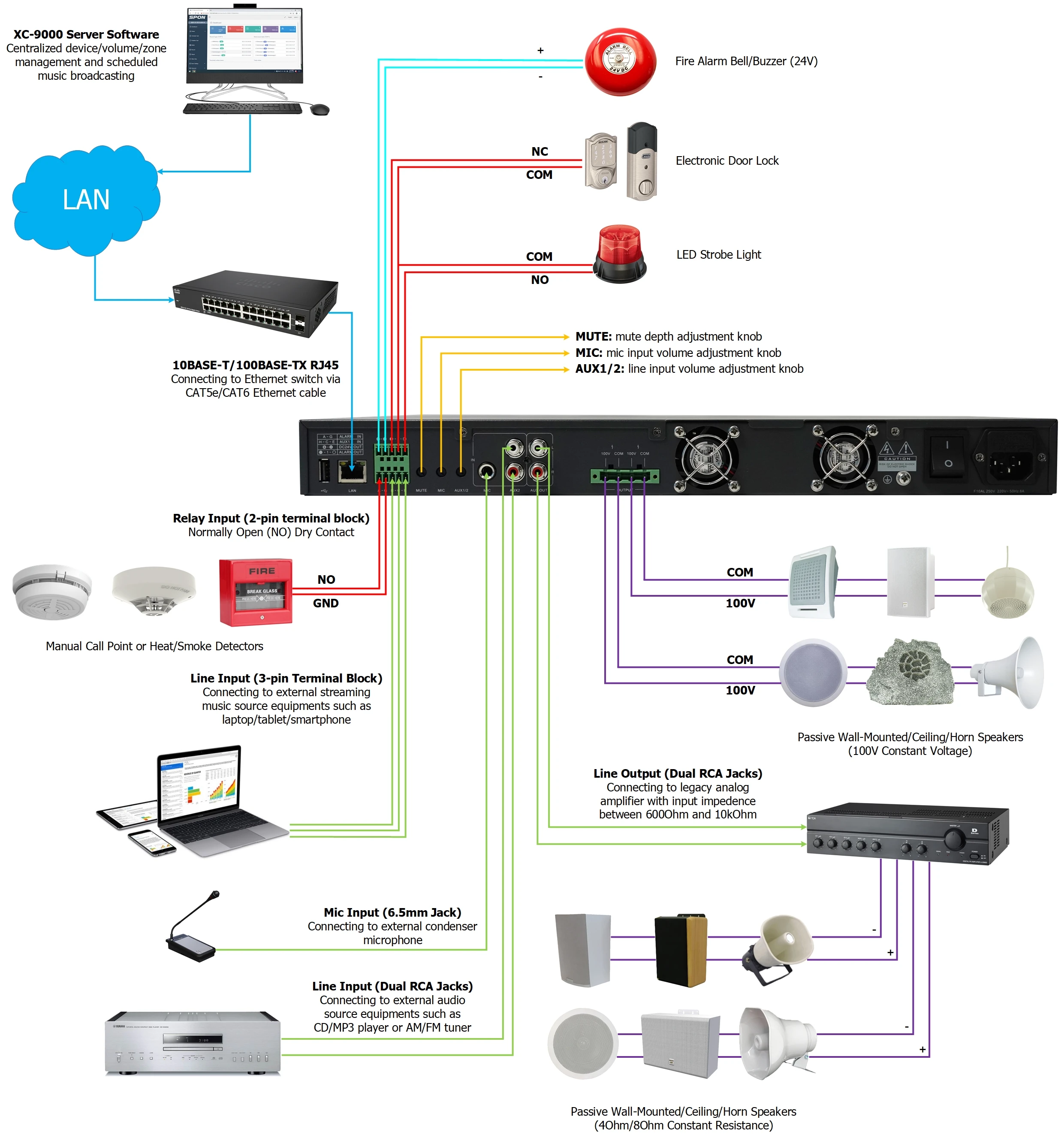

System Topology Diagram




Product Parameters


Model No.:
XC-9508P13
XC-9508P26
XC-9508P36
XC-9508P50
Power Supply:
AC 100V-240V 50/60Hz
Power Consumption:
≤160W
≤310W
≤420W
≤580W
Rated Power Output:
130W
260W
360W
500W
Network Protocol:
SIP 2.0 (RFC 3261), FTP, HTTP, DHCP, TCP/IP, UDP, ARP, ICMP, IGMP
Audio Codec:
G.711 A-law, G.711 μ-law, G.729, PCM/L16
S/N (Signal-to-Noise) Ratio:
≥84dB
THD (Total Harmonic Distortion):
≤0.5% at 1kHz, 1/2 rated output
Frequency Response:
80Hz-18kHz
Speaker Output:
70V/100V (Constant-Voltage)
Interface:
1×RJ45 Ethernet Port, 1×Line Input (Balanced), 1×Line Input (Unbalanced - RCA Jack), 1×Mic Input (1/4” TS Jack), 1×Line Output
(RCA Jack), 1×24V DC Forced Relay Output, 1×Relay Input, 1×Relay Output, 1×Speaker Output (70V/100V), 1×Power Input
Dimensions:
440×300×44mm
Weight:
3.45kg
Standard Accessories:
1×4-Pin Terminal Block Connector, 2×5-Pin Terminal Block Connector, 2×Rack Ear, 4×Rubber Foot, 1×Installation Manual
Optional Accessories:
IEC C13 Power Cord (US/EU/UK/AU)

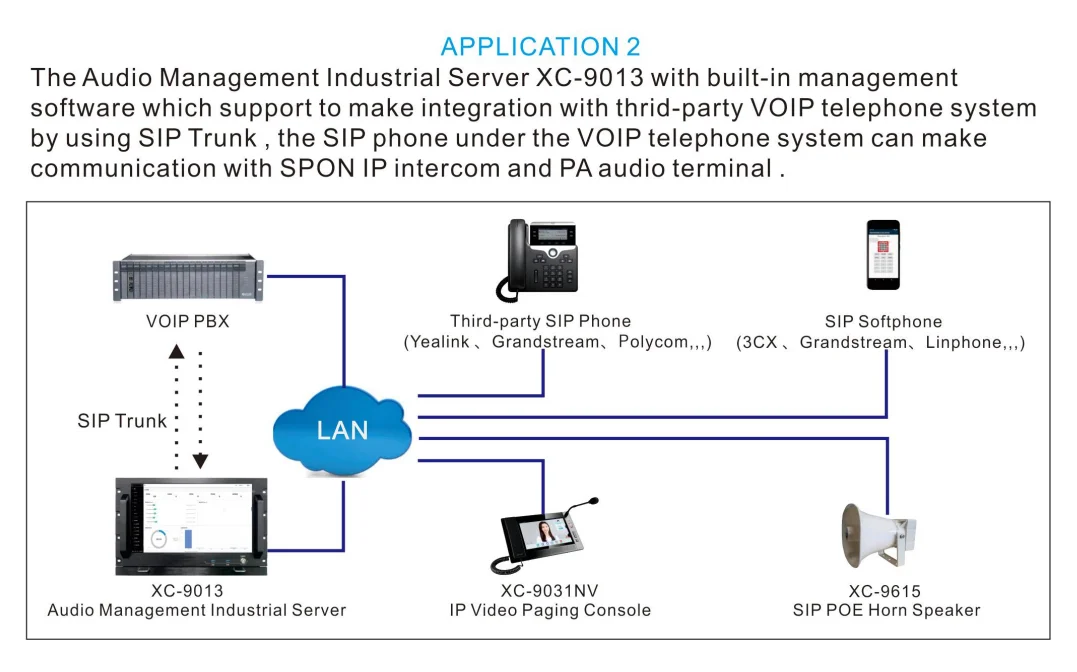

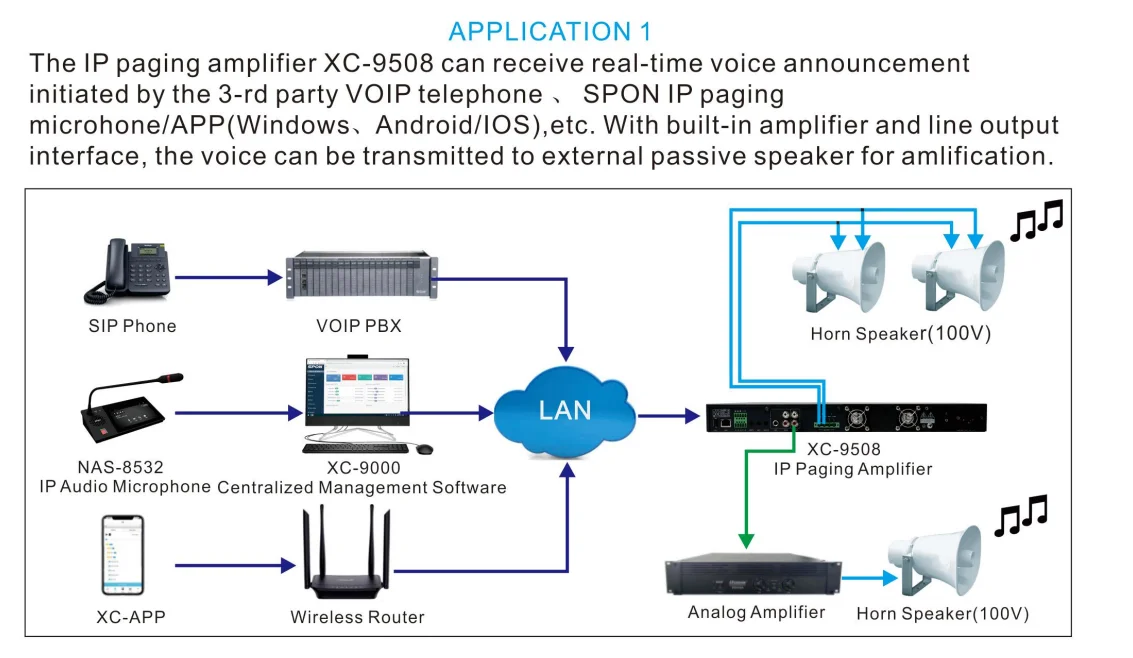

Typical Application








Company Profile








With over 20 years of experience in audio IoT research, development, and production, SPON stands at the forefront of the industry. Our state-of-the-art acoustic noise reduction laboratory, fully automated SMT factory, and spacious company premises spanning 15,000 square meters reflect our commitment to innovation and excellence.


Our Advantages




SPON's advantages lie in our technological expertise, customized approach, extensive experience, comprehensive support, state-of-the-art facilities, and unwavering commitment to quality. These factors set us apart and make us the preferred choice for audio technology solutions in the IoT industry.


SPON's Proud Team




FAQ


Q: How can I contact SPON's customer support team?
A: You can reach out to our customer support team through our hotline, email, or online support platform. Our dedicated team will promptly respond to your inquiries and provide the necessary technical supportand solutions.

Q: Does SPON offer OEM/ODM services?
A: Yes, SPON provides OEM/ODM services. We have extensive experience in working with clients to develop and manufacture customized products according to their specific requirements and branding needs.

Q: What are the benefits of choosing SPON for OEM/ODM services?
A: By choosing SPON for OEM/ODM services, you can benefit from our expertise in audio technology, extensive manufacturing capabilities, and dedicated team of professionals. We can help you bring your ideas to life, offering flexible customization options, quality assurance, and timely delivery of products. Our goal is to collaborate closely with you to create innovative and tailored solutions that meet your unique business needs.
