Products Description


KEY FEATURES
● High-grade aluminum alloy enclosure, suitable for installations in different environments.
● Outdoor weatherproof design, IP rating could reach IP65.
● Easy configuration via user-friendly web interface.
● All-in-one loudspeaker with built-in network audio decoder, class-D digital amplifier and DSP (digital signal processor), ensuring crystal clear voice intelligibility all the time.
● Built-in loop detector for remotely monitoring the loudspeaker’s working condition.
● Scheduled bell ringing tasks with custom MP3 audio files can be stored in the FTP server of the loudspeaker, specific audio files can be played automatically at the specified time even when the loudspeaker is offline.
● Fully compliant 3rd party SIP endpoint, compatible with most mainstream on-premise and cloud/hosted VoIP telephone systems.
● Work with VoIP telephone system for live voice announcements.
● Work with SPON? XC-9000 audio management software for powerful features such as live and scheduled voice announcements, real-time and timed background music, emergency notification alerting, zone paging, etc.


Dimensional Drawing

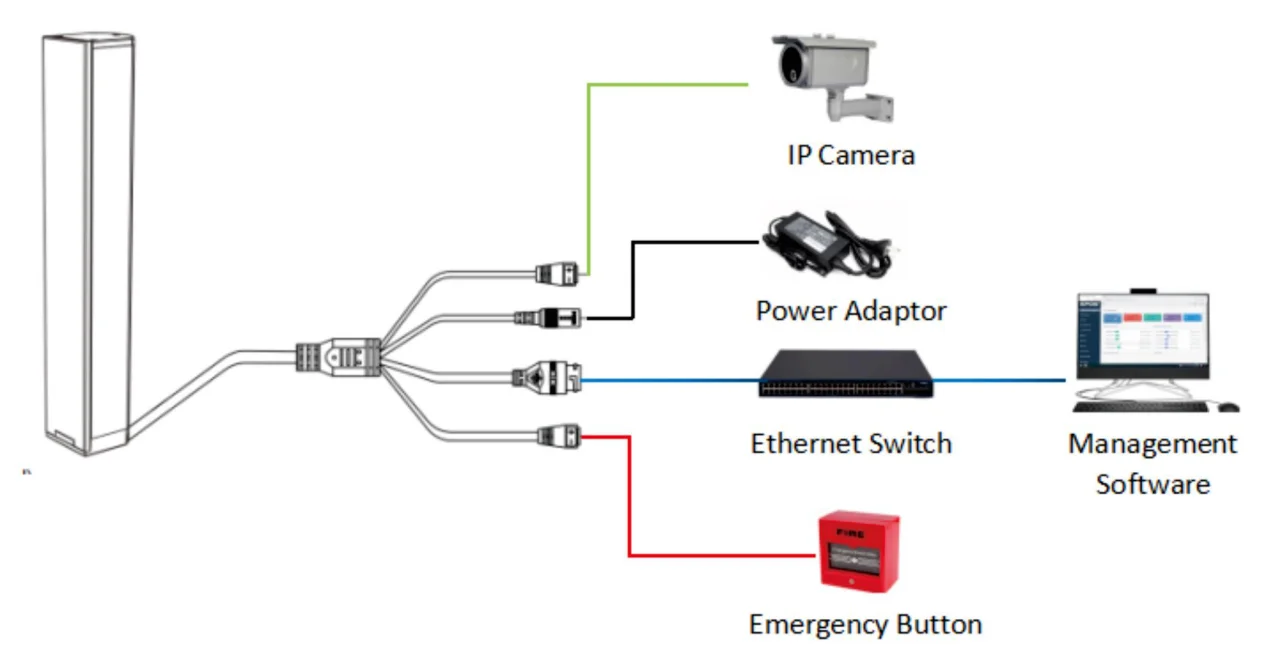

System Topology Diagram




Product Parameters


Model No.:
NAS-8507B03
NAS-8507B04
Power Supply:
DC 24V/2.7A
Power Consumption:
≤40W
≤50W
Rated Power Output:
30W
40W
Network Protocol:
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
Audio Codec:
MP3, PCM/L16, ADPCM
S/N (Signal-to-Noise) Ratio:
≥85dB
Frequency Response:
50Hz-20kHz
Interface:
1×RJ45 Ethernet Port, 1×Line Input, 1×Relay Input, 1×Power Input
IP Rating
IP65
Dimensions:
450×88.1×83.2mm
600×88.1×83.2mm
Weight:
2.2kg
2.8kg
Standard Accessories:
1×Waterproof Connector, 1×Fixing Bracket, 1×Mounting Bracket, 1×Installation Manual
Optional Accessories:
DC 24V/2.7A Power Adapter
IEC C13 Power Cord (US/EU/UK/AU)
