Introduction
Our company specialized in electronic components, open source accessory, sensor, LCD, OLED, IoT and smart home device. Aim to provide high quality products and professional service. Welcome inquiry!
Product Description
1/2/4/8 Channel ESP32 WIFI Bluetooth BLE Relay Module AC90-250V/DC5-30V Power Supply ESP32-WROOM-32E Development Board
ESP32 1/2/4/8-channel relay development board is equipped with ESP32-WROOM-32E WiFi&BLE module, all I/O ports are led out, and supports AC90-250V/DC5-30V power supply mode. It is suitable for ESP32 secondary development and learning, smart home wireless control and other occasions
Features:
1. 1 programmable LED and relay indicator onboard.
2. Onboard ESP32 module IO0 programmable button and reset button.
3. Onboard mature and stable ESP32-WROOM-32E module, large-capacity 4MByteFlash.
4. The I/O ports and UART program download ports of the ESP32 module are all led out, which is convenient for secondary development.
5. ESP32 supports the use of ArduinoIDE development tools and provides reference programs in the Arduino development environment.
6. Onboard 1/2/4/8 channel 5V relay, output switch signal, suitable for controlling and controlling the load whose working voltage is within AC250V/DC30V.
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1-3cm differences due to manual measurement.
Features:
1. 1 programmable LED and relay indicator onboard.
2. Onboard ESP32 module IO0 programmable button and reset button.
3. Onboard mature and stable ESP32-WROOM-32E module, large-capacity 4MByteFlash.
4. The I/O ports and UART program download ports of the ESP32 module are all led out, which is convenient for secondary development.
5. ESP32 supports the use of ArduinoIDE development tools and provides reference programs in the Arduino development environment.
6. Onboard 1/2/4/8 channel 5V relay, output switch signal, suitable for controlling and controlling the load whose working voltage is within AC250V/DC30V.
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1-3cm differences due to manual measurement.
Details Images

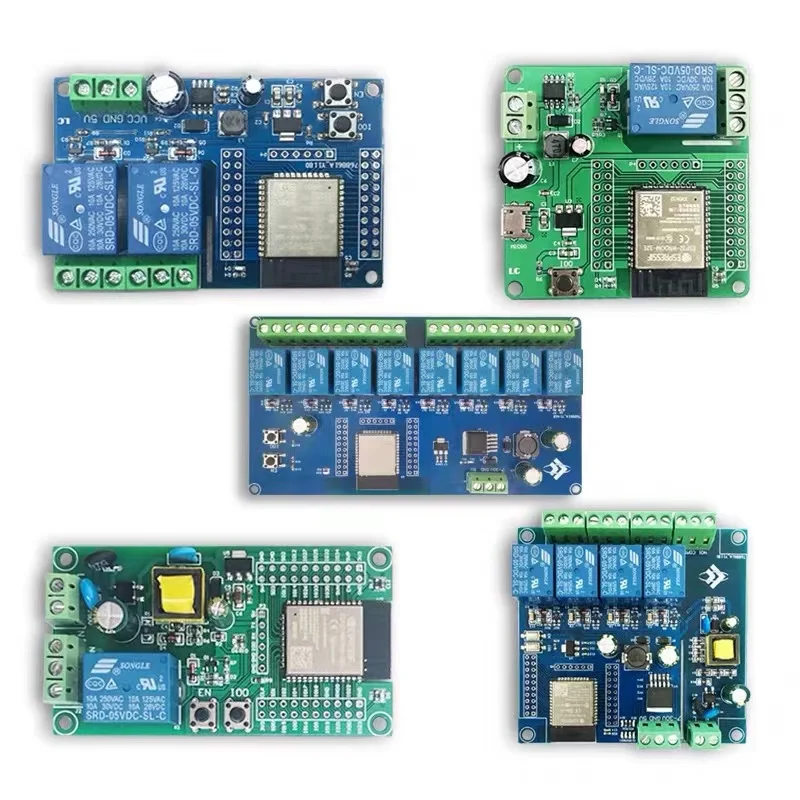

Application

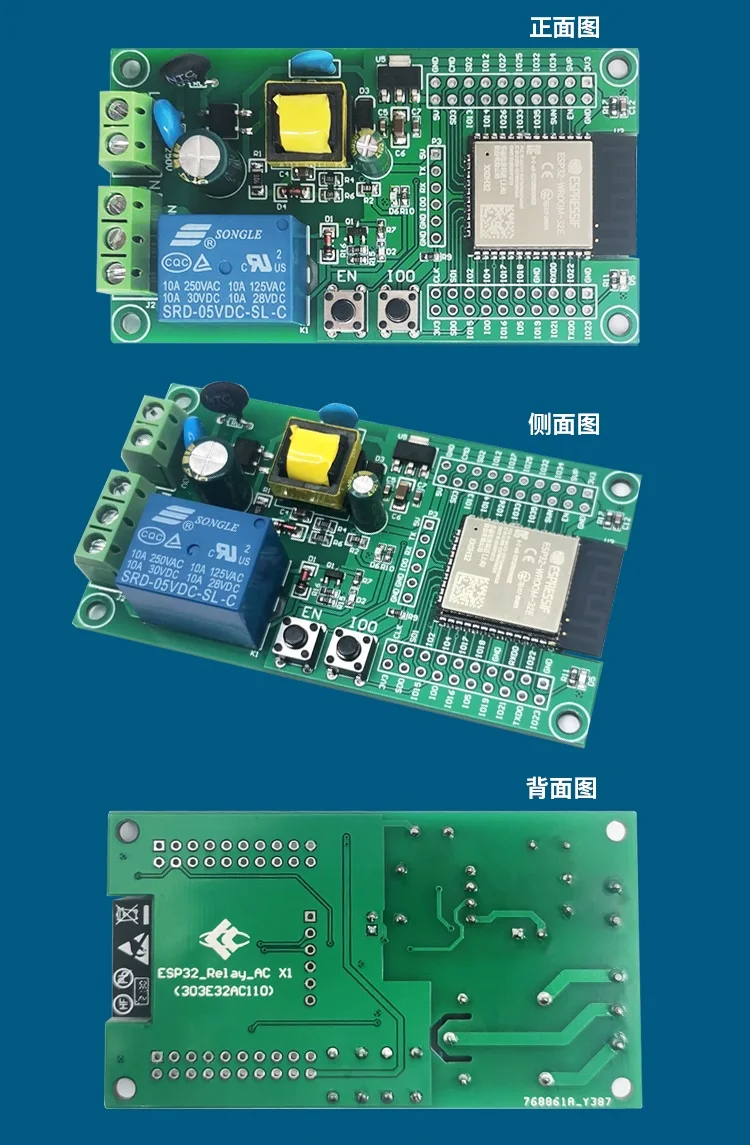

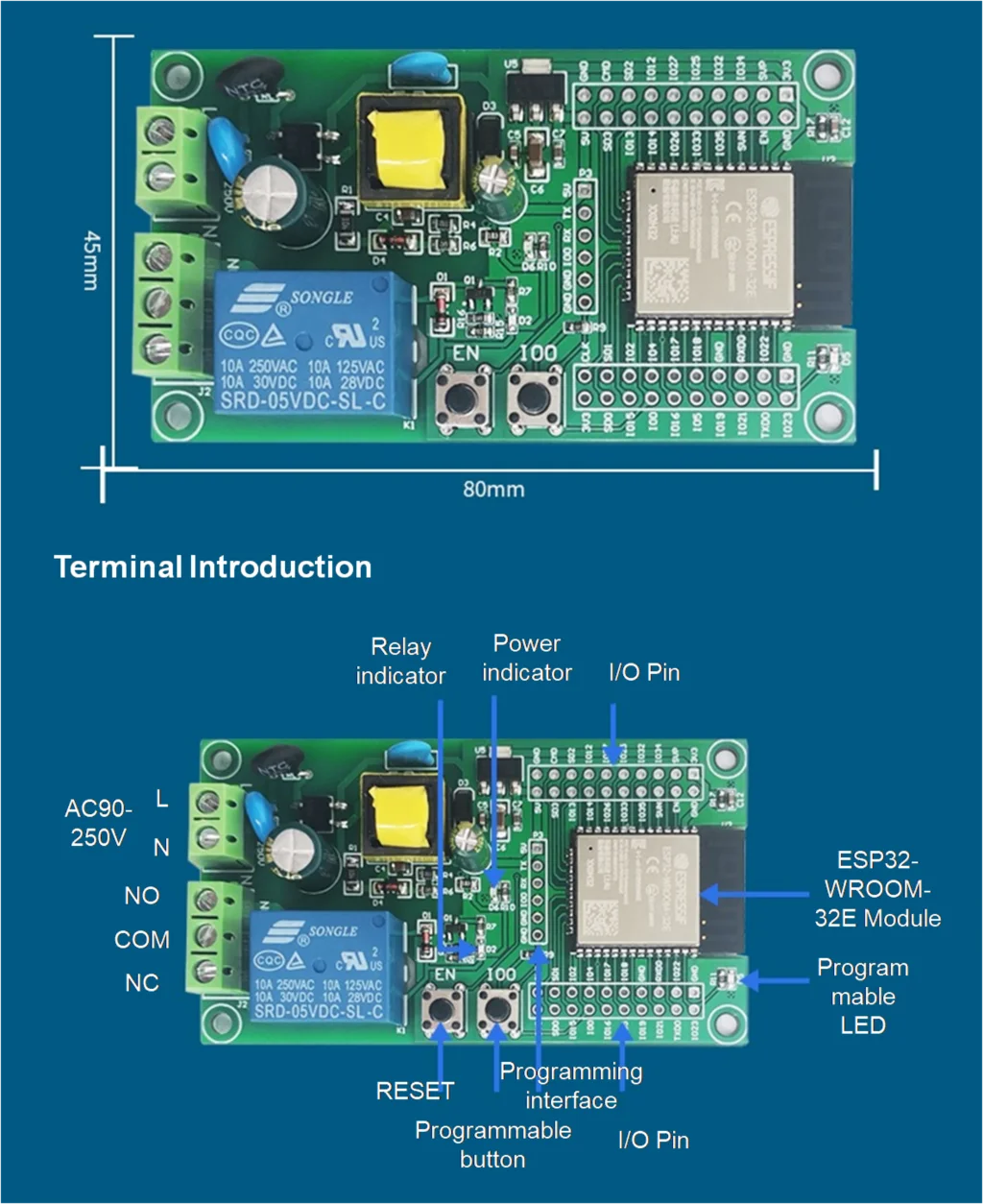

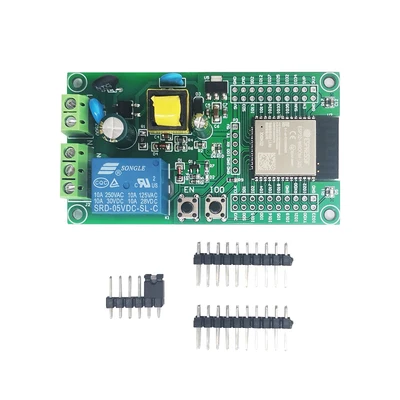

1. 1 Channel ESP32 Relay Module
Voltage: AC90-250V
Board size: 80*45mm
Board size: 80*45mm

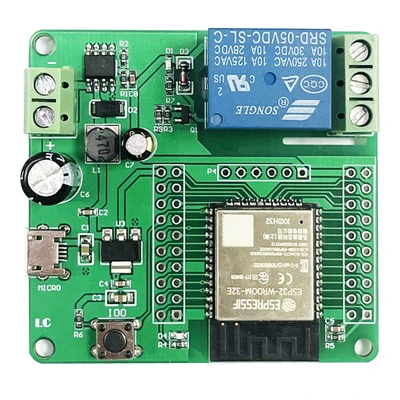

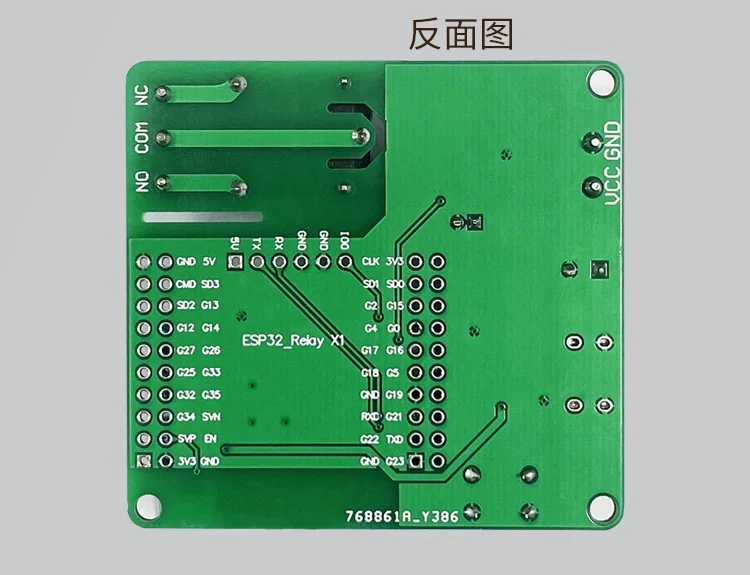

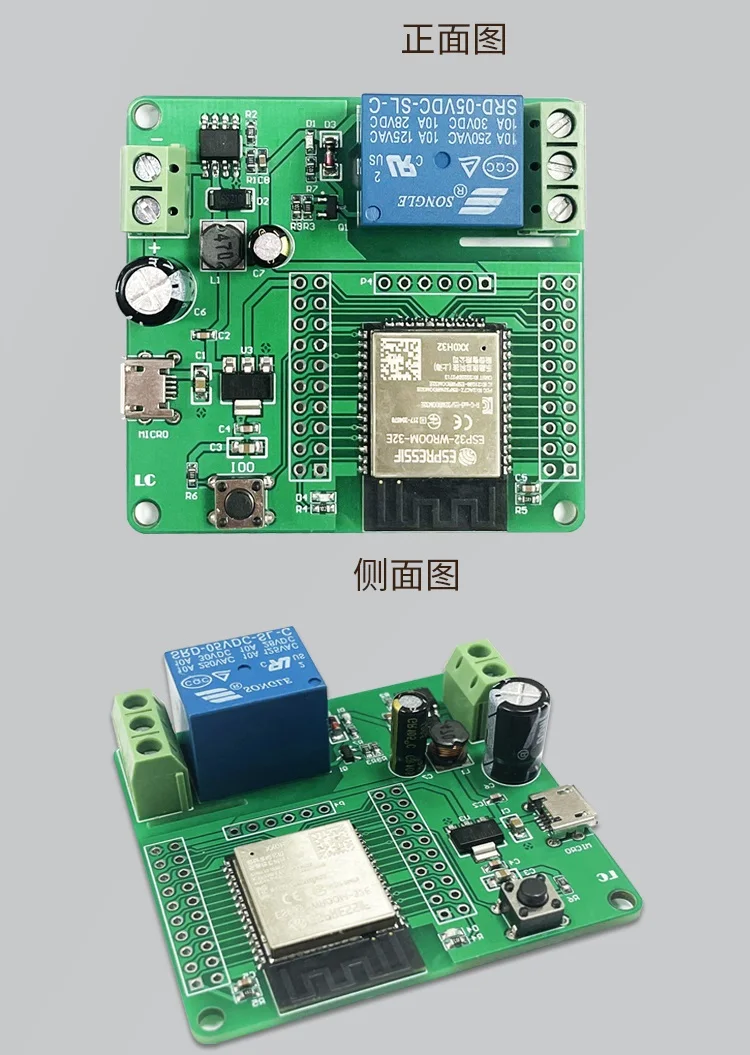

2. 1 Channel ESP32 Relay Module
Voltage: DC7-60V and Micro USB 5V
Board size: 57.5*53.7mm
Board size: 57.5*53.7mm

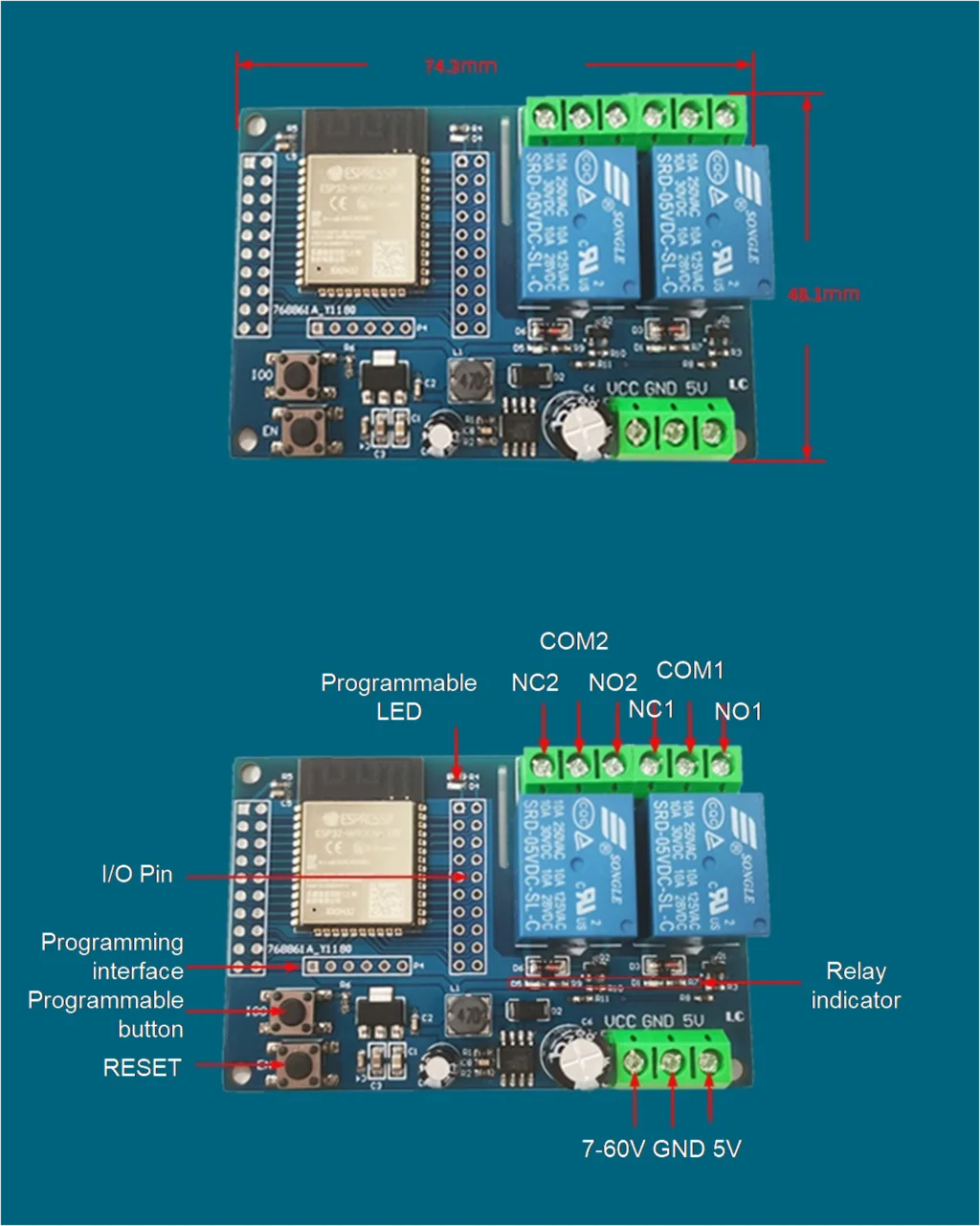

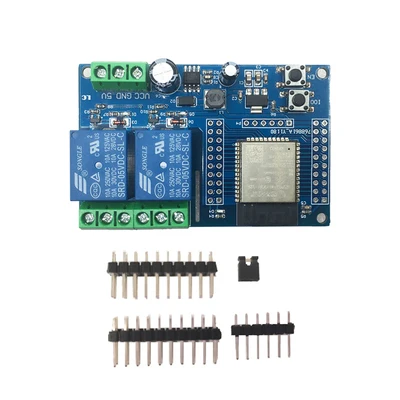

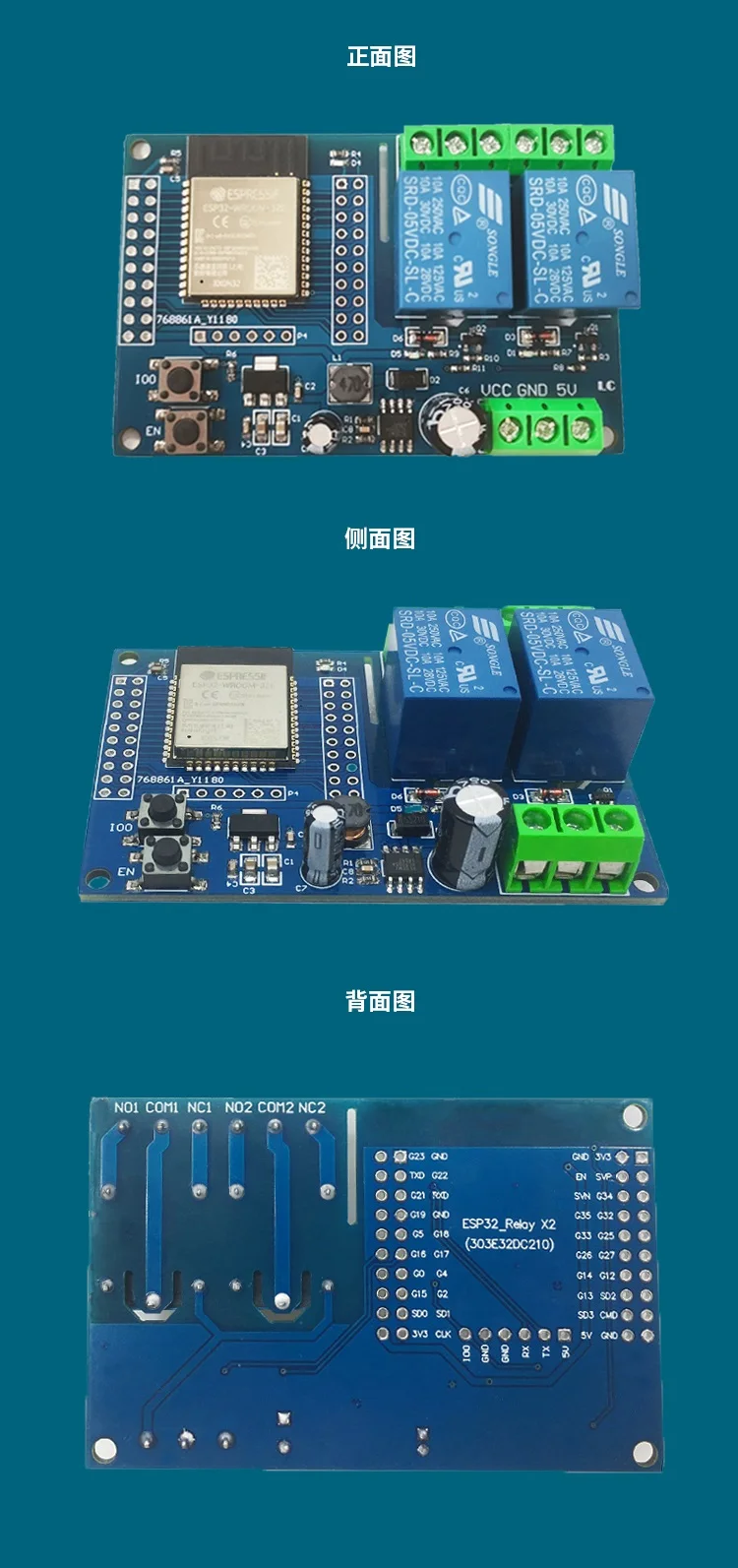

3. 2 Channel ESP32 Relay Module
Voltage: DC5-60V
Board size: 74.3*48.1mm
Board size: 74.3*48.1mm

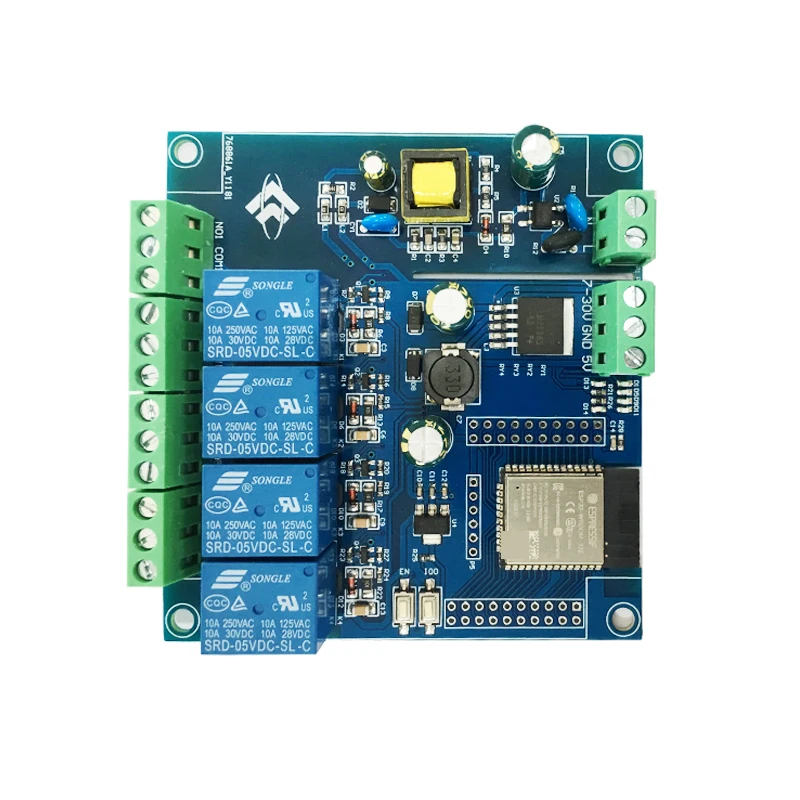

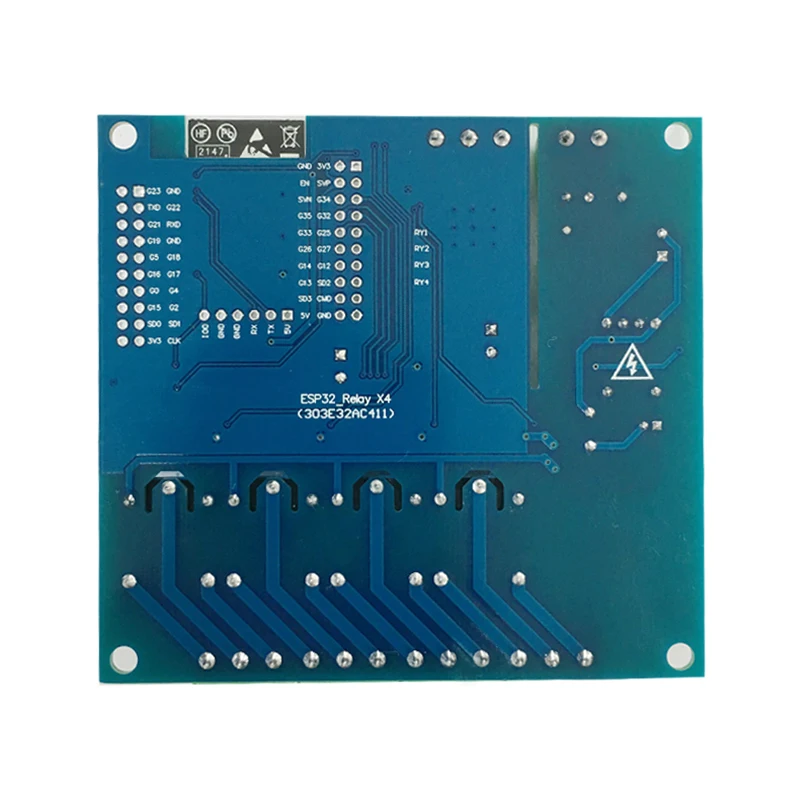

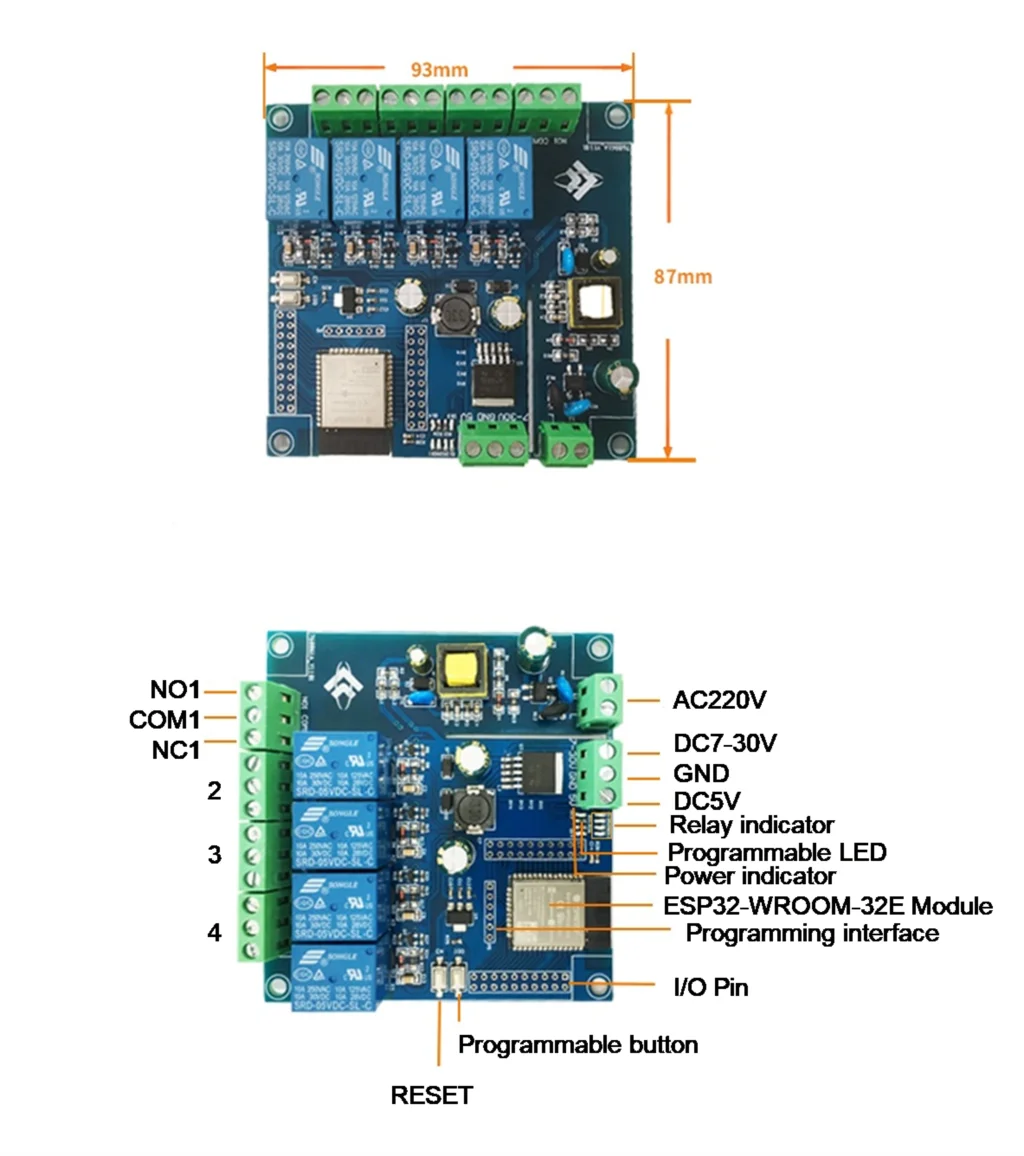

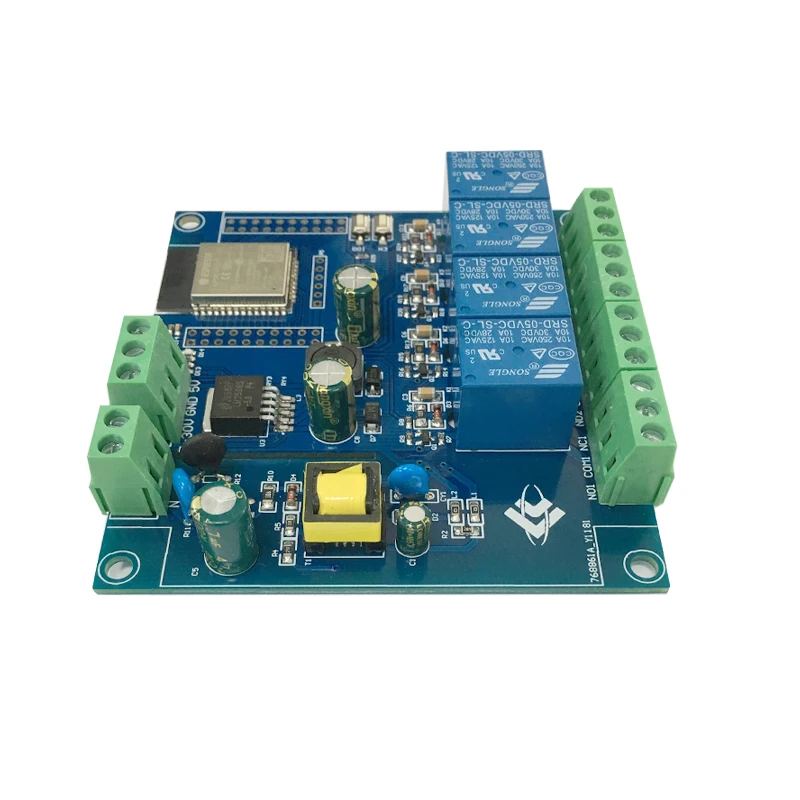

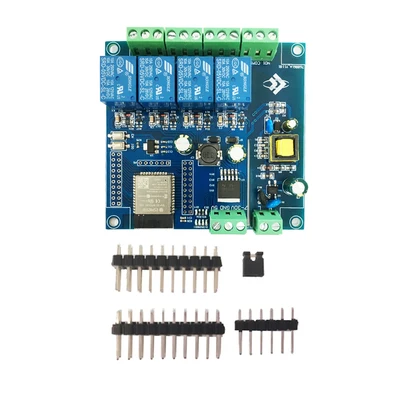

4. 4 Channel ESP32 Relay Module
Voltage: AC220V/DC5-30V
Board size: 93*87mm
Board size: 93*87mm

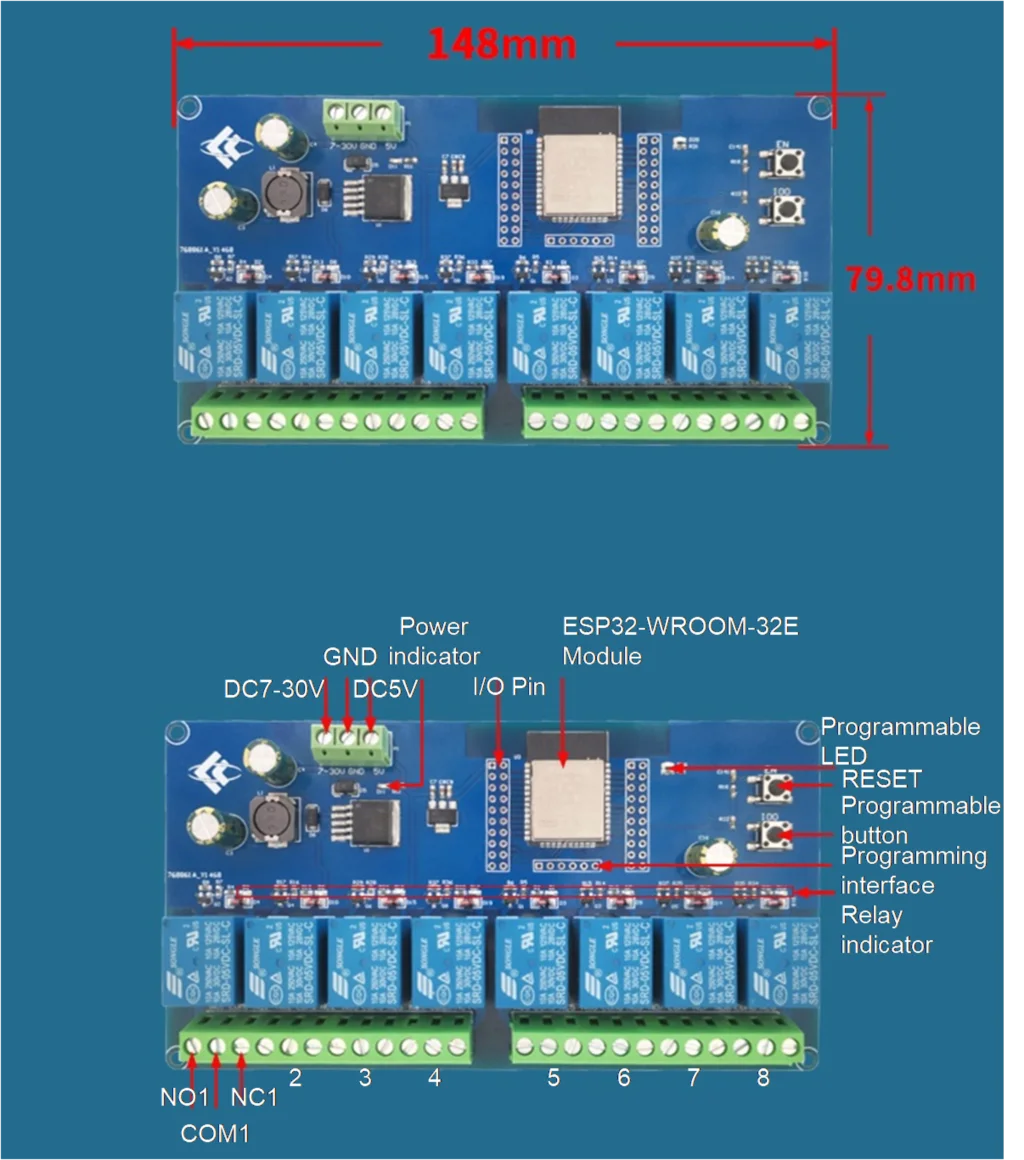

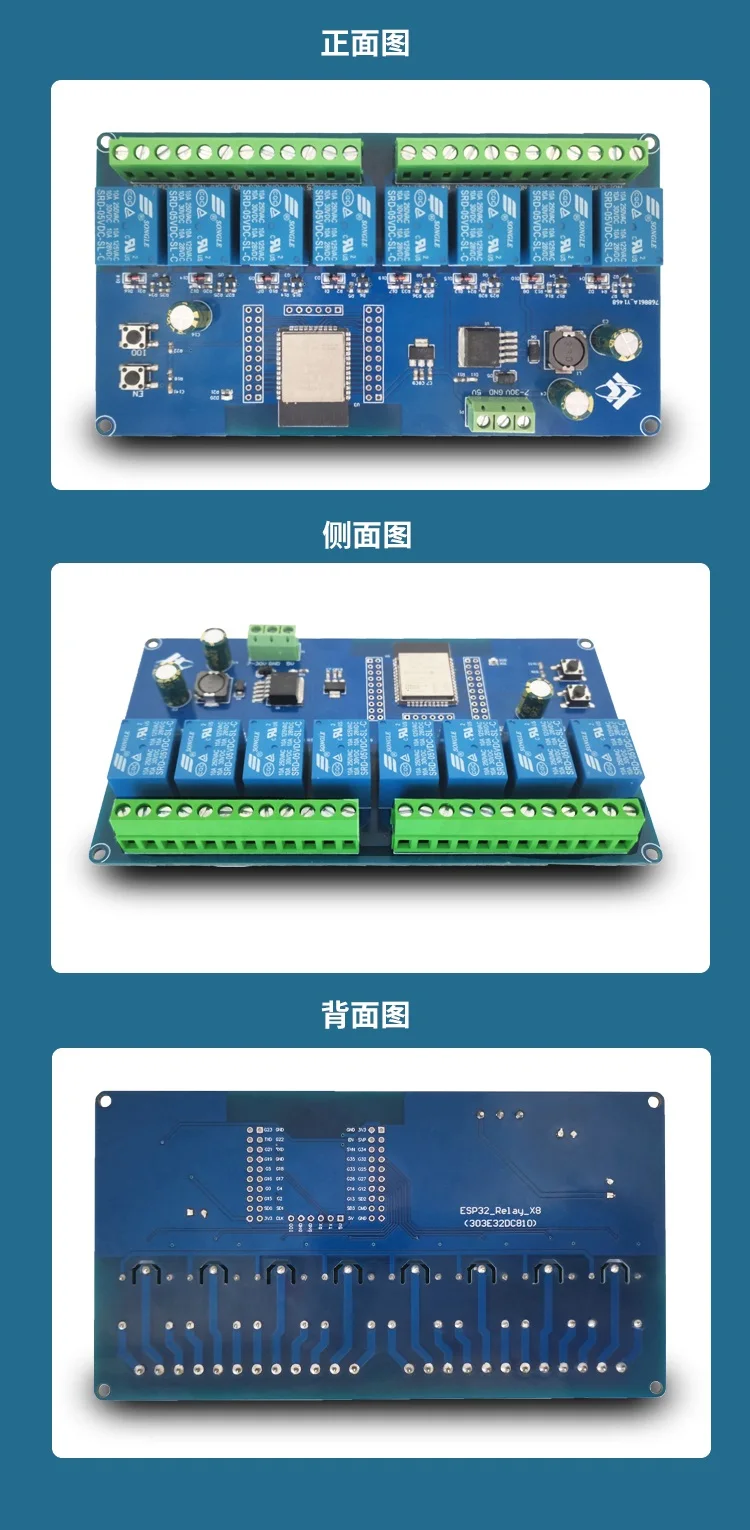

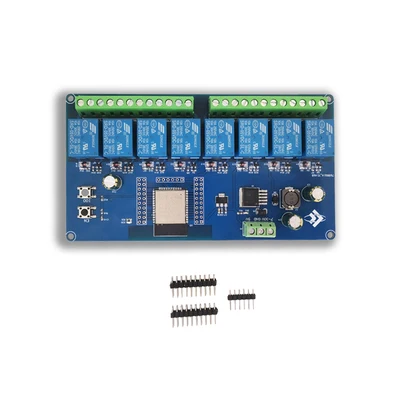

5. 8 Channel ESP32 Relay Module
Voltage: DC5V/DC7-30V
Board size: 148*79.8mm
Board size: 148*79.8mm
