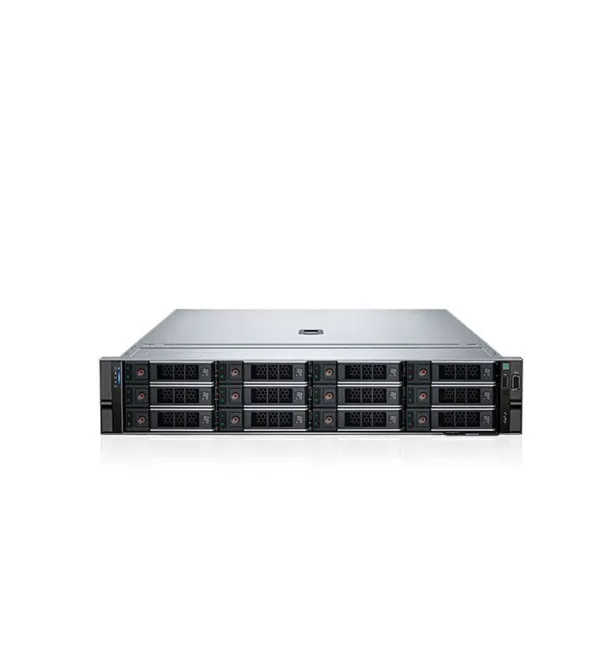

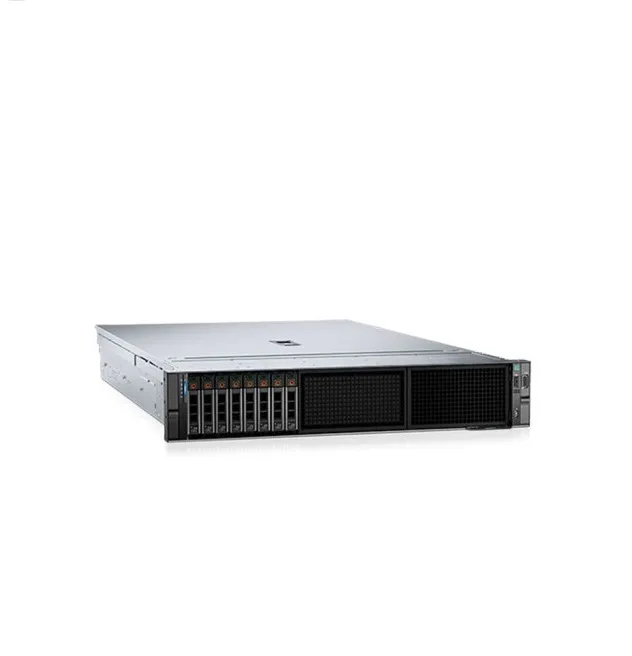

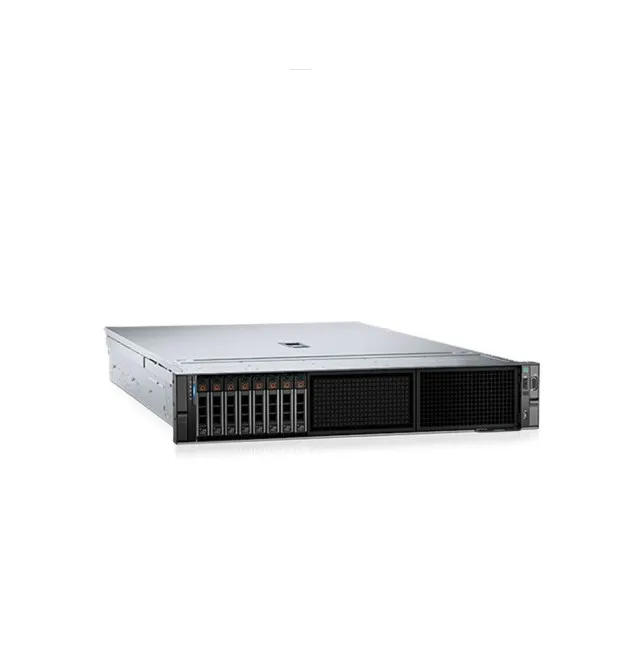

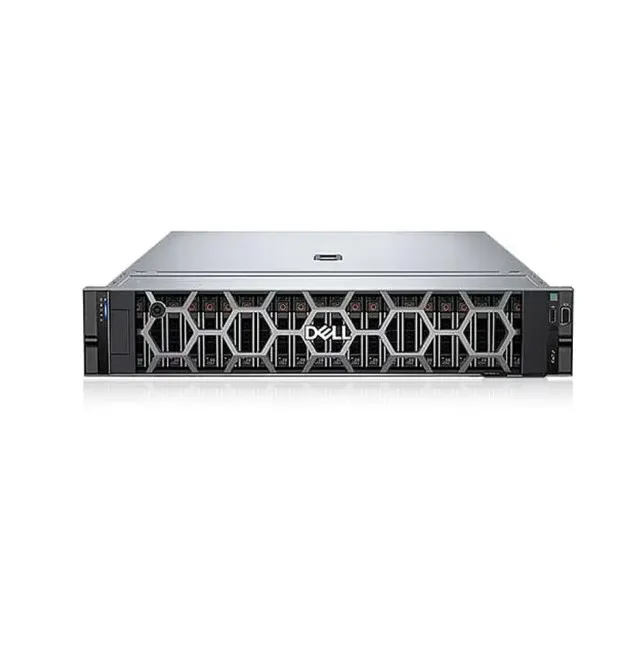

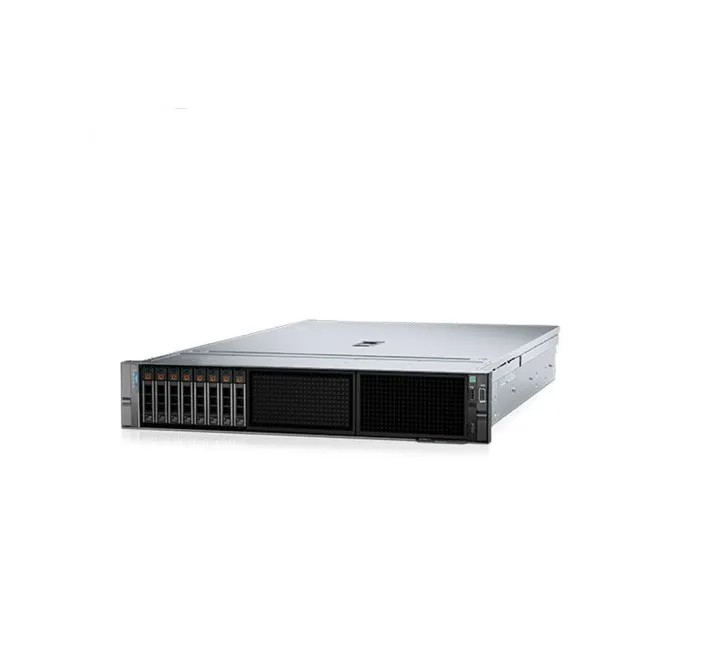

DeII PowerEdge Rack Servers R760 R660 R7625 R6625 R7615 R6615 R660xs R760xs a server memory server rack



Product Description














































































































Feature


Technical Specifications


Processor


Up to two 4th Generation Intel Xeon Scalable processor with up to 32 cores per processor


Memory


• 16 DDR5 DIMM slots, supports RDIMM 1 TB max, speeds up to 4800 MT/s, supports registered ECC DDR5 DIMMs only


Storage controllers


• Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs or USB
• External HBA (non-RAID): HBA355e; Software RAID: S160


GPU Options


2 x 75 W SW, LP


Drive Bays


Front bays: • 0 drive bay • Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB •
Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 121.6 TB • Up to 16 x
2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/ SSD) max 244.48 TB


Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB (supported only with 12 x 3.5-inch SAS/SATA HDD/SSD
configuration)


Hot swap Redundant Power Supplies


• 1800 W Titanium 200—240 VAC or 240 HVDC
• 1400 W Platinum 100—240 VAC or 240 HVDC
• 1100 W Titanium 100—240 VAC or 240 HVDC
• 1100 W LVDC -48 — (-60) VDC


• 800 W Platinum 100—240 VAC or 240 HVDC,
• 700 W Titanium 200—240 VAC or 240 HVDC
• 600 W Platinum 100—240 VAC or 240 HVDC


Cooling Options


• Air cooling


Fans


• Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans, Up to 6 hot swappable fans


Dimensions and Weight


Height – 86.8 mm (3.41 inches)
• Width – 482 mm (18.97 inches)


Depth – 707.78 mm (27.85 inches) – without bezel 721.62 mm (28.4 inches) – with bezel
• Weight – Max 28.6 kg (63.0 lbs.)


Form Factor


2U rack server


Embedded Management


iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish


• iDRAC Service Module • Quick Sync 2 wireless module


Bezel


Optional LCD bezel or security bezel


OpenManage Software


• CloudIQ for PowerEdge plug in
• OpenManage Enterprise
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center


• OpenManage Integration with Windows Admin Center
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin


Mobility


OpenManage Mobile


OpenManage Integrations


• BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow


• Red Hat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager


Security


• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secure Erase


• Secured Component Verification (Hardware integrity check)
• Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ


Embedded NIC


2 x 1 GbE LOM


Network options


1 x OCP card 3.0 (optional)


Ports


Front Ports:
• 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA Internal Ports: 1 x USB 3.0 (optional)


Rear Ports
• 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x VGA, 1 x Serial (optional)


PCIe


• 1 CPU Configuration: Up to 4 PCIe slots (2 x8 Gen5, 1 x16 Gen4, 1 x8 Gen4)
• 2 CPU configuration: Up to 6 PCIe slots (2 x16 Gen5, 3 x16 Gen4, 1 x8 Gen4)


Operating System and Hypervisors


• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server


• VMware ESXi
• Canonical Ubuntu Server LTS For specifications and interoperability details, see Dell.com/OSsupport








Certifications



Beijing Guangtian Runze Technology Co., Ltd. was established in March 2012, with a registered capital of 20 million yuan. Mainly engaged in the sale of the full range of DELL products and after-sales service, after years of continuous efforts the company has developed into, with more than 100 channel sales and after-sales service personnel, the channel throughout North China and the surrounding markets. Subsequently, the company acted as an agent for Lenovo and Wave, Huawei, Super Fusion, H3C, HPE and other
brands to further broaden the marketing channels and increase the competitiveness of the market, the company after more than a decade of efforts to develop, has accumulated a wealth of management experience and market development capabilities, the establishment of a perfect sales channel. The product line operated by the rich, covering a wide range, involving desktop computers, notebook computers, servers, network products, storage products, software, peripherals and hundreds of other kinds. Over the years,we also have provided a variety of information technology solutions for government agencies, education,enterprises, finance, post and telecommunications, the military, medical and many other industries, in line with the customer-centric, customer-first core philosophy, to create customized solutions for customers. We have accumulated rich industry experience in demand analysis, technical proof, equipment selection, network implementation, quality assurance, operation and maintenance, service support and other aspects, and is well received by customers, and is determined to build the enterprise into an excellent IT service provider in China.



The cooperation unit


Product packaging


Logistics and transportation


Certifications


FAQ

1. who are we?
We are based in Beijing, China, start from 2012,sell to Oceania(20.00%),South America(20.00%),North America(20.00%),Mid East(10.00%),Central America(10.00%),Southeast Asia(9.00%),Eastern Asia(8.00%),Western Europe(2.00%),Africa(1.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Server,Storage,Workstations,Memory,Hard Disk

4. why should you buy from us not from other suppliers?
Beijing Guangtian runze Technology Co., Ltd., a branch of Beijing JinMa Time Technology Co., LTD was established in 2012 and has been continuously developing and innovating since its establishment for 10 years. We have the qualification of central procurement, central direct and Beijing government procurement, providing equipment procurement, system integration and maintenance services for customers.

5. what services can we provide?
Accepted Delivery Terms: null;
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
