Сверхмощный 3-осевой Самосвал полуприцеп 45 60 кубических метров самосвал задний
- Категории: Truck Trailers >>>
- Поставщик: Shandong,Liangshan,County,Eurasia,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product parameters
★High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.
★The most skilled workers make welding of this dump trailer more frequent and strong.
★Dump box dimensions , box thickness,hydraulic cylinder and optional accessories(two pieces spare tire carriers, water tank, fuel tank, etc.) are all cutomised by different cargo needs which build modern transportation.
★The most skilled workers make welding of this dump trailer more frequent and strong.
★Dump box dimensions , box thickness,hydraulic cylinder and optional accessories(two pieces spare tire carriers, water tank, fuel tank, etc.) are all cutomised by different cargo needs which build modern transportation.
Application | Transport all kinds of Mineral/Coal/Stone/Sand/Cargo Loading | |||||||
Model | 2 axles tipper trailer | 3 axles tipper trailer | 4 axles tipper trailer | 5 - 6 axles tipper trailer | ||||
Bucket capacity | 25 cubic meters | 30/35/40 cubic meters | 40 cubic meters | 45 cubic meters | ||||
Dimension （mm） | 8500*2500*3500 | 10000x2500x3800 | 10500*2500*3900 | 11500*2500*3950 | ||||
Rim and tires | 12.00R22.5 tires | 12.00R22.5 tires | 315/80R22.5 tires | 12.00R20 tires | ||||
9.0-22.5 rims | 9.0-22.5 rims | 9.0-22.5 rims | 9.0-20 | |||||
Lifting system | HYVA brand | HYVA brand | HYVA brand | HYVA brand | ||||
FE/FC type cylinders Diameter=191 mm | FE/FC type cylinders | FE/FC type cylinders | FE/FC type cylinders | |||||
Diameter=191 mm | Diameter=202 mm | Diameter=214 mm | ||||||
Tipping box | T700 / Hardox | |||||||
Main Beams | T700 / Q345B double plate | |||||||
Height:500mm | ||||||||
Upper Plate: 14mm | ||||||||
Middle Plate: 8mm | ||||||||
Lower Plate: 16mm | ||||||||
Axle | 13T/16T FUWA / BPW / OYAR Own Brand | |||||||
King Pin | JOST brand 2.0'' / 3.5'' bolt type king pin | |||||||
Landing Gear | 28T double speed JOST / JINHUA brand | |||||||
Suspension | Heavy duty mechanical suspension / Air bag / Bogies | |||||||
Pneumatic Braking System | WABCO RE 6 relay valve T30/30 air brake chamber | |||||||
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 (special for export market ) | |||||||
Light | LED light,24V,7ways(7 wire harness) | |||||||
Tool Box | steel/aluminum One piece,1m*0.5m*0.5m(Size can be choose freely) | |||||||
Painting | 1 coat of anticorrosive prime, 2coats of final paint | |||||||
Any parts fitted could according to clients request, contact us to get more. | ||||||||

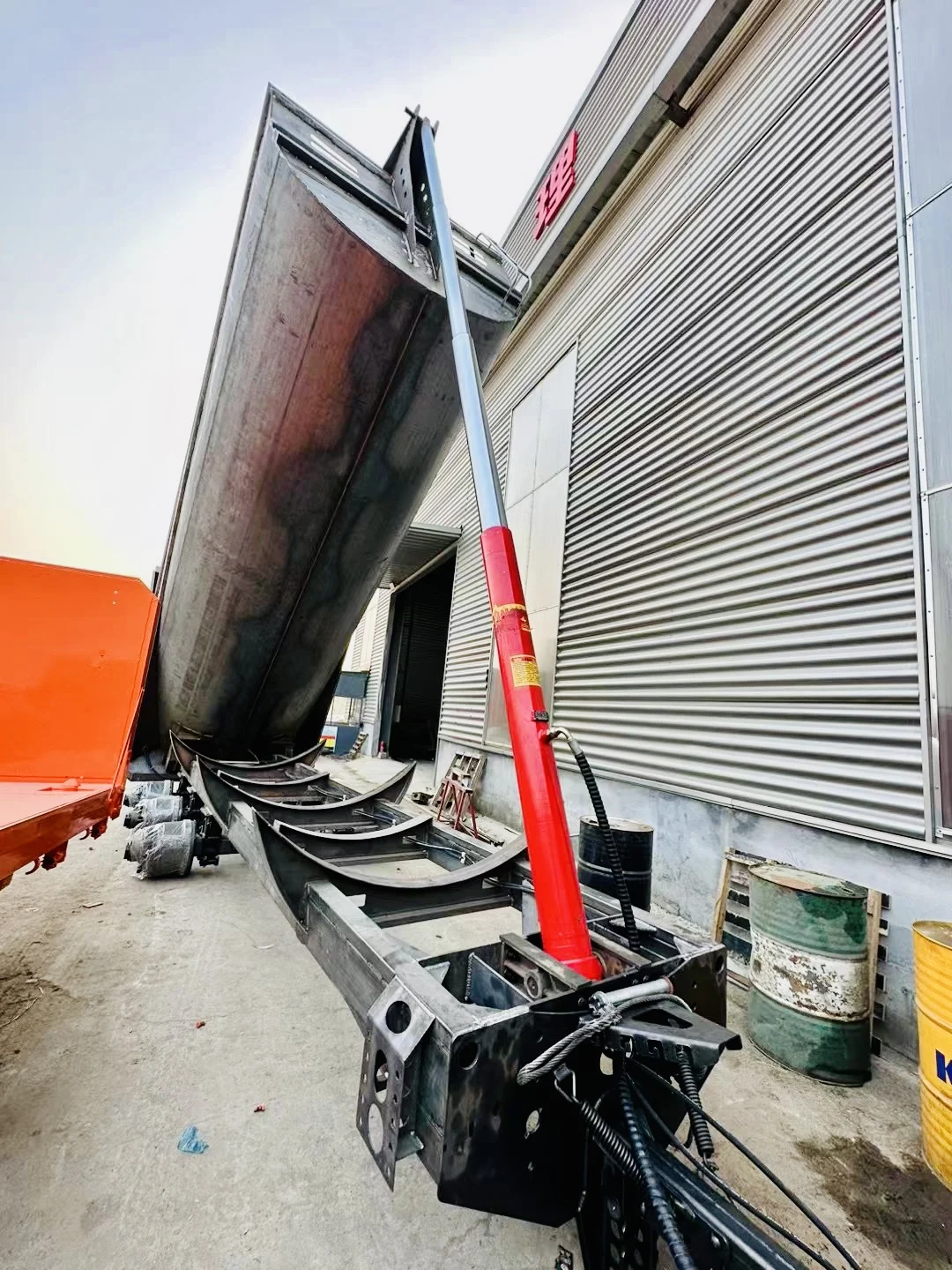

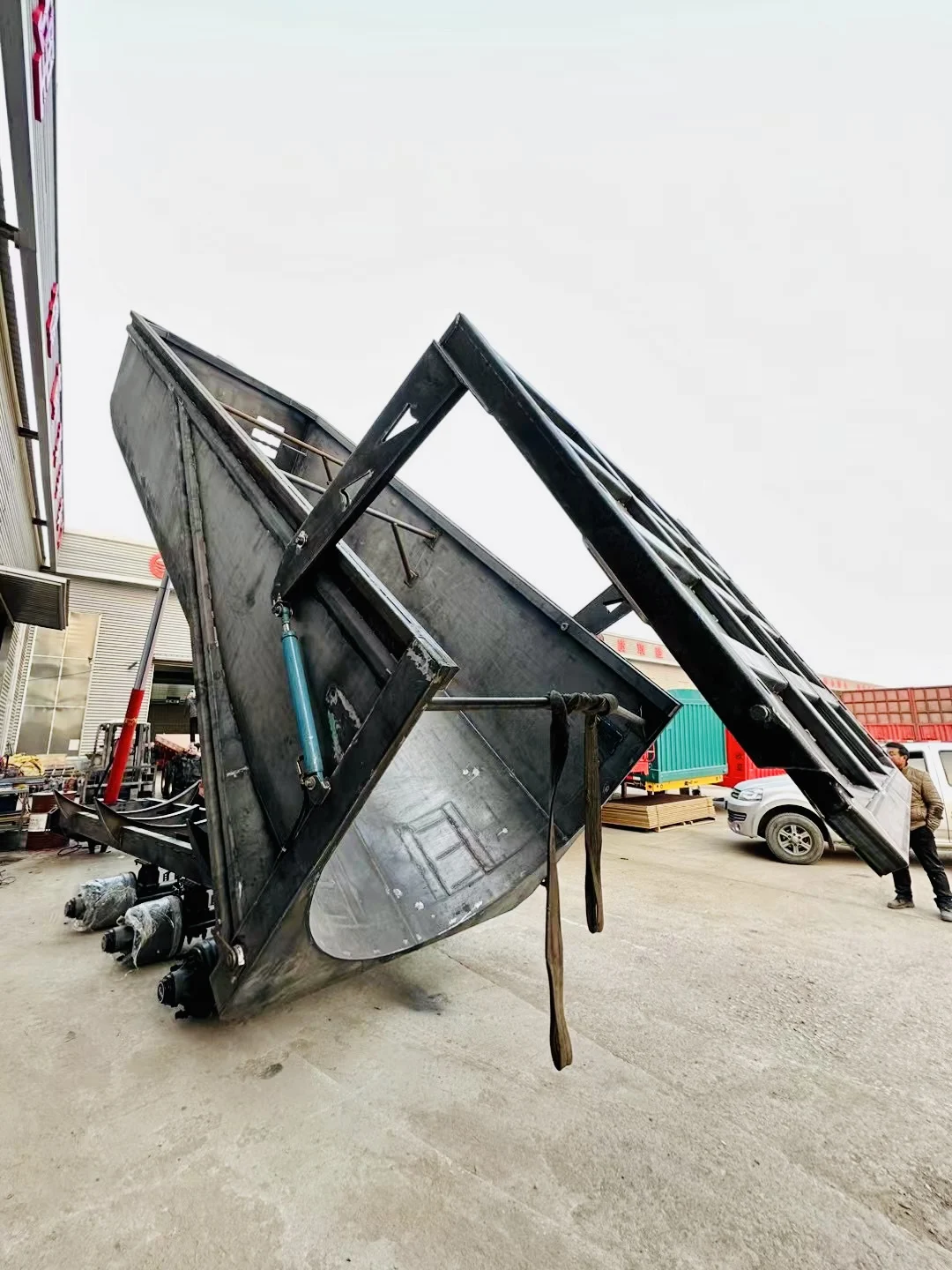

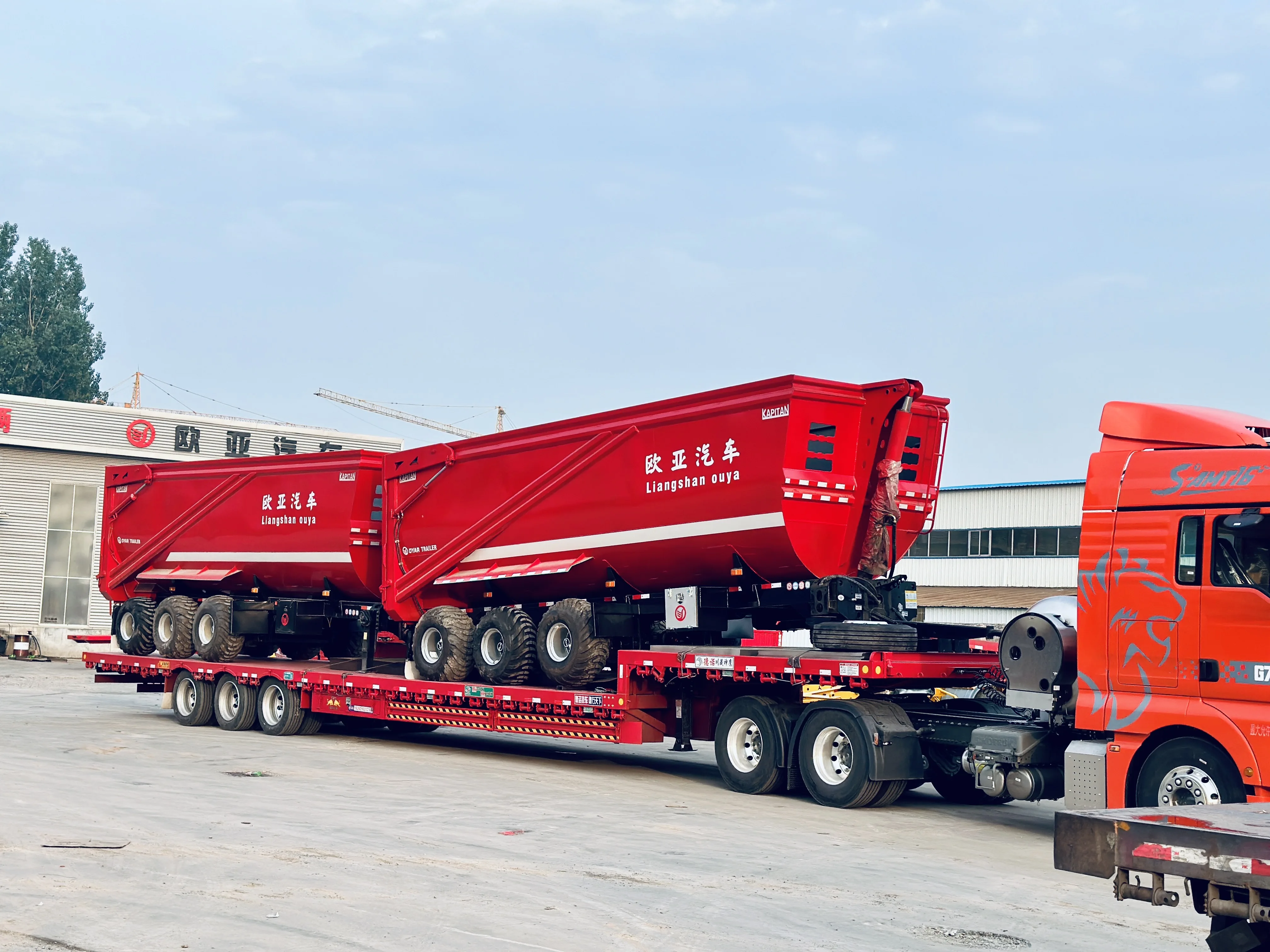

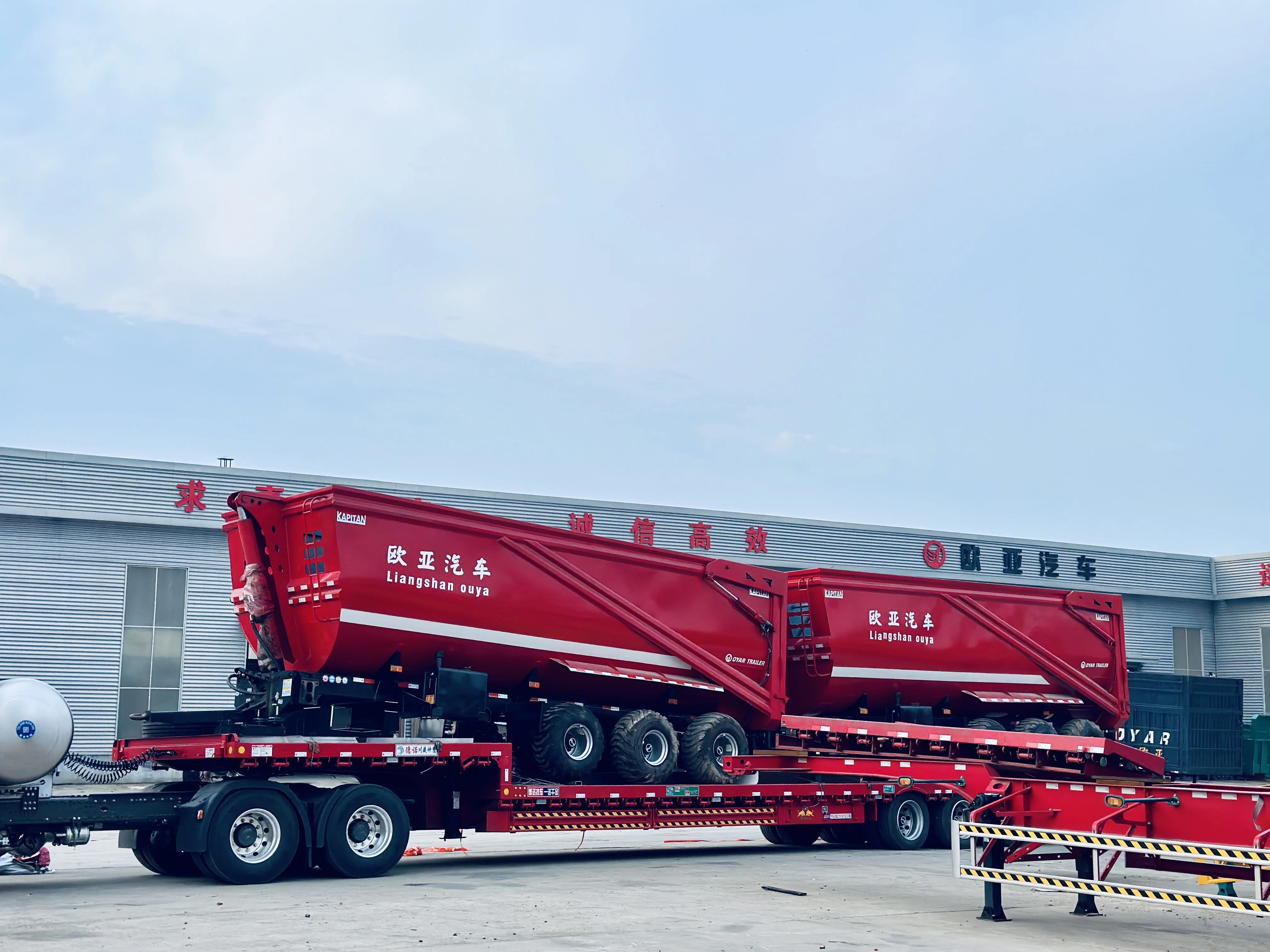

Product display

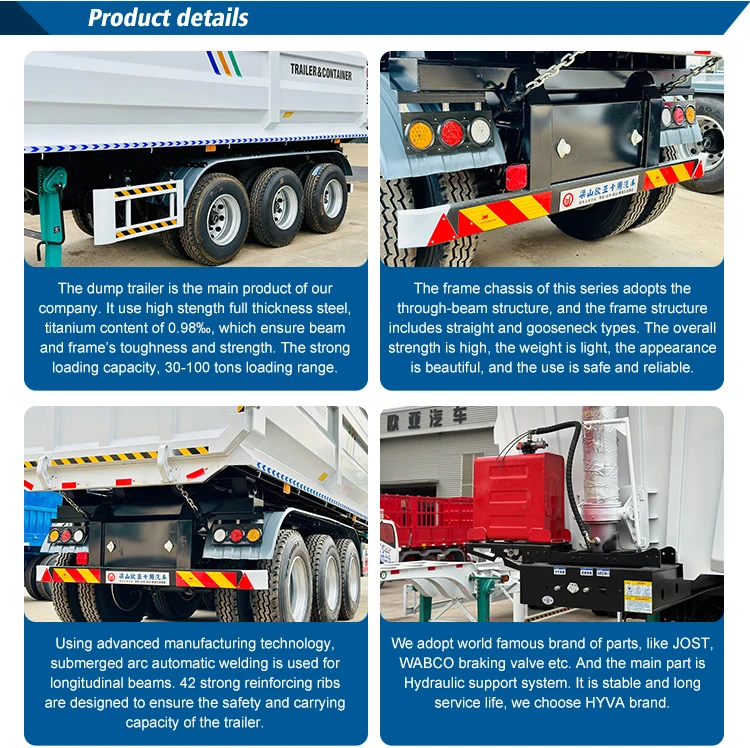

Product details
Packaging & Shipping
Our company
OUR TEAM
CERTIFICATES
FAQ
Q:Which payment terms can you accept?
A:Payment term is negotiable and there will be favorable payment terms for long-term customers. Tt, l/cd/p. Depending on the cooperation time country and contract walue.
Q:Whether you could make our brand on your products?
A:Yes. We can print your logo on both the products and the packages if you can meet our moq.
Q:Whether you could make your products by our color?
A:Yes, the color of products can be customized if you can meet our moq.
Q:Which countries do you export to?
A:Asia: India, thailand, burma, vietnam, bangladesh, kazakhstan, turkmenistan, etc. Middleeast: Saudi arabia, iran, uae. Jordan, oman, syria, pakistan, qatar, etc. Europe: Russia, ukraine.Belarus, bulgaria, etc.Africa: South africa, kenya, congo, ethiopia, nigeria, ghana,algeria, senegal，tunisia, etc.
Q:Why choose us?
A1.We offer a diverse range of trailer types to cater to various customer needs. From flatbed trailers to enclosed trailers and specialized trailers, we have a comprehensive selection to accommodate different cargo requirements.
A2.While delivering top-quality trailers, we strive to maintain competitive pricing in the market.
A3.We have high-quality products, we pay attention to the quality and durability of trailers, using high-quality materials and advanced manufacturing processes to ensure that the trailers we produce have excellent quality standards and long life.
A:Payment term is negotiable and there will be favorable payment terms for long-term customers. Tt, l/cd/p. Depending on the cooperation time country and contract walue.
Q:Whether you could make our brand on your products?
A:Yes. We can print your logo on both the products and the packages if you can meet our moq.
Q:Whether you could make your products by our color?
A:Yes, the color of products can be customized if you can meet our moq.
Q:Which countries do you export to?
A:Asia: India, thailand, burma, vietnam, bangladesh, kazakhstan, turkmenistan, etc. Middleeast: Saudi arabia, iran, uae. Jordan, oman, syria, pakistan, qatar, etc. Europe: Russia, ukraine.Belarus, bulgaria, etc.Africa: South africa, kenya, congo, ethiopia, nigeria, ghana,algeria, senegal，tunisia, etc.
Q:Why choose us?
A1.We offer a diverse range of trailer types to cater to various customer needs. From flatbed trailers to enclosed trailers and specialized trailers, we have a comprehensive selection to accommodate different cargo requirements.
A2.While delivering top-quality trailers, we strive to maintain competitive pricing in the market.
A3.We have high-quality products, we pay attention to the quality and durability of trailers, using high-quality materials and advanced manufacturing processes to ensure that the trailers we produce have excellent quality standards and long life.
