M20 PG21 PG9 PG7 PG CE IP68 водонепроницаемый из нержавеющей стали металлические серии G электрические кабельные сальники SS
- Категории: Cable Glands >>>
- Поставщик: Wenzhou,Dingzan,Import,And,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification

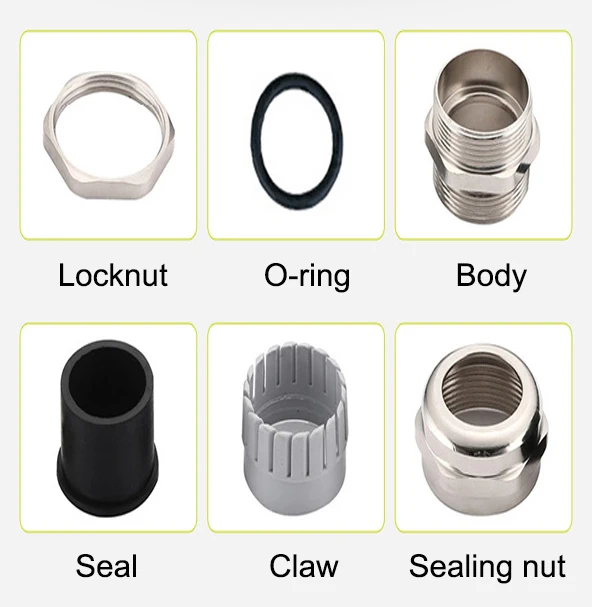

Main Material: SS304 / SS316
Seal & O-ring: NBR
Claw: Plastic
Protection: IP68
Temperature: -40°C to 100°C, short time to 120°C
Thread Option: M / PG / NPT / G
Metric Thread | PG Thread | G Thread | NPT Thread | Cable Range(mm) | Thread Length(mm) |
M6x1 | 1-3.5 | 5 | |||
M8x1.25 | 2-5.5 | 5 | |||
M10x1.5 | 3-6.5 | 7 | |||
M12x1.5 | PG7 | G1/4 | NPT1/4 | 3-6.5 | 7 |
M14x1.5 | 4-8 | 7 | |||
M16x1.5 | PG9 | G3/8 | NPT3/8 | 4-8 | 8 |
M18x1.5 | PG11 | 5-10 | 8 | ||
M20x1.5 | PG13.5 | G1/2 | NPT1/2 | 6-12 | 8 |
M22x1.5 | PG16 | 10-14 | 8 | ||
M24x1.5 | PG19 | 10-14 | 9 | ||
M25x1.5 | PG21 | G3/4 | NPT3/4 | 13-18 | 9 |
M27x1.5 | 13-18 | 9 | |||
M28x1.5 | 13-18 | 9 | |||
M30x1.5 | 13-18 | 9 | |||
M32x1.5 | PG25 | 15-22 | 10 | ||
M33x1.5 | 15-22 | 10 | |||
M36x1.5 | PG29 | G1 | NPT1 | 18-25 | 10 |
M37x1.5 | 18-25 | 10 | |||
M40x1.5 | 22-30 | 11 | |||
M42x1.5 | 22-30 | 11 | |||
M47x1.5 | PG36 | G1 1/4 | NPT1 1/4 | 25-33 | 11 |
M48x1.5 | 25-33 | 11 | |||
M50x1.5 | PG42 | G1 1/2 | NPT1 1/2 | 32-38 | 12 |
M54x1.5 | 32-38 | 12 | |||
M56x1.5 | 32-38 | 12 | |||
M60x1.5 | PG48 | G2 | NPT2 | 37-44 | 13 |
M63x1.5 | 37-44 | 13 | |||
M64x1.5 | 37-44 | 13 | |||
M72x2 | PG63 | G2 1/2 | NPT2 1/2 | 42-52 | 15 |
M75x2 | 45-55 | 15 | |||
M80x2 | 50-62 | 18 | |||
M88x2 | G3 | NPT3 | 60-70 | 18 | |
M100X2 | 70-80 | 20 | |||
M110x2 | 80-90 | 20 | |||
M120x2 | 90-102 | 20 | |||
M125x2 | 98-108 | 24 | |||
M150x2 | 110-125 | 25 |

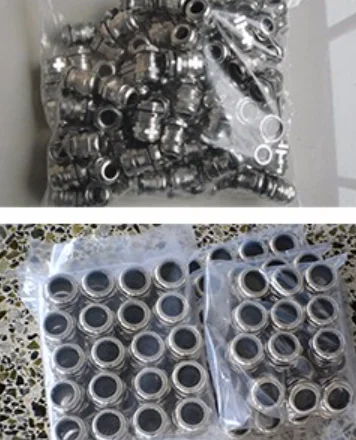

Packing & Delivery
