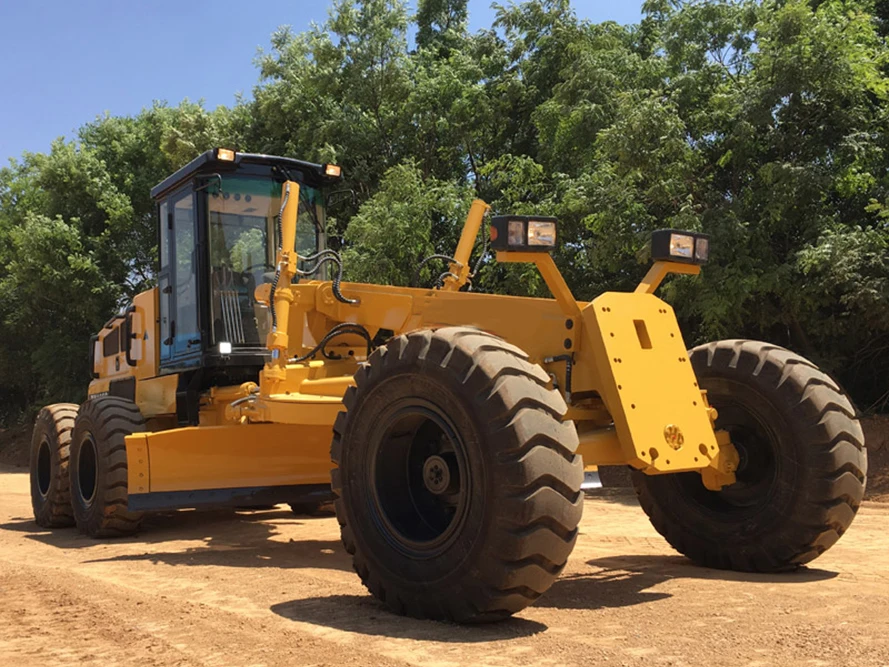

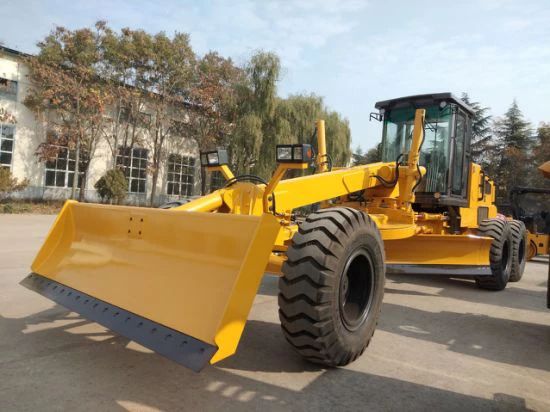

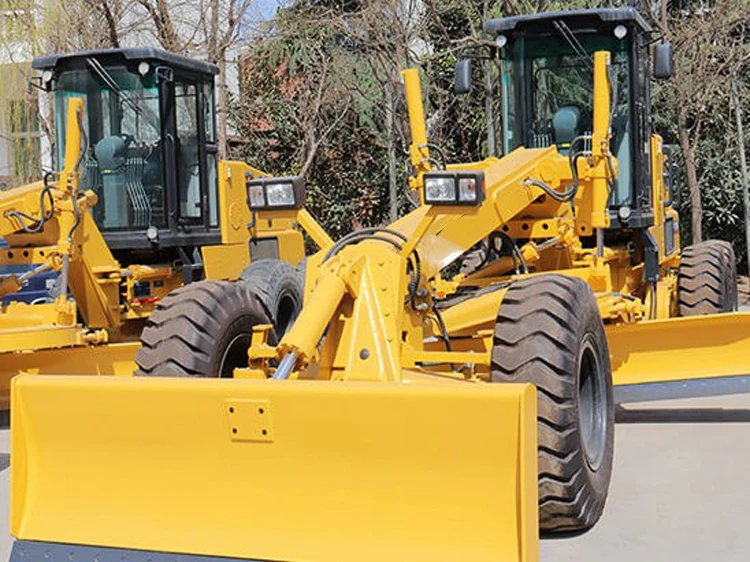

LUTONG лучшее качество 130HP мини-мотор грейдер PY130 с дистанционным
- Категории: >>>
- Поставщик: Liebty,Machinery,Technology,(Hangzhou),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
* Famous brand diesel engines turbocharged and water-cooled with reliable and powerful performance feature energy.
* Torque converter and power-shift gearbox introduced from GERMANY ZF inc. are integrated together. Six forward gears and three backward gears meet various requirements during machine’s working and transporting.
* Driving axle with integrated free-wheel anti-slip differential and b roller chain drive tandem case, Boxed oscillated steering front axle with leaned wheels.
* Popular working mechanism with pendulum-arm connecting rod structure, Standard equipped free-maintenance rolling-plate circle
device. Double cylinders of the blade tip control can adjust the cutting angle depending on soil quality.
device. Double cylinders of the blade tip control can adjust the cutting angle depending on soil quality.
* Steering system with center articulate joint and tilting turning front wheels can get offset travel of the entire machine.
Contact
sales Manager ：Marco Jiang
Whatsapp/wechat/mobile: +86 13868117431
E-mail: marco@liebty.com
Company :liebty Machinery Technology(Hangzhou) Co.,Ltd
Address: Room 208,Building 3, No.1866, Binxing Road, Changhe street,Bingjiang District,Hangzhou,Zhejiang,China
Specifications
L×W×H | 7900×2050×3200mm | |
Min.ground clearance of front axle | 450mm | |
Min.ground clearance of rear axle | 410mm | |
Wheel tread | 1590mm | |
Wheelbase(front/tear) | 6120mm | |
Engine | Model | YN48GBZ |
Type | Inline,water-cooled,four-stroke,direct injection | |
Rated power | 92kw | |
Engine displacement | 4.8L | |
Cylinder bore/stroke | 108mm/132mm | |
Min.fuel-consume ratio | ≤225g/(kw-h) | |
Transmission System | Max.speed(forward/reverse) | 40km/h 30km/h |
Gearbox type | Fixed shaft power stage | |
Torque converter | Single-stage single-phase three-element | |
Gears | Four forward four reverse | |
Overall Parameters | Overall weight | 7450kg |
Max.swing angle of front axle | ±16° | |
Max.steering angle of front wheel | ±45° | |
Blade size(length*height*thickness) | 3350×500×18mm | |
Blade plate diameter | 1250mm | |
Steering angle of articulated frame | ±23° | |
Steering angle of blade | 360° | |
Ground clearance of blade | 450mm | |
Cutting depth of blade | 260mm | |
Inclination angle of blade | Forward 47°/backward 5° | |
Sliding range of blade | Left 500mm/right 550mm | |
Hydraulic System | Type | Open-type system |
System pressure | 16MPa | |
Fill Capacity | Fuel | 105L |
Hydraulic oil | 75L | |
Transmission System | Tire type | 16/70-24 |
