Product Description

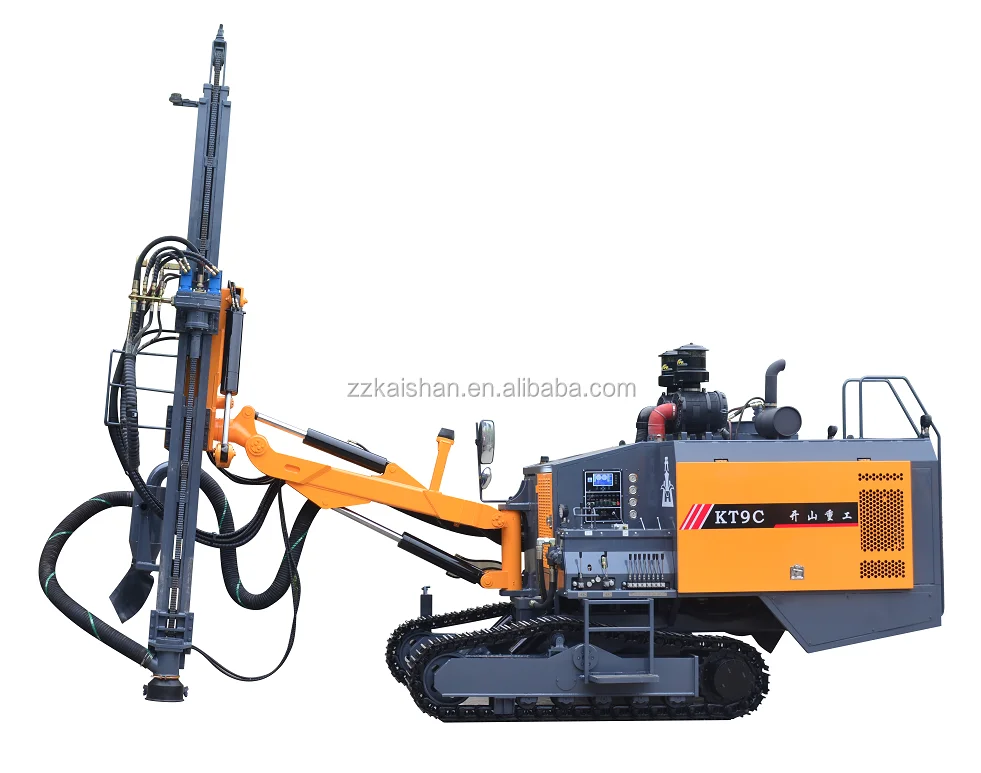

The KT9C integrated QUARRY MINE DRILLING RIG FOR BLASTING IN Kazakhstan Russia Uzbekistan This mine drill rig is an efficient, energy-saving advanced drilling device, oriented to the needs of medium and small open-cast- mining, quarry and infrastructur projects.

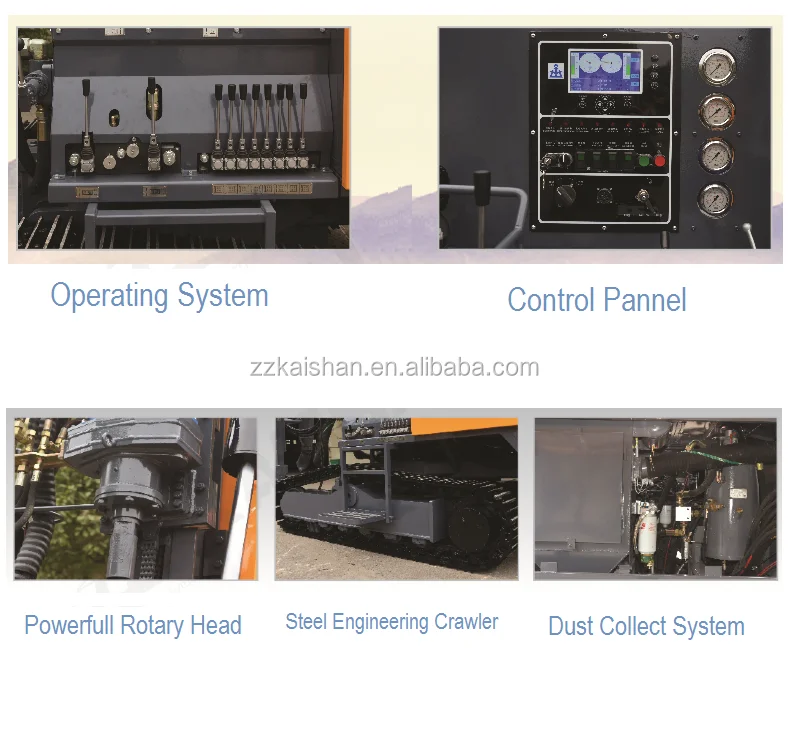

Detailed Images






Size Information


Model
KT9C MINE DRILLING RIG
Transport dimensions (L×W×H)
8100*2300*3000 mm
Weight
10800Kg
Rock hardness
f=6-20
/Drilling diameter
100-125mm
Ground clearance
430mm
Leveling angle of track
10°up, 10°down
Travelling speed
2.5/4Km/h
Climbing capacity
25°
Traction
32KN
Torque
2800Nm
Rotation speed
0-120rpm
Lifting angle of drill boom
Up 57°, down 20°
Swing angle of drill boom
Right 50°, left 18°
Swing angle of carriage
Right 95°, left 35°
Compensation stroke
1353mm
Feed stroke
4490mm
Maximum propelling force
25KN
Method of propulsion
Roller chain
Depth of economical drilling
28m
Specifications of drilling rod
Φ89x4000 mm
DTH hammer
K40
Engine
QSL8.3-C260-30 /Cummins QSL8.3-C260-30
Number of cylinders
6
Output power
194KW/205rpm
Air capacity
17m3/min
Air pressure
17Bar
Traveling control system
Hydraulic pilot
Drilling control system
Hydraulic pilot
Anti-Jamming
Automatic electro-hydraulic anti-Jamming
Voltage
24V, DC


Packing&Shipping




Recommend Products




Company Profile


Kaishan water well drilling rig is the largest water well drilling rig manufacturer in China. Kaishan water well drilling rig has complete vertical integration of production .Kaishan headquarters is located in Quzhou, Zhejiang Province,China, approximately 356 kilometers southwest of Shanghai, with its second largest manufacturing facility located in Shanghai, China. Kaishan Compressor currently has 3000 employees.
Specialized in Drilling rig and air compressor for many years.Sales Water well drill rig,Blasthole drill rig/quarry rock blasting Drilling equipment.Screw air comressor/Piston air comprssor,air tank for air compressor.jack hammers,hand rock drill.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.






Certificate




Exhibition






Customer praise




Packing And Shipping




FAQ


Q1: Are you a manufacturer?
A: Yes, we are a professional down the hole drill rig and top hammer drill rig manufacturer.
Q2: What does your company produce?
A: The main products of our company include blasting drilling rig,water well drilling rig and all kinds of air compressors.
Q3: How about your delivery time?
A: Normally the delivery time is about 7-15 days. For some special case, we can make it within 2 weeks, it depends on different products.
Q4: What methods of payment do you accept?
A: We accept T/T, L/C.
Q5: Do you offer any deals or discounts?
A: Yes, price depends on different quantity, different quantity will give you different price.
