90 м роторная буровая установка шахтная прямо с
- Категории: >>>
- Поставщик: Xuzhou,Hengxing,Jinqiao,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

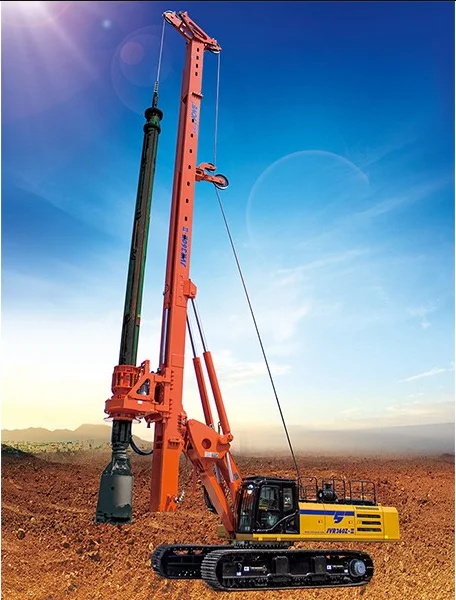

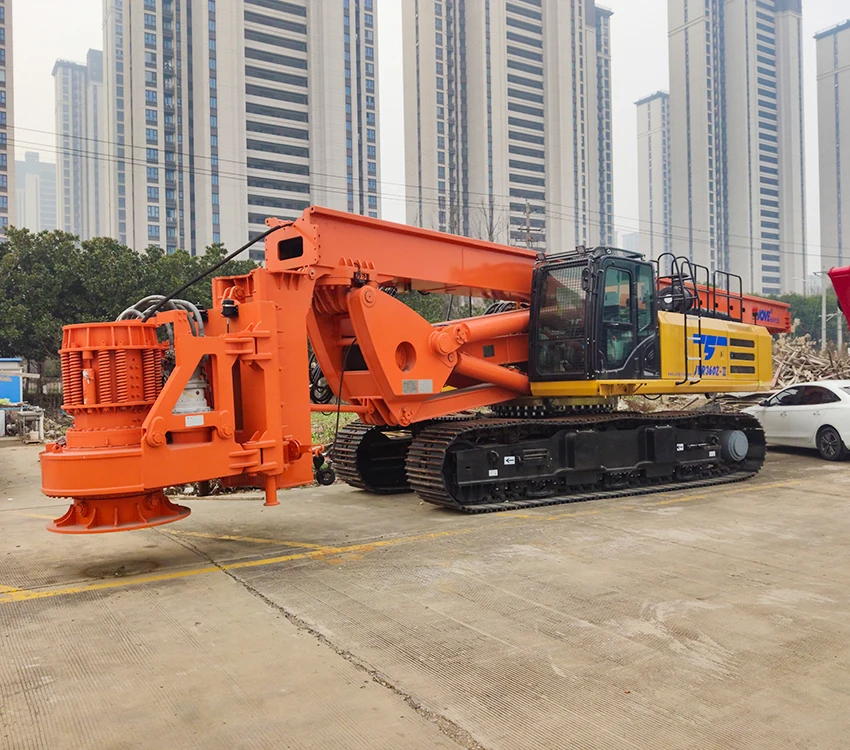

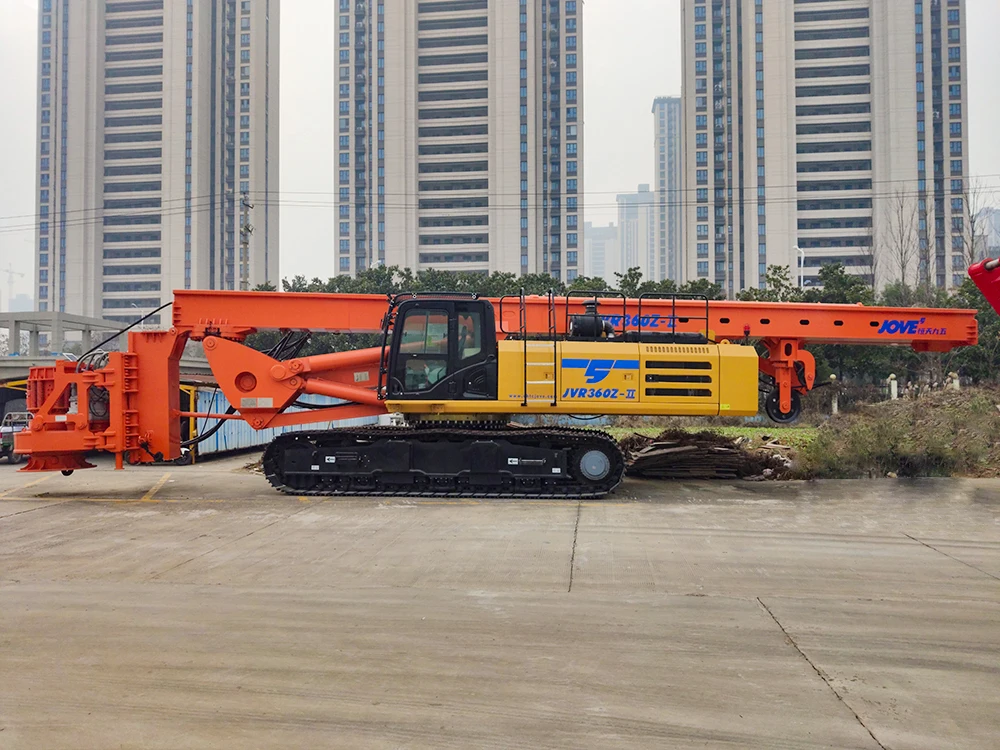

Product Show
Max. output torque（KN.m） | 360 |
Max. drilling depth（m） | 90 |
Max. drilling diameter（mm） | 2500 |
Engine power（KW） | 319 |
Main pump flow rate（L/min） | 2*288 |
Traction force（KN） | 549 |
Drilling speed(rpm) | 5-30 |
Max. crowd push force（KN） | 365/365 |
Stroke of sledge（mm） | 6200 |
Main winch pull(1st layer) | 320 |
Main winch wire rope dia.（mm） | Φ36 |
Max. main winch line speed（m/min） | 64 |
Overall width in drilling position（mm） | 4500/23930 |
Overall L/H/W transport position（mm） | 17062/3000/3600 |
17062/3000/3600 | 102 |
* The JVR360Z-II is ideal for construction in complex, hard formations
Company Profile
WHY CHOOSE US

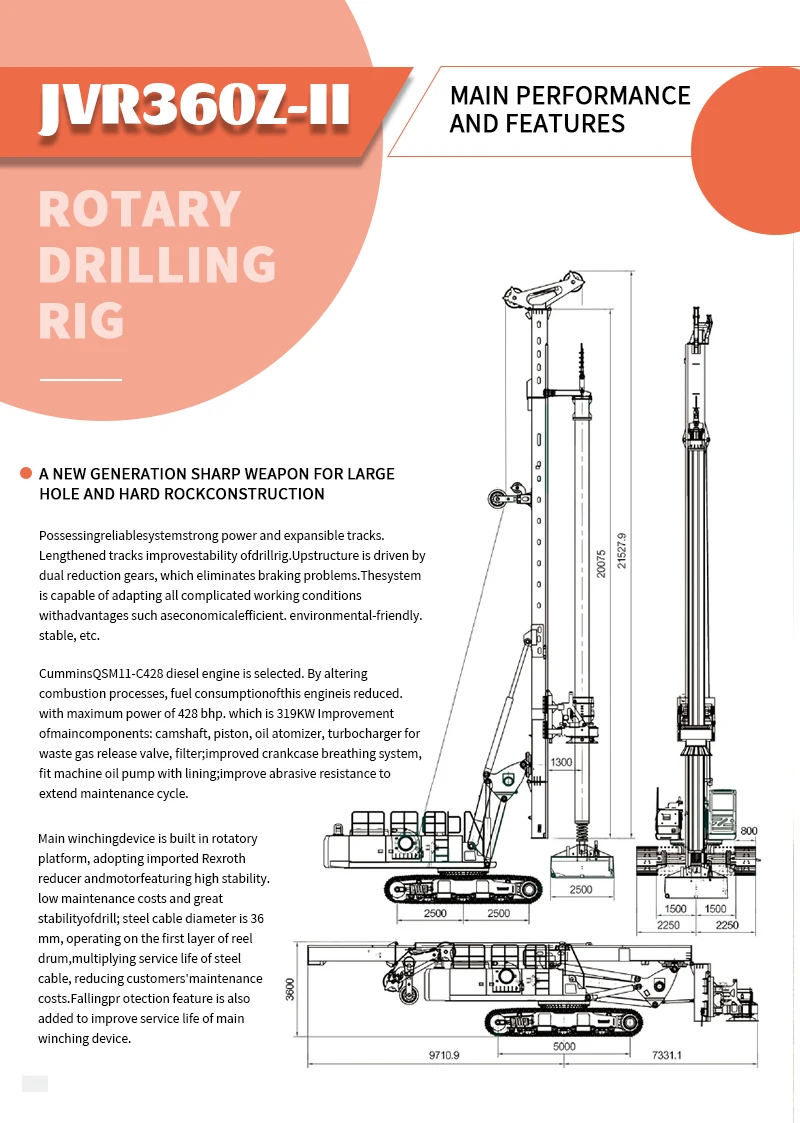

1.Possessing reliable system, strong power and expansible tracks. Lengthened tracks improve stability of drill rig. Up structure is
driven by dual reduction gears, which eliminates braking problems. The system is capable of adapting all complicated working
conditions, with advantages such as economical, efficient, environmental-friendly, stable, etc.
3.Main winching device is built in rotatory platform, adopting imported Rexroth reducer and motor, featuring high stability, low
driven by dual reduction gears, which eliminates braking problems. The system is capable of adapting all complicated working
conditions, with advantages such as economical, efficient, environmental-friendly, stable, etc.
2.Cummins QSM11-C428 diesel engine is selected. By altering combustion processes, fuel consumption of this engine is reduced, withmaximum power of 428 bhp, which is 319KW. Improvement of main components: camshaft, piston, oil atomizer, turbocharger for waste
gas release valve, filter; improved crankcase breathing system, fit machine oil pump with lining; improve abrasive resistance to
extend maintenance cycle.
gas release valve, filter; improved crankcase breathing system, fit machine oil pump with lining; improve abrasive resistance to
extend maintenance cycle.
3.Main winching device is built in rotatory platform, adopting imported Rexroth reducer and motor, featuring high stability, low
maintenance costs and great stability of drill; steel cable diameter is 36 mm, operating on the first layer of reel drum,
multiplying service life of steel cable, reducing customers' maintenance costs. Falling protection feature is also added to
improve service life of main winching device.
multiplying service life of steel cable, reducing customers' maintenance costs. Falling protection feature is also added to
improve service life of main winching device.

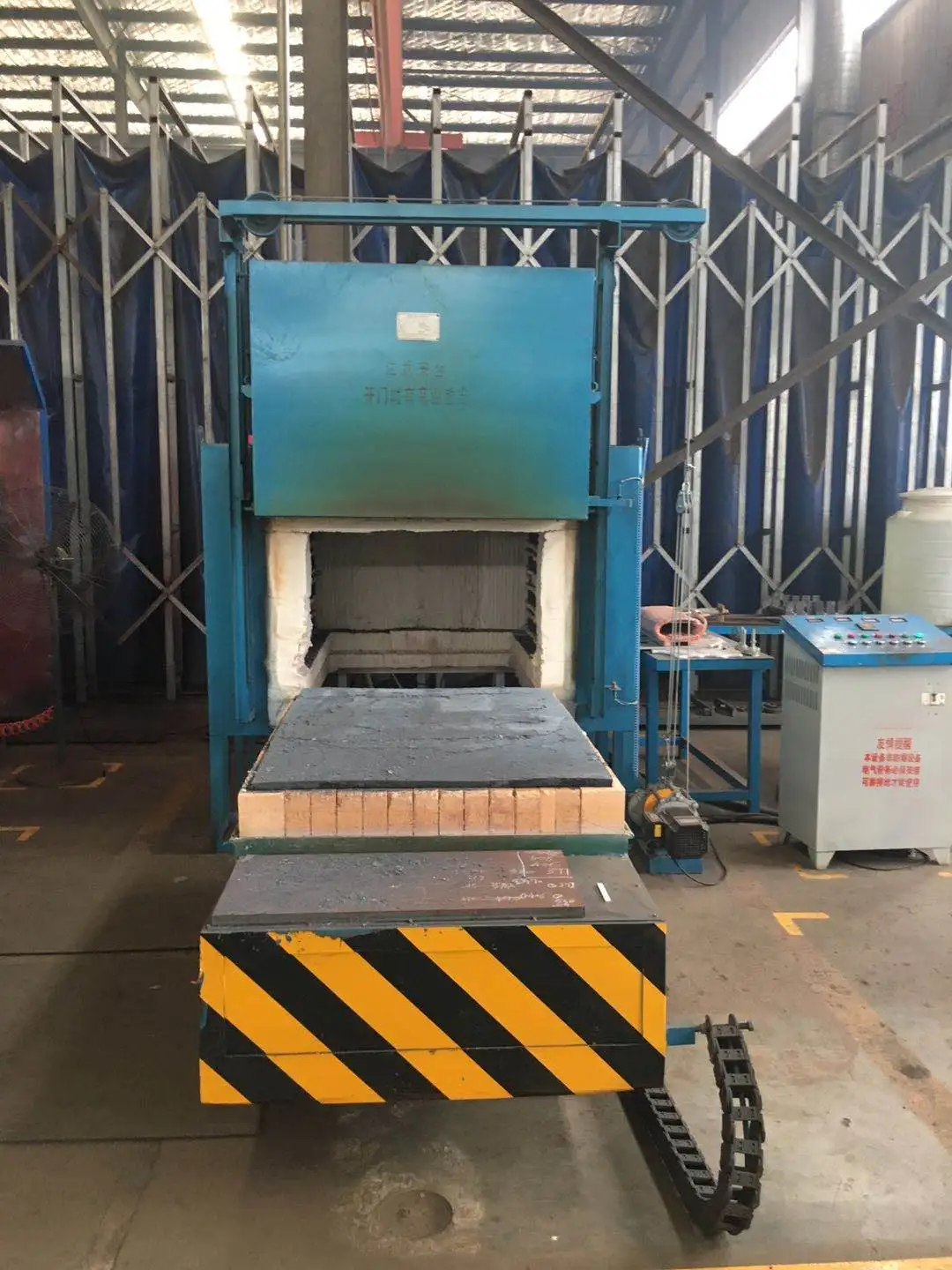

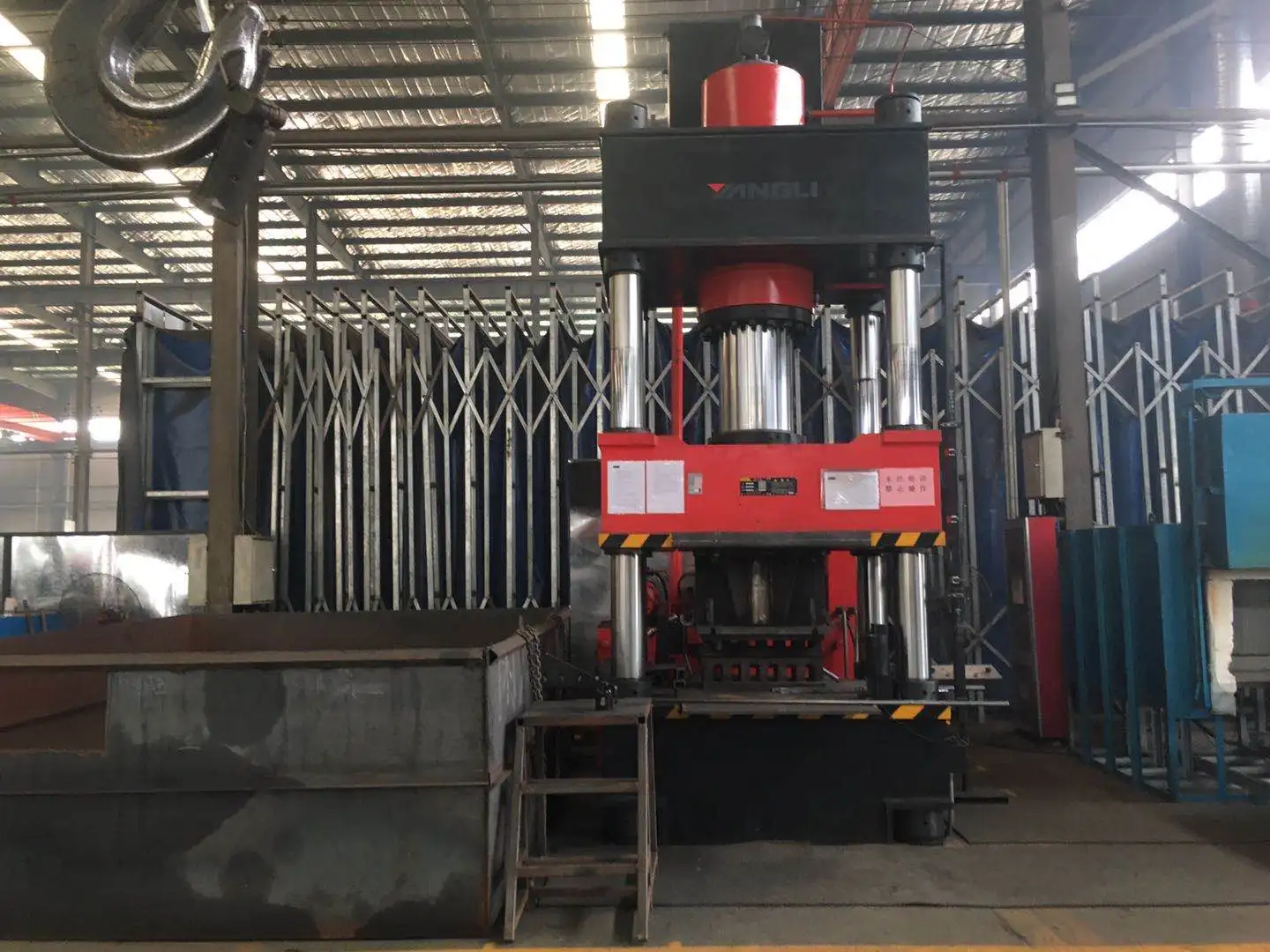

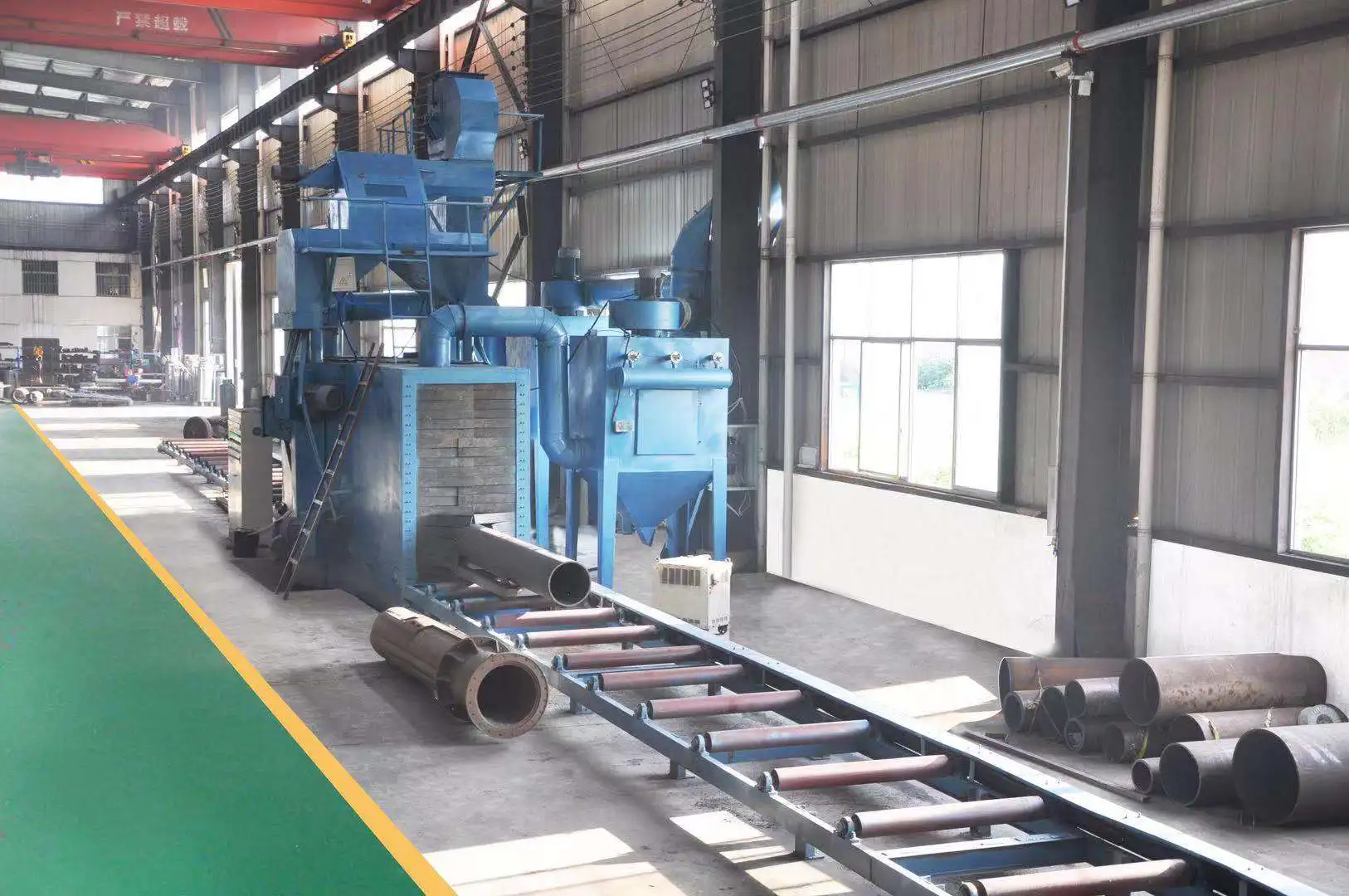

Equipment & Device

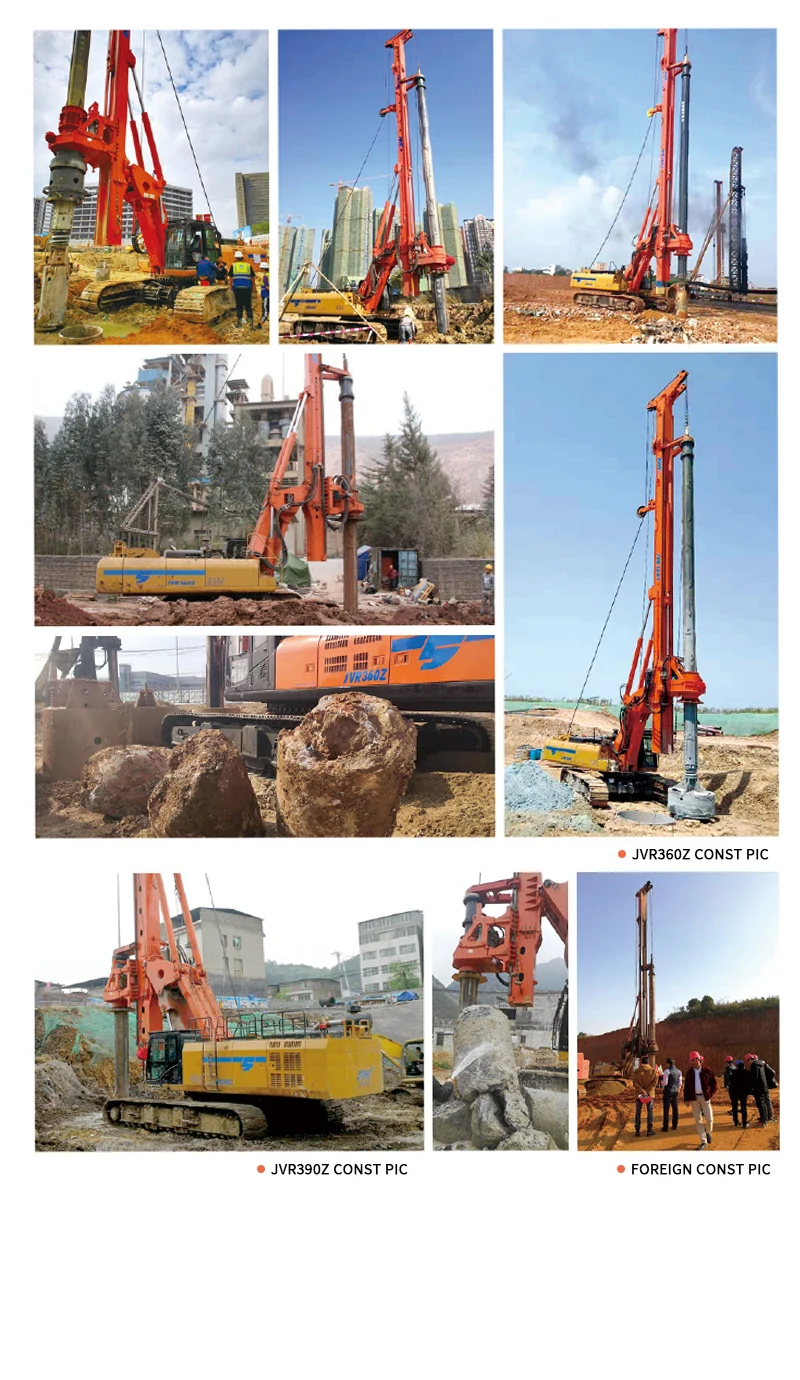

Feedback from Client

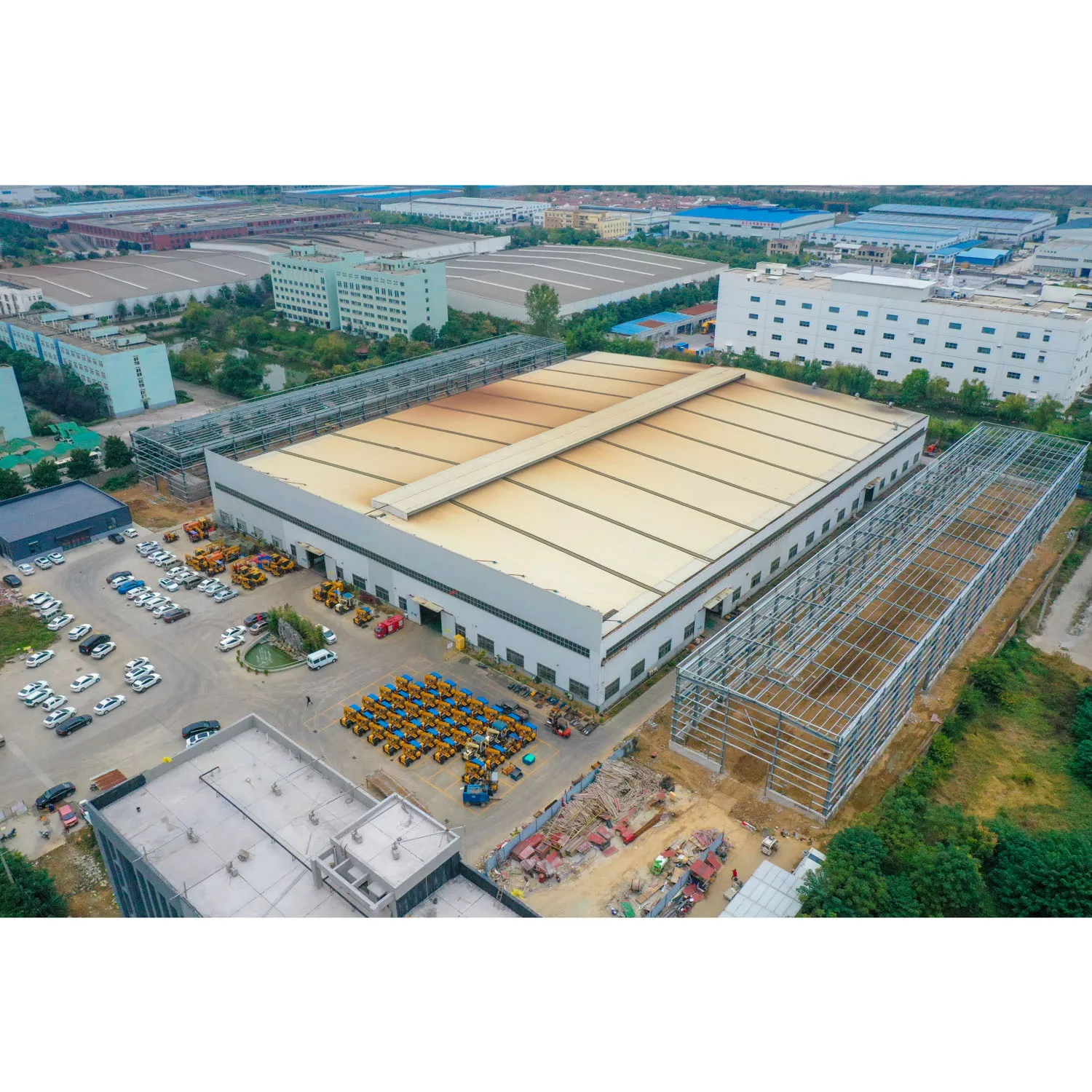

Company Profile
Xuzhou Hengxing Jinqiao Machinery Technology Co., Ltd
Xuzhou Hengxing Jinqiao Machinery Technology Co.. Ltd is a professional manufacturer of pile drive and kelly bars and drilling tools. located in Xuzhou city. established in 2005. covers an area of 40000 square meters. workshope 20000 square meters. more than 200 employees. passing ISO9001 standard and CE certificate. Our pile drivers includes HX26/36D, HXR526D/36D, truck mounted pile driver that is appliable for highway guardrail installation , solar/ photovoltaic (PV) power plant construction. Especially HXR5 series solar pile driver is popular and sold well in the world market. Our pile driver have been exported to Southeast, Middle East, Africa, Southeast and so on. We get compliment about our machine from client.
One of our company cultures is : Customer is first. we'll keep going forward to serve our client in all over the world.
Certificate & Exhibition
Sales Map
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2008,sell to Domestic Market(80.00%),Southeast Asia(5.00%),South Asia(3.00%),Africa(3.00%),South America(2.00%),Eastern Asia(2.00%),Mid East(2.00%),Oceania(1.00%),Central America(1.00%),Eastern Europe(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Kelly Bar/Construction Machinery Parts, Highway Guardrail Pile Driver/Solar Pile Driver, Piling Rig And Spare Parts
4. why should you buy from us not from other suppliers?
More than 10 years experience;
15 production line;
10 QC line;
European standard processing machine
5 advantages: site guidance service available, CE /ISO/Patents, convenient & cheap transportation,24 hours online service, design team 30+ people;
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Jiangsu, China, start from 2008,sell to Domestic Market(80.00%),Southeast Asia(5.00%),South Asia(3.00%),Africa(3.00%),South America(2.00%),Eastern Asia(2.00%),Mid East(2.00%),Oceania(1.00%),Central America(1.00%),Eastern Europe(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Kelly Bar/Construction Machinery Parts, Highway Guardrail Pile Driver/Solar Pile Driver, Piling Rig And Spare Parts
4. why should you buy from us not from other suppliers?
More than 10 years experience;
15 production line;
10 QC line;
European standard processing machine
5 advantages: site guidance service available, CE /ISO/Patents, convenient & cheap transportation,24 hours online service, design team 30+ people;
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
